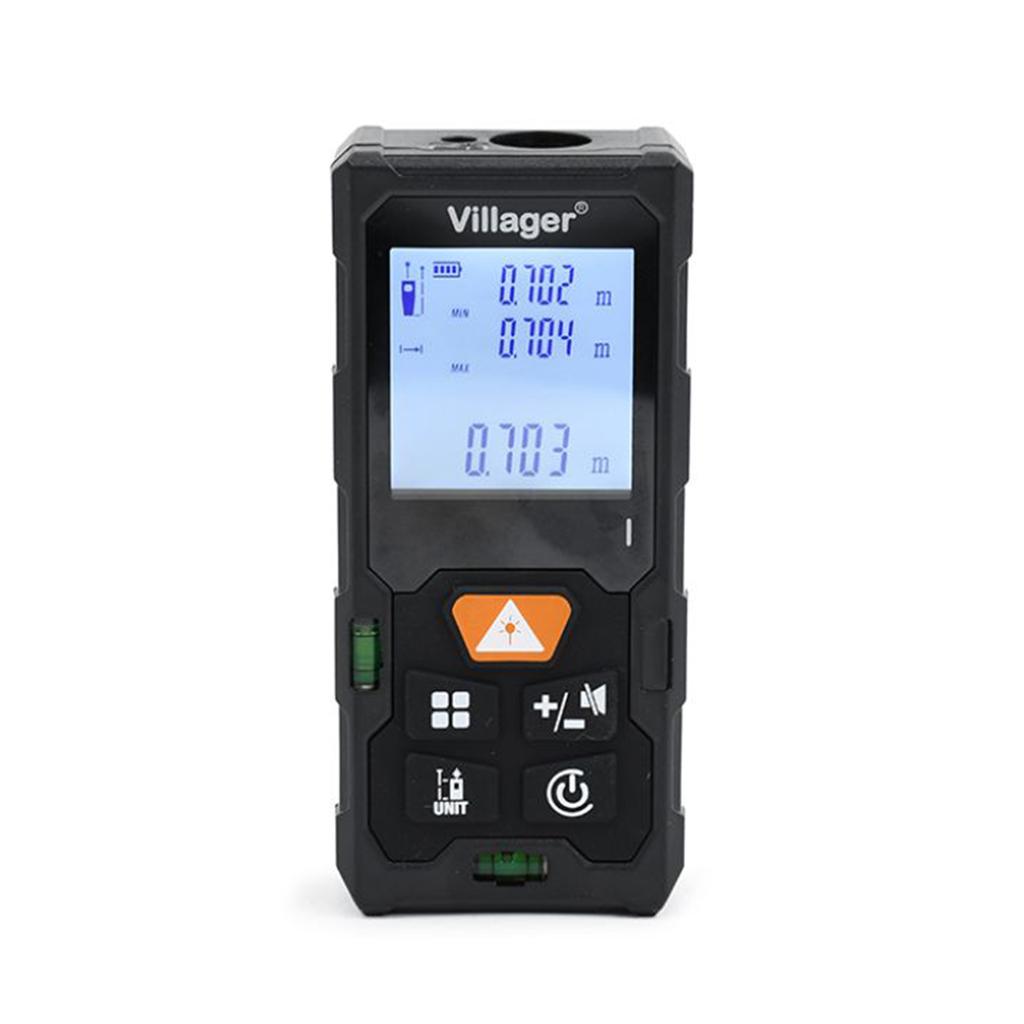

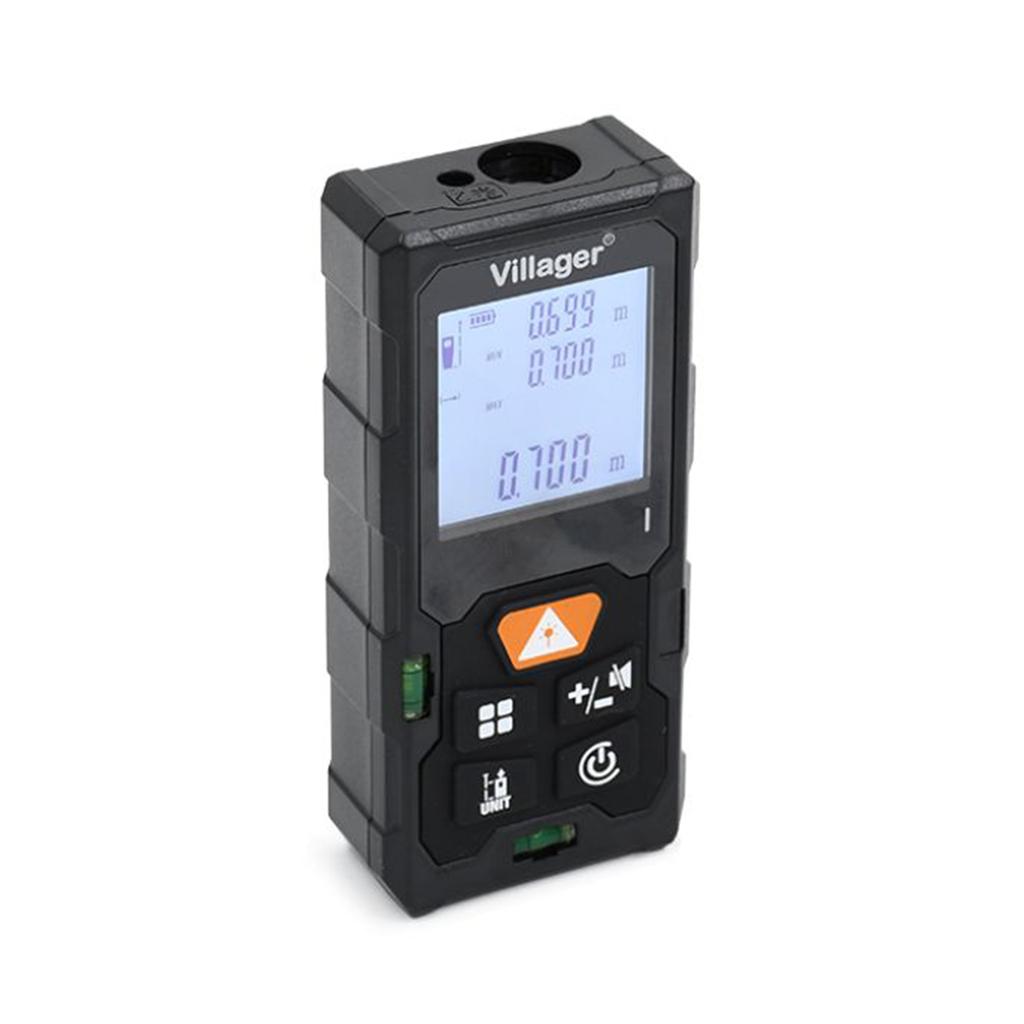

VILLAGER VLD-80 80 m Laser Rangefinder
VILLAGER VLD-80 is a compact laser rangefinder designed to measure distances in the range of 0.05 to 80 m. The device also allows you to calculate areas, volumes, and heights.
The rangefinder offers a memory for up to 99 results, continuous measurement with minimum and maximum value recording, and the ability to select a reference point on the front or back of the device.
• Range 0.05–80 m – allows you to perform measurements both in small rooms and at longer distances.
• Accuracy ±2 mm to 10 m – accuracy parameter provided by the manufacturer for shorter measurements.
• Accuracy ±3 mm above 10 m – parameter for measurements on longer distances. distances.
• Memory for 99 results – allows you to return to previously taken measurements.
• Area measurement – the device can automatically calculate the area based on the measurements taken.
• Volume measurement – allows you to calculate the cubic capacity of rooms and spaces.
• Height measurement – an additional function for performing more complex measurements.
• Continuous MIN/MAX measurement – allows you to track the minimum and maximum distance when moving the device.
• Front/back reference point – allows you to adjust the measurement method to the situation.
• Class 2 laser – the laser used has a wavelength of 620–690 nm and power below 1 mW.
• Power supply 2 × AAA – the device does not require a dedicated battery or charger.
• Weight 71 g – compact and lightweight design makes the rangefinder easy to carry.
Measurement from 0.05 to 80 m
The VILLAGER VLD-80 allows you to measure distances in the range of 0.05 to 80 m.
This allows it to be used, among others, when measuring rooms, walls, recesses and other spaces in assembly, renovation and finishing works.
For distances up to 10 m, the manufacturer states accuracy of ±2 mm.
For measurements above 10 m, the accuracy is ±3 mm under the conditions specified by the manufacturer.
Area, volume and height
The rangefinder is not limited to a single distance measurement. The device also allows you to calculate areas, volumes, and heights.
These functions can be useful when planning renovation, finishing, and assembly work that requires several related measurements.
Memory for 99 results
The VLD-80 can save up to 99 measurement results.
This allows you to review previous values without having to save them separately each time.

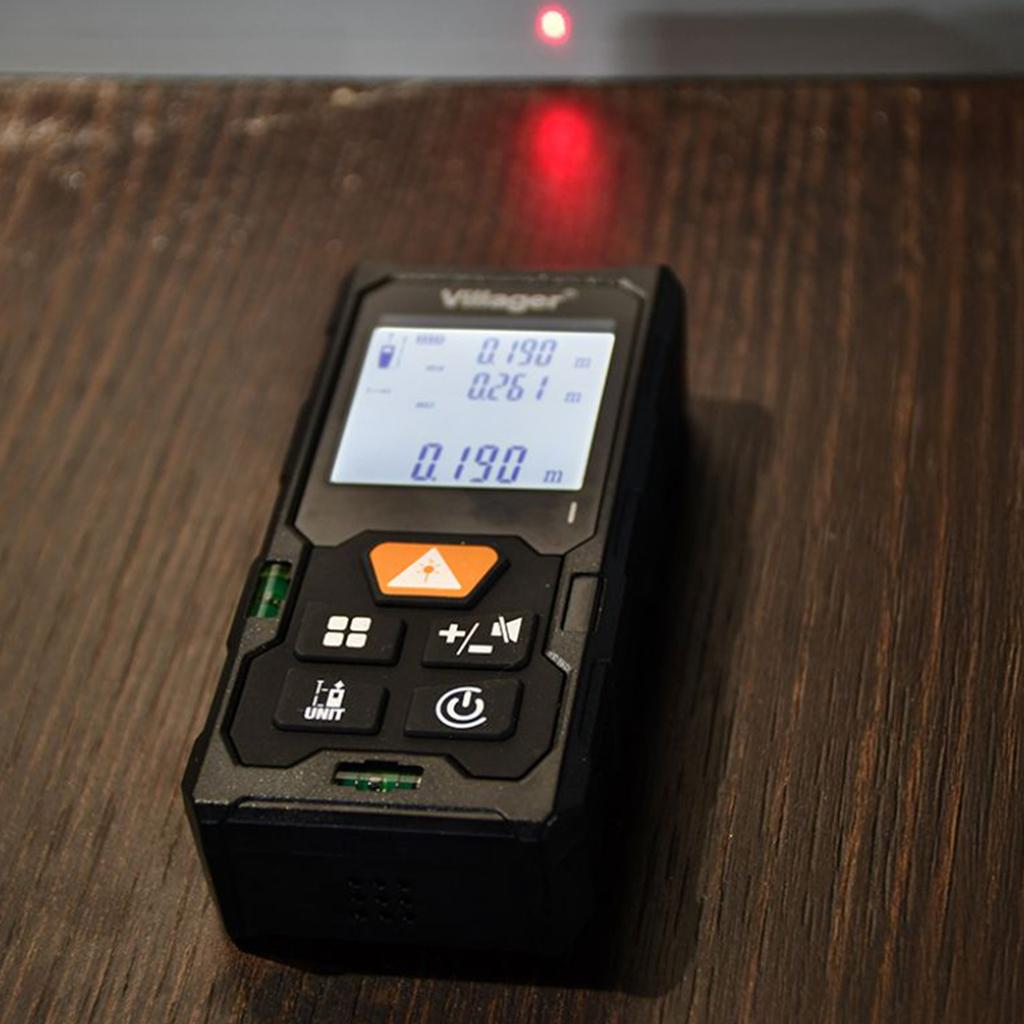

Continuous MIN/MAX measurement
The continuous measurement mode allows you to observe the changing distance as you move the device.
The rangefinder can also record minimum and maximum values, which expands the possibilities of taking measurements in various situations.
Measurement from the front or back of the device
The user can select the front or back reference point.
This allows you to customize the measurement method including when the back of the rangefinder is placed directly against a wall or other surface.

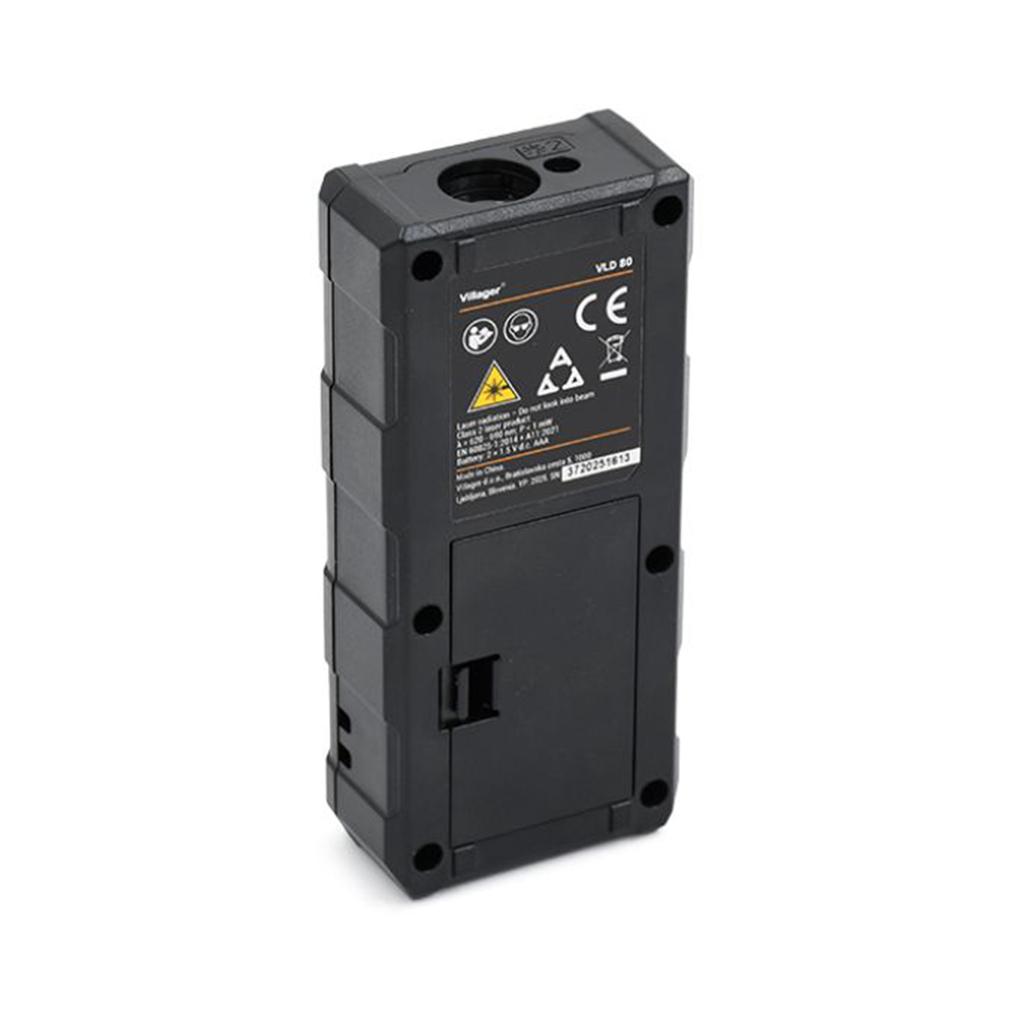

Compact design and AAA power supply
The housing measures 110 × 50 × 25 mm, and the device weighs only 71 g.
The rangefinder is powered by two AAA batteries. The laser automatically turns off after approximately 30 seconds, and the entire device after approximately 180 seconds of inactivity.
• Brand: VILLAGER
• Model: VLD-80
• Product Number: 086231
• Type: laser distance meter
• Measuring Range: 0.05–80 m
• Accuracy up to 10 m: ±2 mm
• Accuracy above 10 m: ±3 mm
• Distance Measurement: yes
• Area Measurement: yes
• Volume Measurement: yes
• Height Measurement: yes
• Measurement Continuous: yes
• MIN/MAX measurement: yes
• Memory: up to 99 results
• Reference point: front / back of the device
• Measurement units: m / in / ft
• Laser class: 2
• Laser type: 620–690 nm, <1 mW
• Operating temperature: -10°C to 40°C
• Power supply: 2 × AAA batteries
• Automatic laser shut-off: 30 s
• Automatic device shut-off: 180 s
• Dimensions: 110 × 50 × 25 mm
• Weight: 71 g
• EAN: 8605032638454
• VILLAGER VLD-80 Laser Rangefinder
80 m Laser Rangefinder with 99 Measurement Memory
VILLAGER VLD-80 is a compact laser rangefinder with a range of up to 80 m, equipped with distance, area, volume, and height measurement functions. A 99-result memory, continuous MIN/MAX mode, and the ability to select a front or rear reference point increase the range of applications during renovation, assembly, and measurement work.
