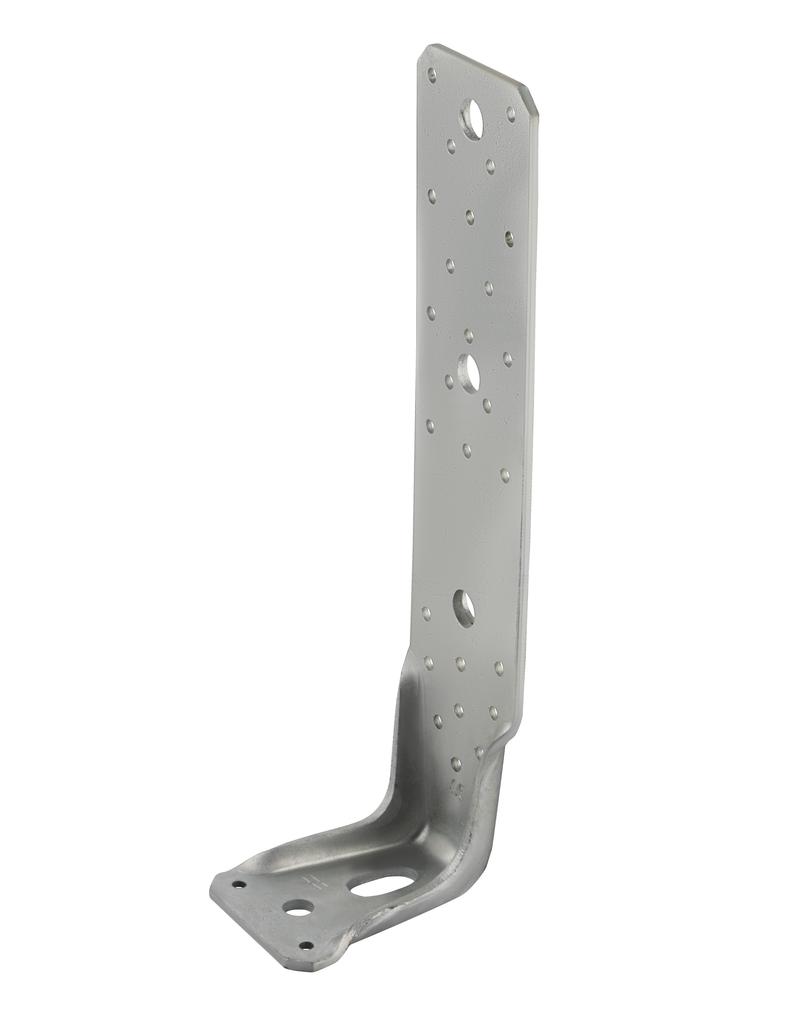

Reinforced angle anchor connector
wood - concrete
The most important parameters
• Model: AKR285LG
• Size: 285 x 85 x 65 mm
• Sheet thickness: 4.0 mm
• Packaging: 1 pc.
• Arm holes A: 26 pcs. x Ø 5 mm, 3 pcs. x Ø 13.5 mm
• Arm holes B: 2 pcs. x Ø 5 mm, 1 pc. x Ø 11 mm, 1 pc. x Ø 13.5 mm x 25 mm
• Material: S235JR steel galvanized HDG Z 275 g/m2 (55 µm)
Original product of the renowned company SIMPSON Strong-Tie ®
AKR connectors version “L” brackets have one elongated hole that allows you to adjust the position of the angle bracket during assembly.
1. Simple assembly
The connector has been designed for intuitive and quick installation, significantly reducing work time. Properly placed perforations facilitate precise nail or screw placement.
2. Strong and durable connections
Thanks to the use of high-quality steel (S235JR steel) and the hot dip galvanizing process (Hot Dip Galvanizing), the connector ensures exceptional strength and durability of connections in a variety of wooden structures.
3. High load capacity
The connector has excellent load-bearing parameters, which have been statically calculated, ensuring the safety and stability of the constructed elements, which is crucial in load-bearing structures and garden architecture.
4. Usage Class 3
Usage Class 3 anchor connectors are intended for use in outdoor conditions where they are exposed to direct contact with moisture and weathering.
Application and method of installation
Area of application:

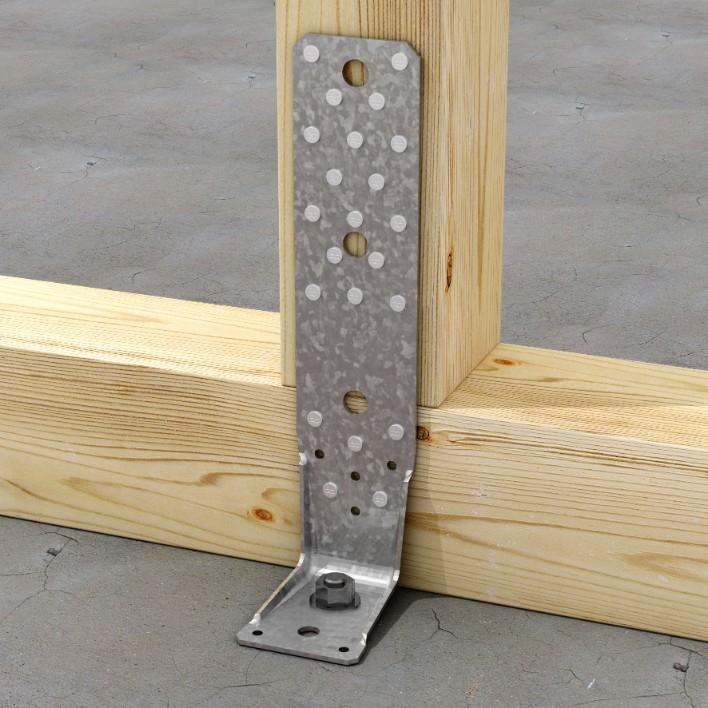

• Can be used as an anchor for wooden columns, prefabricated frame walls or other wooden elements.
• Fixing the joint to wood: using CNA4.0 ring-shaped nails or alternatively CSA5.0 screws.
• Fixing the joint to concrete: mechanically anchored (WA) or chemically with Simpson Strong-Tie anchors
Guarantee of the highest quality. This standard specifies the requirements and test methods for the materials, geometry, strength, stiffness, and durability (i.e. corrosion protection) of connectors used in load-bearing wooden structures.
The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.
Intended use: for connecting wooden structures with a concrete foundation.
Main element: concrete
Secondary element: structural timber, prefabricated frame walls
