EASUN POWER 6.2KW 4.2KW 3.2KW 2.2KW Hybrid Solar Inverter with WIFI MPPT 120A Charge 12V/24V/48V LiFePo4 Battery PV Output 500V

Note: Ourproducts are shipped directly from Europe and can usually be delivered within 1-7 days within the EU. Welcome to purchase.

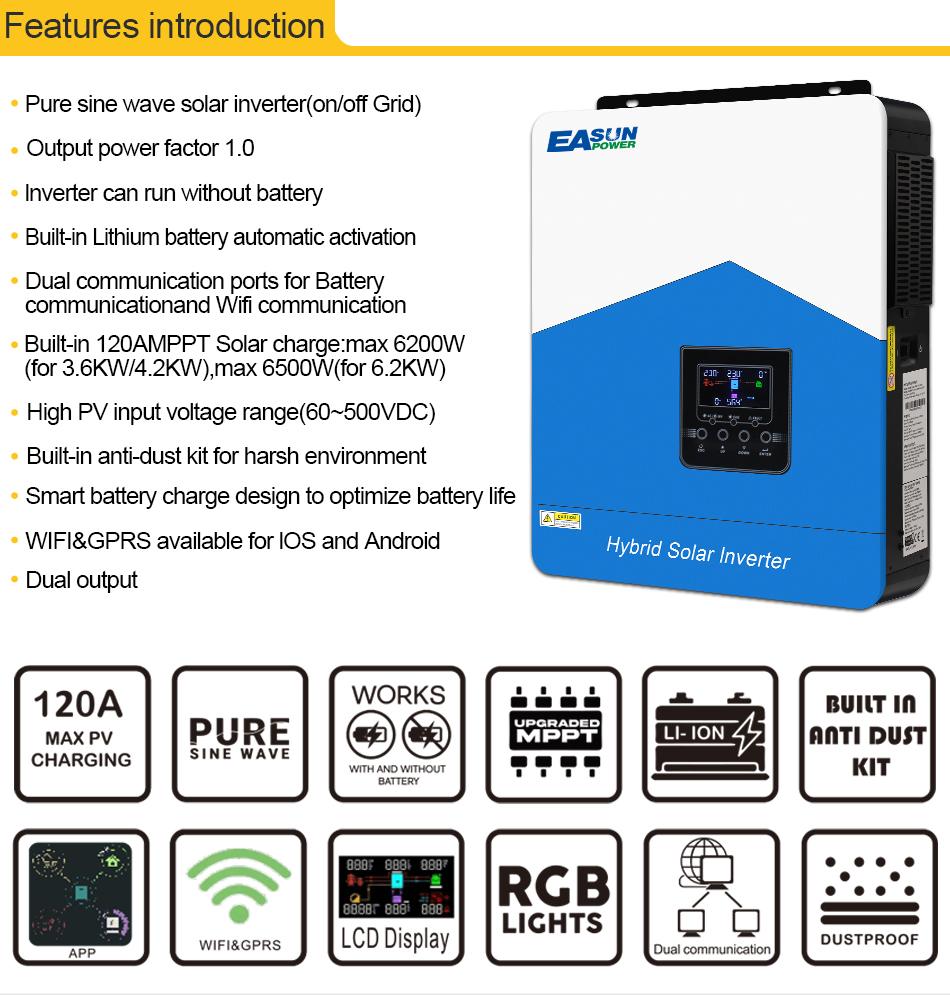

Feature

1)Dual output pure sine wave inverter

2)Configurable input voltage range for home appliances and personal computers via LCD setting

3)Configurable battery charging current based on applications via LCD setting

4)Configurable AC/Solar Charger priority via LCD setting

5)Compatible to mains voltage or generator power

6)Auto restart while AC is recovering

7)Overload/ Over temperature/ short circuit protection

8)Smart battery charger design for optimized battery performance

9)Cold start function

10)RS232/RS485/WIFI/GPRS/LITHIUM BATTERY

MODEL SMH-II-2.2KW-WIFI SMH-II-3.2KW-WIFI SMH-III-4.2KW-WIFI SMH-III-6.2KW-WIFI

Rated Power 2200VA/1800W 3200VA/3000W 4200VA/4200W 6200VA/6200W

BMS NO NO YES YES

Work Without Battery NO NO YES YES

WIFI YES YES YES YES

INPUT

Voltage 230VAC

Selectable Voltage Range 170-280VAC(forpersonalcomputers);90-280VAC(forhomeappliances)

Frequency Range 50Hz/60Hz(Autosensing)

OUTPUT

AC Voltage Regulation (Batt.Mode) 230VAC±5%

Surgepower 4400VA 6400VA 8400VA 12400VA

TransferTime 10ms(forpersonalcomputers),20ms(forhomeappliances)

Wave form Pure Sine Wave

BATTERY&ACCHARGER

Battery Voltage 12VDC 24VDC 24VDC 48VDC

Floating Charge Voltage 13.5VDC 27VDC 27VDC 54VDC

Over charge Protection 15.5VDC 31VDC 30VDC 60VDC

Maximum charge current 60A 60A 100A 100A

SOLAR CHARGER

MAX.PV Array Power 2000W 3000W 6200W 6500W

MPPTRange@OperatingVoltage 55-450VDC 55-450VDC 60-450VDC 60-450VDC

Maximum PV Array Open Circuit Voltage 450VDC 450VDC 500VDC 500VDC

Maximum Charging Current 80A 80A 120A 120A

Maximum Efficiency 98%

PHYSICAL

Dimension.D*W*H(mm) 405x286x98mm 405x286x98mm 420*350*110mm 420*350*110mm

NetWeight(kgs) 4.5kg 5.0kg 9kg 10kg

CommunicationInterface RS232/RS485(Standard)/GPRS/WIFI

OPERATIN GENVIRONMENT

Humidity 5%to95%RelativeHumidity(Non-condensing)

Operating Temperature -10°Cto55°C

Storage Temperature -15°Cto60°C

MAX.PV Array Power: 6500W Size: 420*350*110mm Is Smart Device: Yes Wave form: Pure Sine Wave hybrid inverter: inversor híbrido solar EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc Output Frequency: 50/60HZ Communication Interface: RS232/RS485/WIFI/GPRS/LITHIUM BATTERY Phase: 1 Phase Maximum Charging Current: 110A Max AC Charge Current: 100A Rated Output Power: 6200W/6200VA Charging: pure sine wave inverter Battery voltage: 48V is_customized: Yes Maximum Load Cut Off Voltage: 52VDC hybrid solar inverter: inversor onda pura Off-grid inverter: Solar Charge Controller Maximum PV Array Open Circuit Voltage: 500VDC Max Solar Charge Current: 120A Voltage: 230Vac inversor 12v para 220v: inversores híbridos solares Certification: CE Weight: 8KG MPPT Range@ Operating Voltage: 60-450VDC inverter 12v 220v: inversor solar híbrido solar inverter hybrid: onduleur solaire hybride Brand Name: NONE Origin: Mainland China Output Type: SINGLE
