Photovoltaic distribution board PV surge arresters Saltek solar distribution board Doktorvolt
Durable photovoltaic distribution board made of high-quality materials. Equipped with two Saltek surge arresters and a transparent door.
Versatility in a compact distribution board

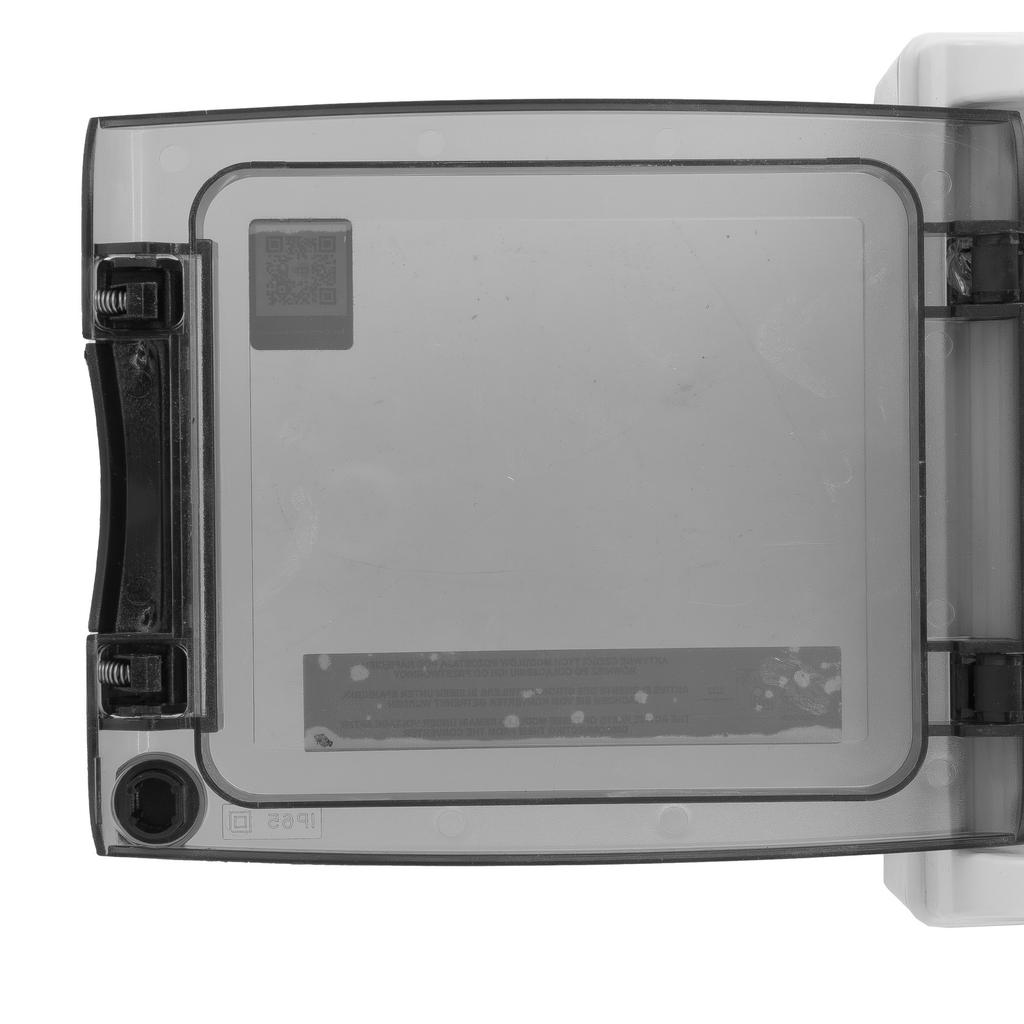

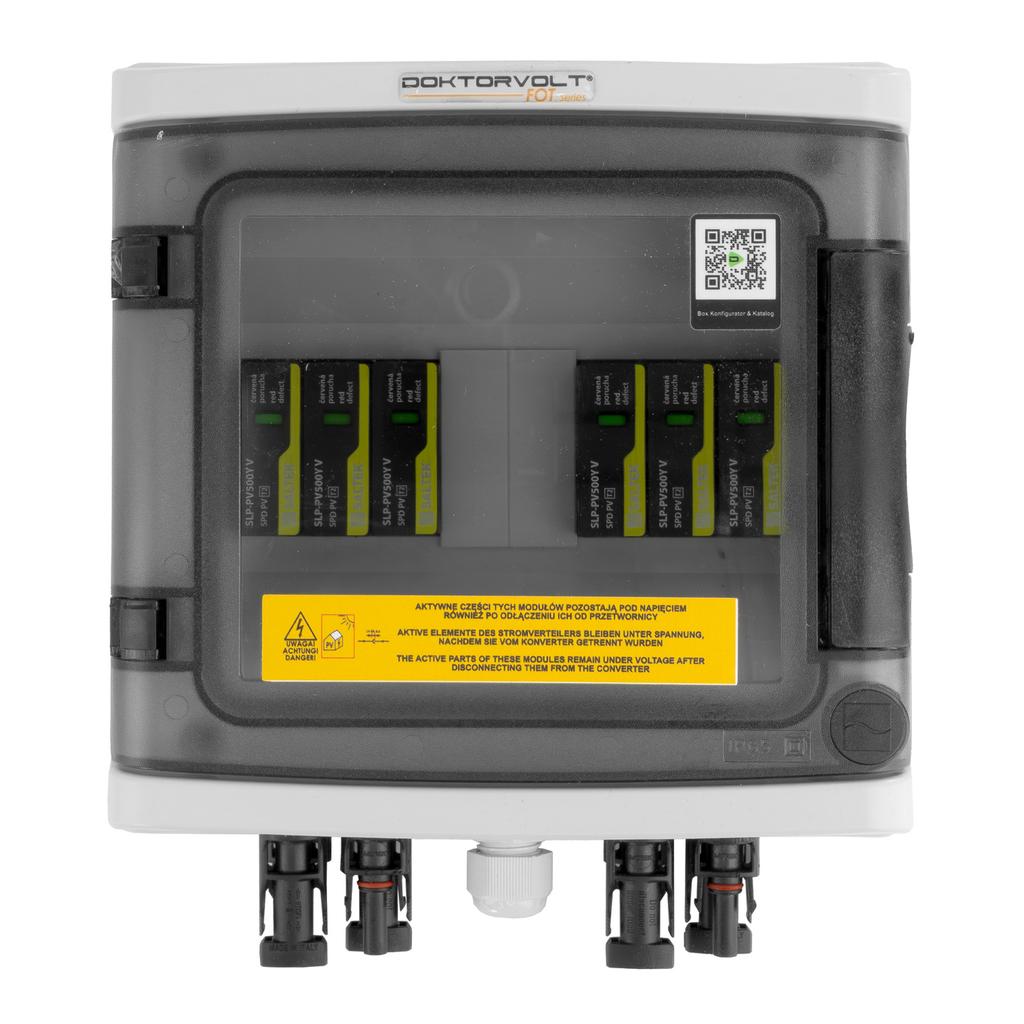

Compact photovoltaic distribution board 215x210x100 mm made of high-quality technopolymer. Equipped with transparent door for easy assessment of the device's operating status.
Comfort of use combined with quality of workmanship

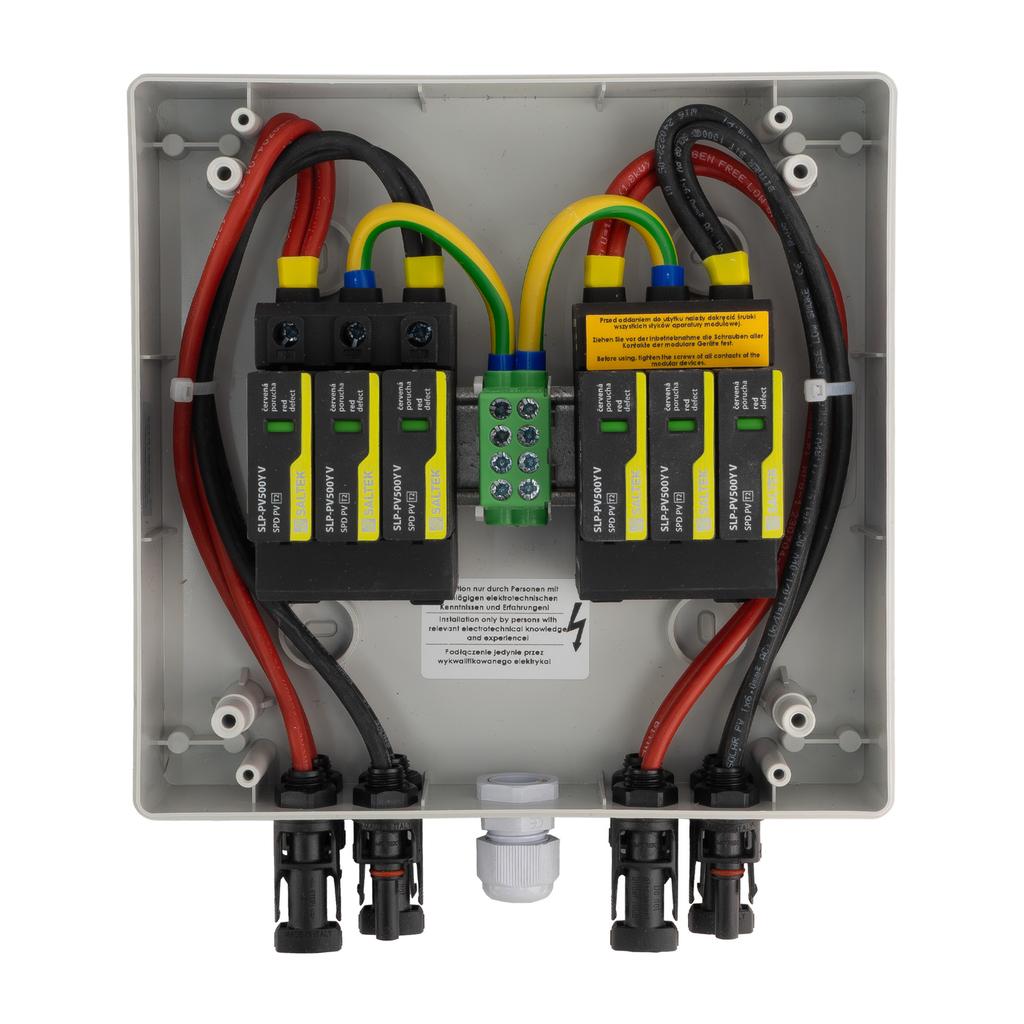

The switchboard is equipped with the SLP-PV1000 V/Y varistor surge arrester from the renowned manufacturer Saltek. Dedicated to PV systems in which the spark gap distance is maintained or which are not integrated with the LPS.
An additional advantage is visual damage indication, plug-in modules and locking possibility.
SALTEK protection equipment
2x DC 3P T2 PV VDE
Number of PV circuits (STRING): 2
Maximum operating voltage +/PE, −/PE UCPV: 1020V DC
Total discharge current (8/20 µs) ITotal: 40 kA
Rated discharge current (8/20 µs) In: 15 kA
Maximum discharge current (8/20 µs) Imax: 40 kA
Voltage protection level between poles +/− Up: 4.0 kV
Voltage protection level +/PE, −/PE Up: 4.0 kV
Housing and Technical Data
Halogen-free material (HALOGEN-FREE): Yes
Cross-section of rigid conductors (min–max): 1.0 – 35 mm²
Cross-section of stranded conductors (min–max): 1.0 – 25 mm²
Wiring and Standards
Male photovoltaic connector IP68 1500V MC4: 4 pcs. + 4 pcs. for self-assembly on the cable
Female photovoltaic connector IP68 1500V MC4: 4 pcs. + 4 pcs. for self-assembly on the cable
Certificate = quality guarantee:
DOKTORVOLT brand products are routinely tested to ensure the highest product quality. After passing the tests, each product receives an individual certificate confirming the quality control carried out. The company uses a certified TÜV SÜD system in the production process, which proves high quality.
IP Protection Rating = Greater Safety:
IP Protection Rating is an international standard that determines the degree to which an item is resistant to potential risk factors. It consists of two digits that inform us about the product's dust and water resistance.
Determining the IP rating allows you to consciously use the product in safe conditions. The protection ratingIP44 tells us that the device:
- is protected against penetration of objects larger than 1 mm
- is protected against water splashing from various directions
The Doktorvolt® company was founded in 2013. The dynamically developing company has conquered the Polish and foreign markets. The company's headquarters is located in Malichów in the Opole Voivodeship, where a modern production hall and warehouse are located.
The company specializes in the production of construction switchboards, distinguished by their quality and reliability. Each switchboard is constructed of high-quality components. The products meet the safety standards and norms applicable in the European Union.
Model: DV-6449-FOT
EAN: 5905191016449
Product serial number: FOT
Manufacturer: DOKTORVOLT
Surge protection: T2
Type of protective element: Varistor (MOV) in "Y" configuration
Rated short circuit current ISCPV: 10 kA DC
Response time ta: 25 ns

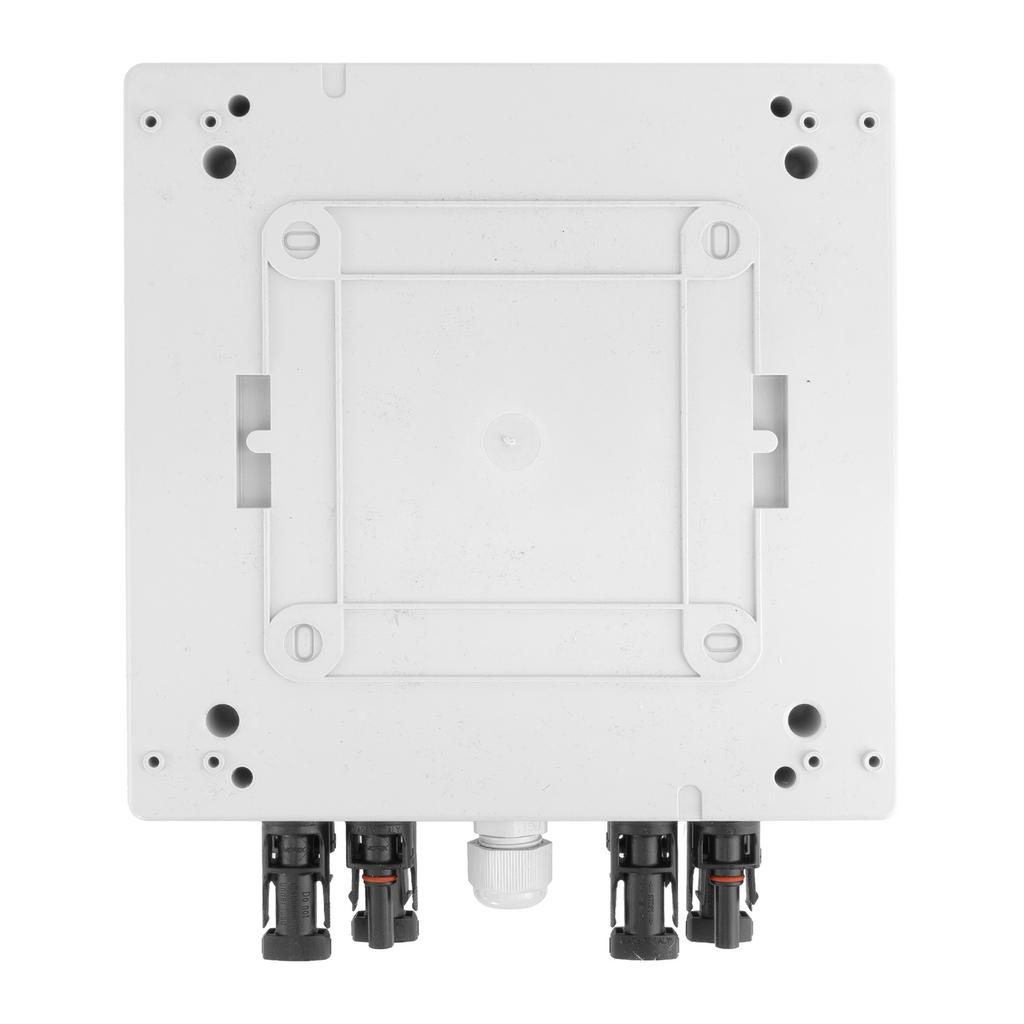

Type of construction: Surface-mounted
Housing dimensions: 215x210x100mm
Housing material: Technopolymer
UV resistance: Yes
Resistance Mechanical: IK08 Housing color: Gray RAL 7035 Number of modules: 8 Housing protection class: IP65 Complete switchboard protection class: IP65 Installation temperature: -25 +60 °C
Protection class: II
Rated insulation voltage UI: 1000V
Fault signal: Red indicator field
Gland: 1x PG11
Branch terminal: 1 x HLAK 25-1/2/25 M2 GN PE
Mounting pins with screw: 4x
Power cables: 6mm2 red
Neutral wires: 6mm2 black
Protective conductors: 16mm2 yellow-green
