Excursion SX-6.3C – 3-Way 165mm Component Speaker Set
Excursion SX-6.3C is a 3-way component speaker set for cars from the SX Street eXcursion series. This set is designed for drivers who want a better soundstage, clearer vocals, and more detailed sound than a typical 2-way set.

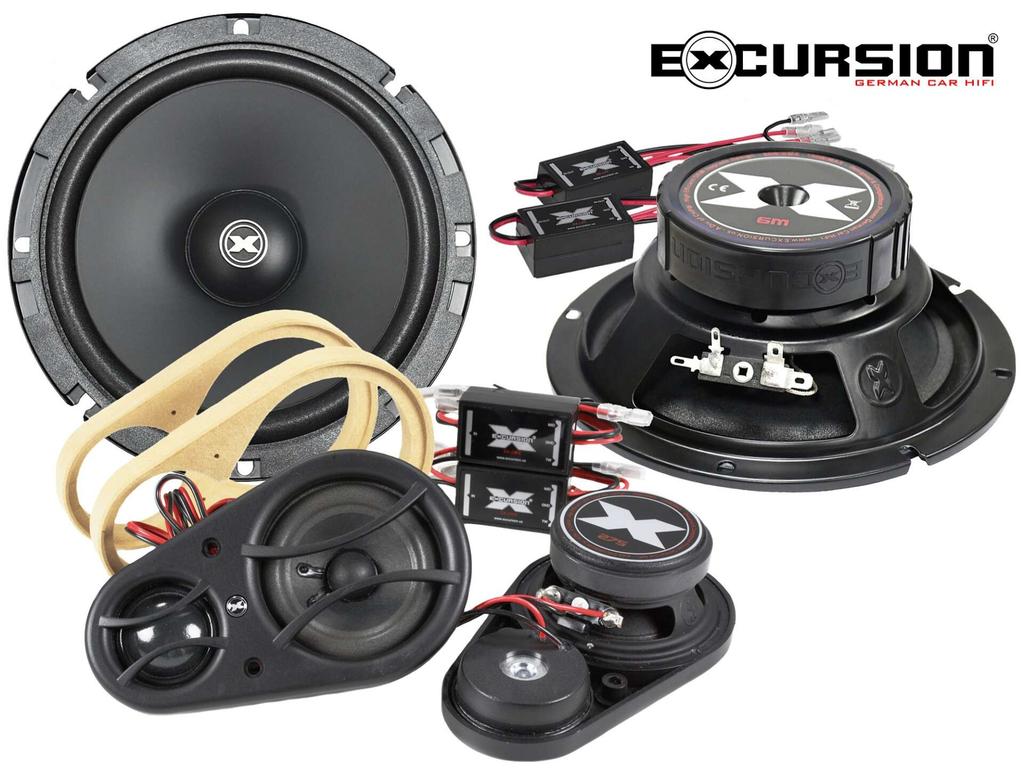

The set includes two 165mm woofers, an integrated SX-SAT mid-range/tweeter set, four Plug&Play crossovers, and MDF mounting panels. Thanks to the 3-way design, the frequency response is better divided between the woofer, midrange driver, and tweeter.
3-Way Design for a Better Soundstage
In a 3-way system, each type of speaker is responsible for a different frequency range. Woofers reproduce bass and lower midrange frequencies. Midrange speakers improve the clarity of vocals and instruments. Tweeters ensure detailed and natural highs.
This solution allows for a more spacious sound in the car. The SX-SAT set places the midrange and tweeter close together, making it easier to fine-tune the midrange and tweeter sections.
Key Advantages of the Excursion SX-6.3C
• 3-way component car speaker set,
• SX Street eXcursion series,
• 165 mm / 6.5 inch woofers,
• SX-SAT midrange and tweeter set,
• 25 mm tweeters with natural silk domes,
• 70 mm midrange drivers,
• 4 Plug&Play In-Line crossovers,
• Bi-Wiring and Bi-Amping compatible,
• 75 W RMS power,
• 200 W maximum power,
• 4 Ohm impedance,
• 90 dB efficiency,
• 55–20,000 Hz frequency response,
• MDF panels for permanent installation,
• Polish service and 24-month warranty.
SX-SAT set – close-coupled midrange and treble tones
The SX-SAT set is responsible for the midrange and treble tones. It consists of two 70 mm midrange drivers and two 25 mm tweeters. The close proximity of both drivers helps achieve a more coherent sound stage and better sound focus.
The set includes frames and mounting panels that facilitate permanent installation of the midrange and treble section. They can be used, for example, when mounted in the A-pillars of a car.

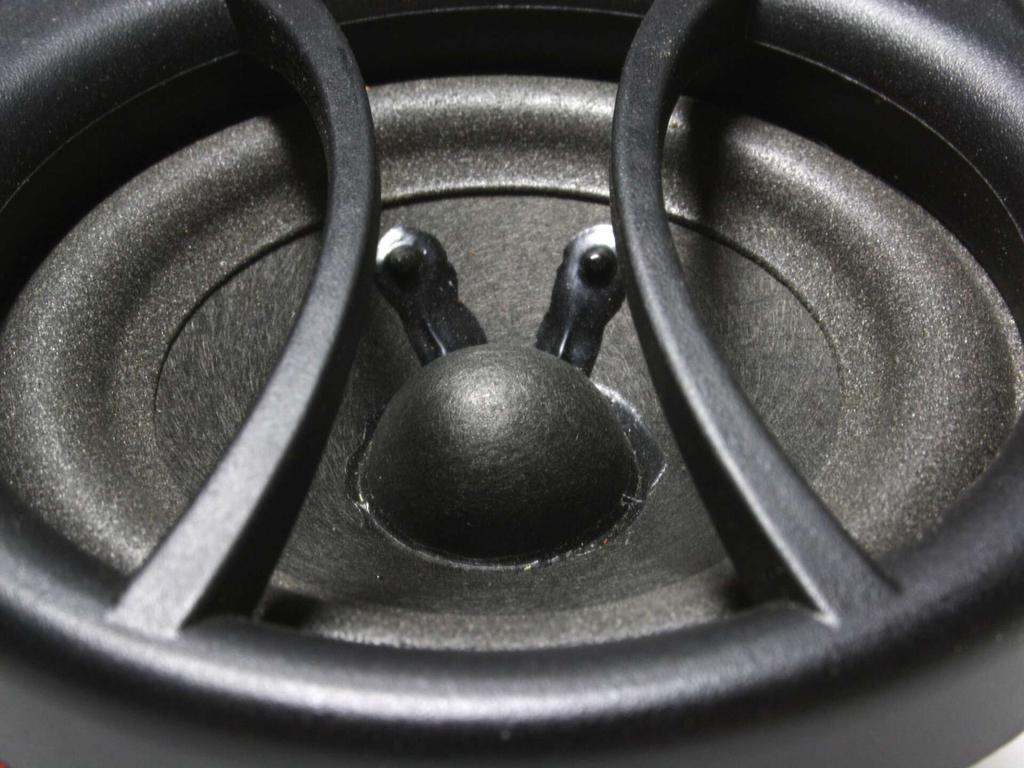

Natural Silk Tweeters
The tweeters utilize 25mm diameter domes made of natural silk. The diaphragm is impregnated with a thin layer of anti-resonance material, which helps produce clear and detailed highs.
An efficient neodymium magnet system with a voice coil cooling system is responsible for the drive. This makes the tweeters suitable for everyday listening and allows for pleasant, detailed highs.
70mm Midrange Drivers
The SX-SAT midrange drivers have a diameter of 70mm. Their lightweight and stiff ADC double-cone diaphragm is made of two pressed layers of thin paper. This construction supports the natural and detailed sound of the midrange and higher frequencies.
The upper surround is made of double-pressed foam with good damping properties. Additional UV protection improves the durability of the component. As a result, the speaker operates linearly, efficiently, and with reduced distortion.
The pressed steel basket has large ventilation holes. The efficient EFF magnet system and a pure copper voice coil on an aluminum former support stable operation and good heat dissipation.

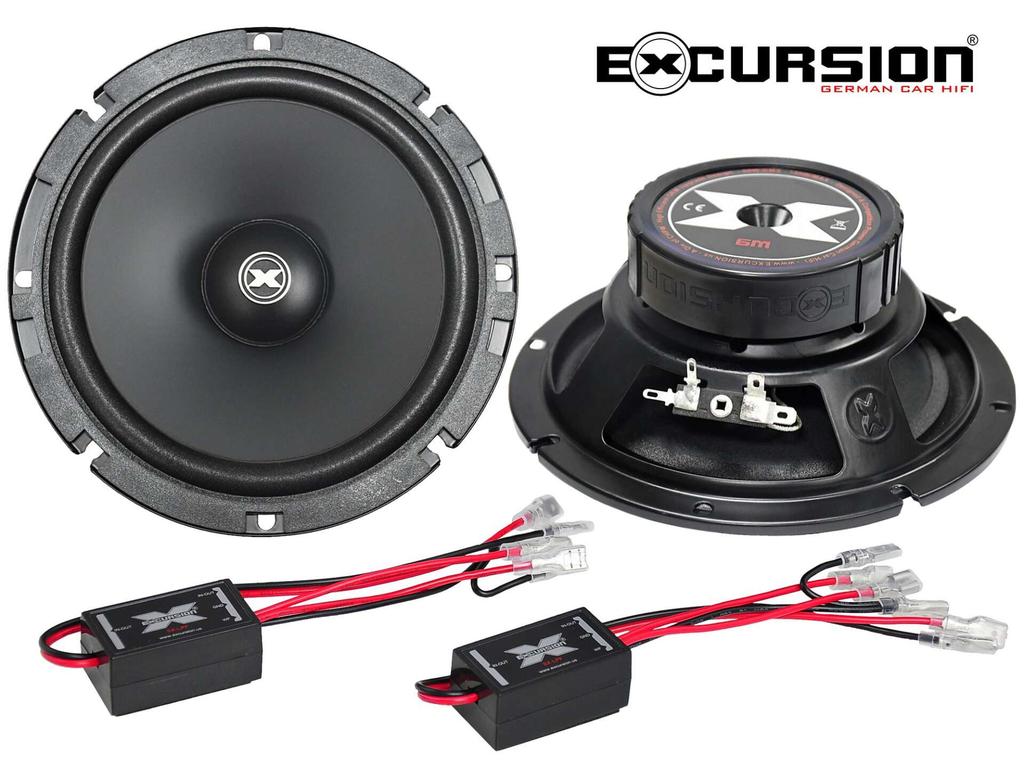

165 mm woofers – dynamic bass and natural midrange
The 165 mm woofers are responsible for the bass and lower midrange. Their diaphragms are made of 2-layer paper coated with ADC (Active Damping Coating). The coating limits resonances, reduces distortion, and additionally protects the diaphragm from moisture.
The LXPD dust cap, in the style of a phase plug, improves midrange detail at a wider listening angle. This is especially important in cars, where woofers are often mounted low in the doors.
The double-compressed foam surround allows for long, linear excursion of the cone. This allows the system to offer more bass, better efficiency, and less unwanted distortion.
Vented Basket and EFF Magnet System
The woofers are equipped with rigid, black pressed steel baskets. Large holes improve airflow behind the diaphragm. Additional holes under the lower suspension support ventilation and voice coil cooling.
The EFF (Efficient Flux Field) magnet system features a central vent. This lowers the resonant frequency and improves the voice coil's cooling efficiency. The magnet is protected by a protective rubber cap.
Plug&Play Crossovers with MKP Capacitors
The set includes 4 passive in-line crossovers: 2 crossovers for the TW/MID section and 2 crossovers for the WO section. They operate with a slope of 6 dB/oct and ensure convenient Plug&Play installation on speaker cables.
The crossovers are equipped with high-quality MKP capacitors. Small dimensions of 44 x 25 x 19 mm make it easy to install anywhere. The set also offers flexible configuration, including bi-wiring and bi-amping.
Optional Excursion XLR resistive attenuators can be connected to the crossovers, which lower the volume of the mid-high frequency section by 2-10 dB.
• Manufacturer: Excursion
• Model: SX-6.3C
• Series: SX Street eXcursion
• Type: car component speaker set
• Design: 3-way
• Speaker diameter: 25 / 70 / 165 mm
• RMS power: 75 W
• Power maximum: 200 W
• Impedance: 4 Ohm
• Frequency response: 55–20,000 Hz
• Efficiency: 90 dB / 1W / 1m
• Woofer magnet: 10 oz

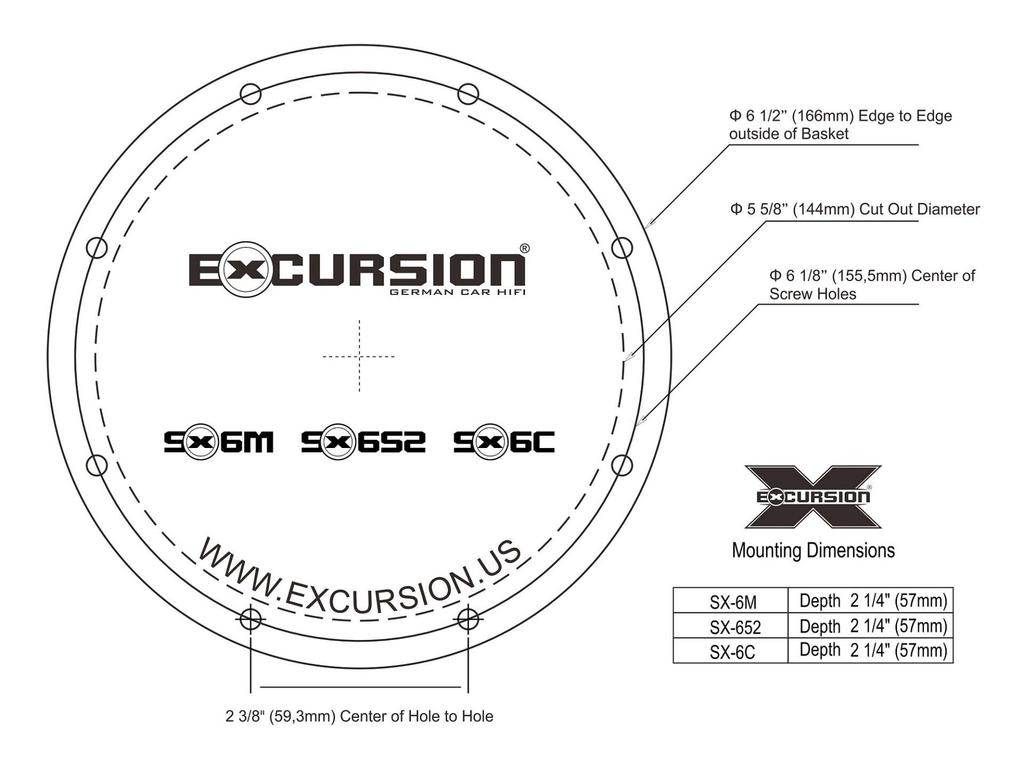

• Woofer mounting depth: 57 mm
• Crossovers: 2 x TW/MID 6 dB/oct. + 2 x WO 6 dB/oct.
• Crossover dimensions: 44 x 25 x 19 mm
• Polish importer warranty: 24 months
SX-SAT tweeter construction
• 25 mm natural silk dome,
• thin anti-resonance layer,
• clean and detailed high tones,
• neodymium magnetic system,
• coil cooling system.
SX-SAT midrange driver construction
• 70 mm diameter,
• light and stiff ADC membrane with a double cone,
• two pressed layers of thin paper,
• Double-pressed foam surround,
• UV-protected surround,
• Steel basket with large holes,
• EFF magnet system,
• Pure copper voice coil on aluminum former.
• 165 mm diameter,
• 2-layer paper ADC cone,
• Anti-resonance coating to reduce distortion,
• Impregnation to protect the cone from moisture,
• LXPD dust cap in phase plug style,
• Double-pressed foam surround,
• UV-protected surround,
• Steel basket with ventilation holes,
• EFF magnet system with central port,
• pure copper voice coil on aluminum former,
• rubber magnet protection cover,
• optional XGR6 grilles, sold separately.
• 2 tweeters + 2 SX-SAT midrange drivers,
• 2 165 mm woofers,
• 2 TW/MID crossovers,
• 2 WO crossovers,
• 2 MDF mounting panels for permanent installation,
• a set of cables and screws,
• user manual,
• Excursion logo sticker.
Important Installation Information
Operating the system without properly connected crossovers can result in permanent damage to the midrange and tweeters. Such damage is not covered by the warranty.
Depending on the mounting location, speaker orientation, and distance from the listener, changing the polarity of the midrange or tweeters may help achieve better response alignment around the crossover point.
Optional Excursion XLR resistive attenuators can be used to lower the mid-high frequency section. These are sold separately and can reduce the signal level by 2-10 dB.
Why choose the Excursion SX-6.3C?
The Excursion SX-6.3C is a good choice for those looking to build a 3-way car audio system in a manageable configuration. The kit offers a separate midrange section, silk tweeters, 165mm woofers, and flexible Plug&Play crossovers.
This is a great option for drivers who want a better soundstage, clearer vocals, natural highs, and dynamic bass in their everyday audio system.
