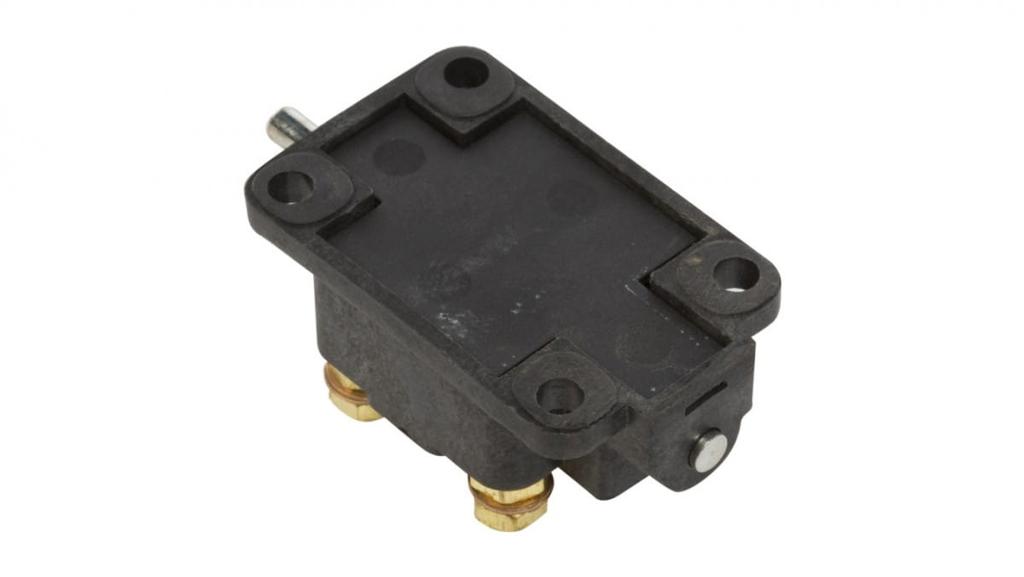

Limit Switch 1NC 1NO Slow Switch Plastic Straight Pusher Klm-3 A36-3000

Sensor length [mm]: 26.5000

Degree of protection (IP): IP00

Sensor width [mm]: 30

Ambient temperature under operating conditions [°C] up to: 40

Ambient temperature under operating conditions [°C] from: -20

Sensor height [mm]: 66

Rated operational current Ie for AC-15, 230 V [A]: 4

Rated operational current Ie for DC-13, 125 V [A]: 0.6000

Rated operating current Ie for DC-13, 230 V [A]: 0.2500

CN: 85365007 Length: 95 EAN: 5902626109417 Switching function: Slow-break contact Manufacturer index: A36-3000 Explosion protection category for gases: None Explosion protection category for dust: None Number of auxiliary safety contacts: 0 Number of changeover contacts: 0 Number of break contacts: 1 Number of make contacts: 1 Housing material: Plastic Housing in accordance with standard: No Housing in accordance with standard: Other Suitable for safety applications: No Housing coating: Other Position of the switching element: Other Type of switching element: Dome pusher Type of interface: None Type of interface from safety function: None Type of housing design: Other Type of electrical connection: Other Series: KLM Width: 65 Weight: 0.0400 Electronic output: No Forced disconnection: No Height: 65 With status indicator: No
