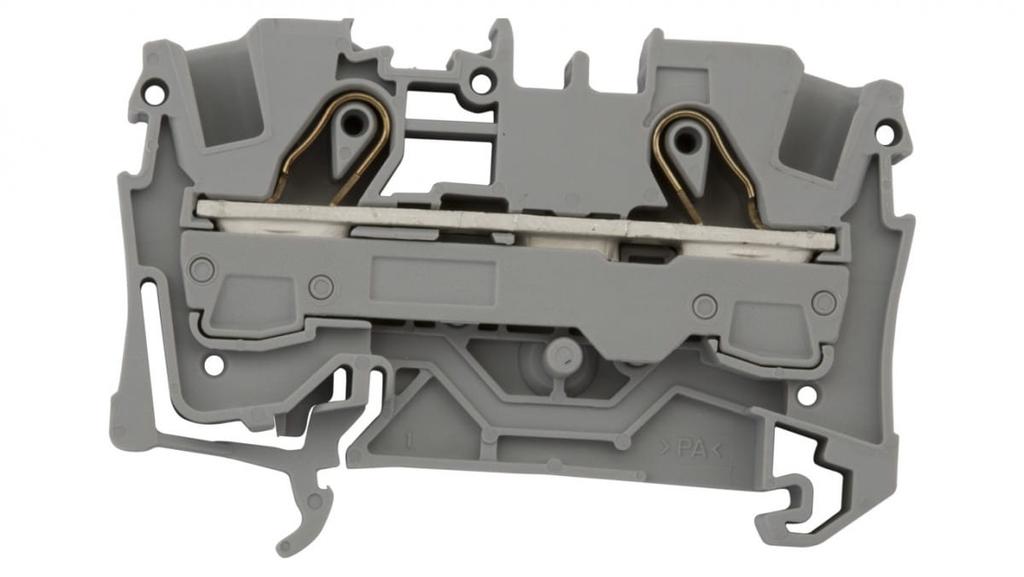

2-Wire Rail Connector 6Mm2 Gray 2006-1201 Topjobs

Length [mm]: 57.5

Manufacturer's index: 2006-1201

Insulating material flammability class according to UL94: V0

Rated current In [A]: 41

Cross-section of the connected solid wire [mm2] up to: 10

Cross-section of a solid conductor [mm2] from: 0.5

Cross-section of a stranded conductor without ferrule: 10

Cross-section of a multi-core conductor [mm2] up to: 10

Cross-section of a multi-core conductor [mm2] from: 0.5

Type of electrical connection 1: Spring terminal

Type of electrical connection 2: Spring terminal

series: 2006

Width / grid size [mm]: 7.5000

Explosion-proof version "EEx e": Yes

Height with lowest mounting method [mm]: 33

Operating temperature range from/to [°C] to: 105

Operating temperature range from/to [°C] from: -35

CN: 85369010 Length: 60 EAN: 4017332999649 Color: Gray Number of levels: 1 Number of terminals per level: 2 Connection position: From above/top Type of insulating material: Thermoplastic Mounting method: DIN mounting rail 35 mm Width: 40 Weight: 0.0100 Internal floors bridged: No Closing plate required: Yes Height: 10
