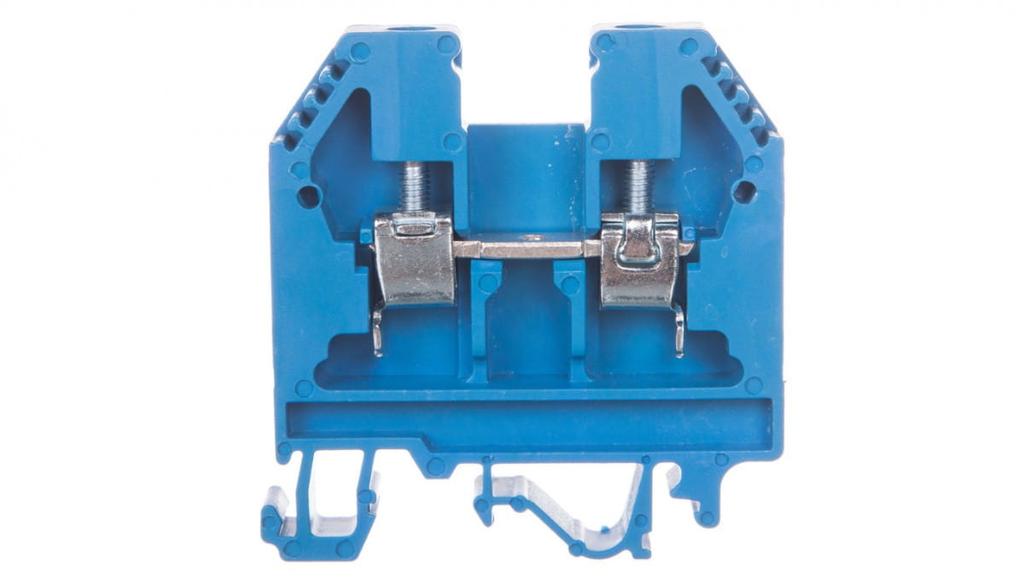

Threaded Rail Connector 6mm2 Blue Vs 6 Pa N 003901069

Length [mm]: 55

Manufacturer's index: 003901069

Insulating material flammability class according to UL94: V0

Rated current In [A]: 41

Connectable cross-section of solid wire [mm2] up to: 10

Connectable cross-section of solid wire [mm2] from: 1.5

Connectable cross-section of stranded wire without ferrule: 10

Connectable cross-section of multi-core wire [mm2] up to: 6

Connectable cross-section of multi-core wire [mm2] from: 2.5

Type of electrical connection 1: Screw connection

Type of electrical connection 2: Screw connection

series: SM

Width / grid size [mm]: 8

Explosion-proof version "EEx e": No

Height with lowest mounting type [mm]: 56

Operating temperature range from/to [°C] to: 100

Operating temperature range from/to [°C] from: -40

CN: 85369010 Length: 55 EAN: 5904722915183 Color: Blue Number of levels: 1 Number of terminals per level: 2 PKWiU: 27.33.13.0 Connection position: Side / lateral Type of insulating material: Thermoplastic Mounting method: DIN mounting rail / Rail G Width: 55 Weight: 0.0200 Internal floors bridged: No Closing plate required: Yes Height: 8
