Feature:
1. CONVENIENT PLC FUNCTIONALITY: The diesel generator controller supports PLC function, allows manual control of on and off, voltage filtering, and display of 94xx charger parameters, catering to a wide variety of usage scenarios.
2. PORTS FOR INPUTS AND OUTPUTS: Features 2 voltage and current analog ports, 8 switch input points, and 8 switch output points. These provide increased flexibility for managing and controlling generator operations.
3. THREE PHASE GENERATOR INDUCTION: Provides true generator induction, monitors 3 phase power supply, generator load current, and supports analog digital inputs. Offers multiple installation options.
4. VERSATILE MONITORING CAPABILITIES: The control panel supports various sensors and engine types, it offers convenient generator or load current monitoring , and records 10 data points with a 0 3000 ohm water temperature sensor range.
5. ENHANCED AUTOMATIC POWER UNIT: An upgraded generation control module for single, diesel, or gas generator applications with advanced features displayed in a user friendly DSE format. Offers fast processing, enhanced functionality, and data recording capabilities.
6. MULTIFUNCTIONAL DISPLAY: The panel provides warning, shut off, and engine status information on a backlit LCD screen, LED indicators, remote PCs, and SMS text alerts using external conversation devices.
Specification:

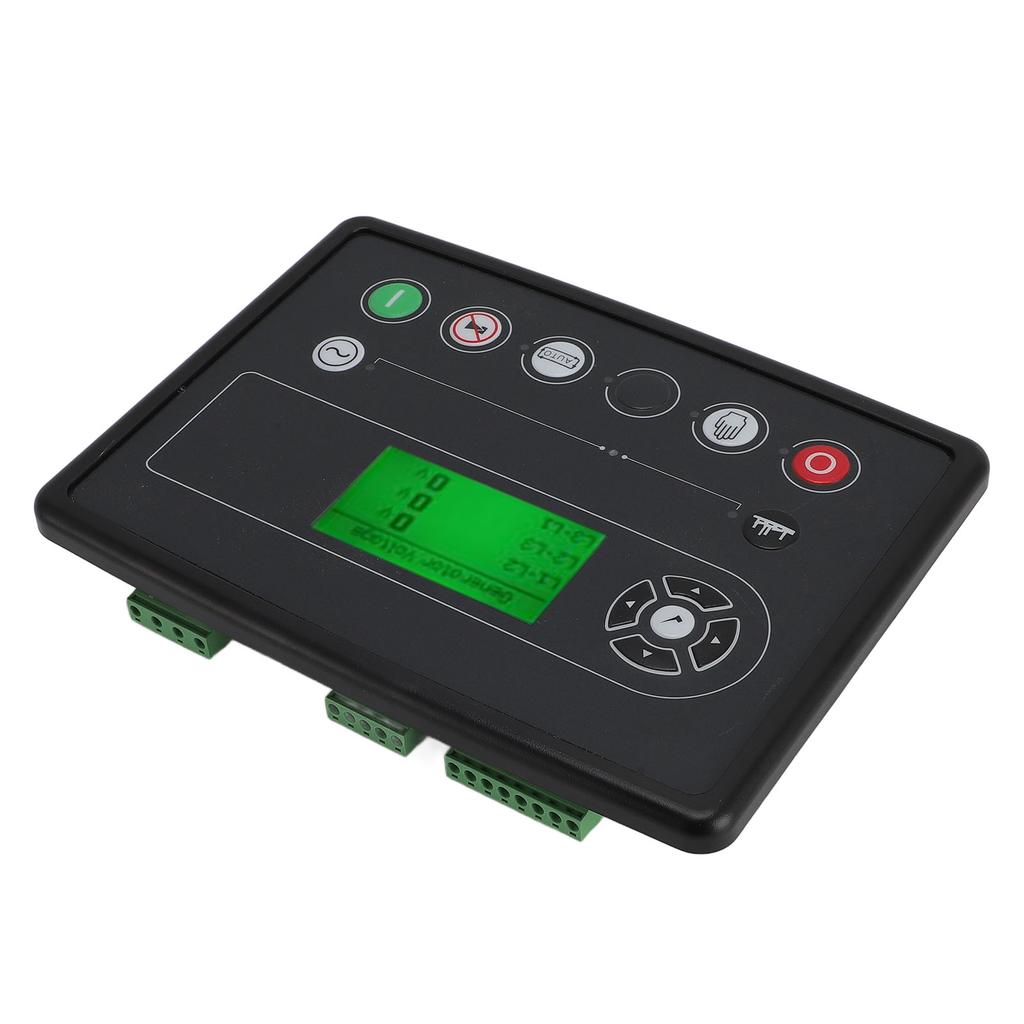

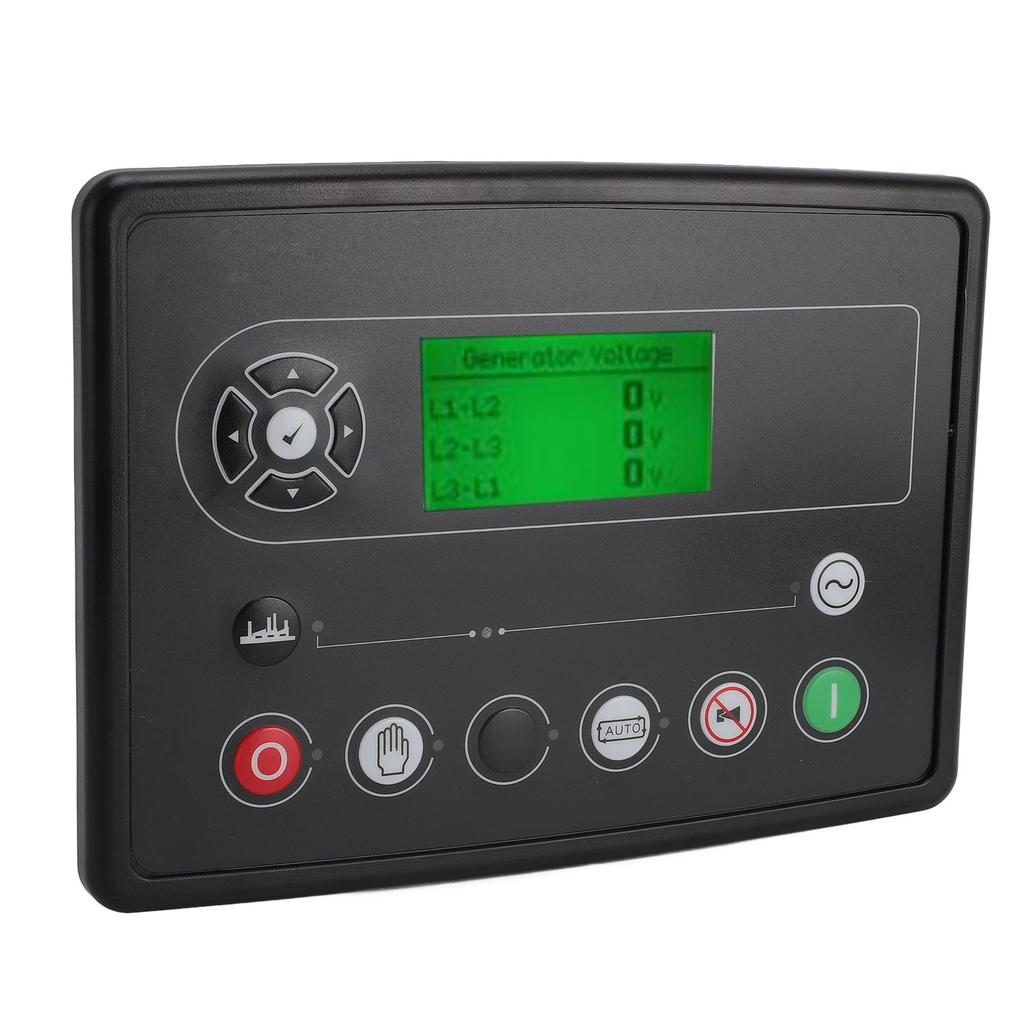

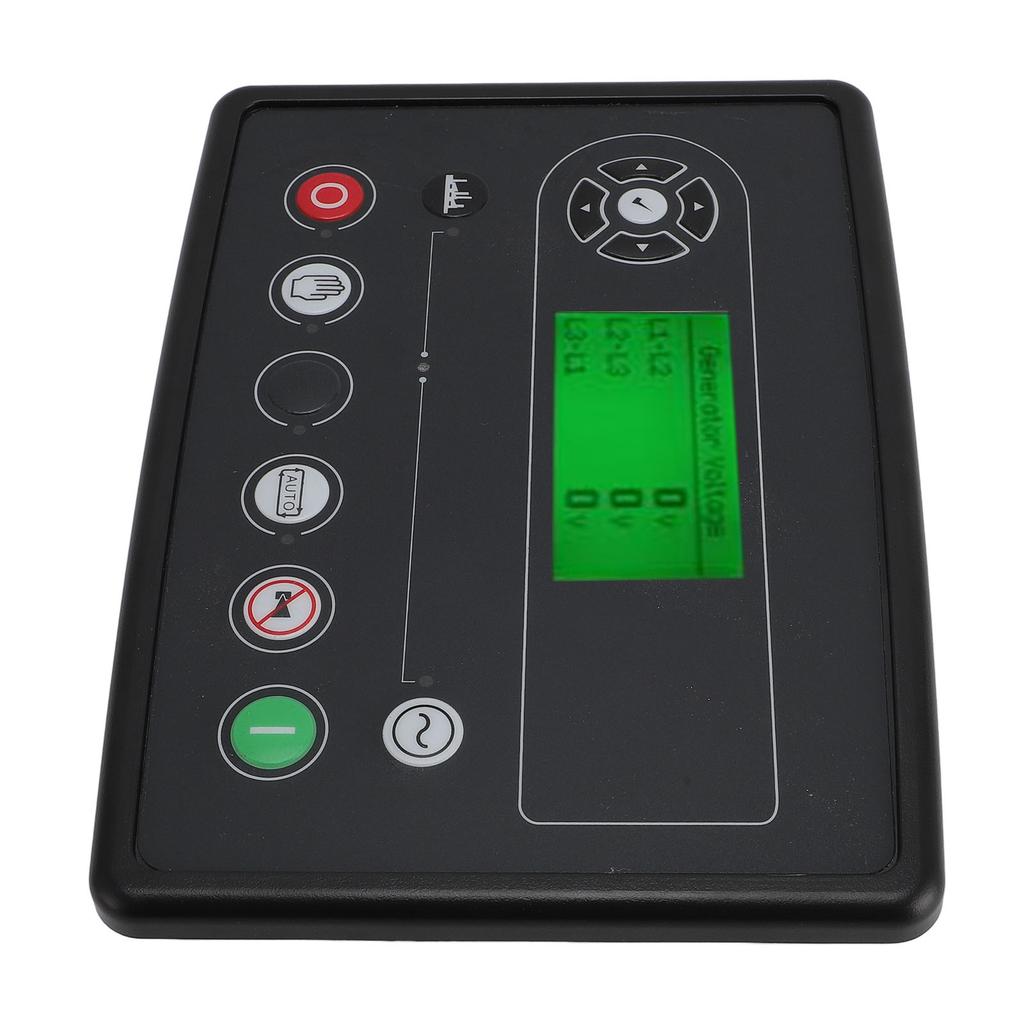

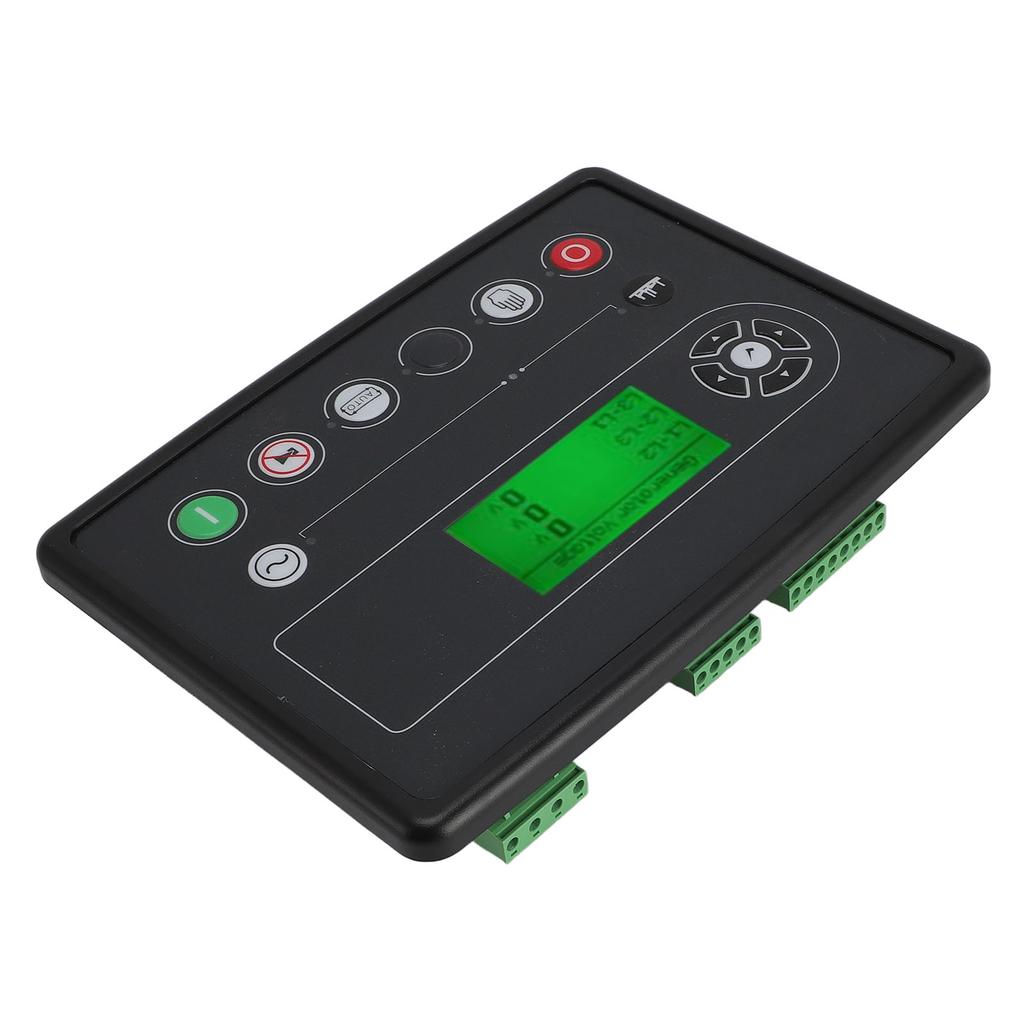

Item Type: Diesel Generator Controller Module
Size: Approx. 21.5x16x4cm 8.46x6.3x1.57in
DC Power Supply: 8 35V, maximum 0.5A
DC Output: 30V, 5A (4 5) 2A (7 10)
DC Input: maximum 30V
AC Voltage Input: 600Vac 50 60Hz 1 3PH
AC Current Input: 5A, 50 60Hz 1 3PH
Charging AC Generator: 30V, maximum 2.5W
Pickup: 70V, maximum 10kHz
Analog Input: maximum 10V
Communicating Port: maximum 5V
Weight: Approx. 585.00g 20.64oz.
Package List:
1 x Generator Controller
2 x Fixed Screws
1 x User Manual
