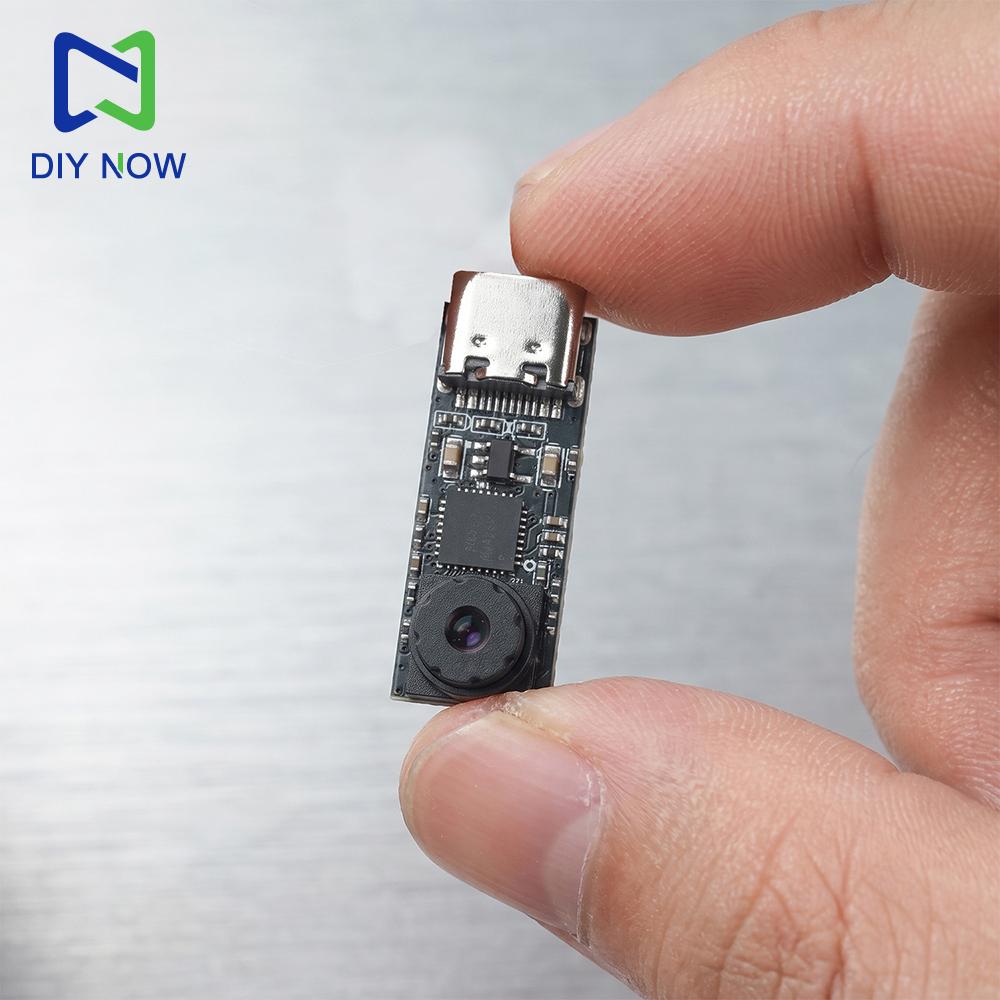

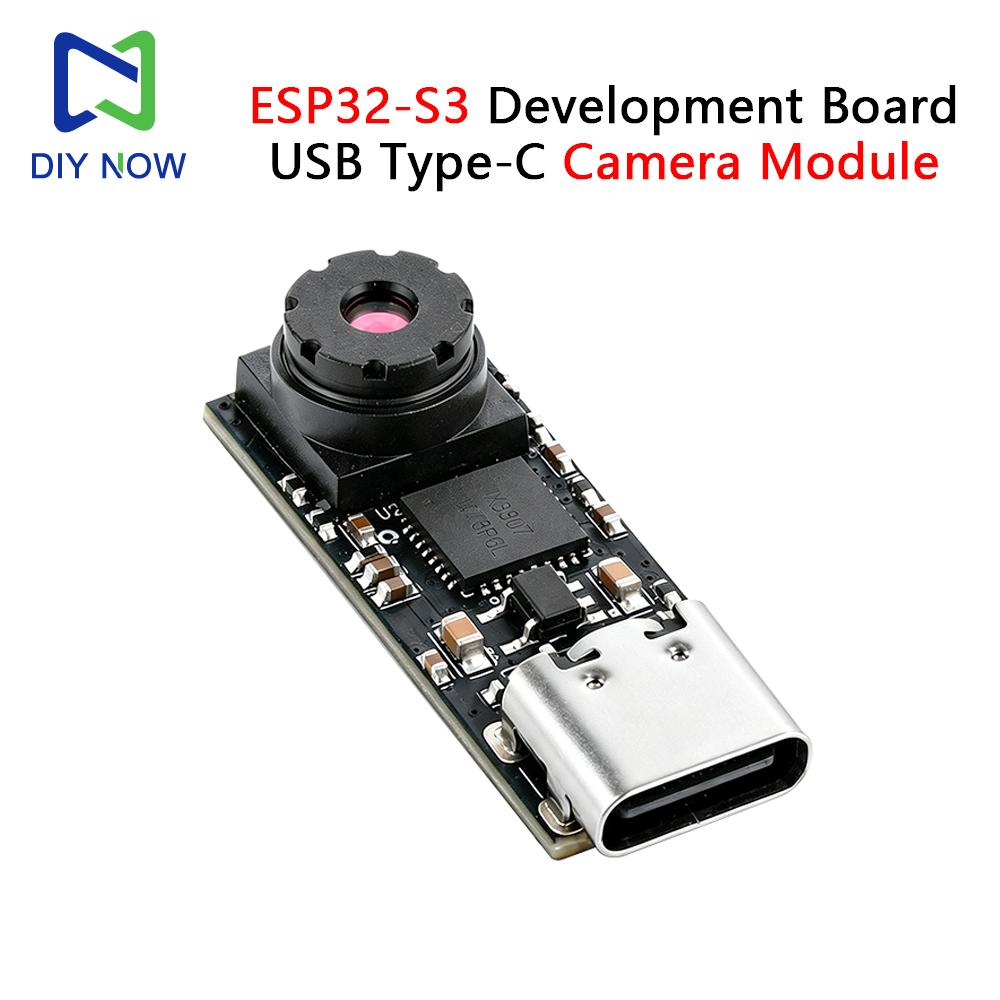

ESP32-S3 Development Board Mini USB Type-C Camera Module – 720P 1280*720 1MP 65 Degrees FOV M5-CSP Standard UVC Protocol

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 5V Application : Camera Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Lens : M5-CSP Focal Length : 2.07±5%mm Aperture : 2.4±5% Field of View : 65 Degrees Distortion : <5% Base : 8x8 cm Object Distance : 5cm-20cm Resolution : 1280*720/480*320 Color : RGB Interface : USB 1.1/USB 2.0 Output Format : YUV/MJPEG USB camera module, UVC camera, ESP32-S3 camera, 720P webcam module, 1MP camera module, 1280x720 UVC, mini USB camera, Type-C camera module : 65 degree wide angle camera, low distortion camera, YUV MJPEG camera, embedded vision camera, IoT camera module, OpenCV camera

This ESP32-S3 UVC Camera Module delivers plug-and-play 720P HD video in a tiny, embeddable form factor. Based on the standard UVC protocol, it works out of the box on Linux, Windows, and macOS – no drivers, no complicated setup. The 1MP high-sensitivity sensor with 65° wide-angle lens delivers crisp, low-distortion images perfect for AI vision, facial recognition, robotics, and embedded IoT applications. Simply plug it in via USB Type-C and start building. Frequently Asked Questions

Q1: Does this camera require drivers to install? No. This camera uses the standard UVC (USB Video Class) protocol Simply plug it in and start using it. Q2: What operating systems are supported? The camera works on any operating system with UVC webcam support – including Linux, Windows, systems. Q3: What resolutions and formats does it support? The camera supports 1280×720 (720P) and 480×320 resolutions, with YUV and MJPEG output formats. Q4: What is the field of view? The camera has a 65° field of view with <5% distortion – significantly less image warping than typical wide-angle lenses. The object distance range is 5cm to 20cm for optimal focus. Q5: Is this compatible with ESP32-S3 development boards? Yes. This camera is specifically optimized for ESP32-S3, with native USB support and seamless integration with ESP-IDF. Product Features1. Deeply optimized for ESP32-S3, plug-and-play with no driver or complex configuration required, significantly lowering the barrier to entry for embedded vision development.2. High-definition 720P UVC standard protocol, supports 1280×720 resolution, compatible with mainstream platforms such as Linux/Windows.3. Uses a compact and lightweight USB Type-C interface, saving PCB space and facilitating integration into small devices or wearable prototypes.4. 1MP high-sensitivity image sensor + 65° wide-angle field of view, minimizing image distortion and sharp edges, effectively reducing bending distortion caused by wide-angle lenses.5. Equipped with the standard UVC protocol, no complex driver writing or additional software installation required, simply connect for recognition. Technical SpecificationsParameter Specification Sensor Type 1MP CMOS Image Sensor Lens Model M5-CSP Focal Length 2.07 ± 5% mm Aperture 2.4 ± 5% Field of View 65° Distortion < 5% Lens Base 8 × 8 mm Object Distance 5cm – 20cm Resolution 1280 × 720 / 480 × 320 Color Output RGB Interface USB 1.1 / USB 2.0 Connector USB Type-C Output Formats YUV / MJPEG Protocol UVC (USB Video Class) Operating Voltage DC 5V Platform Support Linux / Windows / macOS Development Support ESP-IDF, Arduino, Raspberry Pi, OpenCV Typical Applications – Who Is This For?

Embedded Vision & AI Projects Build smart cameras, facial recognition systems, and object detection devices with the ESP32-S3's powerful processing capabilities. The UVC standard makes it instantly compatible with OpenCV, TensorFlow Lite, and other AI frameworks. Robotics & Drone Vision The compact form factor and low distortion 65° lens make this module perfect for robot vision, obstacle detection, and drone navigation. The Type-C interface simplifies integration into robotic systems. IoT & Smart Home Devices Integrate visual sensing capabilities into your IoT projects – smart doorbells, occupancy sensors, security cameras, and home automation systems. The plug-and-play UVC design makes it easy to deploy. Raspberry Pi & Single-Board Computer Projects The standard UVC protocol means this camera works immediately with Raspberry Pi – no special drivers or configuration needed. Perfect for OpenCV projects, time-lapse photography, and security applications. Package Includes1 × ESP32-S3 UVC Camera Module 1 × Connection Cable (optional – select when ordering) label:yes
