Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Product selling points:
1. The product is made of high-quality materials, and the quality is guaranteed
2. The product has stable performance and long life
3. It is suitable for table lamps, floor lamps, bedside lamps, mirror lamps, etc. with metal bodies
4. The product wiring operation is very simple and easy to understand
5. It can ensure the safe use of electricity by users, and has a surge absorber, which can effectively prevent external interference
Product parameters:

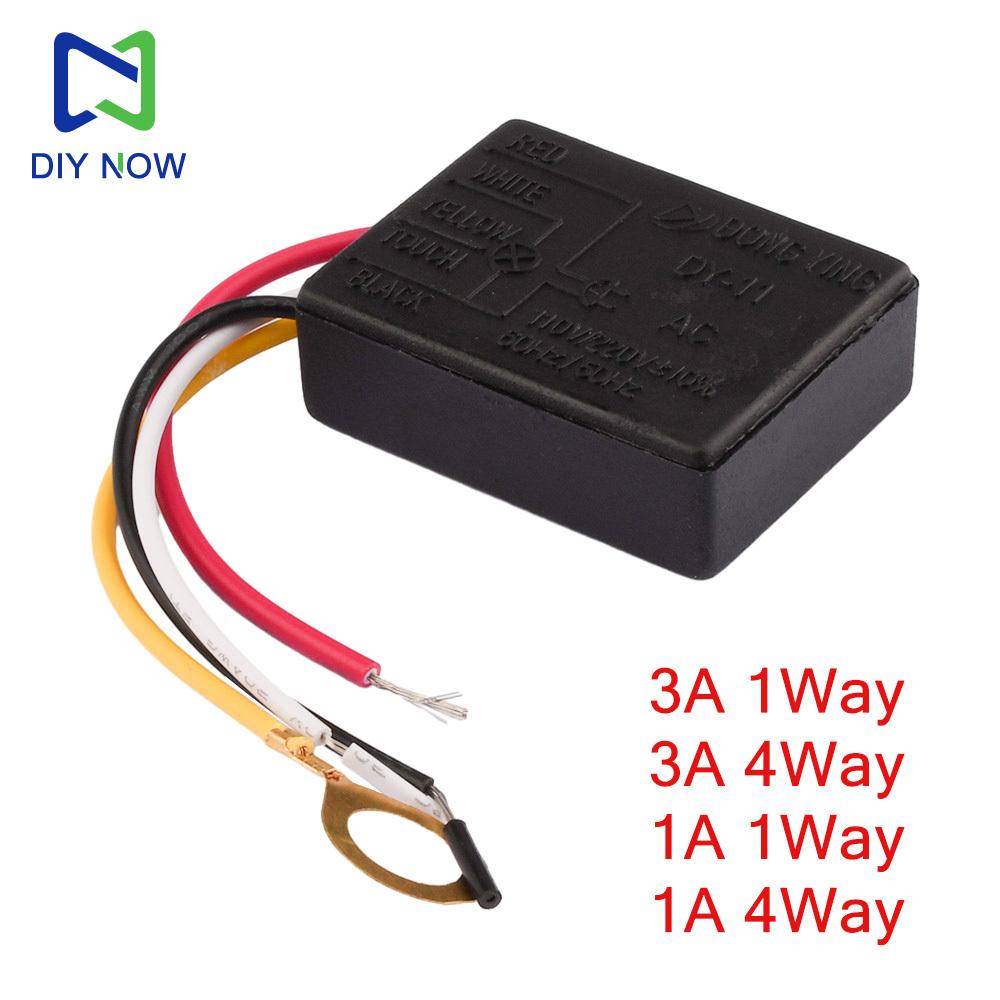

Name: Touch switch
Material: PVC
Color: Black
Specifications: ЗA 1Way / ЗA 4Way / 1A 1Way / 1A 4Way
Working voltage: 220V-240V 50/60HZ
Load power: 15-85W (max)
How to use the product:
1. The human body touch dimming switch has four dimming levels. When the human body touches any part of the metal lamp body, the light will turn on. Once it is slightly bright, touch it again to brighten the light, three times to be the brightest, and the fourth touch to turn off the light.
2. It eliminates the trouble of finding the switch at night. It uses the static electricity of the human body to trigger the internal chip to control the change of the light. It is the core functional component of the lamp.
3. It can ensure the safe use of electricity by users. It has a surge absorber and can effectively prevent interference from the outside world.
4. It is suitable for table lamps, floor lamps, bedside lamps, mirror lamps, etc. with metal bodies.
5. Wiring method:
The red wire is connected to the input (i.e. plug) live wire; the black wire is the common neutral wire (connected to the input and output neutral wires of the bulbs respectively), and the white wire is connected to the output live wire of the light source (i.e. bulb); the yellow wire with the ground wire ear is fixed on the metal tooth rod (that is, the metal part of the lamp base, iron or stainless steel), and cannot be connected to plastic.
Load type: ordinary incandescent lamp/ordinary halogen lamp beads (applicable to ordinary bulbs and low-power bulbs)
1A within 80W, 3A within 280W, only black silk bulbs can be used, LED and energy-saving bulbs cannot be used.
Shipping list:
Sensor X1
label:yes
No-delivery refund
