Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Dissipation Power : 160W
Supply Voltage : 9-24V
Type : Module
Brand Name : DIY NOW
Origin : Mainland China
Condition : New
Operating Temperature : -10 to 45℃
Input Voltage : 9-24V (12-24V recommended)
Input Current : 5A switching power supply recommended
Output Current : 0.5-4.0A
Maximum Power Consumption : 160W
Microstepping : 1, 1, 2/A, 2/B, 4, 8, 16, 32
Operating Temperature : -10 to 45℃
Storage Temperature : 40 to 70℃
Humidity : 40-90%RH

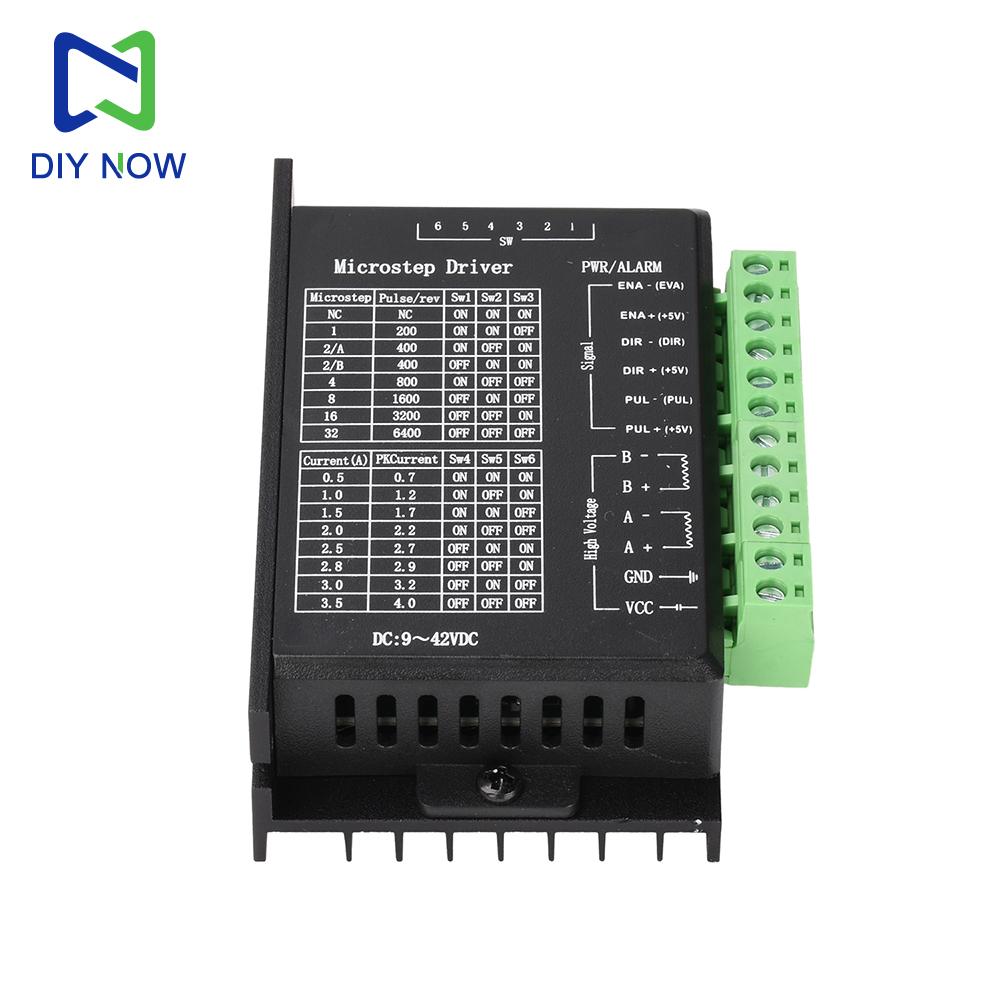

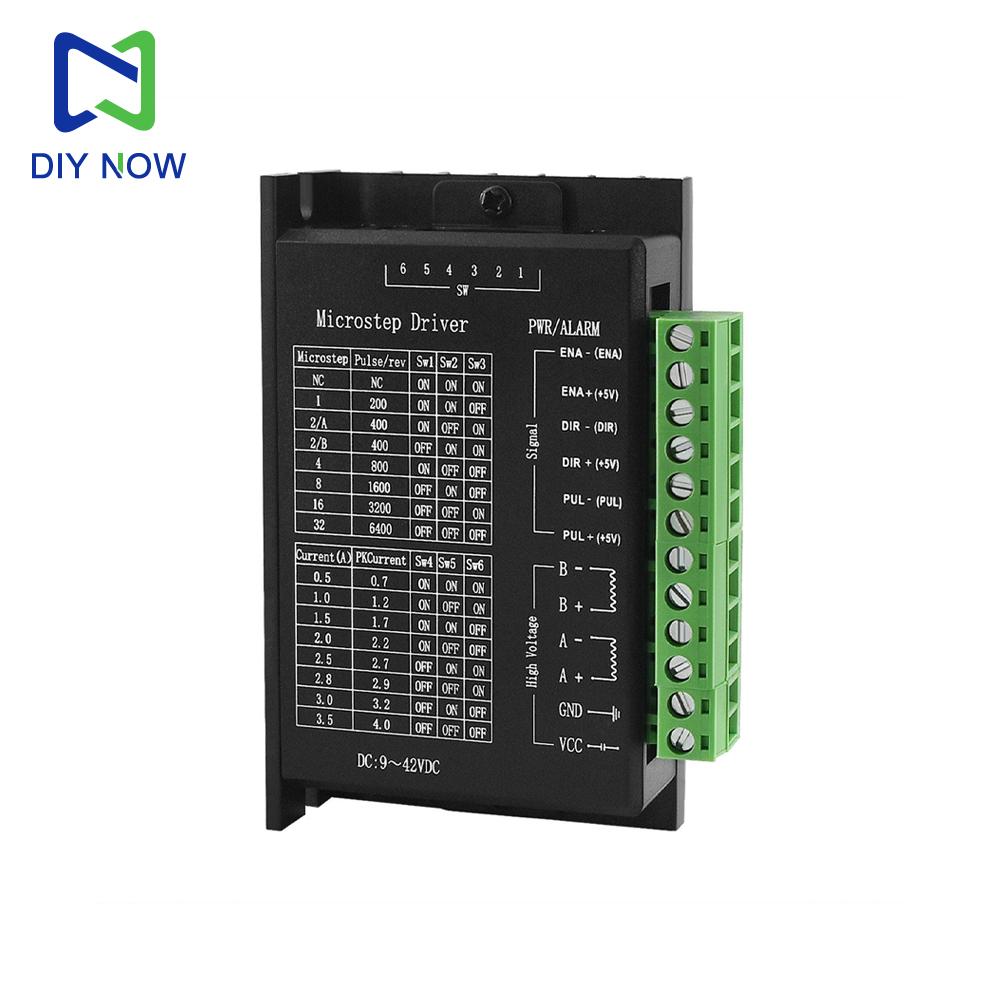

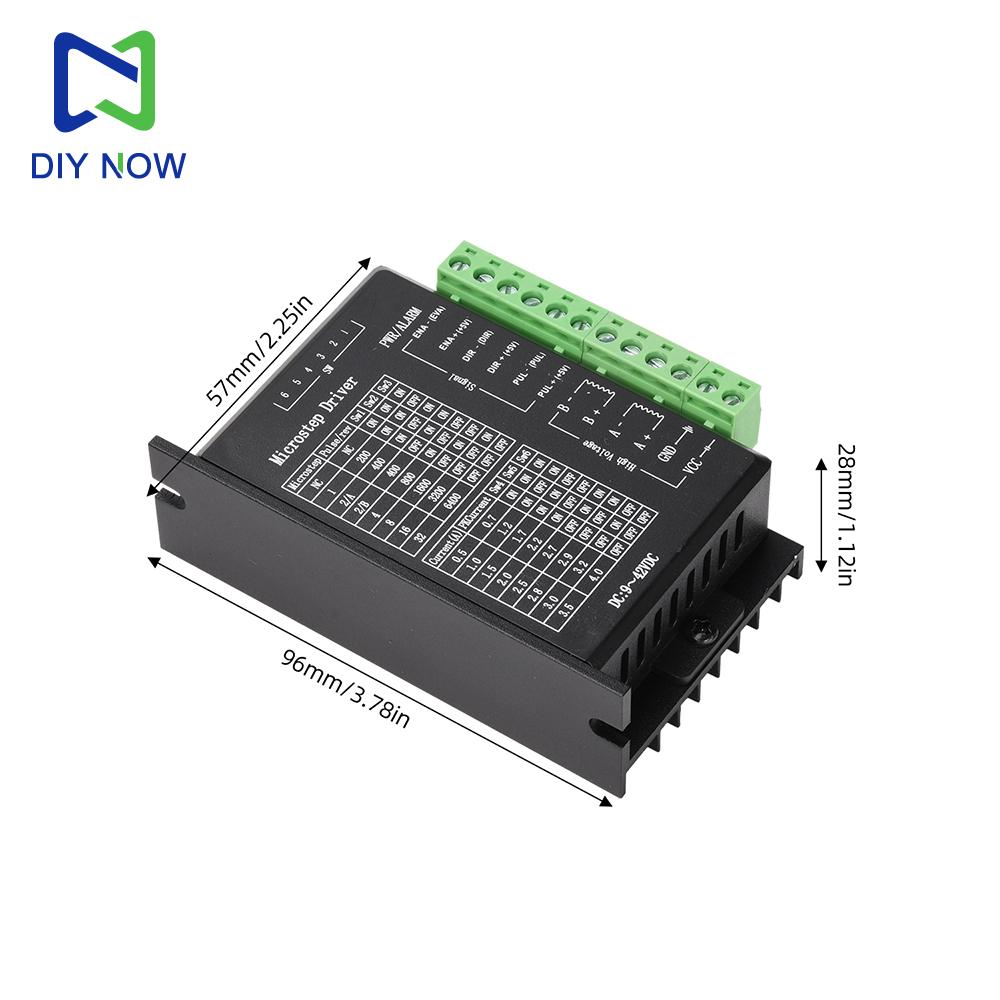

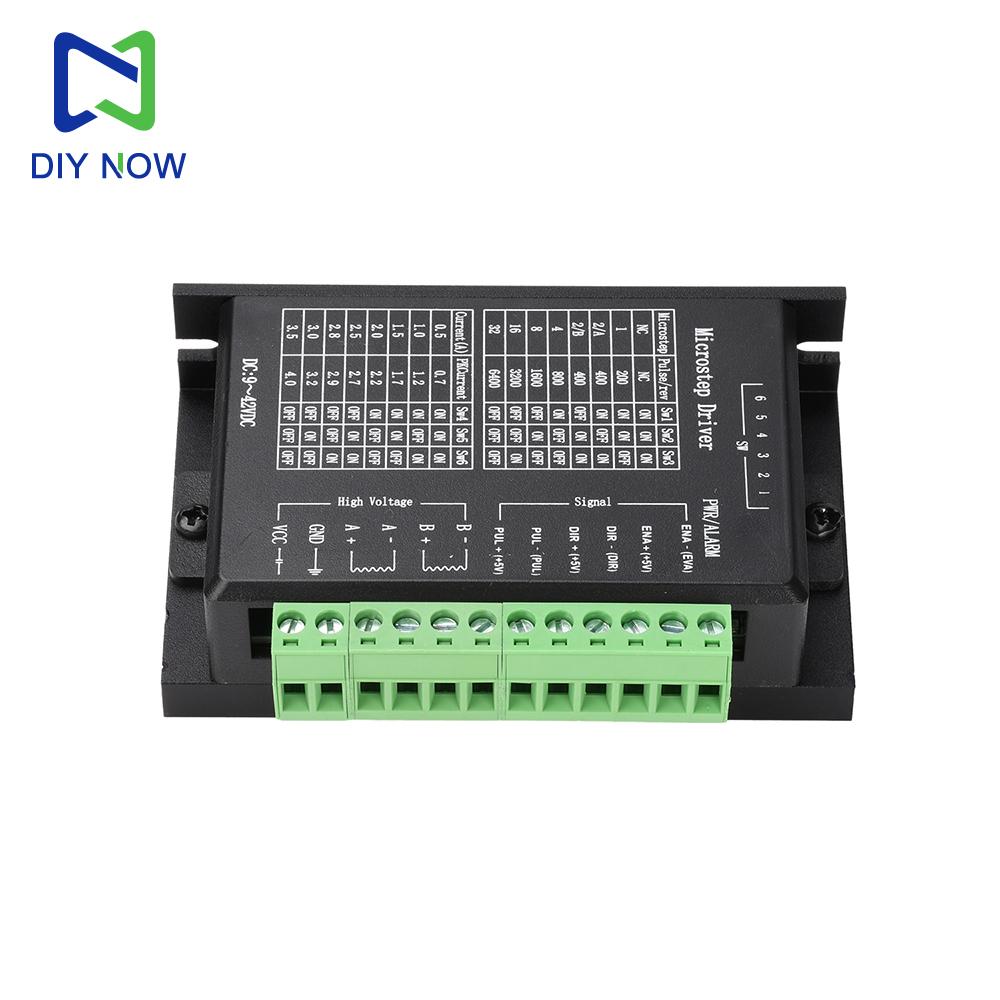

Product Introduction:The TB6600 upgraded stepper motor driver (not referring to the TB6600 chip inside the driver) is a professional two-phase stepper motor driver with 8 microstepping control levels (1, 2, 4, 8, 16, 32) and 6 current control levels (0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A). The driver pulse signal is universally compatible with 3.3V/5V/24V without the need for series resistors. Power supply: DC 9-40V (DC 24V recommended).
Product Features：
1. Eight adjustable microstepping levels to adapt to various accuracy requirements
2. Automatic half-current protection + large-area heatsink for lower temperature rise
3. Input reverse connection protection + optocoupler isolation for safer operation
4. Built-in overcurrent/overheat protection for enhanced reliability
5. Drive current up to 4.0A for strong and stable power
Product Parameters
Input Voltage: 9-24V (12-24V recommended)
Input Current: Recommended 5A switching power supply
Output Current: 0.5-4.0A
Maximum Power Consumption: 160W
Microstepping: 1 1, 2/A, 2/B, 4, 8, 16, 32
Temperature: Operating temperature -10~45℃; Storage temperature -40~70℃
Humidity: 40-90%RH
Gas: Prohibited from flammable gases and conductive dust
Frequently Asked Questions
1. Q: How can I quickly get started using this stepper driver for the first time?
A: After correctly connecting the power supply and motor, connect only the pulse signal (set the frequency to within 1kHz initially), set the microstepping to 16, and leave the direction and offline functions floating. At this point, the motor will rotate forward by default after powering on. After confirming it runs correctly, test the acceleration (increasing the frequency), direction, microstepping, and offline functions in sequence.
2. Q: Is it necessary to add a series resistor if the control signal is higher than 5V?
A: Yes, otherwise, it may burn out the circuitry of the driver's control interface.
3. Q: The power indicator light is on after wiring, but the motor doesn't turn. What could be the reason?
A: If the wiring is correct but the motor still doesn't turn, it means the control section's driving capability is insufficient. This situation occurs when using a microcontroller's front I/O port for direct control. Please ensure the control interface has a 5mA driving capability.
4. Q: How do I determine the definition of the four wires of a stepper motor?
A: Connect any two wires of the motor together. If there is resistance when turning the motor rotor by hand, these two wires are on the same phase and can be connected to drive A+ and A-. If there is still resistance when the other two wires are shorted, connect these two wires to B+ and B-.
Package List: Stepper Motor Driver *1
