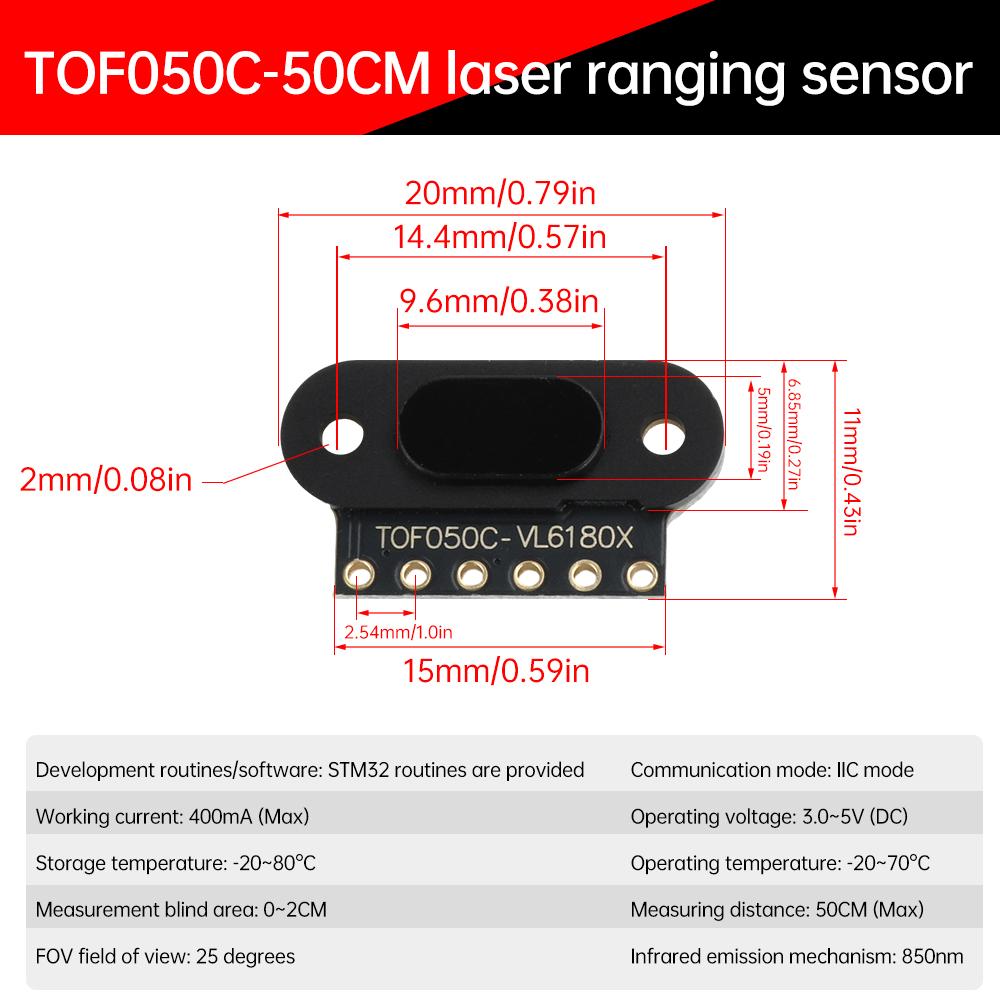

TOF050C TOF400C Laser Ranging Sensor Module TOF Time-of-flight Distance IIC Output DC 3-5V for Arduino VL6180X VL53L1X

Quantity : 1 High-concerned chemical : none Package : SMD is_d : Yes Dissipation Power : laser ranging sensor module Supply Voltage : 3-5V Type : Module Brand Name : Gaqqee Operating Temperature : 0-50C Origin : Mainland China Condition : New

Features: 1. Specialized optical cover: Specialized optical cover protects against dust and filtering to ensure accurate measurement 2. Convenient installation: Equipped with M2 countersunk gold mounting holes, easy and fast fixing to ensure stable work 3. Efficient and stable: IIC communication mode, easy to use, STM32 routines are provided for quick start 4. Excellent performance: TOF400C has a maximum measuring distance of 4 meters, low power consumption and wide voltage range 5. Wide range of applications: suitable for drones, robots, vehicle collision avoidance and other scenarios Parameter: Product Name: Laser Distance Measuring Sensor Module Communication mode: IIC mode Development routine/software: provide STM32 routines Operating voltage: 3.0~5V (DC) Operating current: 400mA (Max) Operating temperature: -20~70°C Storage temperature: -20~80°C TOF050C-VL6180X: Measuring distance: 50CM (Max) Measurement Blind Zone: 0~2CM Infrared emission mechanism: 850nm FOV field of view: 25 degrees TOF400C-VL53L1X: Measuring distance: 4M (Max) Measuring Blind Zone: 0~4CM Infrared emission mechanism: 940nm FOV field of view: 27 degrees Package include: Package1:TOF050C module x1+pin x2 Package2:TOF400C module x1+pin x2 label:yes
