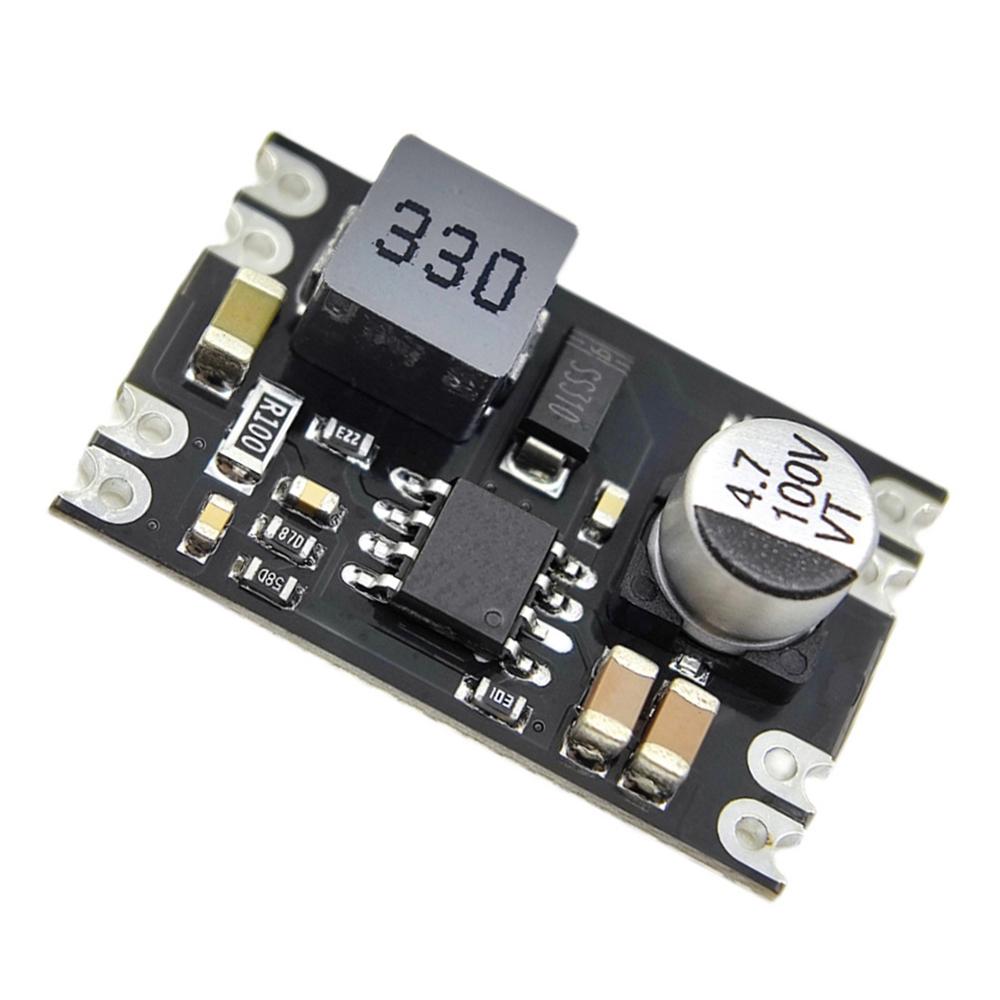

DC-DC Step Down Power Supply Module 2A DC 6-100V To 5V 9V 12V 24V Mini Buck Board Converter Multifunction High Voltage Regulator

EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc High-concerned chemical : none Type : Other is_d : No Brand Name : Aideepen Origin : Mainland China

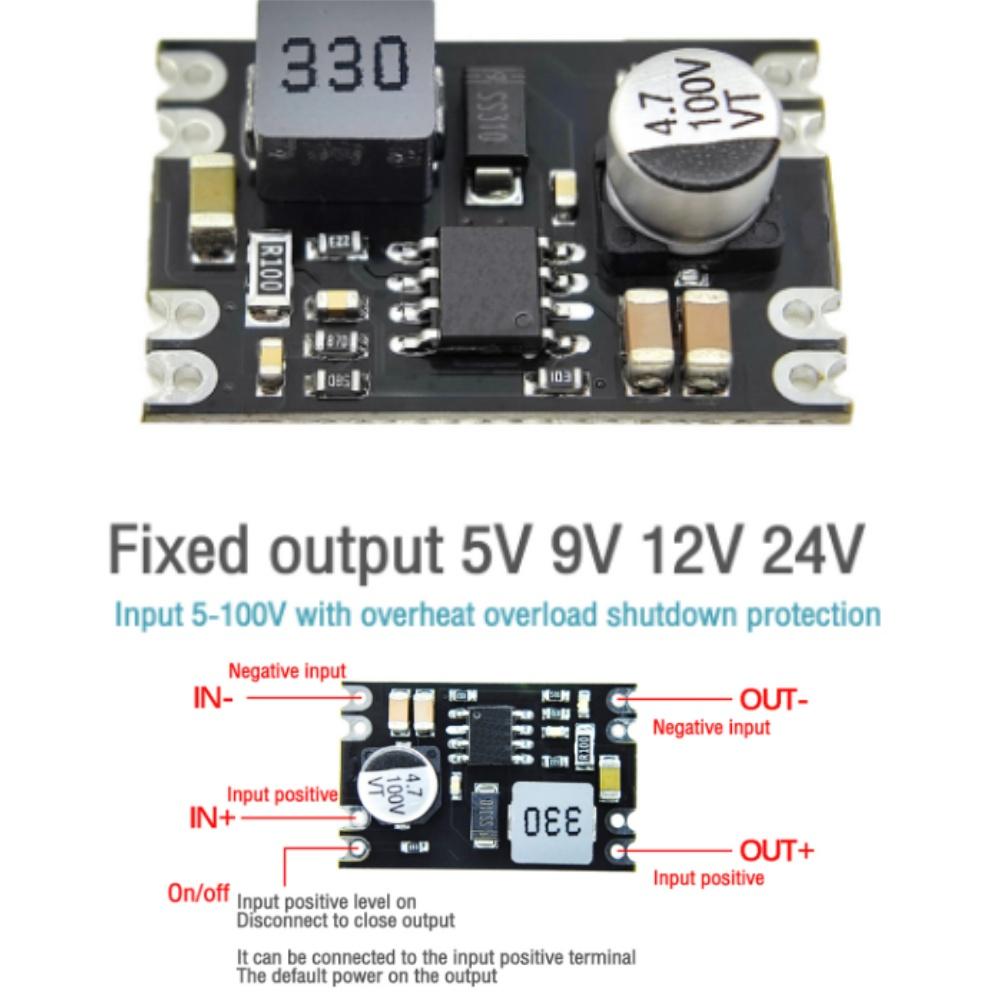

Product Features: Fixed output 5V, 9V, 12V, 24V; input 7-100V with overheat and overload shutdown protection Half-hole PCB design for surface-mount application; ultra-compact size 25.5×16.5×7mm The DC-DC step-down module is a device that converts high DC voltage into lower voltage. The input voltage must exceed the output voltage (voltage difference required), e.g., 12V to 5V, 24V to 5V. Utilizing microelectronics technology, it features high efficiency, compact size, simple operation, and easy installation.

Product Specifications: Input Voltage: 7V~100V (Input must exceed output) Output Voltage: 5V/9V/12V/24V Output Current: 3A (Maximum Peak) Continuous current within 2A Conversion Efficiency: 96% (Maximum) Output Ripple: <30mA Output Accuracy: ±0.1V No-Load Current: 1mA Operating Temperature: -40°C to +125°C Operating Humidity: 20% to 90% Dimensions: 25.5*16.5*7mm (L*W*H) PCB Layers: 2 layers Shutdown Function: With shutdown function Heat Dissipation: Natural convection Mounting Method: Wire bonding, SMD Isolation: Non-isolated Manufacturing Process: Reflow soldering Service Life: 35,000 hours MTBF (output current not exceeding rated value) Special Process: Half-hole PCB Operating Frequency: 1MHz

Product List 1X Module
