Features:
1. Made from high-quality materials, durable and practical
2. To achieve superior sound quality, the device features a digital input with high noise immunity and a high jitter tolerance (at least 8 dB better than standard solutions)
3. Stable performance, delivering Class AB sound quality with the efficiency of a Class D amplifier
4. The product also offers excellent electromagnetic interference (EMI) suppression, allowing for long speaker cable connections without the need for external filtering
5. Exceptional high-fidelity sound quality, suitable for a wide range of product applications
Specifications:
01 Output Power:
3.2W at 4Ω, THD 10%
1.8W at 8Ω, THD 10%
I2S Sampling Rate: 8 kHz to 96 kHz
Class D Amplifier Gain Options: 3 dB, 6 dB, 9 dB, 12 dB, 15 dB
No Master Clock (MCLK) Required
Plug-and-Play: Supports 35 different clock types and 128 digital audio formats with automatic configuration using a single power supply
Compatible with Raspberry Pi, Arduino, ESP32, and other microcontrollers or development board systems with I2S audio output

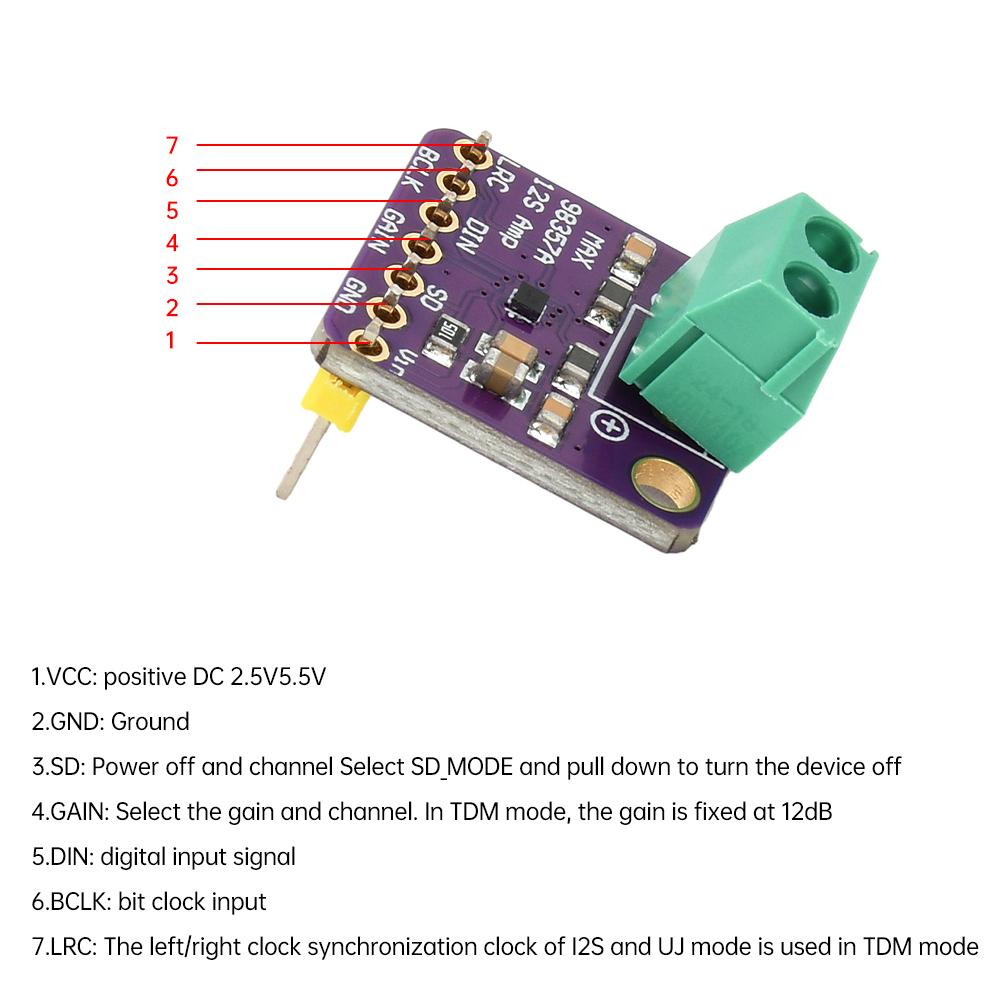

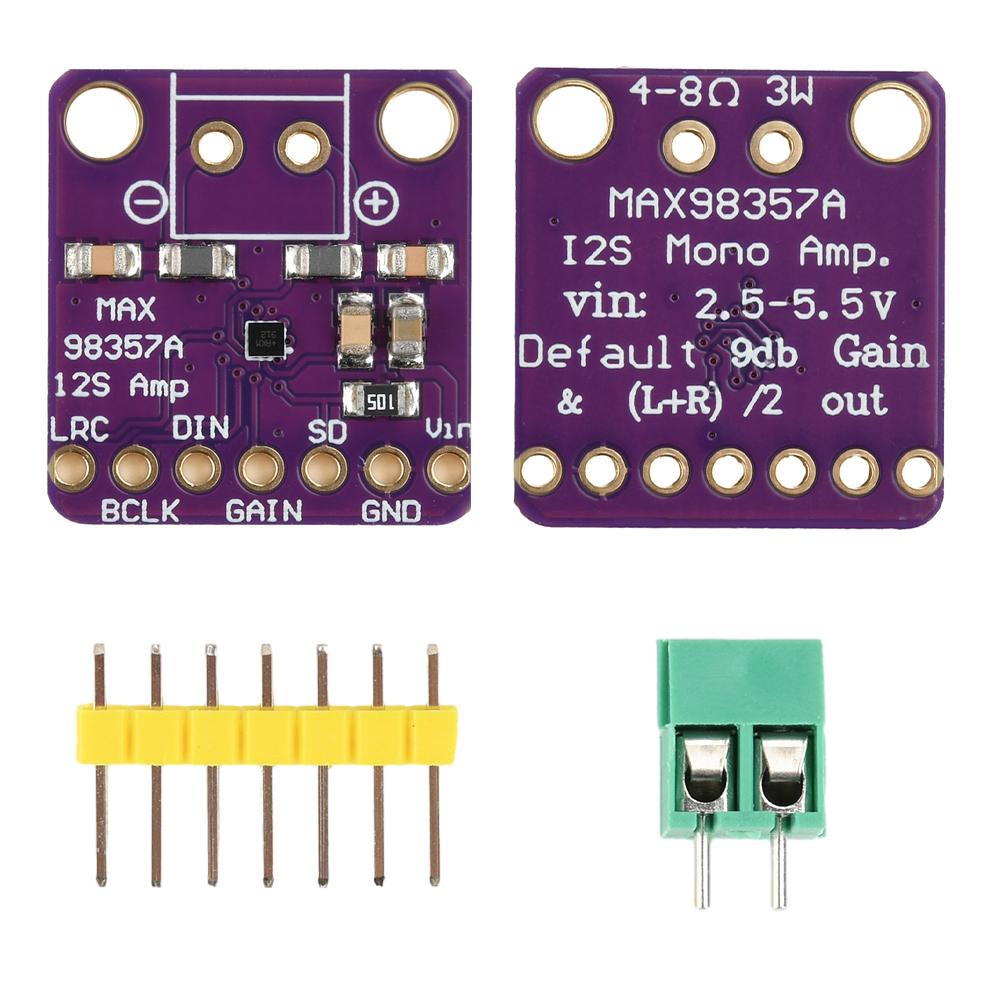

Pin Description:
VCC: Power supply positive terminal, DC 2.5V–5.5V
GND: Ground
SD: Power-off and channel selection. Pull SD_MODE low to put the device into shutdown mode
GAIN: Gain and channel selection. In TDM mode, gain is fixed at 12dB
DIN: Digital input signal
BCLK: Bit clock input
LRC: Left/right clock for 12S and UJ modes. Synchronization clock for TDM mode

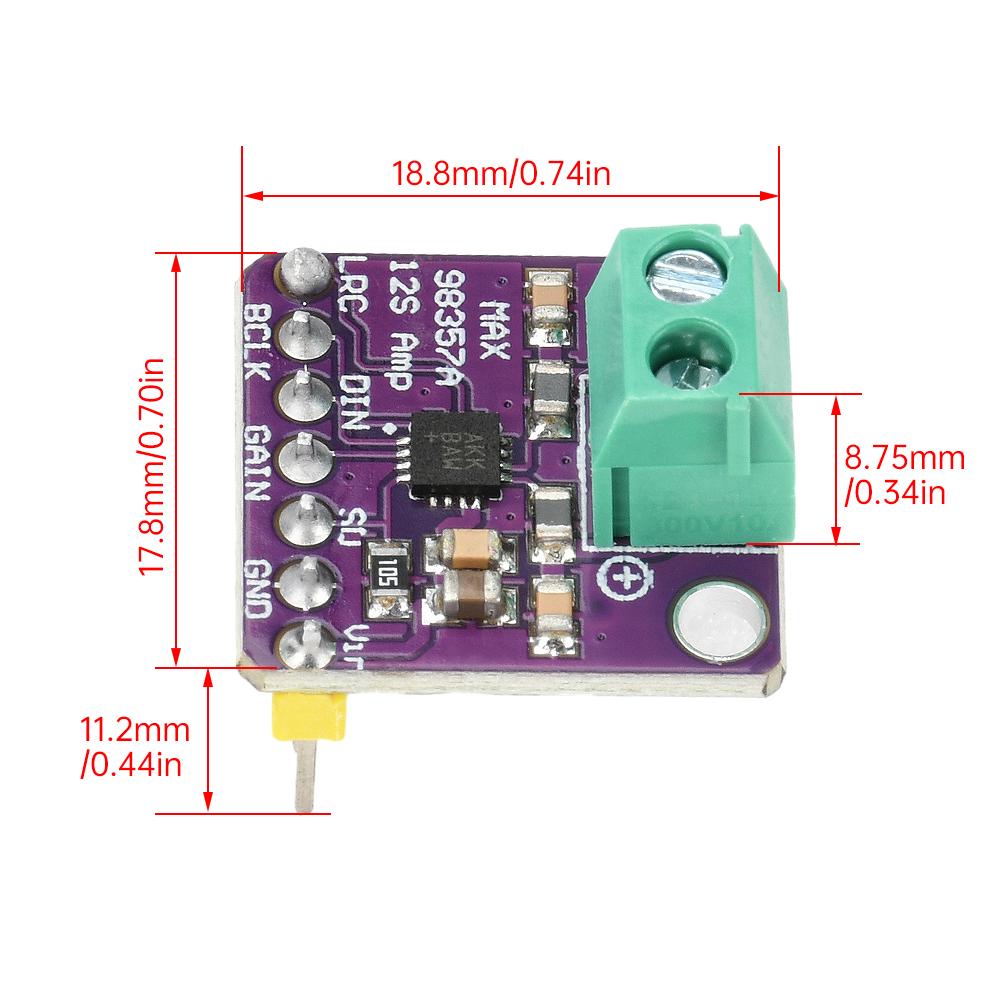

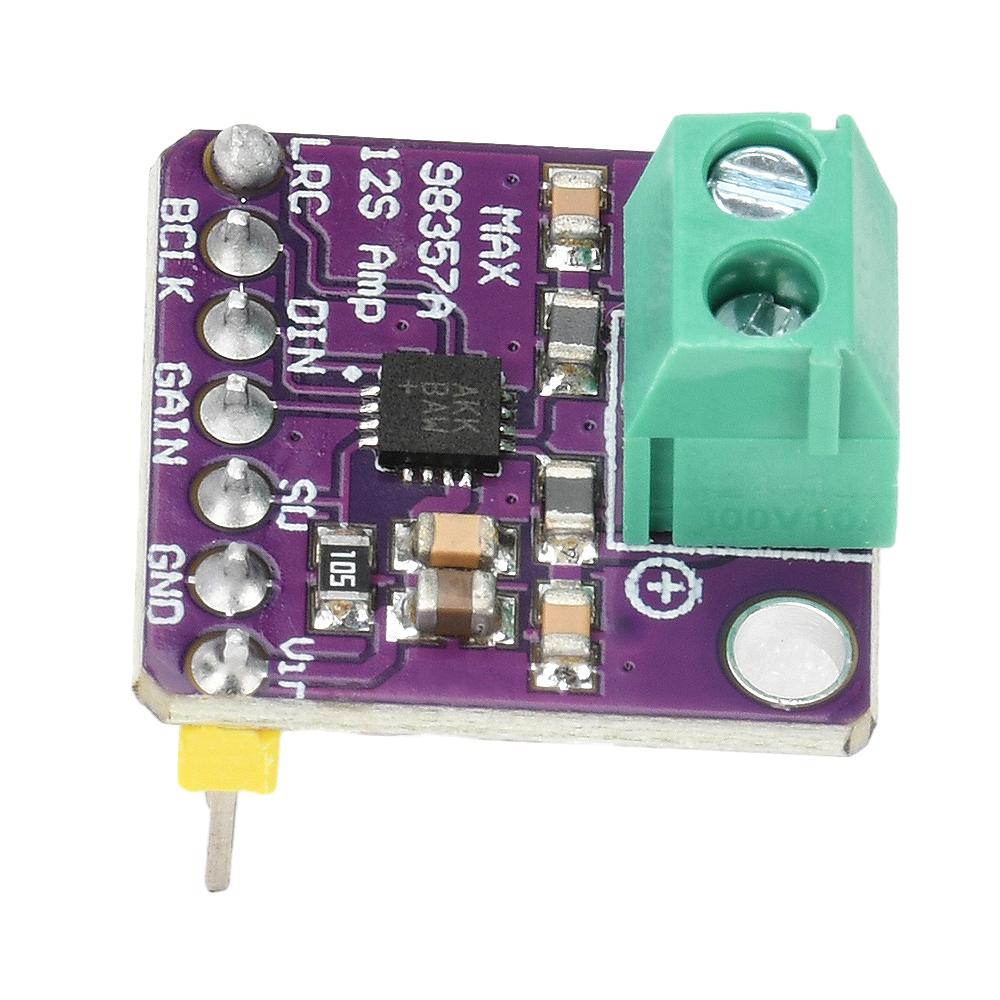

Package Contents:
Module x 1 + Header x 1 + Terminal Block x 1
