EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
High-concerned chemical : none
Current Type : DC
Brand Name : Aideepen
Origin : Mainland China
Certification : CE
Product features:
1. 100% new, high-quality product with two optional interfaces.
2. Made of high-quality materials, with an adjustable DC4.3-27V voltage, durable and practical.
3. Compact, measuring only 3.3 x 2.3 x 0.9 cm, for easy use and installation.
4. Highly efficient and stable performance with a long life.
5. Widely applicable, can be used for multimeter conversion and lithium battery charging.
Product Parameters:

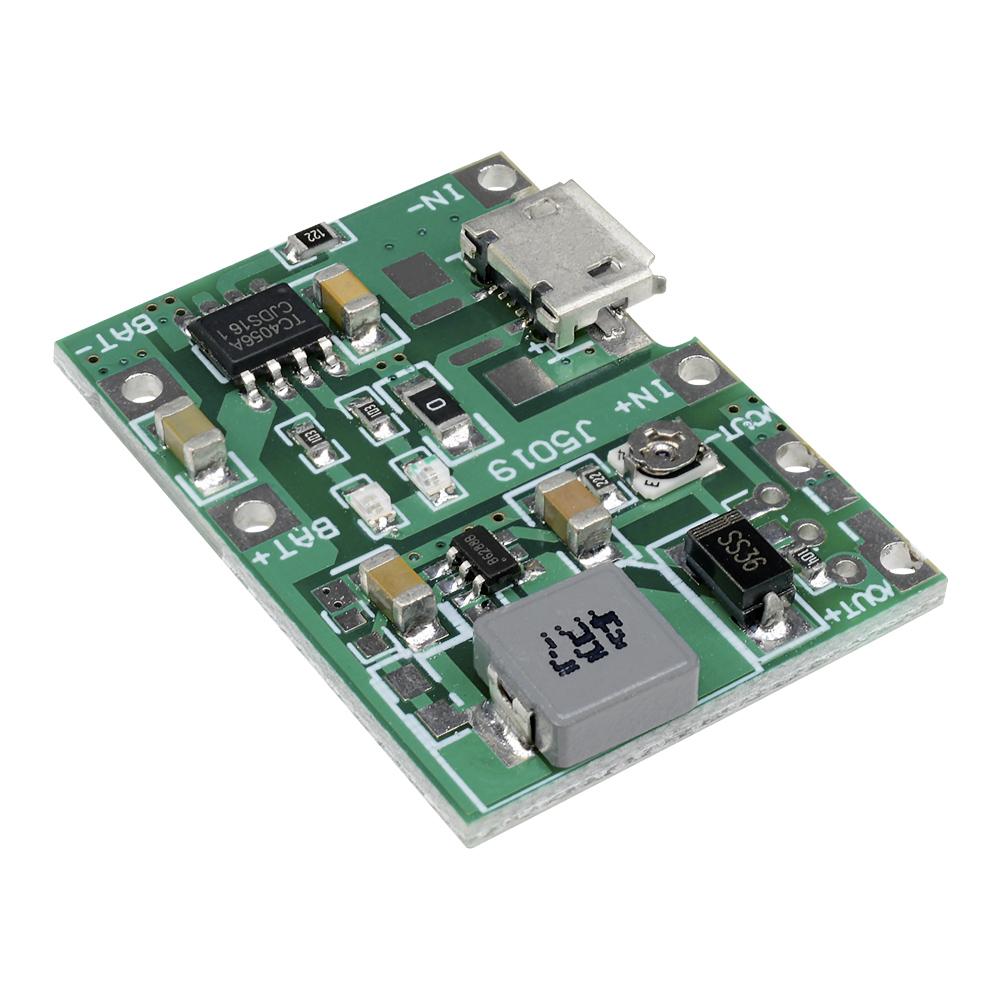

USB Port Model:
Interface: USB
Input Voltage: DC 4.5-8V
Output Voltage: DC 4.3V-27V (Adjustable)
Output Current: 2A Max
Charging Voltage: 4.2V
Charging Current: 1A

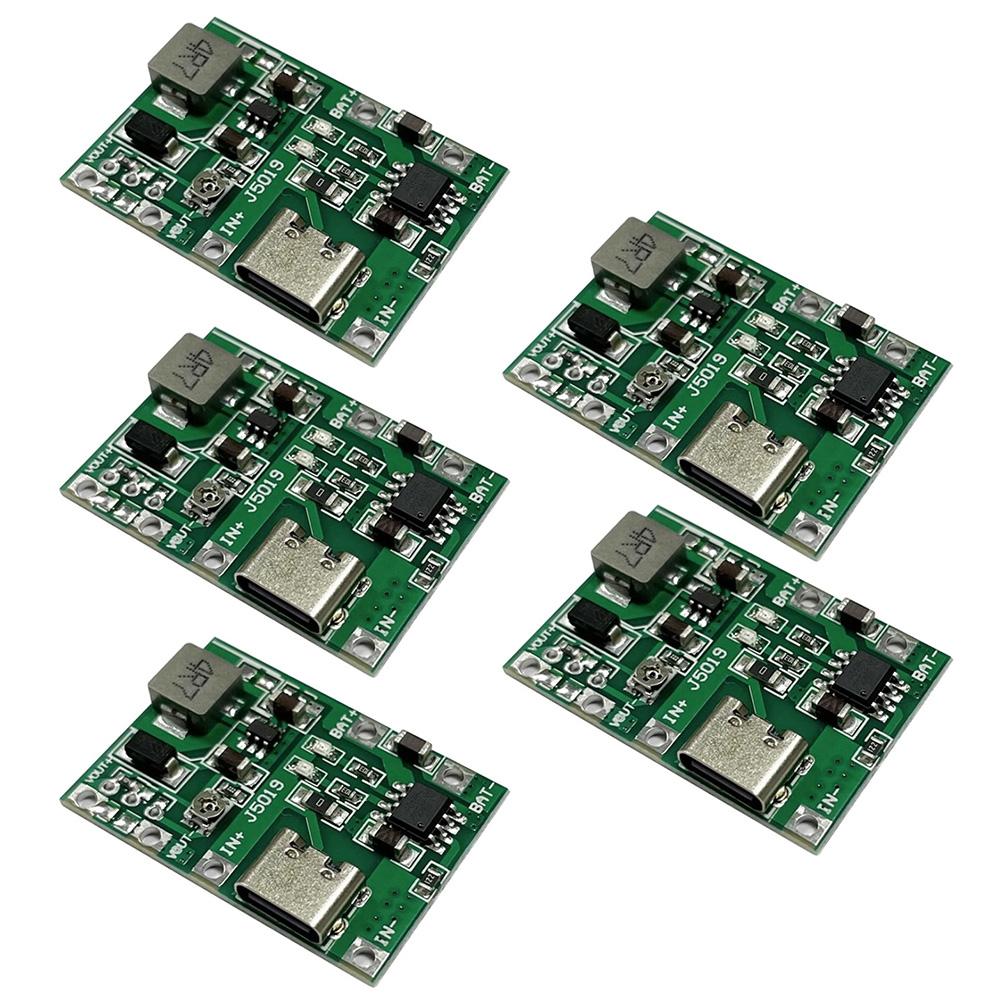

Type-C Port Model:
Interface: Type-C
Pre-calibration required. Default output is approximately 9V.
Input Voltage: DC 4.5-8V
Output Voltage: DC 4.3-27V (Adjustable) (Any voltage between 4.3V and 27V is supported. Adjust the voltage by turning counterclockwise to increase the voltage.)
Charging Voltage: 4.2V
Charging Current: Maximum 1A
Discharge Current: Maximum 2A (You should calculate the output current yourself. Reference maximum currents are 5V 1.4A, 9V 0.8A, and 12V 0.6A).
Quiescent Current: Approximately 0.5mA
Overshoot Protection: Yes
Dimensions: 3.3 x 2.3 x 0.9 cm
Wiring Example:
For example The VIN+ terminal connects to a 5V solar panel, the BAT+ terminal can output 4.2V to charge a 3.7V 18650 battery, and the OUT+ terminal can output an adjustable voltage for custom adjustment. This can be used to modify a multimeter for lithium battery charging.
Product List:
5 x Power supply module
