Features

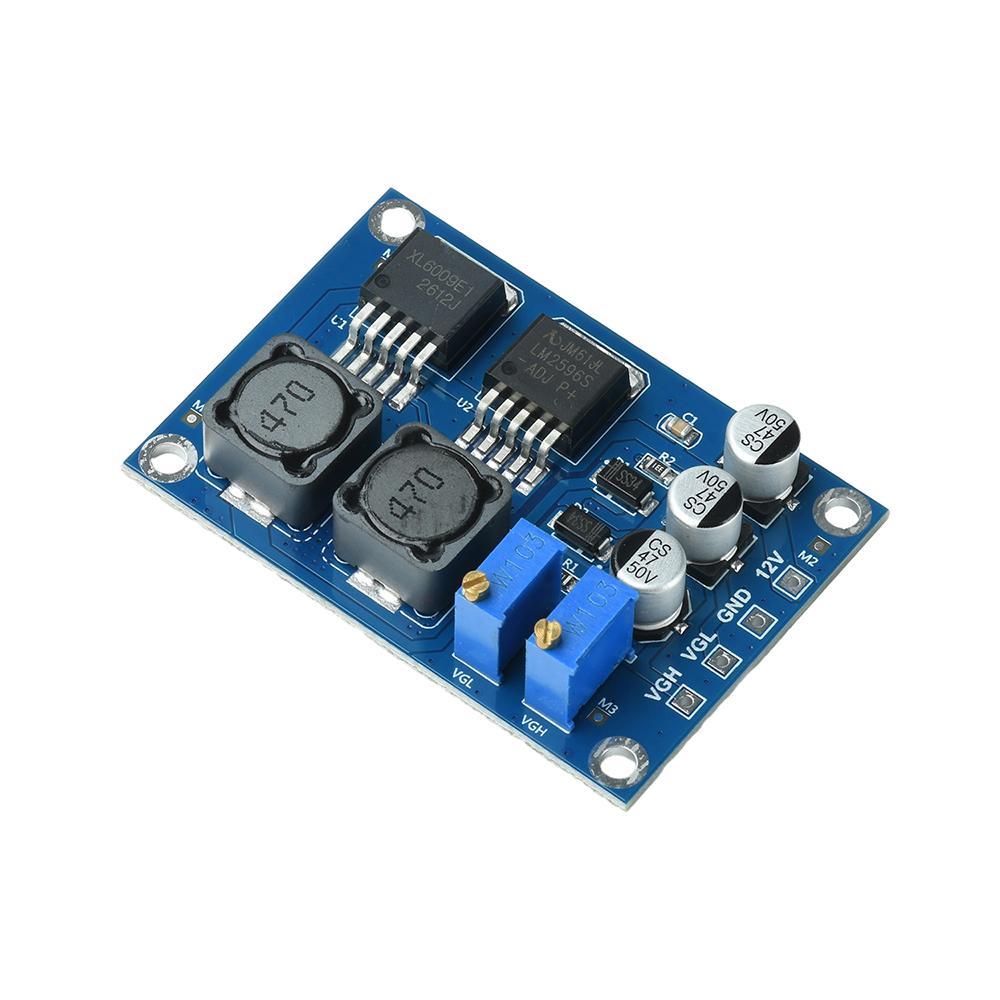

1. Specifically designed to address issues such as dark horizontal lines and color distortion caused by a broken Y-panel; replaces the faulty boost circuit, eliminating the need for a screen replacement and reducing repair costs.
2. Independent adjustment of VGH and VGL voltages; increases voltage when adjusted clockwise and decreases when adjusted counterclockwise, making it compatible with multiple screen models.
3. Compatible with Y-panels from multiple s; works with both integrated boards and separate logic boards.
4. Wide voltage adjustment range with stable, filtered output for a clean signal; eliminates ripple for a smoother, more refined display.
5. 12V power supply includes a grounding screw hole; clearly labeled connectors and simple wiring make it easy for beginners to get started quickly.
Product Specifications
Input Power: DC 12V
Adjustable Voltage: VGH 15V–40V; VGL 5V–28V
Default Output: Approximately -22V
Default Output: Approximately +22V
Output Voltage Adjustment:
Rotate clockwise to increase voltage
Rotate counterclockwise to decrease voltage
Compatible Board Types: Integrated logic motherboard, integrated logic edge board, standalone logic board
Mounting Structure: Includes grounding screw mounting holes
Core Functions: Repairs faults caused by a broken Y-line, such as dimness, coarse horizontal lines, color distortion or missing colors, and abnormal grayscale
