High-concerned chemical : none
Communication method : Other
Camera Equipped : No
Model Number : DC5V
Compatibility : others
Brand Name : occkic
Origin : Mainland China
State of Assembly : Almost Ready
Specification : CN Plug
Certification : NONE
Features:
1.100% new high-quality product, made of high-quality materials, compact in size, and easy to install.
2. Convenient application, strong fog volume, large fog volume, continuous spray.
3. Strong universality, stable performance, easy to use, and easy to operate.
4. Support microcontroller linkage, the humidifier module is equipped with a microcontroller control interface, which can be programmed to control its operation through the microcontroller.
5. Wide range of applications: DIY self-made, plant moisturizing, product application, module set is easy to assemble and use.
Parameter:

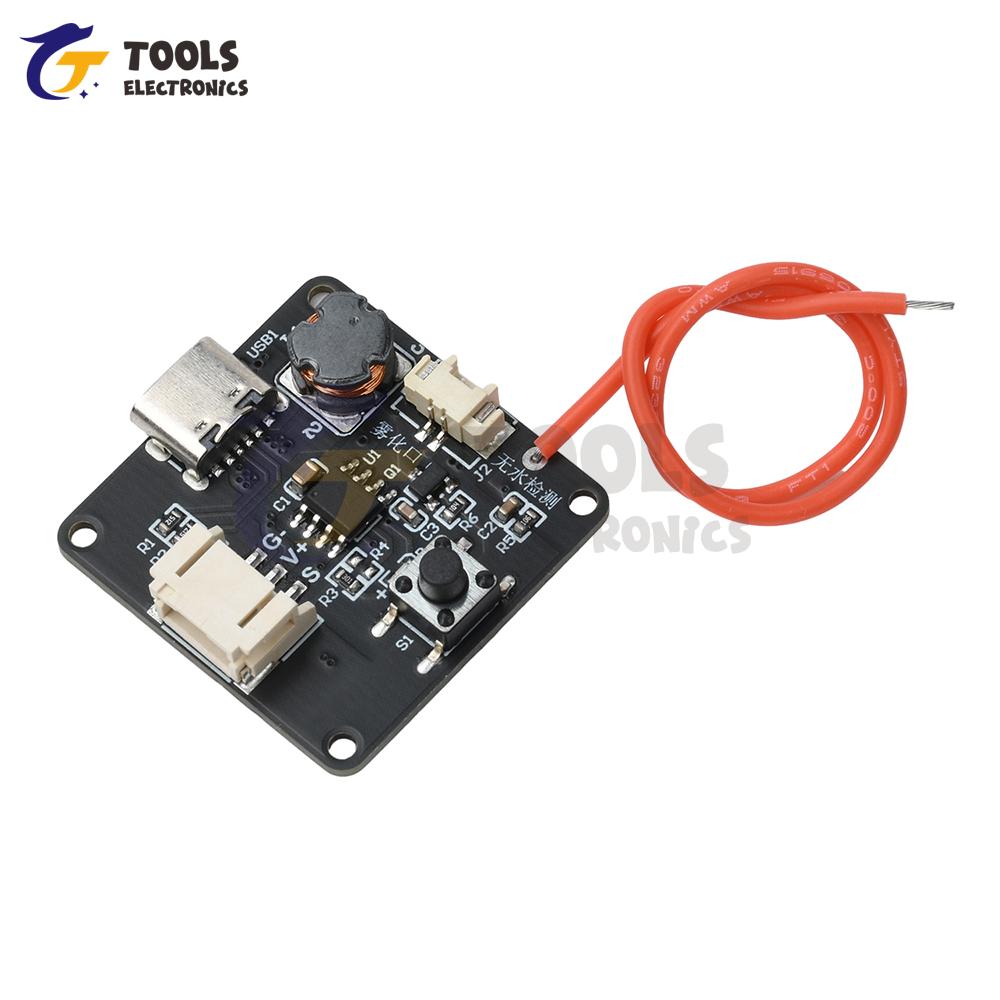

Name: Single spray waterless detection humidifier module
Material: 1.2mm FR-4
Interface: TYPE-C
Rated voltage: DC 5V (power supply)
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ ± 5KHZ
Module: 30 * 30MM
Cotton swab: 8 * 100mm
Atomization parameters:
Drive voltage: 5V
Resonant frequency: 108-110KHz ± 5
Rated power: 2W
Number of perforations: 800
Aperture: 4-5UM
Silicone sleeve outer diameter: 20MM
Rubber ring thickness: 3MM
Steel plate diameter: 16 mm
Line length: 10CM
Wire terminal: PH1.25 interface
Function Description:
1. Water free detection and anti dry burning function
2. Single chip microcomputer programmable control of spray
3. When the power is high, spray, the indicator light is on, and when the power is low, shut down
4. Press once to start spray, the indicator light is on, and press the second time to shut down
Usage method:

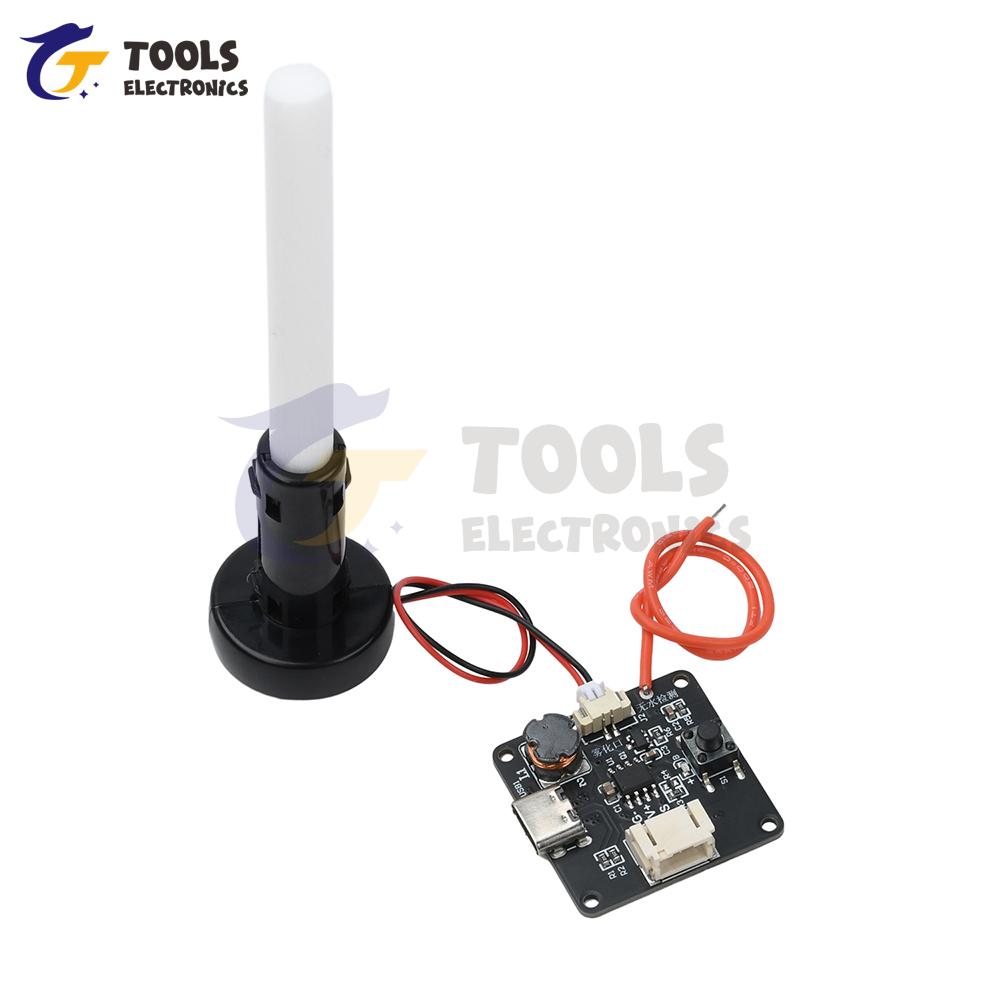

1. First, install the atomizer bracket and cotton swab
2. Connect the atomizing plate to the module atomizing plate port
3. Connect the power supply to the module power port again
4. Press the power switch
5. Spray when the atomizer meets water
matters needing attention:
1. It is strictly prohibited to puncture the atomizing plate, and the welding points of the atomizing plate cannot be folded or pulled
2. It is strictly prohibited to power on without connecting the atomizing plate
3. It is strictly prohibited to use fast chargers
4. It is strictly prohibited to modify modules
5. The module must not touch water
6. Full steel sheet (raised surface) in downward contact, cotton swab absorbs water
7. Rated power input

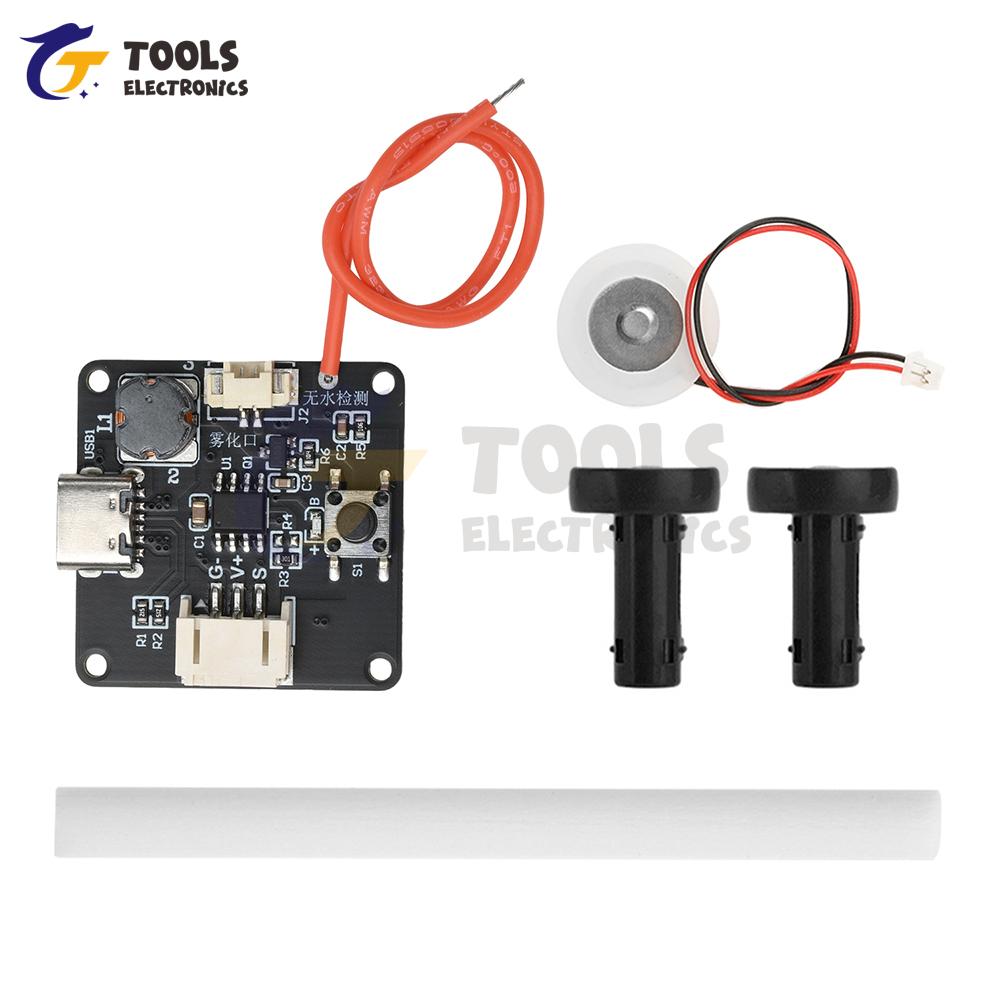

Package Include:
Module * 1
Bracket seat * 1
Atomization sheet * 1
Cotton swab * 1
label:yes
Plug type: USB
No-delivery refund
