High-concerned chemical : none
Type : Module
Origin : Mainland China
Condition : New

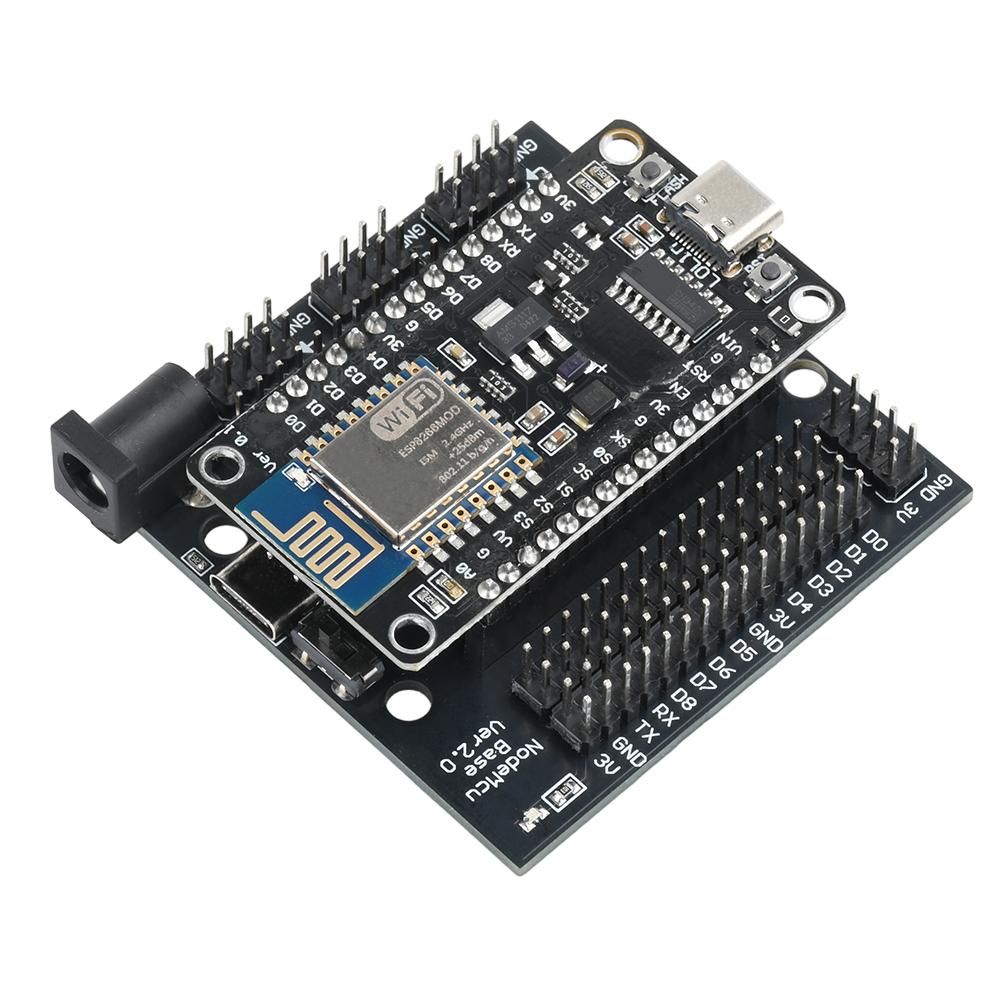

NodeMcu Lua V3
Features:
1.With power prompt light
2.Strong compatibility, suitable for ESP8266 serial port backplane
3.Easy to use, plug in and use
4.Compact exterior, easy to carry
5.Using USB power supply, it can be powered by DC power socket 6-24V
Product Description:
Power supply method: 6-24V power supply through DC power socket
If compatible with WIFI V3 development board is required
This supporting product is suitable for use with a wide version
Phenomenon: When supplying power to the ESP8266 WIFI backplane, the power indicator light is not on. When the ESP8266 WIFI module is inserted, the backplane power indicator light is on
Package include:
1X module
CH340 Type-C
Product Introduction
ESP8266 is a high-performance wireless SOC that integrates the industry-leading TENSILICA L106 ultra-low power 32-bit micro MCU, with a 16 bit reduced mode, main frequency support of 80 MHZ and 160 MHZ, RTOS support, integrated WI-FI MAC/BB/RF/PA/LNA, and onboard antenna.
Parameters:
802.11 blg/n
Built in Tensilica L106 ultra low power 32-bit micro Mcu, with main frequency support of 80MHz and 160 MHz, and support for RTOS
160KB SRAM (64KB IRAM+96KB DRAM)
Built in 10 bit high-precision ADC
Built in TCP/IP protocol stack
Built in TR switch, balun, LNA, power amplifier, and matching network
Built in PLL, voltage regulator, and power management components,+18 dBm in 802.11b mode
Aggregation of A-MPDu and A-MSDU with a protection interval of 0.4 s
Wi Fi @ 2.4 GHz, supports WPA/WPA2 security mode
Support for AT local upgrade and cloud OTA upgrade
Support STA/AP/STA+AP working mode
Support for Smart Config function
HSPI, UART, 12C, 12S, IR Remote Control, PWM, GPIO deep sleep hold current is 20 uA, and turn off current is less than 5 uA
Wake up, connect, and transmit data packets within 2 ms
Power consumption in standby mode is less than 1.0 mW (DTIM3)
Package include:
1X development board
label:yes
No-delivery refund
