DC-DC Boost Converter 3.6-20V Input 120-300V/150-500V Output Ultra Compact High Voltage Power Module for DIY Ionizer

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC 3.6-20V Type : Voltage Regulator Origin : Mainland China Condition : New Operating Temperature : 0-50C

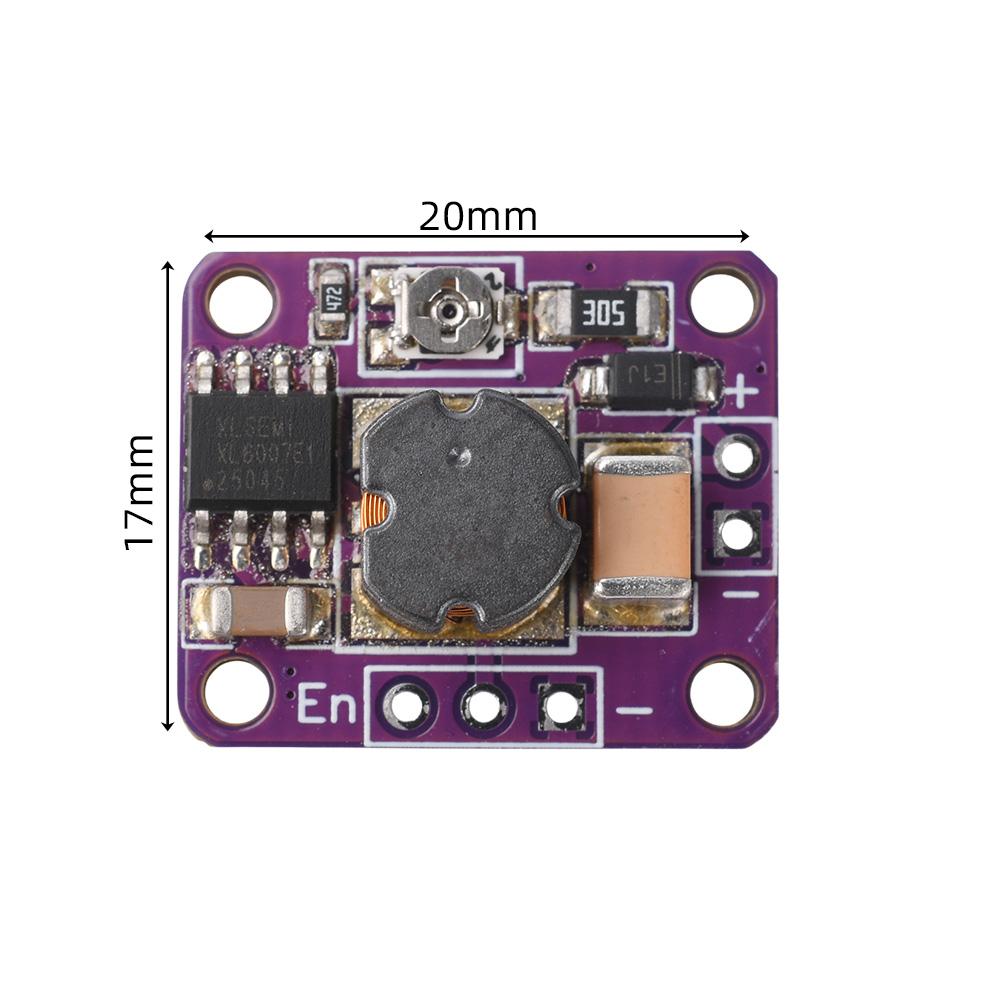

1. Input voltage range: DC 3.6-20V, meeting the needs of different devices 2. High voltage optional: Output supports 120-300V or 150-500V (model differentiation) 3. Ultra small size: Mini exterior design, friendly embedding, flexible adaptation to various power scenarios 4. Optimize circuit design: adopt high-efficiency boost technology with strong reliability 5. Wide applicability: Suitable for DIY production of various high-voltage power supplies, small ion generators, etc Input voltage: DC 3.6-20V Output voltage: DC 120-300V; DC 150-500V (optional specifications) Size: 20mm x 17mm Product thickness: 6.95mm

Usage: 1. Wide voltage input, the input voltage should not exceed 24V. 2. The boost module has no input reverse protection, pay attention to polarity. 3. The module will generate heat during operation, please do not touch it with your hands. When inputting 4.12v, it can stably carry 4 tubes. 5. EN is the enable pin, with the output turned on by default and turned off when low. 6. It is recommended that the output current be less than 15mA. 7. The adjustable resistor is used to adjust the output voltage. Please use an insulated screwdriver when adjusting. 8. The module has high voltage output, be careful of electric shock.

Module * 1 label:yes
