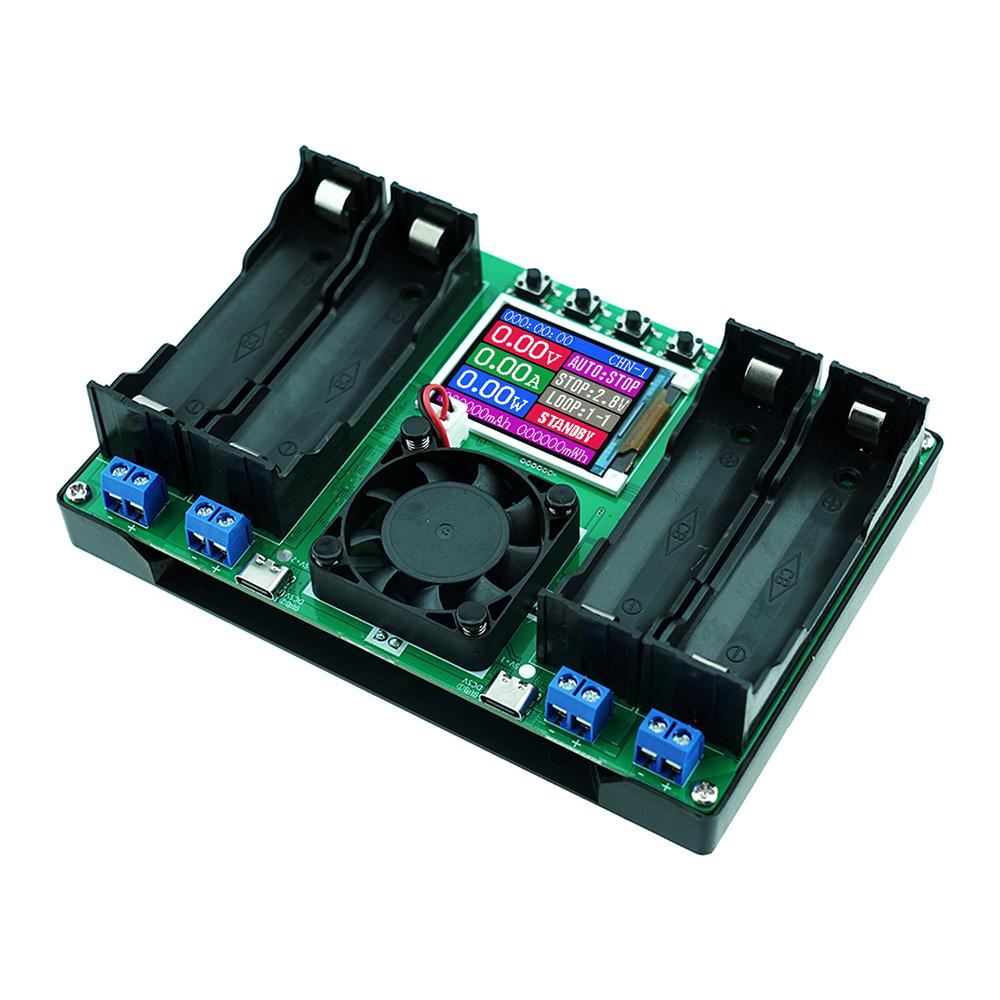

TYPE C Powered 4 Way 18650 Lithium Cell Analyzer DC Two Wire Internal Resistance Test Independent Channel Design

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC5V Type : Module Operating Temperature : 0-50C Origin : Mainland China Condition : New Feature 1 : 18650 Battery Capacity Tester Feature 2 : Battery Internal Resistance Tester Feature 3 : Electronic Load Tester Feature 4 : 4 Channel Battery Tester Feature 5 : Type C Power Supply Module Feature 6 : Auto Charge Discharge Cycle Feature 7 : DC Two Wire Internal Resistance Test Feature 8 : Active Cooling Fan Feature 9 : Overheat Protection Module Feature 10 : 4.2V Lithium Cell Tester

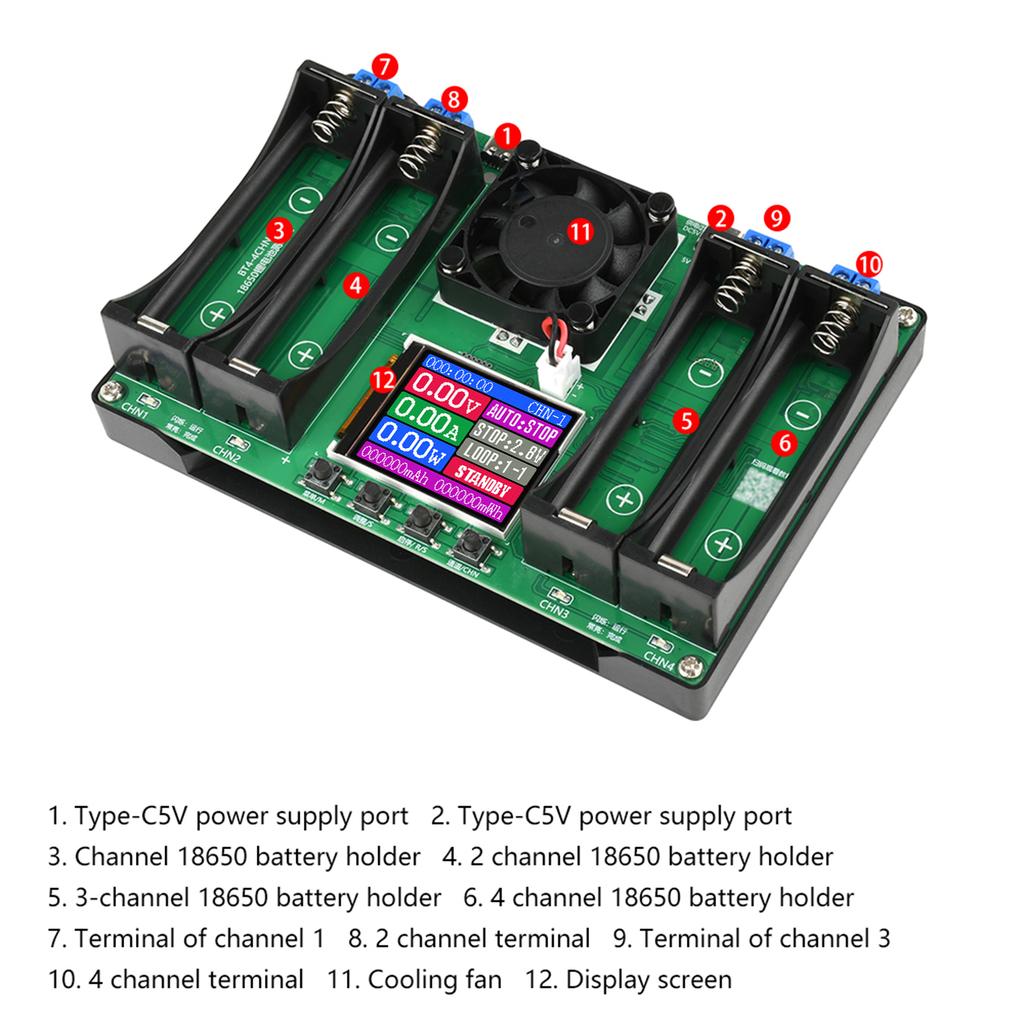

Features: 1.The product supports four-channel capacity and internal resistance measurement 2.Support separate charging and discharging, and support up to 9 charging and discharging cycles in automatic mode 3.Each channel is independent of each other, set separately, operates independently, and does not interfere with each other 4.18650 battery holder uses compact battery holder, suitable for flat-head battery measurement 5.Active cooling of fan supports overheating protection 6.Using DC two-wire method to measure internal resistance Note: lithium iron phosphate battery charging is not supported

Parameters: Working voltage: DC5V Applicable battery: suitable for all batteries that meet the requirements of stopping discharge voltage of 2.5~3.5V and starting from 2.8V to 4.2V Power supply interface: Dual Type-C power supply interface (power supply and power cord are not included) System language: English/Chinese can be switched Test quantity: 4-way charging and discharging measurement Internal resistance measurement: support, use DC two-wire method to test internal resistance Charging function: support, automatic cut-off charging when fully charged (lithium iron phosphate battery charging is not supported) Discharge function: support, automatically stop when conditions are met, and the discharge current is not adjustable Automatic charging and discharging: supported. The battery is fully charged at the end of automatic mode Cyclic charging and discharging: supported, 1~9 cycles adjustable (only supported in automatic mode) Status prompt: Supported Cooling mode: fan active cooling Overheat protection: support Stop discharge voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 11 adjustable gears Discharge current: the maximum current is about 1A, which is not adjustable, and does not support independent transformation Charging voltage: controlled by a special battery charging chip, with a maximum charge of about 1A and a full charge voltage of 4.2V Power-off saving: only save the set parameters, not the measurement data Product size: 150 × one hundred and three × 36mm Package size: 182 × one hundred and twelve × 50mm Data link: https://www.banber.com/gather/6374be9b2ee0e200077ec155

Package include: 18650 battery capacity internal resistance tester X1 label:yes
