Quantity : 1
High-concerned chemical : none
Package : SOP
is_d : Yes
Supply Voltage : DC 9-36V
Type : Module
Origin : Mainland China
Condition : New
Operating Temperature : -10-60C
Feature 1 : 3.3G VTX Transmitter
Feature 2 : 10W FPV Transmitter
Feature 3 : Long Range FPV Transmitter
Feature 4 : High Power Drone VTX
Feature 6 : FM PLL Video Transmitter
Feature 7 : OSD Adjustable FPV Transmitter
Feature 8 : Low Latency Drone Video Transmitter
Feature 9 : Pure Image FPV VTX Module
Feature 10 : 9-36V Wide Voltage
Product Features:
1. Equipped with 3060-3840MHz ultra wide frequency band, 80 channels and 10 frequency bands, with sufficient channels and strong ability
2. Multi level power adjustable, up to 10W high-power transmission, suitable for various FPV flight transmission scenarios
3. Adopting FM frequency modulation+PLL technology, the frequency is precise and stable, with low transmission deviation and clear image quality
4. Ultra high signal-to-noise ratio greater than 70dBc, standard video input level, pure picture without noise
5. Wide voltage 9-36V power supply, wide adaptability, compact body suitable for wide temperature operation from minus 10 ℃ to 60 ℃
Product Introduction

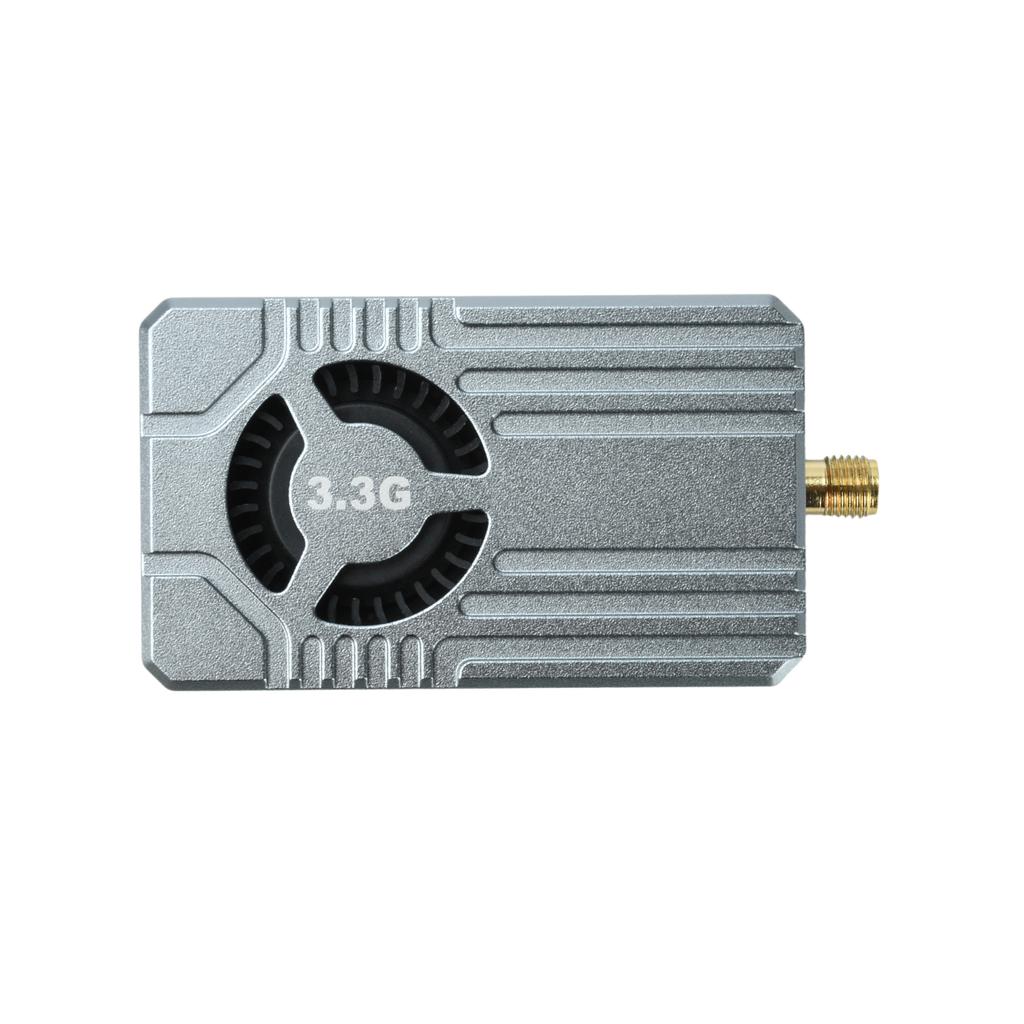

FPV transmitter 3.3G 10W 80 channels (3.0G~3.8G) This image transmission transmitter has an output power of over 10 watts and features small size, light weight, low power consumption, low latency, and strong ability. Its built-in aluminum heat sink and fan can achieve active heat dissipation, ensuring stable data transmission; Simultaneously equipped with temperature control protection function to prevent performance fluctuations caused by long-term grounding parameter adjustments; Support OSD parameter adjustment under IRC protocol, widely used in FPV drone flight, outdoor entertainment, racing events, and professional aerial photography fields.
Product Parameters:
Power supply voltage: DC IN 9-36V
Frequency range: 3060~3840MHz
Channel: 80CH
Frequency range: 10
Power level: PIT/25mW/200mW/4W/10W
Modulation type: FM
Frequency control: PLL
Frequency stability: ± 100KHz (Typ.)
Frequency accuracy: ± 200KHz (Typ.)
Signal to noise ratio (Fo ± 3 MHz):>70dBc
Antenna port: 50 Ohms (SMA)
Video input level: 1V ± 0.2Vp-p type
Working temperature: -10 ℃~+60 ℃

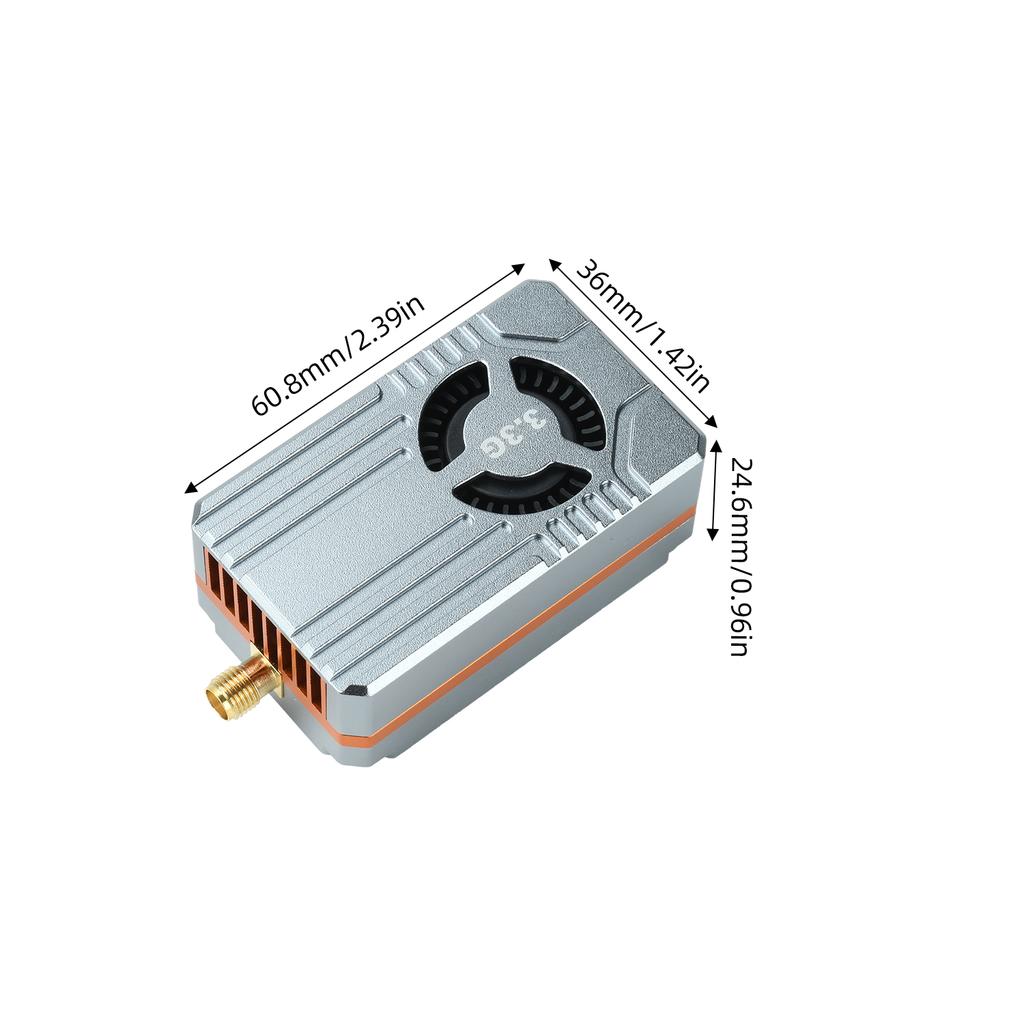

Size: 60.8mm (L) * 36mm (W) * 24.6mm (H)
Notes:
① Cooling measures such as radiators, fans, or air circulation systems need to be tested. Attention: Products with power levels of 25mW, 200mW, 4W, and 10W must maintain good contact with matching components.
The antenna/antenna port must be properly and securely connected to match the antenna, otherwise, if power cannot be transmitted, it will cause the amplifier to burn out.

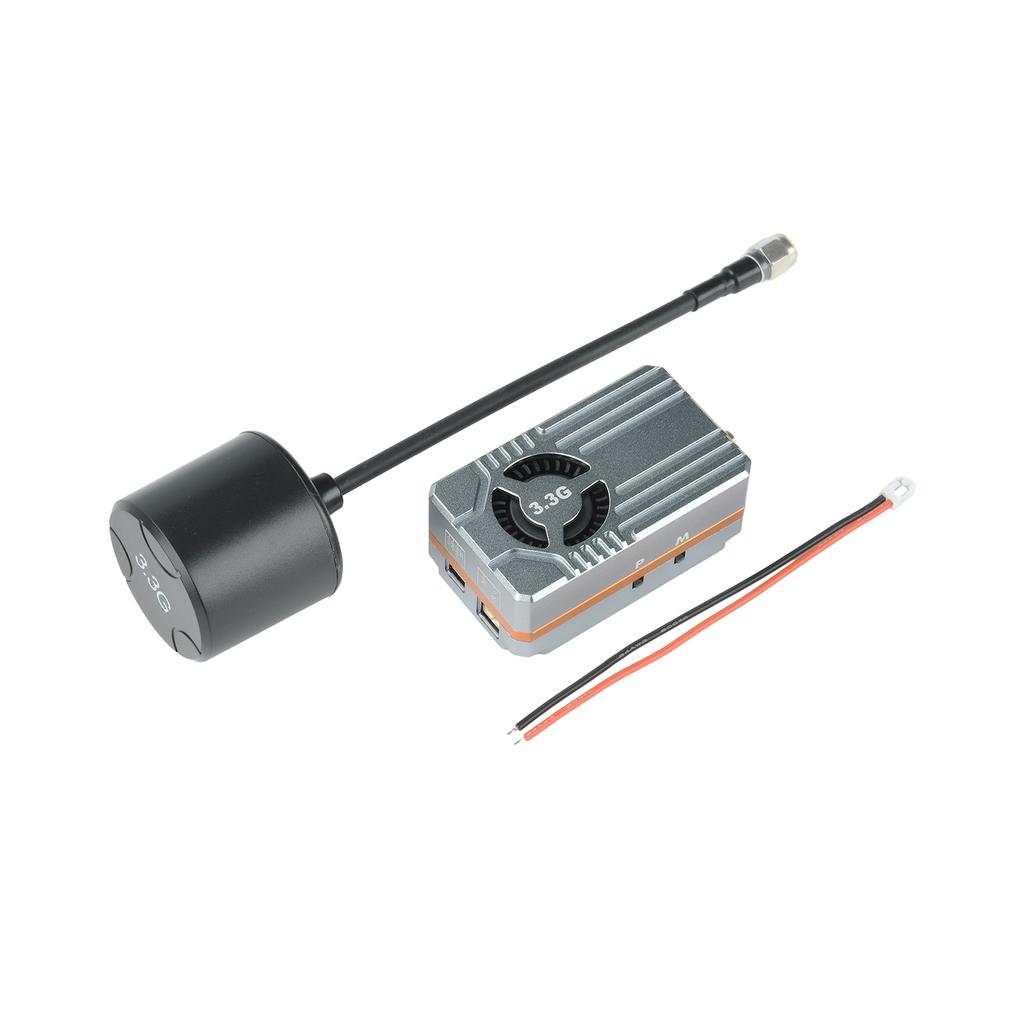

Product List:
1X host
1X antenna 1PC
2X terminal cable 4P * 1.0/2P * 2.0
label:yes
