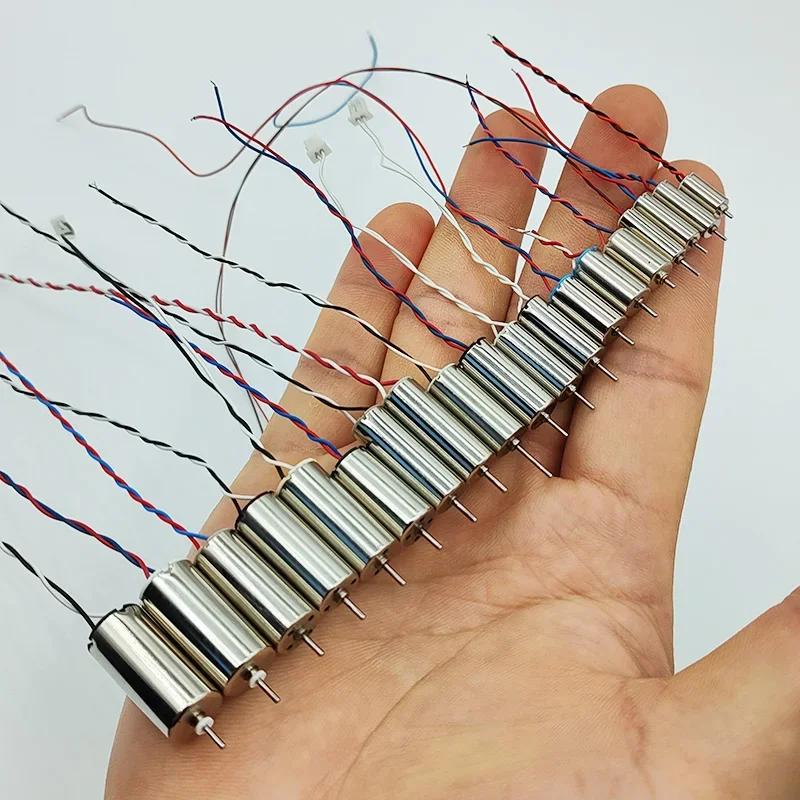

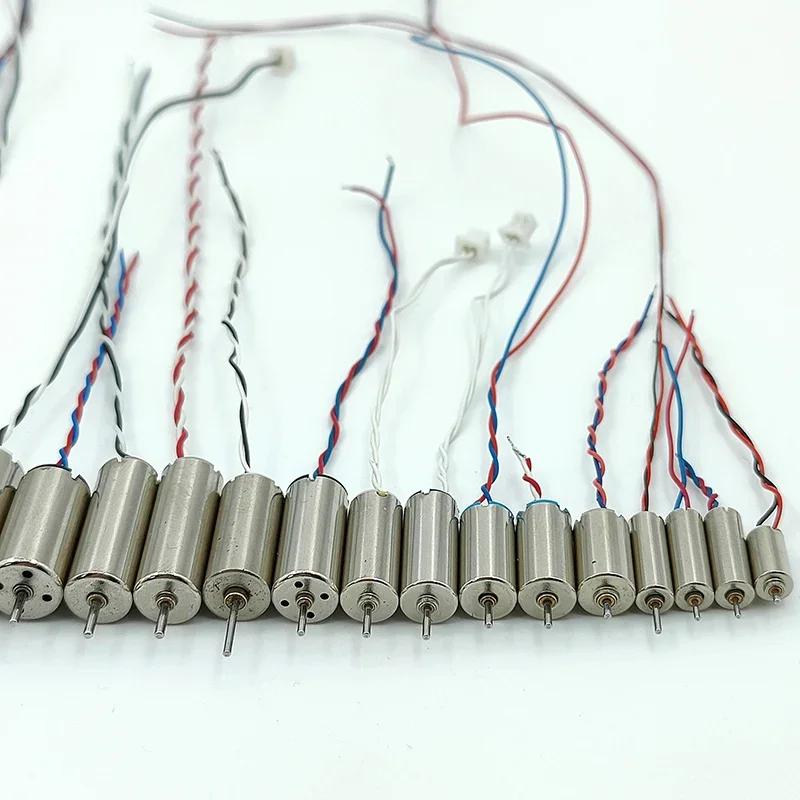

DC 3V 3.7V Mini Coreless Motor 408 412 610 612 615 716 720 816 8520 8523 1020 High Speed Hollow Cup Engine DIY RC Drone Aircraft

Name: DC 3V 3.7V Mini Coreless Motor 408 412 610 612 615 716 720 816 8520 8523 1020 High Speed Hollow Cup Engine DIY RC Drone Aircraft
SKU: 6abece1e75e5c7019e6875c5
Price: 12.09 EUR
Availability: InStock

Current price

Price €12.09

VAT and duties included

‌

Delivery to United Kingdom

Est. 0 business days · €3.59 per order

Secure checkout & data protection

No-delivery refund

Quality guarantee

Secure logistics

Privacy protection

Safety & compliance

Description

Specification:

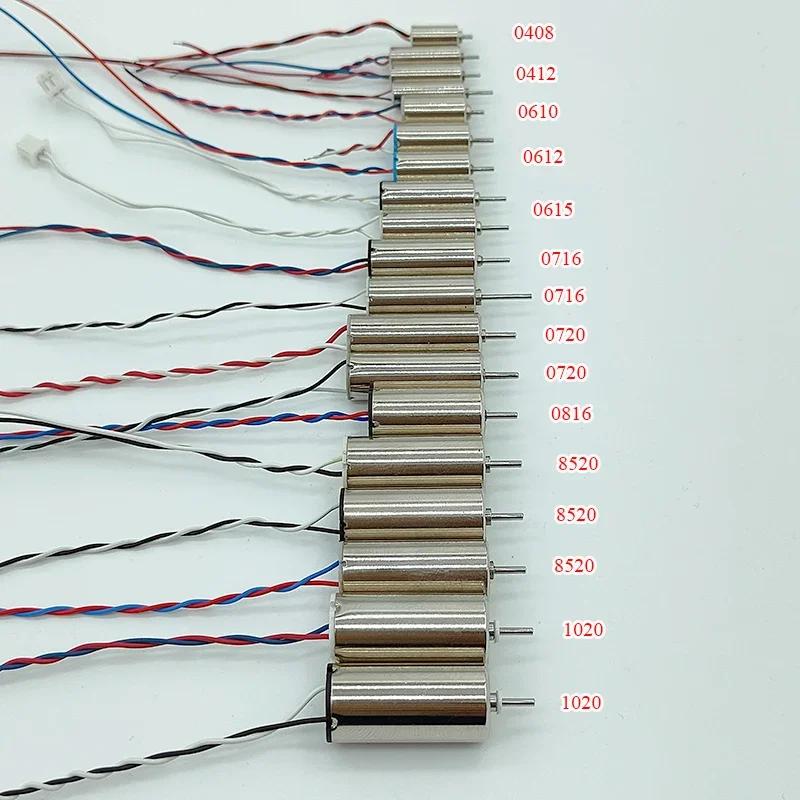

Model: 0408

1.Motor outer diameter: 4MM

2.Motor length: 8MM

3.Motor shaft diameter: 0.7MM

4.Output shaft length: 2.5MM

5.Line length: about 45MM

6.Weight: about 0.45 grams

7.Test data:

Voltage: 3.0V No-load current: 40mA No-load speed: 39500RPM

Voltage: 3.7V No-load current: 48mA No-load speed: 46000RPM

Voltage: 4.2V No-load current: 60mA No-load speed: 50500RPM

Voltage: 5.0V No-load current: 72mA No-load speed: 56000RPM

=============================================================================

Model: 0412 A

1. Motor diameter: 4MM

2. Motor length: 12.7MM

3. Output shaft: 0.6MM

4. Output shaft length: 3MM

5. Lead length: 13 MA

6. Weight: 1 g

7. Voltage: 3.7V

8. No-load current: 35 MA (locked rotor current 440 MA)

9. Speed: 68000 RPM

===============================================================================

Model: 0412 B

1. Motor diameter: 4MM

2. Motor length: 12.7MM

3. Output shaft: 0.6MM

4. Output shaft length: 3MM

5. Lead length: 40 MA

6. Weight: 1 g

7. Voltage: 3.7V

8. No-load current: 35 MA (locked rotor current 450 MA)

9. Speed: 68000 RPM

=============================================================================

Model: 0412 C

1. Motor diameter: 4MM

2. Motor length: 12MM

3. Shaft length: 4mm

4. Shaft diameter: 0.7mm

5. Test data:

Voltage: 3.0V No-load current: 30mA No-load speed: 41000RPM

Voltage: 3.7V No-load current: 40mA No-load speed: 46000RPM

=============================================================================

Model: 0610

1. Motor Diameter: 6mm

2. Motor length: 10.5mm

3. Motor Shaft Diameter: 0.8mm

4. Motor Shaft Length]: 2mm

5. Voltage: 3.7V

6. Speed: about 30,000 revolutions at 3.7V

7. Current: 3.7v space-time rotation current 0.1A, locked-rotor current 0.8A 8. Wire Length: about 5cm

=============================================================================

Model: 0612A

1. Motor diameter: 6MM

2. Motor length: 12.3MM

3. Output shaft: 0.8MM

4. Output shaft length: 4MM

5. Line length: 14MM

6. Weight: 1.4g

7. Test data:

Voltage: 3.0V No-load current: 45mA No-load speed: 48000RPM

Voltage: 3.7V No-load current: 50mA No-load speed: 60000RPM

=============================================================================

Model: 0612 B

1. Motor diameter: 6MM

2. Motor length: 12MM

3. Output shaft: 0.8MM

4. Output shaft length: 4MM

5. Test data:

Voltage: 3.7V No-load current: 10mA No-load speed: 32000RPM

Voltage: 5.0V No-load current: 20mA No-load speed: 42000RPM

=============================================================================

Model: 0615 A

1. Motor Diameter: 6mm

2. Motor Length: 15mm

3. Motor Shaft Diameter: 0.8mm

4. Length of output shaft: about 4mm

5. Rated voltage: 3.7v

6. Motor Parameters: About 43000 rpm and the current is 0.19A

=============================================================================

Model: 0615 B

1. Motor Diameter: 6mm

2. Motor Length: 15mm

3. Motor Shaft Diameter: 0.8mm

4. Length of output shaft: about 4mm

5. Rated voltage: 3.7v

6. Motor Parameters: About 43000 rpm and the current is 0.19A

=============================================================================

Model: 0716 B

1. Motor Diameter: 7mm

2. Motor Length: 16mm

3. Output shaft: 0.8MM

4. Output shaft length: about 4-5MM

5. Voltage: 3.7V

6. No-load speed: 45000 RPM

7. No-load current: 30-50MA

=============================================================================

Model: 0720 A

1. Motor Diameter: 7mm

2. Motor Length: 20mm

3. Output shaft: 1MM

4. Output shaft length: about 4-5MM

5. Voltage: 3.7V

6. No-load speed: 55000 RPM

7. No-load current: 13-20MA

=============================================================================

Model: 0816

1. Motor Diameter: 8mm

2. Motor Length: 16.5mm

3. Output shaft: 0.8MM

4. Output shaft length: 5MM

5. Voltage: 3.7V

6. No-load speed: 50000 RPM

7. No-load current: 17MA

=============================================================================

Model: 8520 A

1. Motor Diameter: 8.5mm

2. Motor Length: 20mm

3. Output shaft: 1.2mm

4. Output shaft length: 5.2mm

5. Rated Voltage: DC 3.4V

6. No-load speed: 51000 RPM

7. No-load current: 230mA

8. Test data:

Voltage: DC 3.0V No-load current: 200mA No-load speed: 47000RPM

Voltage: DC 3.7V No-load current: 260mA No-load speed: 56000RPM

=============================================================================

Model: 8520 B

1. Motor Diameter: 8.5mm

2. Motor Length: 20mm

3. Output shaft: 1mm

4. Output shaft length: 5.5mm

5. Test data:

Voltage: DC 3.7V No-load current: 80mA No-load speed: 37000RPM

Voltage: DC 4.2V No-load current: 100mA No-load speed: 42000RPM

=============================================================================

Model: 8520 C

1. Motor Diameter: 8.5mm

2. Motor Length: 20mm

3. Output shaft: 1.2mm

4. Output shaft length: 5.2mm

5. Rated Voltage: DC 3.4V

6. No-load speed: 51000 RPM

7. No-load current: 230mA

8. Test data:

Voltage: DC 3.0V No-load current: 200mA No-load speed: 47000RPM

Voltage: DC 3.7V No-load current: 260mA No-load speed: 56000RPM

=============================================================================

Model: 1020 A

1. Motor diameter: 10mm

2. Motor length: 20.7mm

3. Output shaft: 1.0mm

4. Output shaft length: 5mm

5. Line length: 150mm

6. Weight: 7.6g

7. Test data:

Voltage: 3.0V No-load current: 10mA No-load speed: 30000RPM

Voltage: 3.7V No-load current: 11.5mA No-load speed: 39500RPM

Voltage: 4.2V No-load current: 12.5mA No-load speed: 45000RPM

=============================================================================

Model: 1020 B

1. Motor diameter: 10MM

2. Motor length: 20.7MM

3. Output shaft: 1.0MM

4. Output shaft length: 5MM

5. Line length: 150MM

6. Weight: 7.6g

7. Test data:

Voltage: 3.0V No-load current: 10mA No-load speed: 30000RPM

Voltage: 3.7V No-load current: 11.5mA No-load speed: 39500RPM

Voltage: 4.2V No-load current: 12.5mA No-load speed: 45000RPM

=============================================================================

Package Included:

Mini Coreless Motor x 1pcs

semi_Choice: yes Output Power: ＜18.65 Certification: ce Type: Micro Motor Model Number: Hollow Cup Motor Choice: yes Brand Name: NONE Does it include a Battery?: No High-concerned chemical: none Origin: Mainland China Protect Feature: Totally Enclosed Efficiency: IE 1 Commutation: Brush Use: Home Appliance Condition: New Voltage: DC 3V 3.7V 7.4V
