DC 5V 12V Time Delay Relay NE555 Time Relay Shield Timing Relay Timer Control Switch Car Relays Pulse Generation Duty Cycle

Dear customer: Thank you for choosing my store for shopping. The following are the matters needing attention for shopping: A. Economic transportation: detailed tracking information will not be included. Most of the packages will cause delayed delivery within the expected delivery time, so you need to be patient B. Each product link: There will be different option variants. If you do n’t know how to select the product you want, please contact me, I will be honored to solve this problem for you. C. When you receive the package, there is product damage / product problem / error product and shipping problem, please contact me in time, I will solve it for you! D. If you are a wholesaler / distributor, a large number of orders and quantities, to provide you with factory prices, and hope to be honored to reach a partner with you!

GOOGZON store: I wish you a happy life! <kse:widget data-widget-type="customText" id="35256017" type="relation"></kse:widget>

Vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.

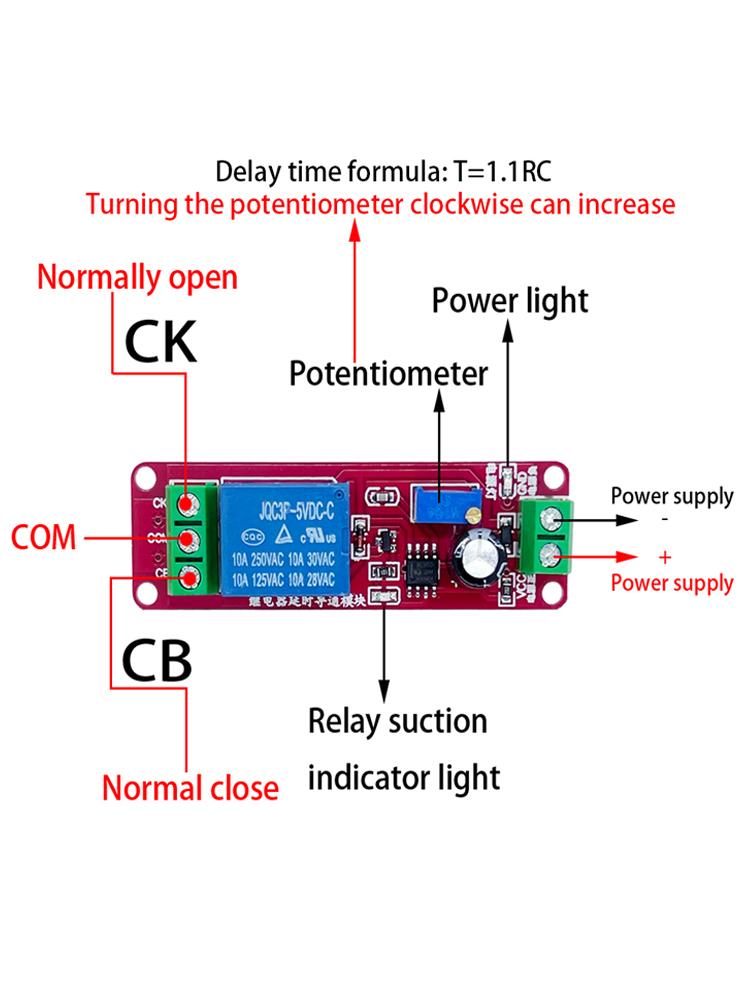

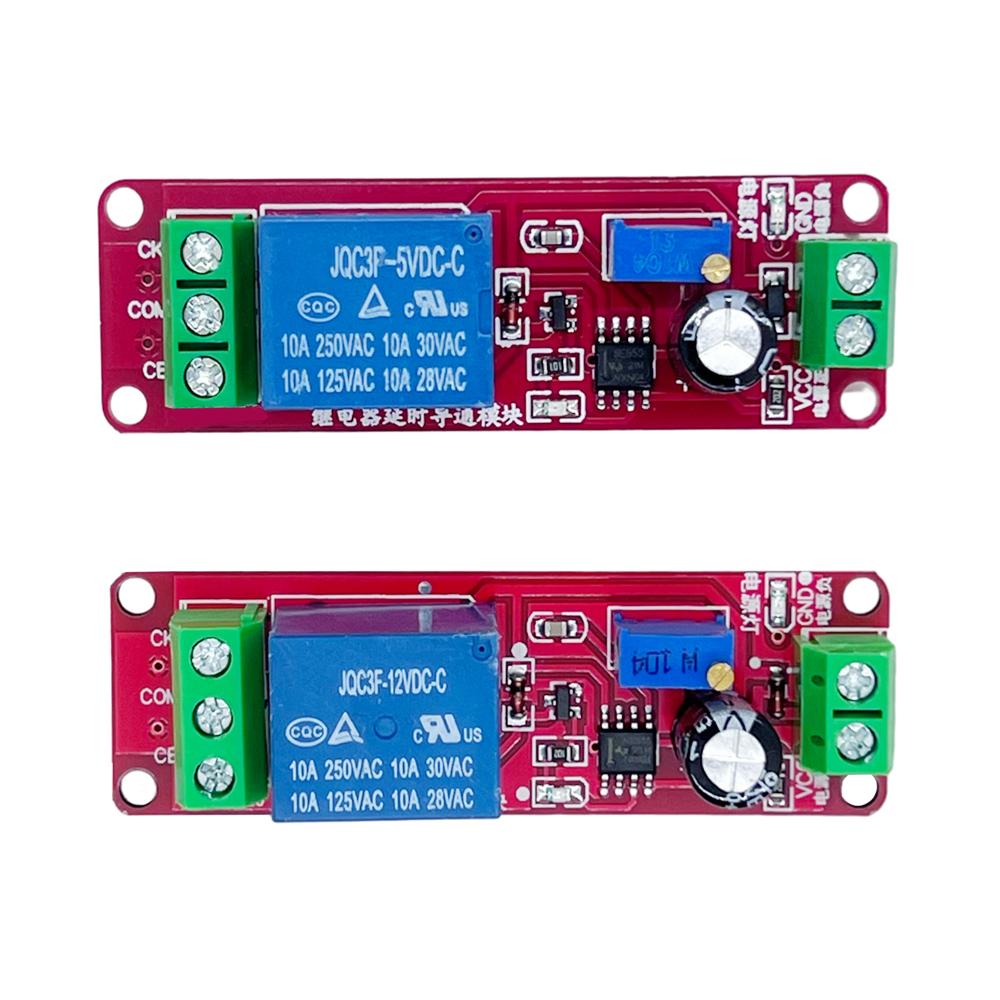

This is a 5V / 12V Conduction delay relay module This is a brand new and high quality delay turn-on module. the use of high-performance timing CPU design. the power indicator LED and switch trigger timing indication LEDs; The output can be connected to AC 250V 10A DC 30V 10A load; There is the chronopotentiometry regulation time, adjustable from 0 to 10 seconds by default, or by changing the capacitance adjustment time longer

Specification:

1.Module based on: NE555 chip. 2.Delay modue:delay connect module 3.Input voltage: DC 5V / 12V 4.Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A the operating voltage: 12 volts DC; (otherwise 5V optional) 5.Max. load: 2200W

Main Chip (NE555) Characteristics:

1.Timing from microseconds to long hours 2.Simple circuit design 3.Precision Pulse Generation / Timing, 4.Adjustable Duty Cycle Features: 1. Turn on the power, and the relay will delay closing (this module only has a delay closing function and no delay opening function, unless power is cut off). Specifically, after being powered on, the relay will not immediately draw on, and the output terminal of the relay will be in the following states: normally open and common disconnected, normally closed and common conductive; After a delay of 1-10s (adjustable delay), the relay will activate. At this time, the output terminal of the relay will be in the following states: normally open and connected to the common, normally closed and disconnected from the common; As long as the module is continuously powered on, this state (relay suction state) will remain constant. Test phenomenon: After powering on, the red power indicator light will light up. After a delay of 1-10 seconds, the relay will engage and a "click" sound will be heard, and the blue relay engage indicator light will light up 2. Adjustable delay time (0-10 seconds) 4. Adding a potentiometer can increase the delay time 5. Increasing the capacitance C1 can increase the delay time 6. With input power indicator light 7. With relay closing indicator light 8. It can control equipment with AC voltage below 220V/10A. (Maximum control equipment 2000W) 9. Equipped with relay continuous current protection. 10. Delay time formula: T=1.1RC. For example, capacitance 100uf, resistance 100K, T=1.1 * 100000 * 0.0001=11

Theory: Time Relay Voltage: 5V/12V Model Number: NE555 Time Relay Shield Timing Relay is_customized: no Contact Load: Low Power Use: General Purpose Origin: Mainland China EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc Power Source: DC Protect Feature: Sealed Brand Name: GOOGZON High-concerned chemical: none
