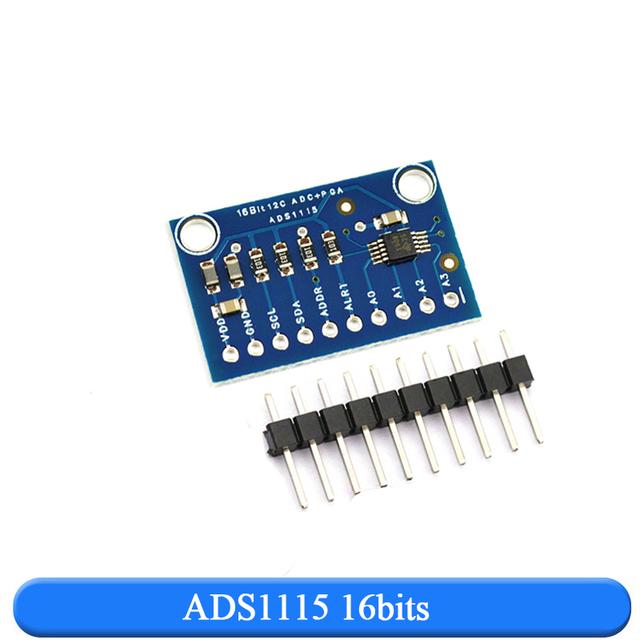

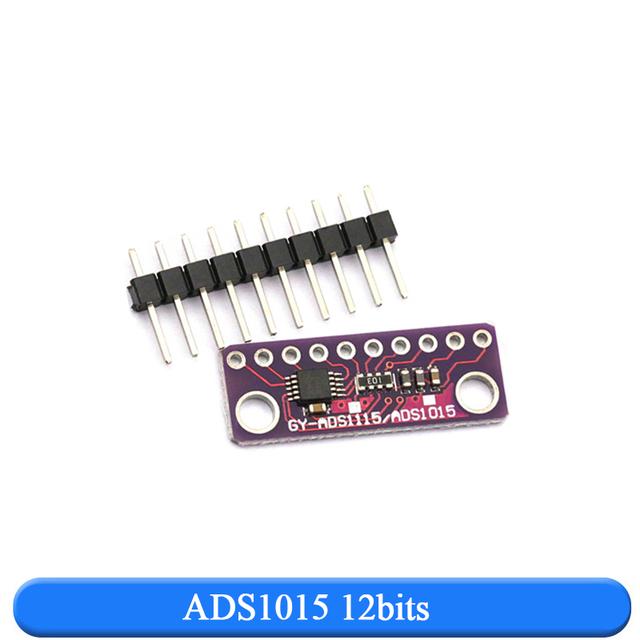

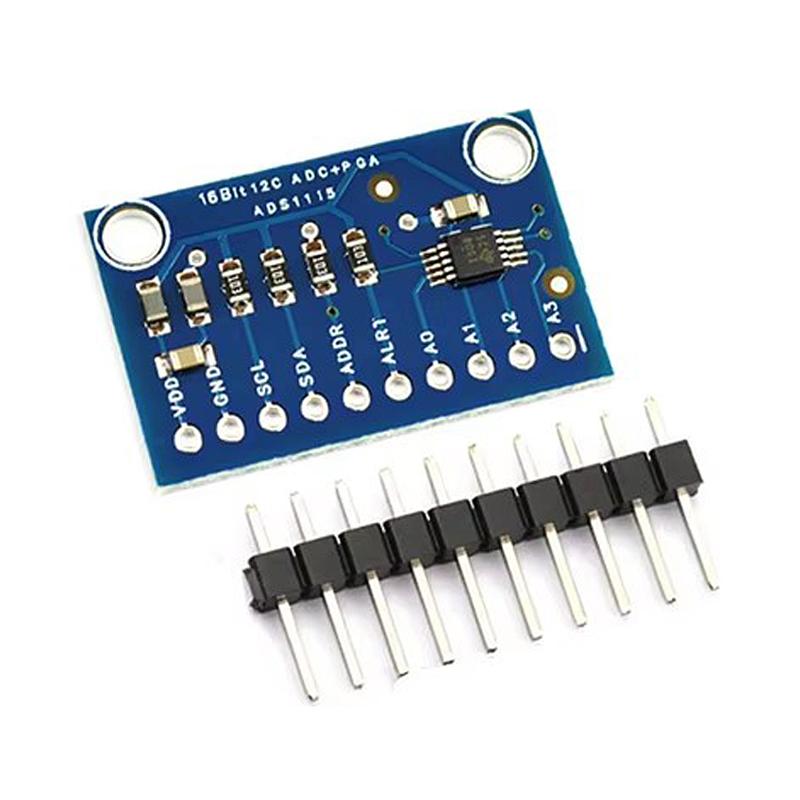

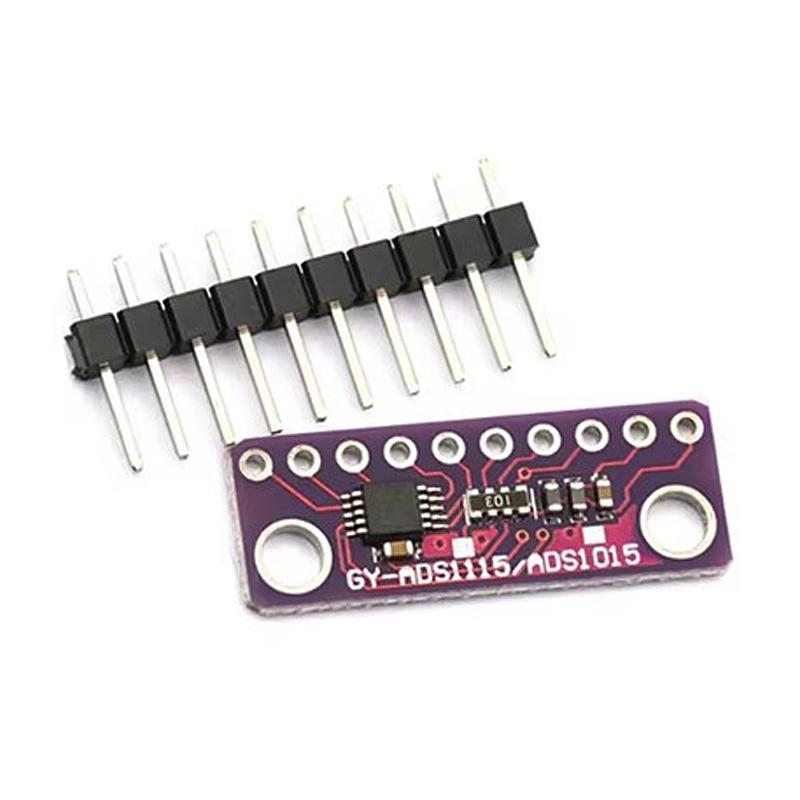

1pcs 4 Channel Analog To Digital Converter ADS1115 ADS1015 Module 16Bit 12Bit I2C PGA 2.0V~5.5V Compatible Arduino RPi

Semi-finishedproduct : No High-concerned chemical : none Electronic : No Model Number : ADS1115 ADS1015 DIY Supplies : Electrical Brand Name : Stlxy Origin : Mainland China

1. Two optional chips: ADS1115 (16 bit), ADS1015 (12 bit), 4-channel analog-to-digital converter, using I2C communication2. Onboard programmable gain amplifier PGA, with multiple adjustable gains, suitable for high-precision acquisition of weak analog voltage signals3. Wide working voltage of 2.0V~5.5V, compatible with 3.3V and 5V main control systems, suitable for more development platforms4. High conversion accuracy, low noise, stable sampling output data, suitable for analog signal acquisition of various sensors5. Standard I2C bus interface, simple wiring, supports address selection, can cascade multiple modules to expand the number of channels6. Perfectly compatible with Arduino and Raspberry Pi, commonly used for pressure sensors, voltage detection, temperature acquisition, and electronic experimental projects ADS1115  ultra-compact 16-precision ADC ADC module development boardADS1115 ultra-compact 16-precision ADC ADC module development boardFEATURES DESCRIPTION23 ULTRA-SMALL QFN PACKAGE: The ADS1113,ADS1114,and ADS1115 are2mm × 1,5mm × 0,4mm precision analog-to-digital converters (ADCs) with 16WIDE SUPPLY RANGE: 2.0V to 5.5V bits of resolution offered in an ultra-small,leadlessLOW CURRENT CONSUMPTION: QFN-10 package or an MSOP-10 package The ADS1113 / 4/5 are designed with precision,power,and.Continuous Mode: Only 150A ease of implementation in mind The ADS1113 / 4/5.Single-Shot Mode:. Auto Shut-Down feature an onboard reference and oscillator Data arePROGRAMMABLE DATA RATE: transferred via an I2C-compatible serial interface; four8SPS to 860SPS I2C slave addresses can be selected. TheINTERNAL LOW-DRIFT ADS1113 / 4/5 operate from a single power supplyVOLTAGE REFERENCE ranging from 2.0V to 5.5V.INTERNAL OSCILLATOR The ADS1113 / 4/5 can perform conversions at ratesINTERNAL PGA up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS1115 thatI2C INTERFACE: Pin-Selectable Addresses offers input ranges from the supply to as low asFOUR SINGLE-ENDED OR TWO ± 256mV,allowing both large and small signals to beDIFFERENTIAL INPUTS (ADS1115) measured with high resolution. The ADS1115 alsofeatures an input multiplexer (MUX) that provides two PROGRAMMABLE COMPARATOR differential or four single-ended inputs.(ADS1114 and ADS1115)The ADS1113 / 4/5 operate either in continuousAPPLICATIONS conversion mode or a single-shot mode thatPORTABLE INSTRUMENTATION automatically powers down after a conversion and greatly reduces current consumption during idleCONSUMER GOODS periods. The ADS1113 / 4/5 are specified from -40 ° CBATTERY MONITORING to + 125 ° C.ADS1015For microcontrollers without an analog-to-digital converter or when you want a higher-precision ADC,the ADS1015 provides 12-bit precision at 3300 samples/second over I2C. The chip can be configured as 4 single-ended input channels,or two differential channels. As a nice bonus,it even includes a programmable gain amplifier,up to x16,to help boost up smaller single/differential signals to the full range. We like this ADC because it can run from 2V to 5V power/logic,can measure a large range of signals and its super easy to use. It is a great general purpose 12 bit converter. The chip's fairly small so it comes on a breakout board with ferrites to keep the AVDD and AGND quiet. Interfacing is done via I2C. The address can be changed to one of four options (see the datasheet table 5) so you can have up to 4 ADS1015's connected on a single 2-wire I2C bus for 16 single ended inputs. Package includes: 1PCS ADS1015 12 bit analog-to-digital converter ADC development board label:yes
