【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
------------------------------------------------------------------------------------------------------------------

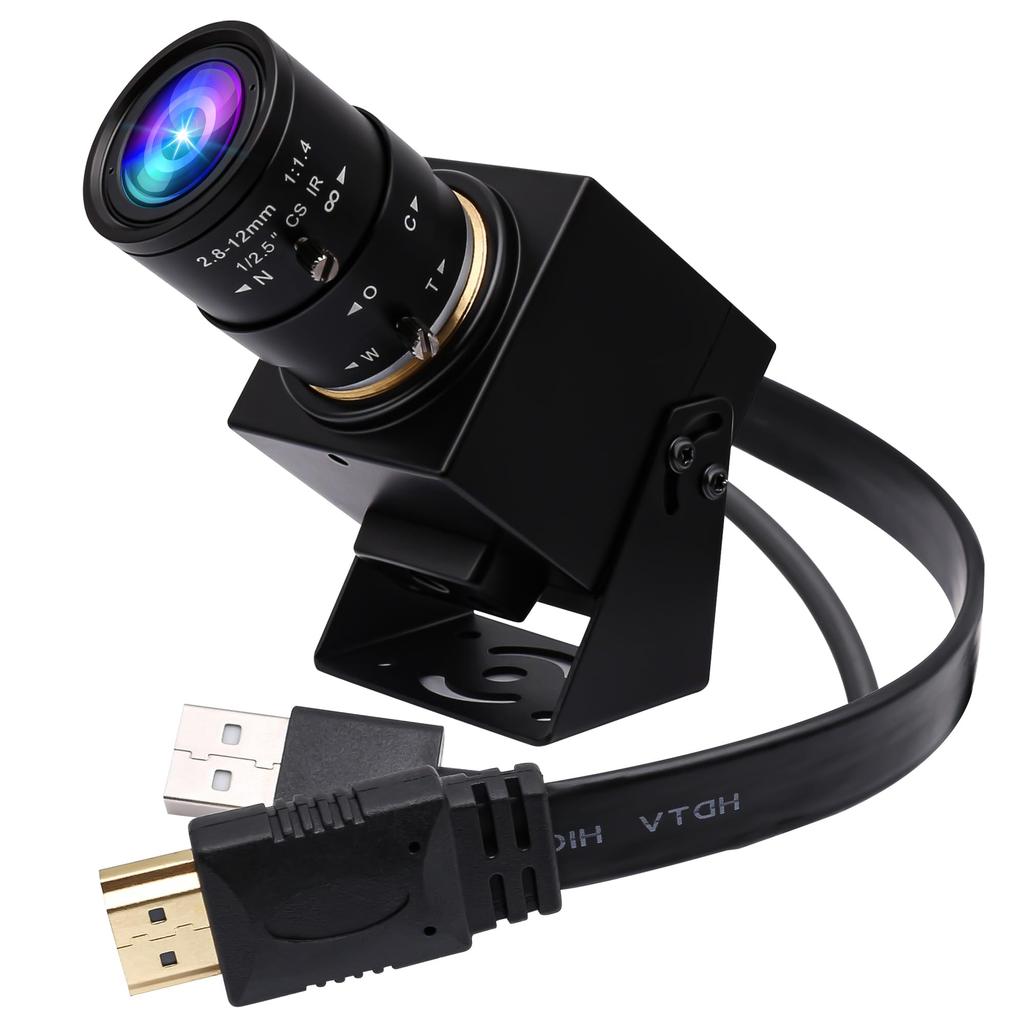

4K USB & HDMI manual zoom camera, USB Type-C power supply, simultaneous Type-C & HDMI display.

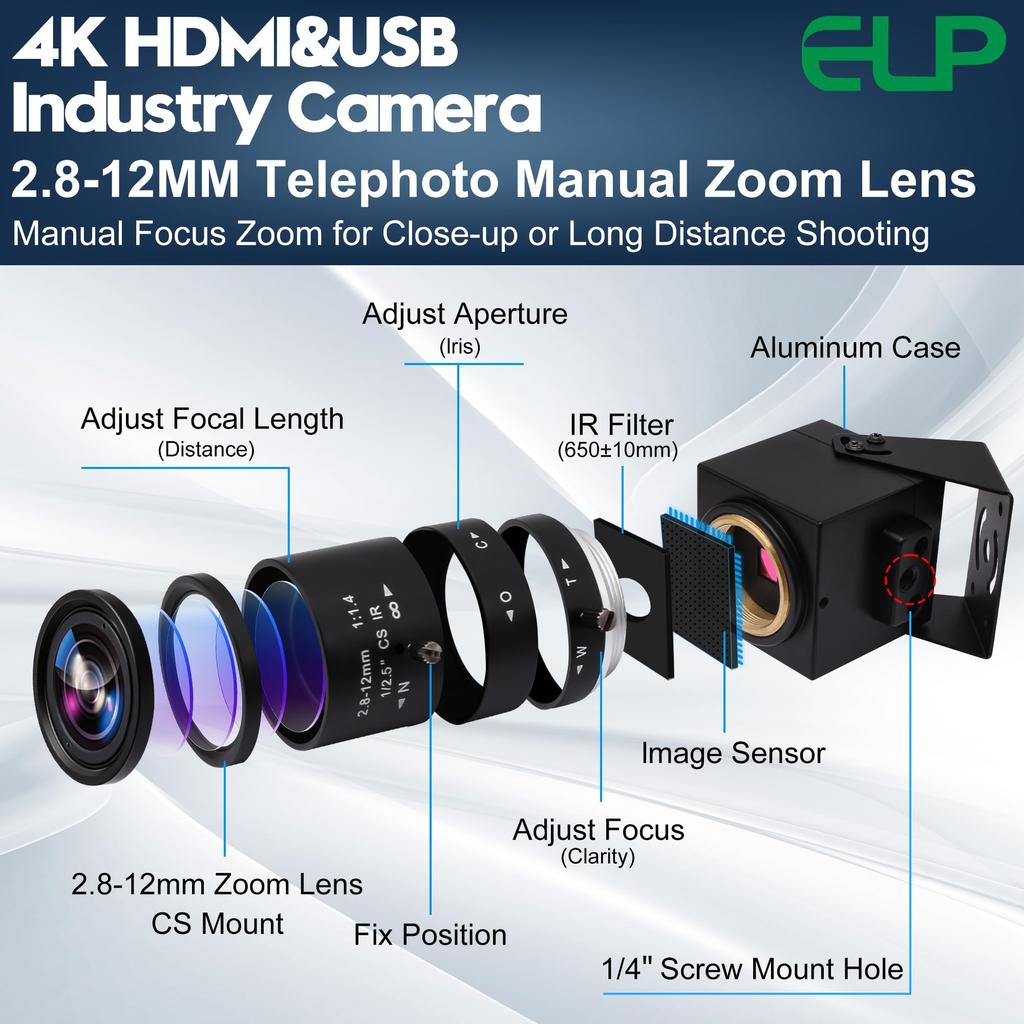

A 2.8-12mm variable focus camera for all kinds of distance photography; zoom, brightness, and sharpness can be adjusted by rotating the lens.
Ultra-clear, maximum resolution: 3840(H) * 2160(V), high-speed 2160P@30fps.
High-quality 1/2.8-inch IMX415 sensor image sensor.
H.264/MJPEG/YUY2 compression format is optional.
Model ELP-USB4KCAM01H-CFV
Sensor: 1/2.8 inch SONY IMX415
Maximum resolution 3840(H)*2160(V)
Default resolution: 3840(H)*2160(V)
Sensitivity 0.65V/lux-sec@550nm
Pixel size: 1.45µm x 1.45µm
Video compression: MJPEG / YUY2 (YUYV) / H.264 / H.265
Digital Zoom 2x Digital Zoom
Resolution and frame rate: 3840x2160 MJPEG 30fps / H.264 30fps / H.265 30fps
2560x1440 MJPEG 30fps/ H.264 30fps/ H.265 30fps
1920x1080 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 5fps
1280x720 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 10fps
1024x576 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps
960x540 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 15fps
640x480 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps
640x360 MJPEG 30fps/ H.264 30fps/ H.265 30fps/ YUY2 30fps
Image processing time: Approximately 8 seconds after opening the preview software.
Center resolution 1000 LW/PH (center)
S/N ratio 30 dB
Minimum illuminance 0.2 Lux
Shutter type: Electronic rolling shutter/frame exposure
Connection port type: USB 2.0 interface & HDMI V 1.4 interface
AEC Support
AWB Support
AGC Support
Adjustable parameters: Brightness, contrast, saturation, hue, sharpness, gamma, white
Balance, backlight compensation, exposure
Lens parameters: CS 5-50mm lens (CS 2.8-12mm option)

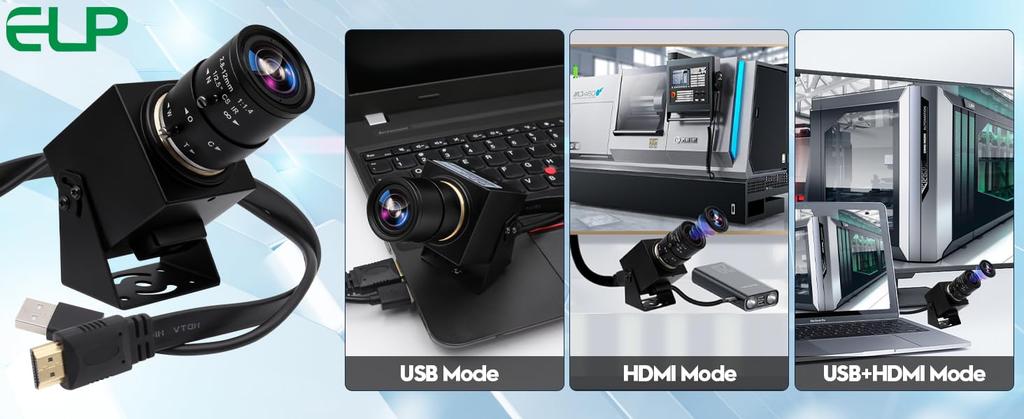

Power and Interface: USB Type-C power, simultaneous display via Type-C and HDMI.
Operating voltage: DC 5V
Operating current 480-500mA
Storage temperature -20°C to 80°C
Operating temperature -10°C to 70°C
Two USB cables
(One 1.2m cable with Type-C port, one 1.5m cable with HDMI port)
Operating system request
Win7/Win8/Win9/Win10/Win11 etc.
Linux with UVC
MAC-OSX10.4.8 or later Android 5.x or later
