48Ch 5.8G 600mw 5km Wireless AV Transmitter TS832 Receiver RC832 for FPV Multicopter RC Aircraft

THIS IS THE NEW 48-CHANNEL EDITION OF 5.8G 600mW A/V WIRELESS SYSTEM.

48 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable; Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching; Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received; Power off memory: Replay the very last frequency band and channel Independent video and audio signal outputs

Product Details

FPV 5.8G 600mW A/V Transmitting/Receiving System TS832 + RC832 - 32CH Edition | RP-SMA video format supported: NTSC/PAL Antenna connection: RP-SMA, jack (module side, both TX and RX)

TX TS832 specs:

Power input: 7.4-16V (3S Lipo suggested) Transmitting power: 600mA Antenna gain: 2db Working current: 220mA at 12V Video bandwidth: 8M Audio bandwidth : 6.5M Weight: 22g Dimension: 54x 32x 10mm(excluding antenna)

RX RC832 Specs:

Power input: 12V Working current: 200mA max Antenna impedance: 50 Antenna gain: 2db Video impedance: 75 Video format: NTSC/PAL auto Dimension: 80x 65 x15mm Weight: 85g

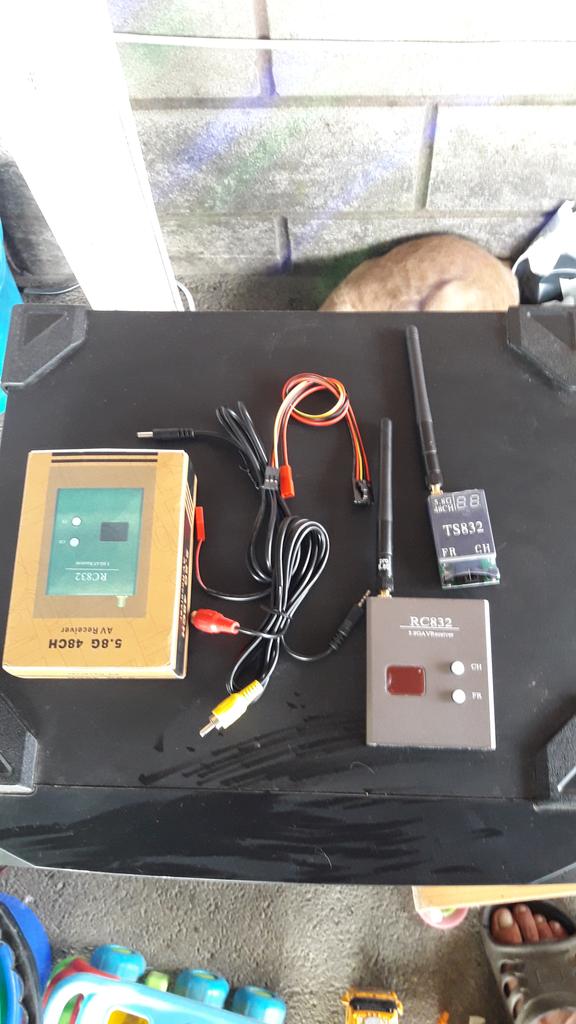

Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty. - 1 x transmitting unit (TX) - 1 x receiver (RX) - 2 x antennas (2db) - 1 x Power cable for rc832 - 1 x power cable for tx832 - 1 x user manual
