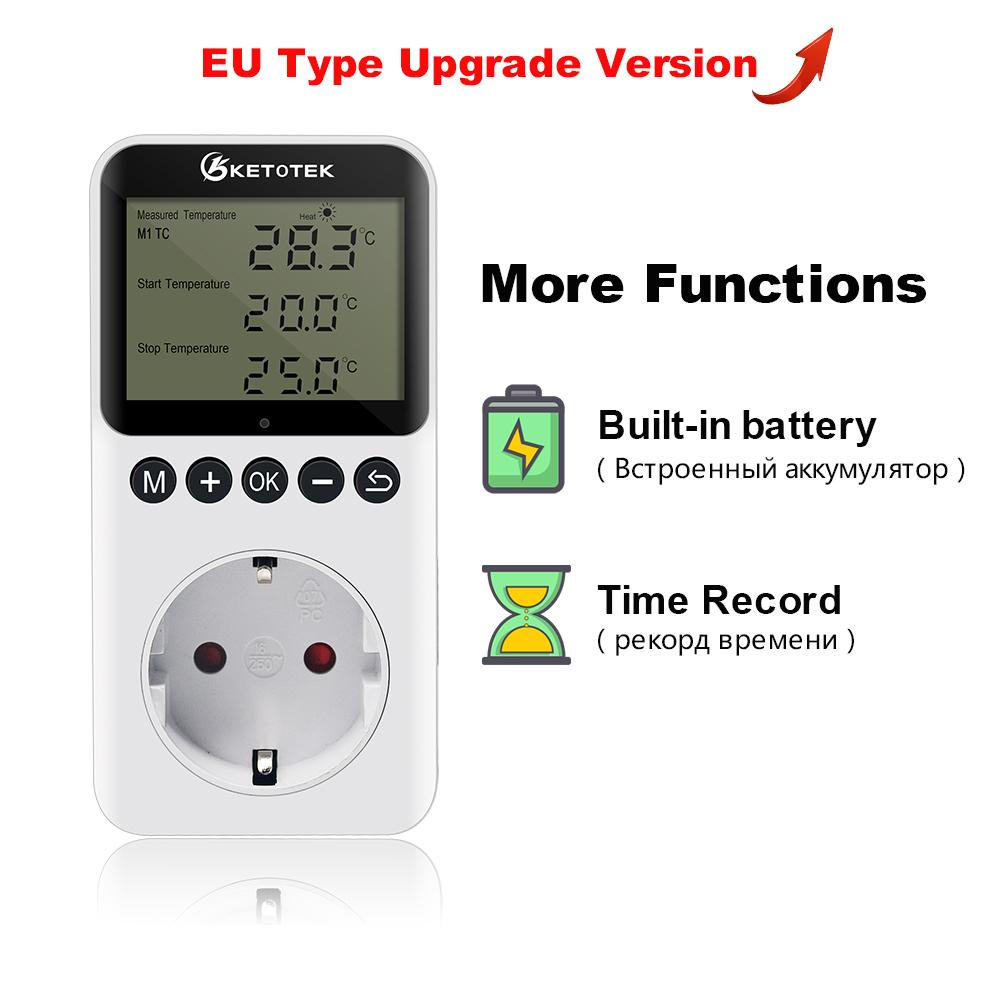

Multifunctional modes for versatile use. The KT3200 Plug-in Thermostat combines precise temperature control and programmable timers in a single versatile device, offering three flexible modes: M1 TC Mode - Basic temperature control (heating/cooling); M2 TC+Timer Mode - Day/night cycles with independent temperature settings; and M3 Timer Mode - Programming on/off cycles for lights, heaters, or fans, etc.
Effortless setup for heating/cooling devices. Simply set the start and stop temperatures (-40°C~120°C/-40°F~248°F) in seconds, and the KT3200 Plug-in Thermostat takes care of the rest, automating precise temperature control. With a real-time temperature display, you can instantly monitor the current temperature to make quick adjustments.
Day/night automation. Pre-program two separate temperature ranges for day/night cycles, mimicking natural habitats—essential for reptiles, plants, or egg incubation. Without manual intervention, the KT3200 Day/Night Thermostat Plug automatically switches between temperature ranges at the programmed time, perfect for busy users or sensitive environments. Safe and reliable. Real-time monitoring with a high-precision 3m NTC temperature sensor for accurate readings. Settings are saved in the event of a power outage—no need to reprogram. Calibrate temperatures, switch between °C/°F, or reset to default settings in seconds. This Thermostat Plug is ideal for greenhouses, incubators, freezers, fermenters, air fans, and more!
Features:
Plug and play design, easy to use
Heating/cooling control
3 modes to choose from: M1 TC mode (temperature control), M2 TC+Timer mode (temperature control with timer), M3 Timer mode
Temperature calibration
Reset function
Memory function: The set parameters will be saved permanently, and the clock will be stored for two weeks. Specifications:
Power Supply: 100~250V AC 50/60Hz
Temperature Control Range: -40°C~120°C / -40°C~248°C
Setting Time: 0~24h / Daily Cycle Timer
Control Accuracy: ±2°C / ±1°C
Sensor: NTC 10K/B3950
Output: Max. 16A/230V (The relay is max. 16A. Please use a resistive load less than 14A, and an inductive load less than 2A.)
M1 TC Mode -- Temperature Control
Set the start and stop temperatures; this thermostatic outlet will operate in heating or cooling mode according to the schedule.
For example, set Start Temperature = 20°C (68°F) and Stop Temperature = 25°C (77°F). The heater will start heating when the temperature is < 20°C (68°F) and stop heating when the temperature is ≥ 25°C (77°F).
M2 TC+Timer--Temperature Control with Timer
In this mode, you can set two different temperature settings with two time periods within 24 hours. Time 1 ~ Time 2 ~ Time 1 is a 24-hour cycle.
For example, set Time 1 = 8:00, Start Temperature TC 1 = 25°C (77°F), Stop Temperature TC 1 = 28°C (82°F); Time 2 = 18:00, Start Temperature TC 2 = 28°C (82°F), Stop Temperature TC 2 = 32°C (90°F). From 8:00 AM to 6:00 PM, the heater will start heating when the temperature is <25°C (77°F) and stop heating when the temperature is ≥28°C (82°F); and from 6:00 PM to 8:00 AM the next morning, the heater will start heating when the temperature is <28°C (82°F) and stop heating when the temperature is ≥32°C (90°F).
M3 Timer Mode
With the daily ON/OFF time setting, you can program your devices to turn on and off regularly.
For example, set Time 1 ON = 8:00 AM, Time 2 OFF = 6:00 PM, the device will turn on from 8:00 AM to 6:00 PM and turn off from 6:00 PM to 8:00 AM, then repeat every 24 hours.
This KT3200 Thermostat Socket can be used for greenhouse, reptiles, incubator, terrarium, refrigerator, home brewing, fermentation and other fields.
