Vector Network Antenna Analyzer MF VHF UHF HF 10KHz-1.5GHz Analyzer

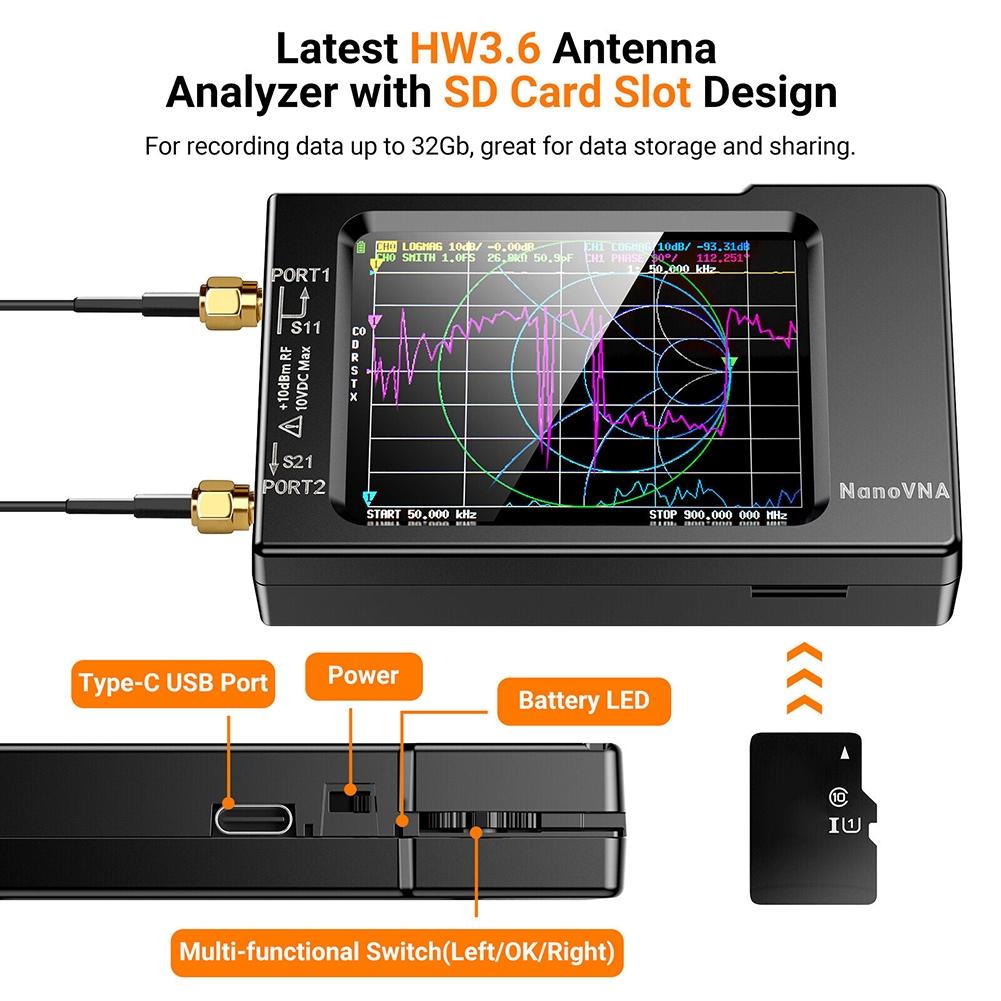

Features: * New and high quality * Made of high-quality materials, durable * With this HW3.6 antenna analyzer, you can accurately see the resonance position of the antenna! * Nano VNA-H Vector Network Analyzer 10KHz -1.5GHz Latest Hardware Version 3.6 | HF VHF UHF Antenna Analyzer Measurement S Parameters * Portable pocket VNA, this 2.8-inch vector network analyzer is a pocket VNA, which is very convenient to carry and use anytime and anywhere. * This Nano VNA-H has a very sensitive touch screen, allowing you to operate it with your fingers and stylus. * Provide you with accurate measurements, suitable for measuring S parameters, voltage standing wave ratio, phase, delay, Smith diagram. Specifications: Display: 2.8-inch TFT (320 x 240) RF output: 0 dbm (±2dbm) SWR port: <1.1 Dimensions: 54mm x 85.5mm x 11mm Weight: 249g PCB: 50mm x 68mm x 10mm (without connector, lever switch) Measuring frequency: 10KHz - 1.5GHz Measuring range: 70dB (50kHz-300 MHz), 60dB (300M-900MHz, 40dB (900M-1.5GHz) USB interface: USB Type -C Communication mode: CDC (serial number) Power supply: USB 5V 120mAh can be powered by battery, with a maximum charging current of 300mAh (including battery) Scanning points: 101 (fixed) Display tracking: 4, tag 4, set save: 5 Package Included: 1 X Nano VNA host (including 2.8-inch touch screen and 450mAh battery) 2 X 20 CM SMA Male-to- Male RG174 RF Cable 2 X SMA FEMALE-to-female connector 1 X SMA Simple Calibration Kit Short 1 X SMA Simple Calibration Kit Open 1 X SMA Simple Calibration Kit Load 1 X USB Type-C Data Cable 1 X Type-c to Type-c Line 1 X Touch Paddle Note: 1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2.Please allow slight manual measurement deviation for the data.
