Air Compressors Regulator Valve Aluminum Alloy Mini Pressure Regulators Kit for IndustryGR200‑08 PT1/4

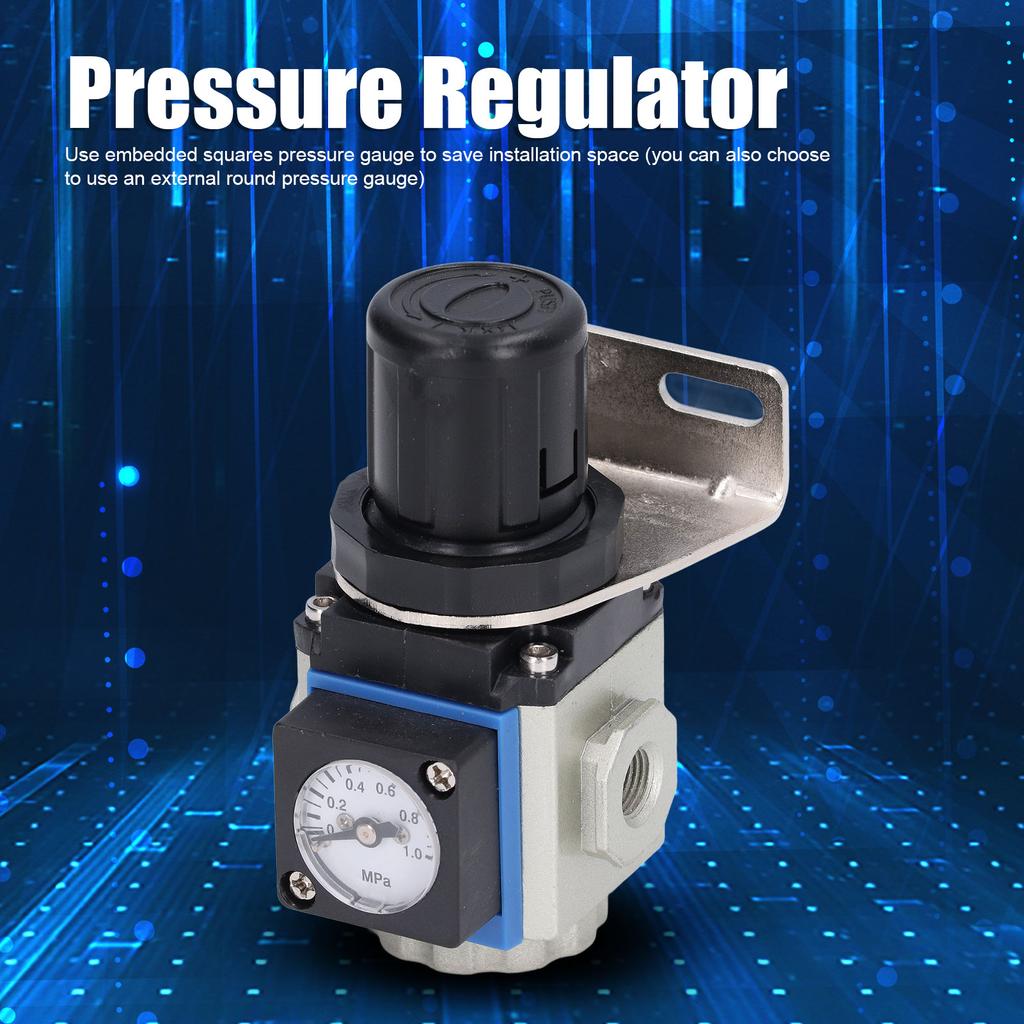

1. Adopt an embedded square pressure gauge to save installation space (you can also choose to use an external round pressure gauge) 2. The pressure-type self-locking structure can prevent the adjustment pressure from being disturbed by the outside world and cause changes. 3. The pressure regulating mechanism adopts a balanced design, which makes the pressure regulation more stable, the amount of drift is small, and the pressure characteristics are good. 4. In addition to panel installation, another fixing bracket can be selected for installation Product parameters

Material: aluminum alloy

Model GR200-06 GR200-08 Working medium air Takeover caliber PT1/8 PT1/4 Operating pressure range 0.05-0.9Mpa (20-130Psi) Guaranteed pressure resistance 1.5Mpa (215Psi) Operating temperature range -20℃ to 70℃ Operation instructions

Packing list

Pressure regulating valve*1 Accessories*1

Precautions

Keep the pipeline clean and extend the service life
