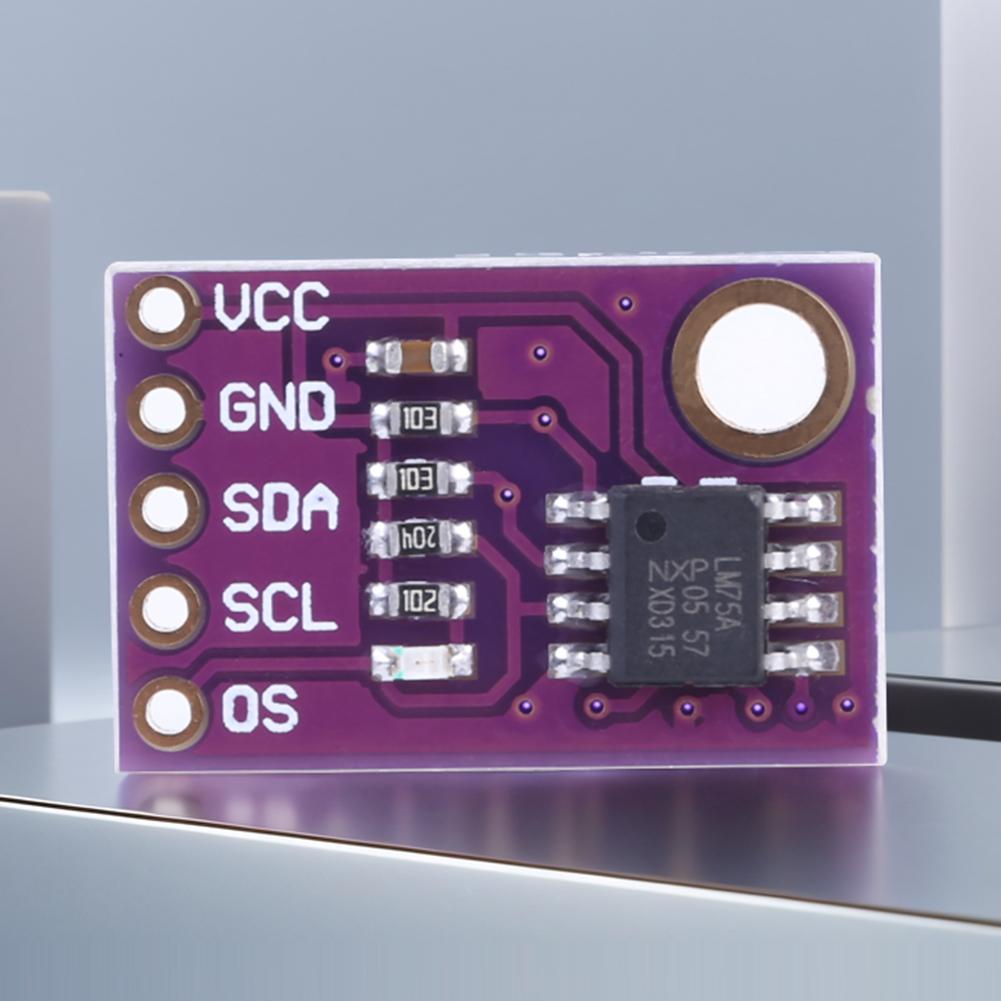

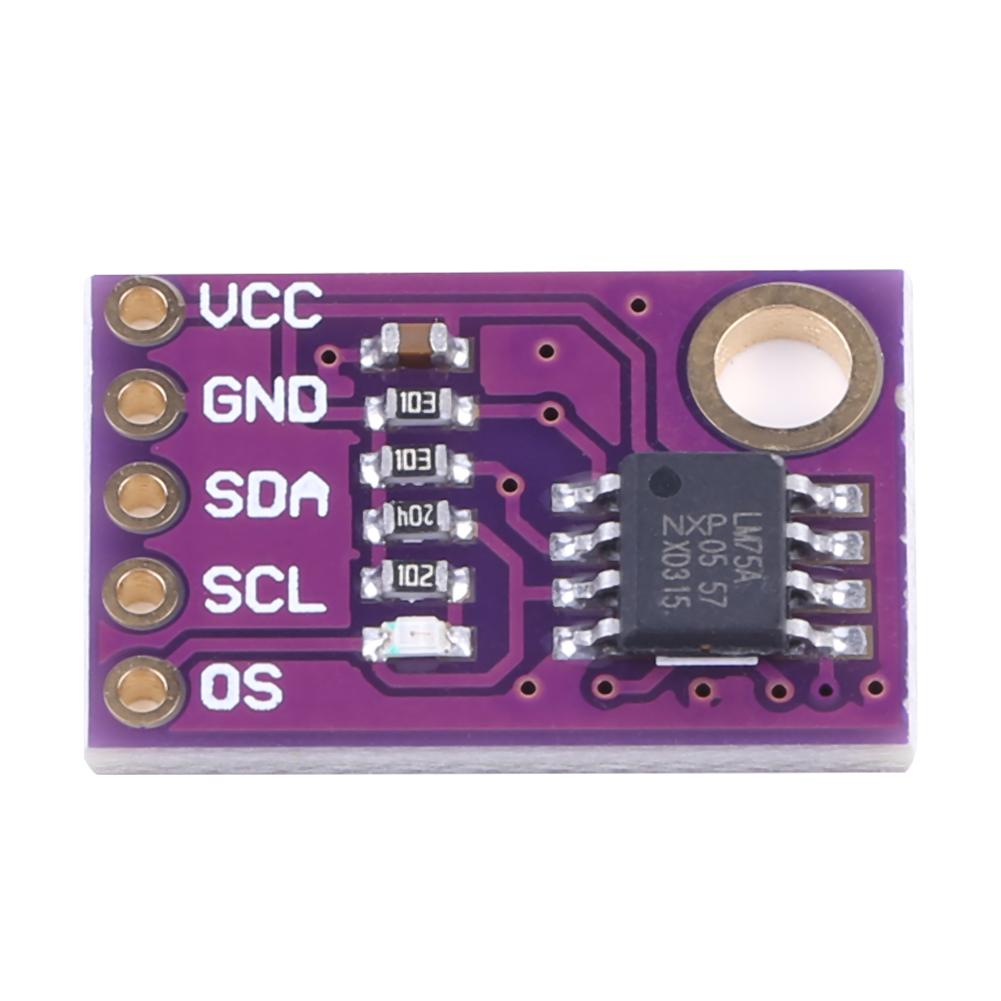

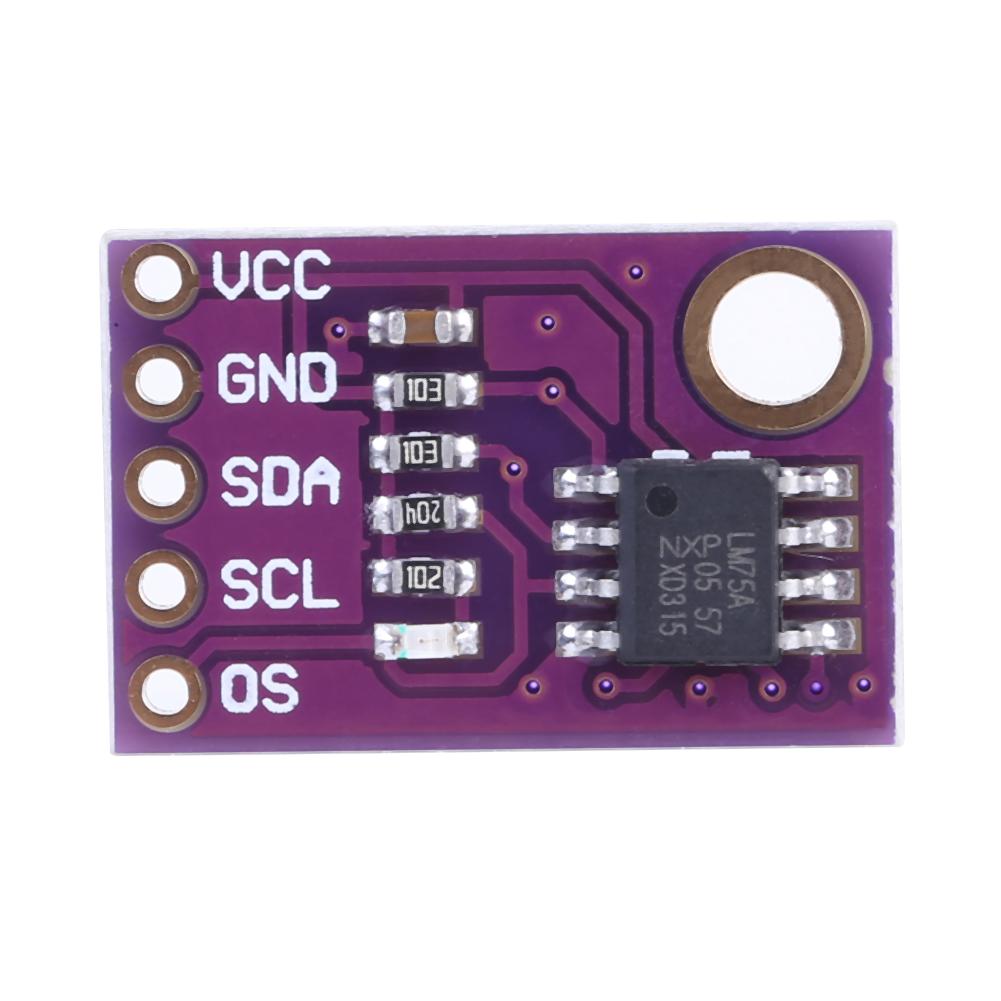

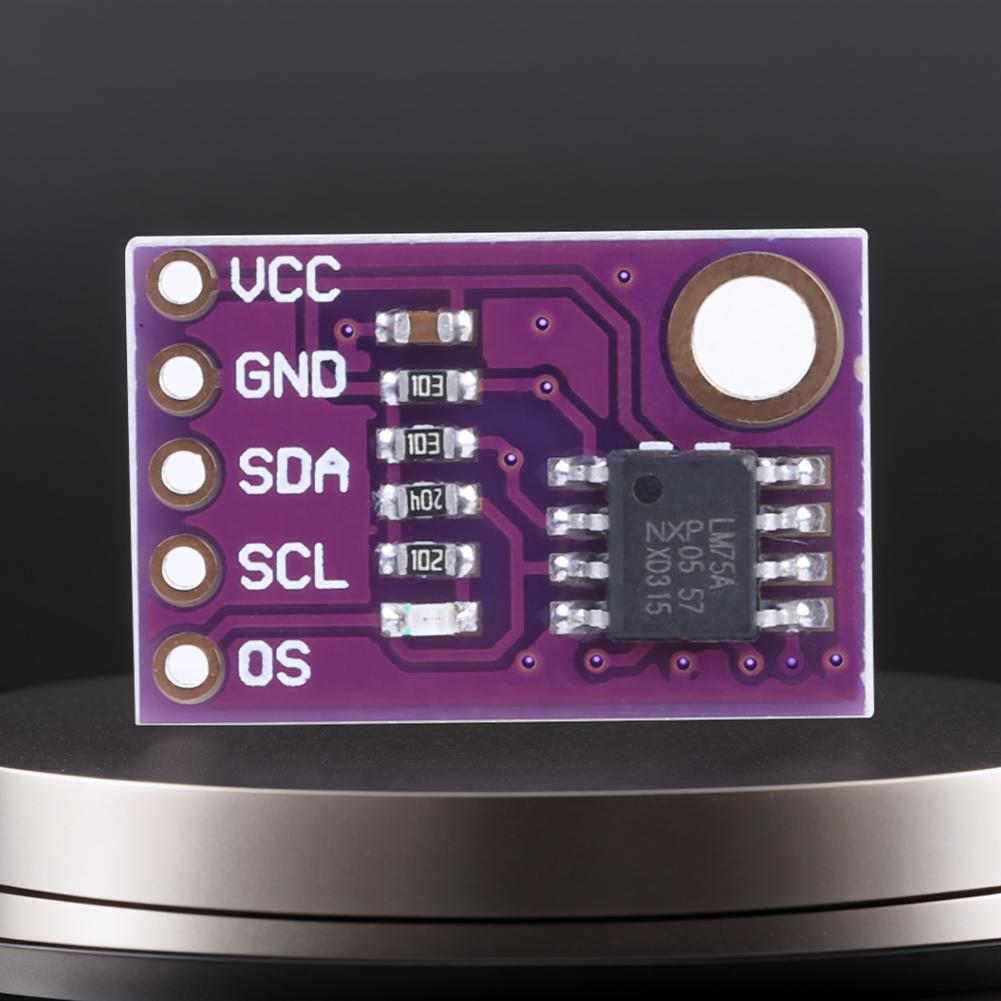

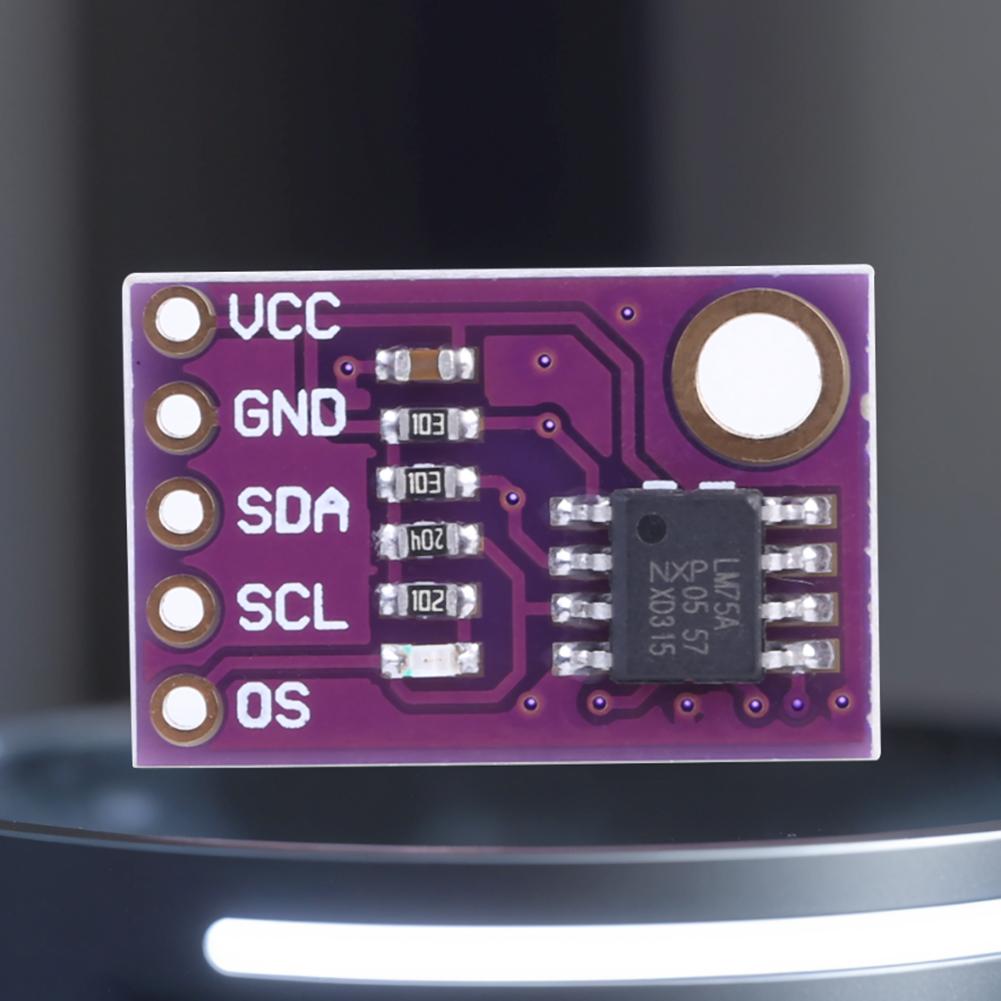

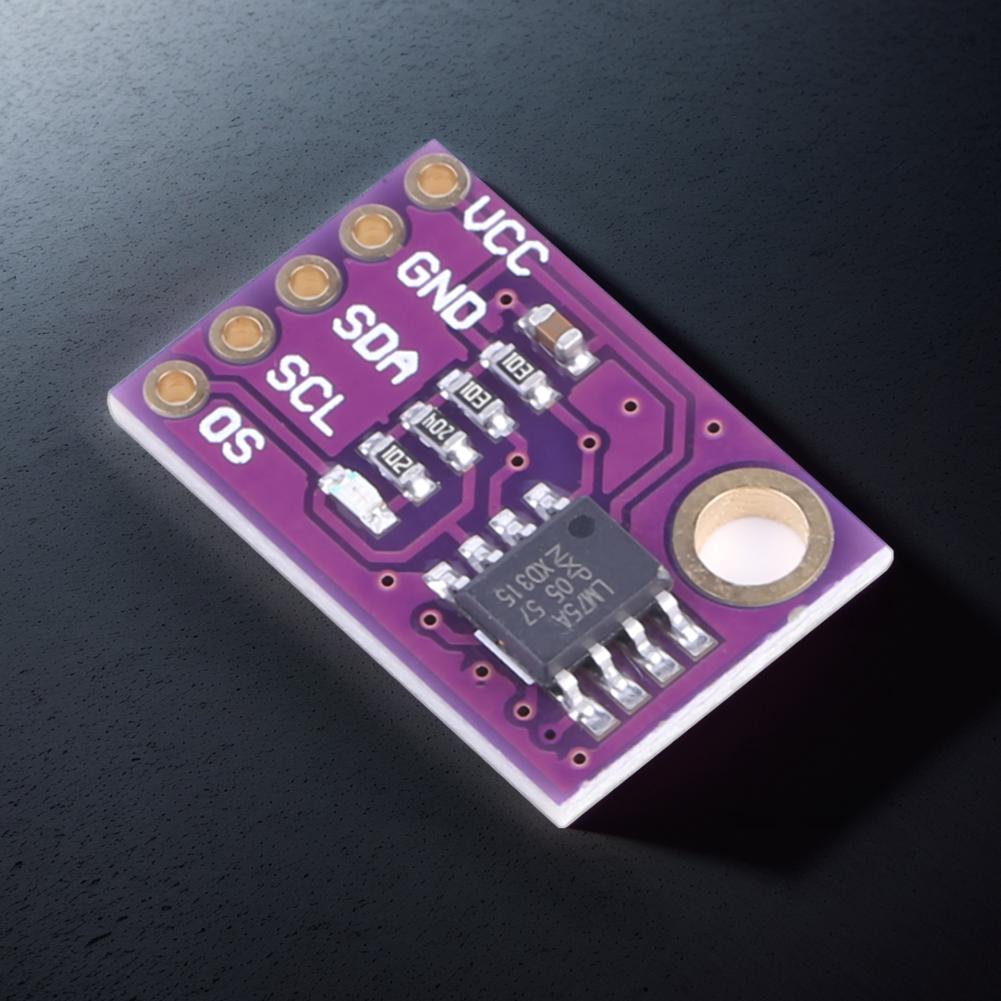

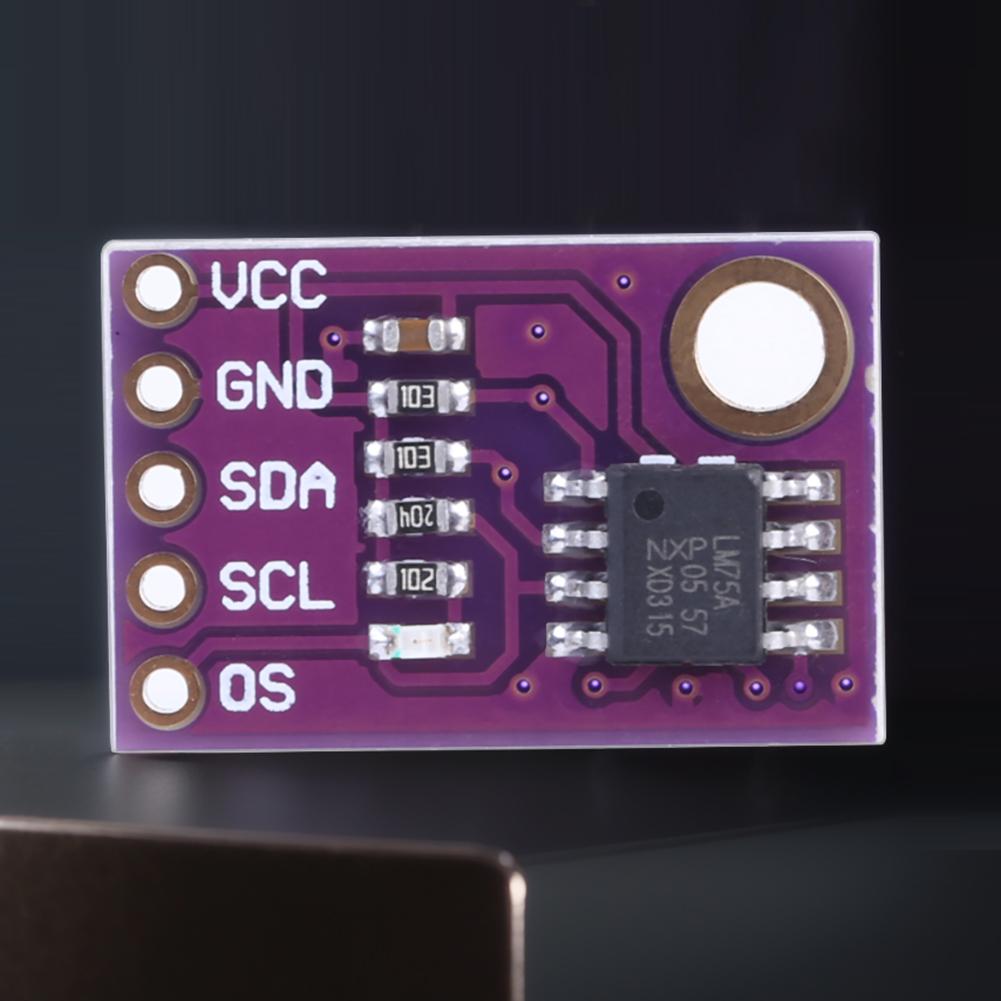

LM75A CJMCU-75 Temperature Sensor Module High-speed I2C Interface Development Board High Precision Development Board Compatible with Arduino
Feature:
1.High Precision: The LM75A temperature sensor uses digital temperature sensor technology to measure temperature with a resolution of 0.125°C. It offers high-precision temperature measurement capabilities, providing accurate temperature data.
2.I2C Interface: The LM75A sensor communicates with the main controller via an I2C interface, allowing direct reading of its internal registers through the I2C bus. It also features three selectable logic address pins, enabling up to eight devices to connect on the same bus without address conflicts.
3.Low Power Consumption: The LM75A CJMCU-75 temperature sensor module operates with very low current, making it ideal for low-power applications. It can be used in battery-powered devices that require long-term operation without significantly impacting battery life.
4.Wide Range: The LM75A digital temperature sensor has a broad temperature measurement range from -55°C to +125°C, making it suitable for various applications, including industrial control, electronic devices, and automotive electronics.
5.Compact Size: The LM75A CJMCU-75 temperature sensor comes in a small package, facilitating easy integration into a wide range of electronic devices. Its compact size takes up minimal space, making it ideal for space-constrained applications.
Specification:
Origin: Mainland China
Features:
I2C bus interface, device address 7-bit slave address 1001xxx, 8 devices can be expanded on the same bus;
Power supply range: 2.8V-5.5V, temperature range: -55℃-+125℃;
11-bit ADC provides temperature resolution of up to 0.125℃;
Temperature accuracy:
±2℃(-25℃-100℃)
±3℃(-55℃-125℃)
Programmable temperature threshold and hysteresis set point;
To reduce power consumption, the current consumed in shutdown mode is only 1.0μA;
When powered on, the device can be used as an independent temperature controller;
ESD protection:
Under JESD22A114 standard, it can pass 2000V HBM mode;
Under JESD22A115 standard, it can pass 200V MM mode;
Under JESD22-C101 standard, it can pass 1000V CDM mode;
Latch test under JEDEC standard (JESD78) can reach 100mA;
Small 8-pin package: SO8, TSSOP8 and ultra-small package XSON8U.

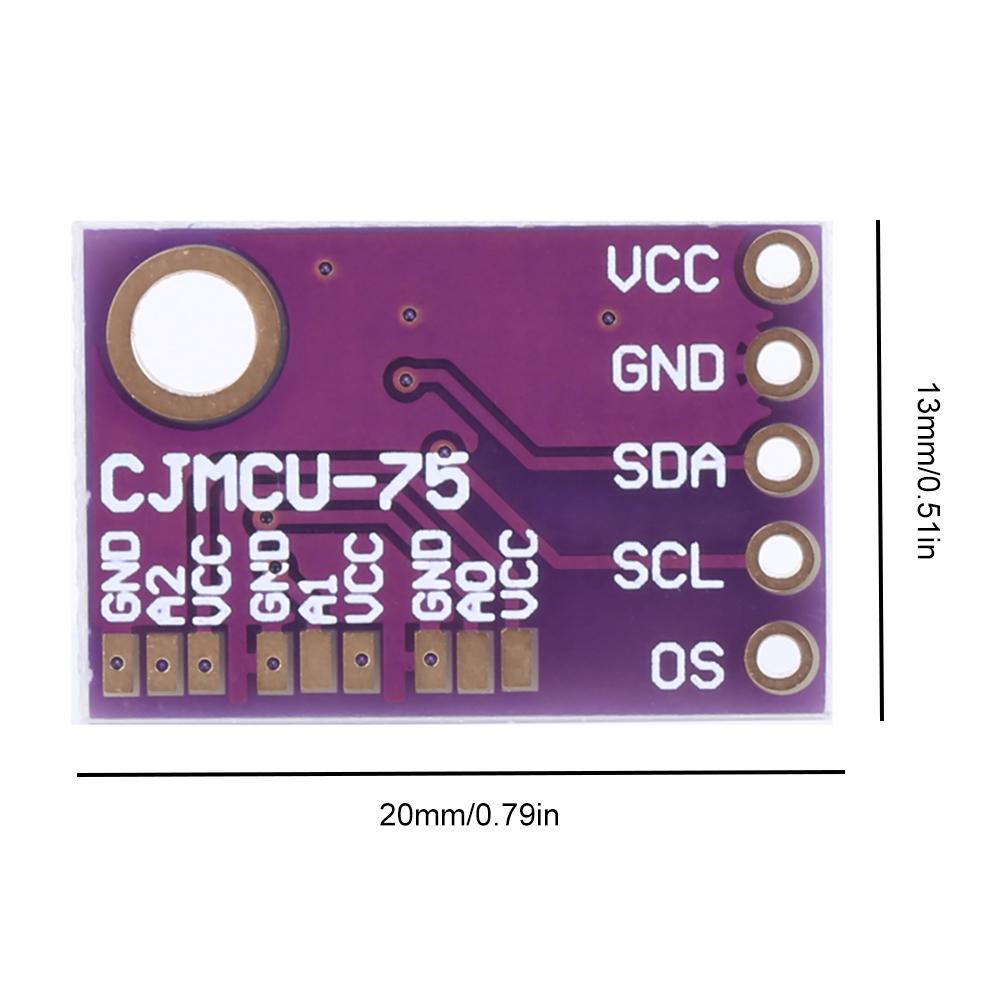

Product size: 20.00x13.00x3.00mm*0.79x0.51x0.12inch
Material: mixed material
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
