【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

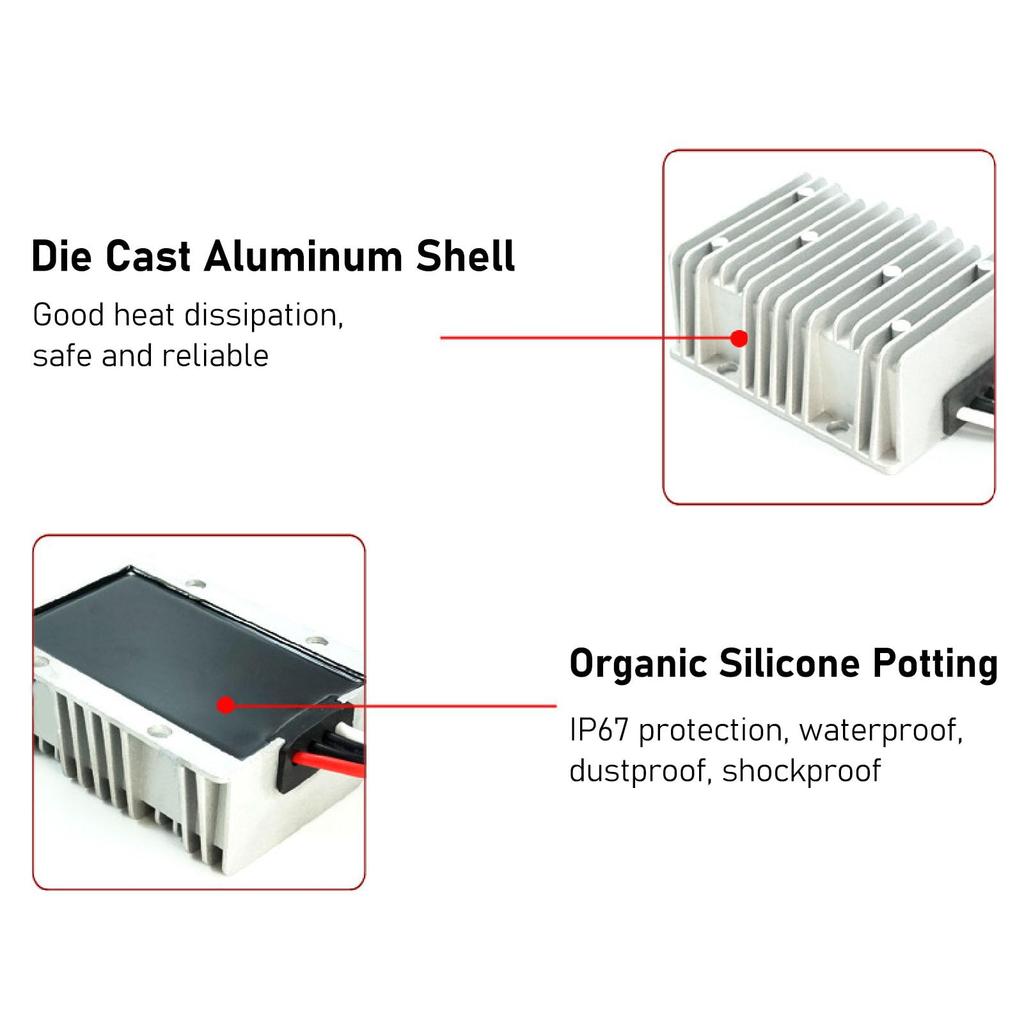

【Fully Sealed Case】The sturdy and wear-resistant fully sealed case of this DC-DC boost converter module is waterproof, shockproof, moisture-proof, and dust-proof, making it highly durable and long-lasting.
[Excellent Performance] With superior components and synchronous voltage regulator technology, this DC boost converter has very low heat generation, provides sufficient power, and ensures stable working conditions for optimal performance.
[Easy to install] Installation of this power module step-up transformer is easy - just connect the wiring and secure it to the equipment. It's a hassle.

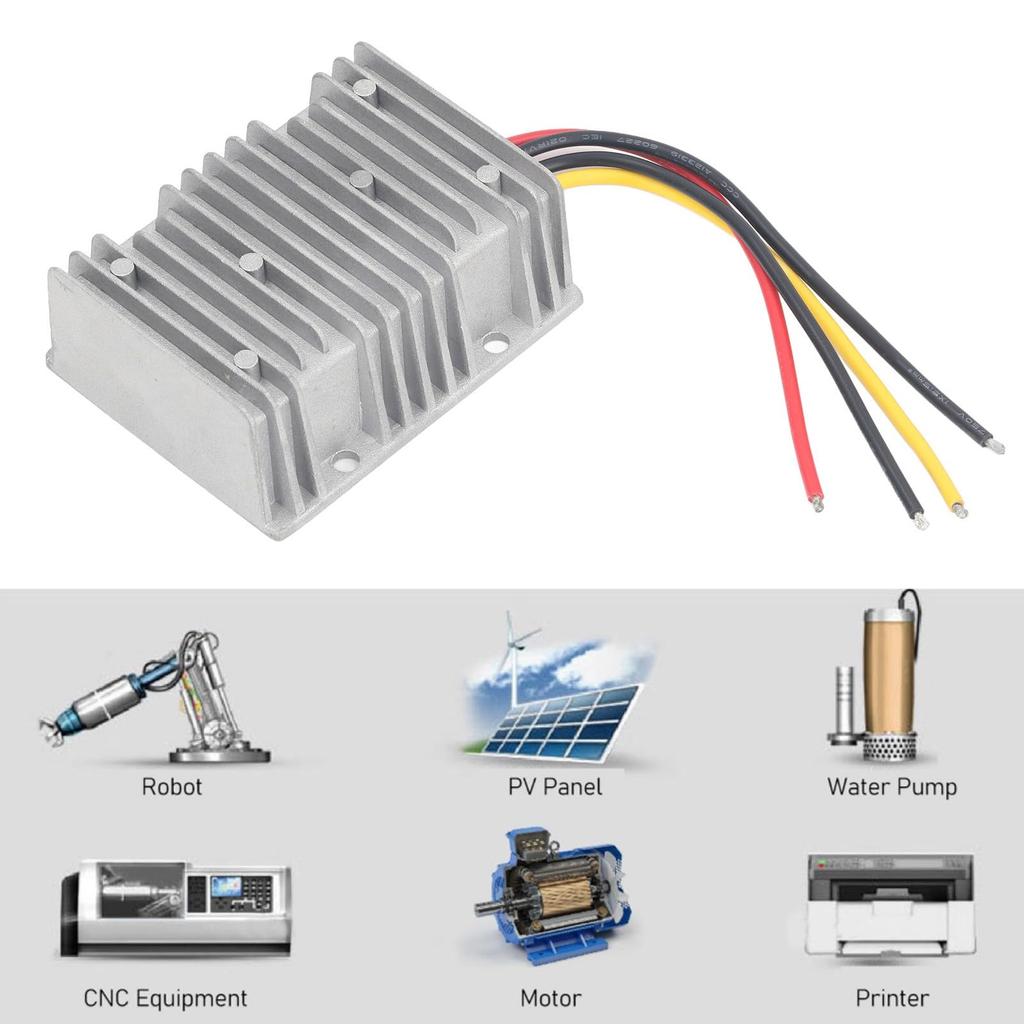

【Wide Application】The voltage of this power adapter is highly versatile and can be used in a variety of settings, including vehicles, security systems, hospital equipment, communications, LED strips, motors, etc., meeting a wide range of needs.
【Safe and Reliable】This voltage regulator power converter provides multiple protections such as overvoltage, undervoltage, overload, overtemperature and short circuit protection to ensure the safety and reliability of your device.

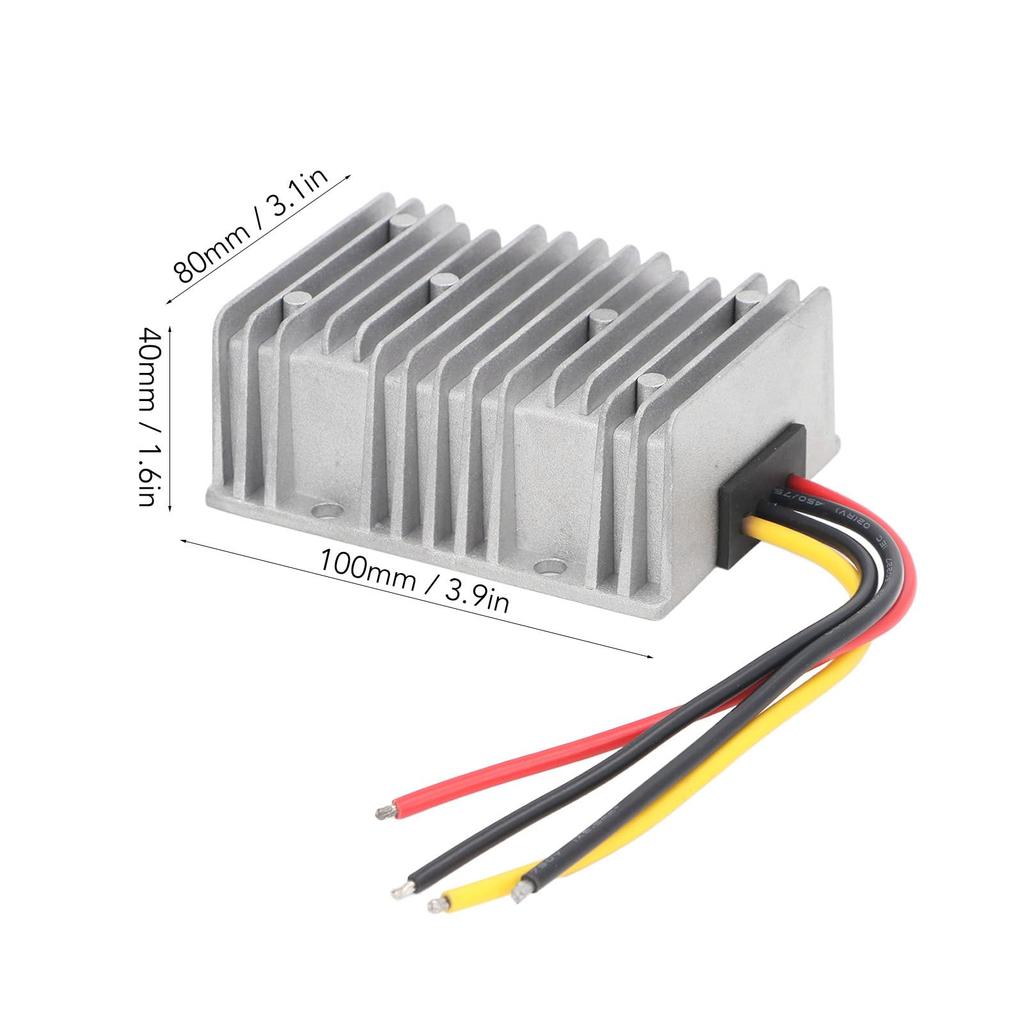

Specifications: Item Type: DC to DC Boost Converter Module Material: Die-cast Aluminum, Resin Input Voltage: 12V24V (9-30V) Output Current: 10A Output Voltage: 48V Output Power: 480W Operating Temperature: -20°C to 80°C Waterproof Level: IP67
Package List: 1 x DC to DC Boost Converter Module
Note: 1. To ensure the converter works normally within the input voltage range, the input voltage must not be less than the minimum or maximum input value limited by the product. The input voltage must be at least 2V higher than the output voltage value. If there is no voltage difference of 2V, the output value will be reduced, but the converter will not be damaged. 2. The input current must be greater than or equal to the power required by the output load equipment (for example, if the load equipment power is 100W, the input power must be greater than or equal to 100W). When using a converter, make sure that the current of the load device does not exceed the maximum current that the converter can withstand. Leave as much headroom as possible in the converter to ensure proper operation and achieve the highest conversion efficiency. 3. Do not reverse the positive and negative poles of the converter during use. Reversing it may damage the converter. We recommend adding an appropriate input terminal. 4.When there is no load, the chip is lightly loaded
