Hign-concerned Chemical : None
Model Number : RGB Full color
Type : Voltage Regulator
Origin : China
Condition : New

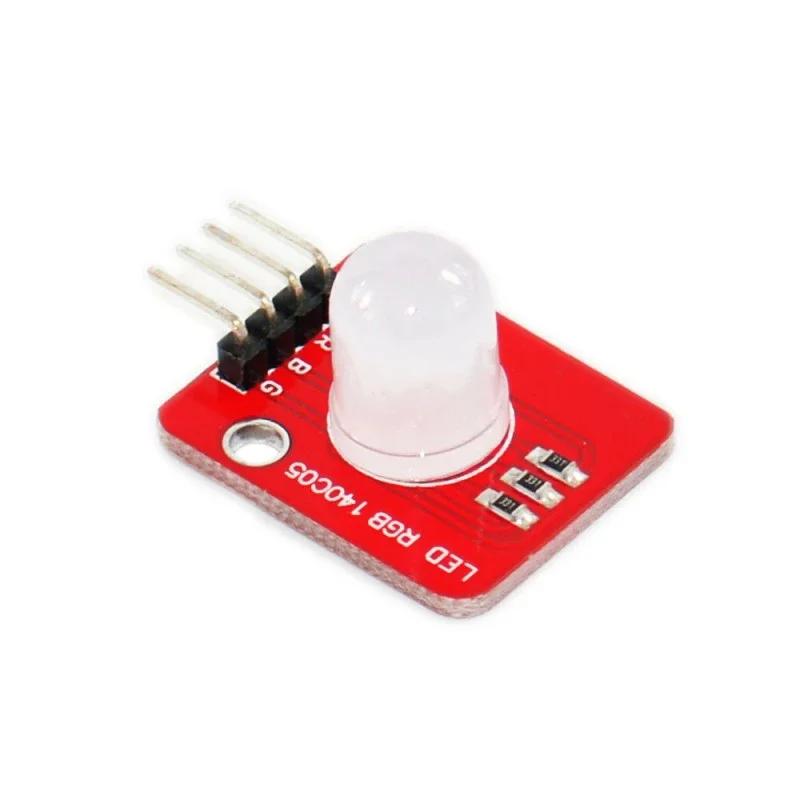

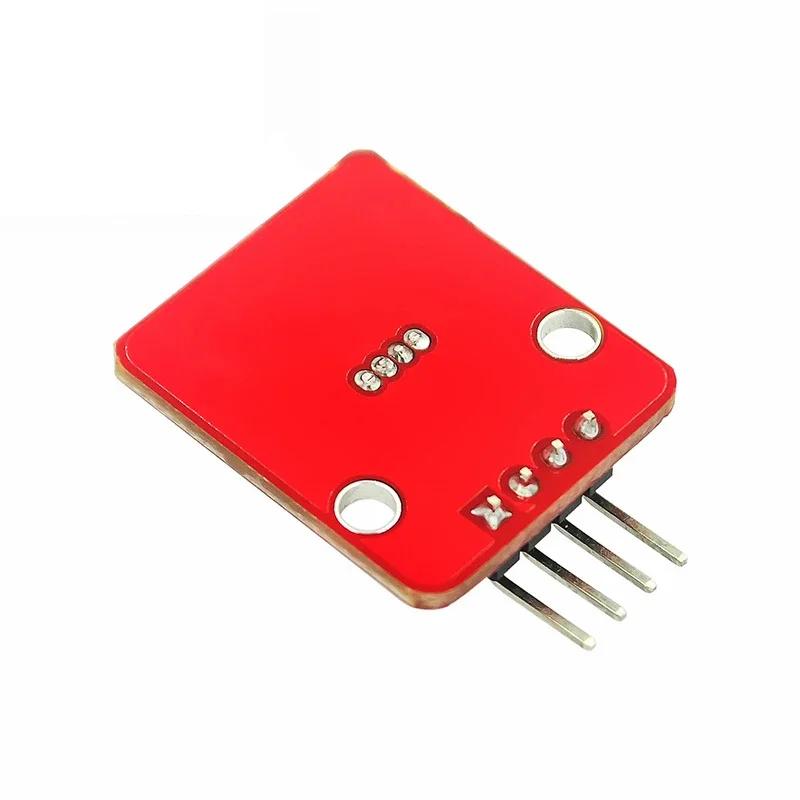

modname=ckeditor 1. Product parameters:Size: 25*21mmWeight: 4gColor: full color red, green and blue three primary colorsBrightness: highlightVoltage: 5VInput: digital levelInterface: Arduino 4P interfacePlatform: development board, single-chip microcomputer2. Product features:The principle of three primary colors displays multiple colorsRealize full-color display through PWM port controlPWM interface can be directly drivenTest code:int redpin = 11; //select the pin for the red LEDint bluepin =10; // select the pin for the blue LEDint greenpin =9;// select the pin for the green LEDint val;void setup() {pinMode(redpin, OUTPUT);pinMode(bluepin, OUTPUT);pinMode(greenpin, OUTPUT);Serial.begin(9600);}void loop(){for(val=255; val>0; val--){analogWrite(11, val);analogWrite(10, 255-val);analogWrite(9, 128-val);delay(1);}for(val=0; val<255; val++){analogWrite(11, val);analogWrite(10, 255-val);analogWrite(9, 128-val);delay(1);}Serial.println(val, DEC);}
The line layout is compact and regular, with good electrical insulation and mechanical stability, and can maintain stable performance under different temperature and humidity environments to ensure accuracy and reliability.
In circuit design, carefully planned lines are like precision transportation networks, and lines of different widths and spacings undertake different currents and signals transmission tasks respectively. The key signal lines are impedance matching processing, which greatly reduces signal reflection and attenuation and ensures the stable transmission of high-frequency signals.
All kinds of electronic components are soldered on the circuit board, and the solder joints are full, round, and firm and reliable. Core components like chips are perfectly connected to the circuit board through fine packaging processes to achieve high-speed data processing and interaction.
This circuit board has a wide range of responses in many fields. Whether in the industrial control field that requires extremely high stability or consumer electronics field that pursues extreme performance, it can provide solid guarantees for the stable operation of the equipment with its excellent design and reliable performance, and help various electronic devices play a powerful role.
