Features:
1. High?quality plastic material, hard, durable and corrosion?resistant, and also has long service life.
2. Small, light in weight, easy to install and operate, and can be used without complicated steps.
3. Wide temperature control range, temperature control range is ?50 celsius ?110 celsius , control accuracy is 0.1 celsius .
4. Sophisticated production, provides stable performance, high work efficiency, can better meet your needs.
5. Comes with a high accuracy sensor, you don"t need to buy a sensor seperately, saving your cost.
Specifications:
Temperature range :
50110 celsius
Dimensions:
48.5 * 40.1 * 15.8mm
Temperature control mode:
ON OFF
Resolution:
When temperature is 0.1 celsius , the resolution is 9.9~99.9, other temperature segment is 1 celsius
Control accuracy:
0.1 celsius
Hysteresis accuracy:
0.1 celsius
Refresh rate:
0.5S
High temperature protection:
0110 celsius
Static current:
less than 35MA, attract current less than 65MA
Output power:
10A relay
Measurement input:

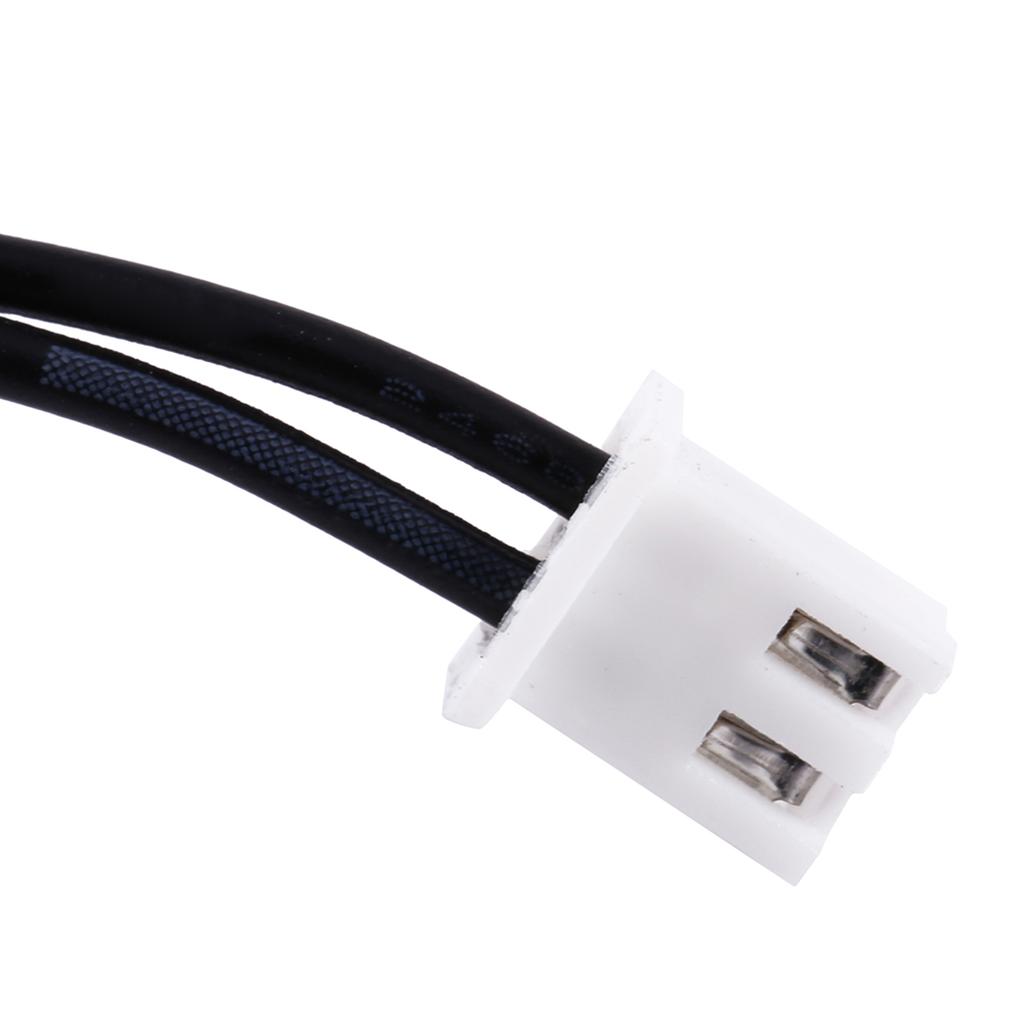

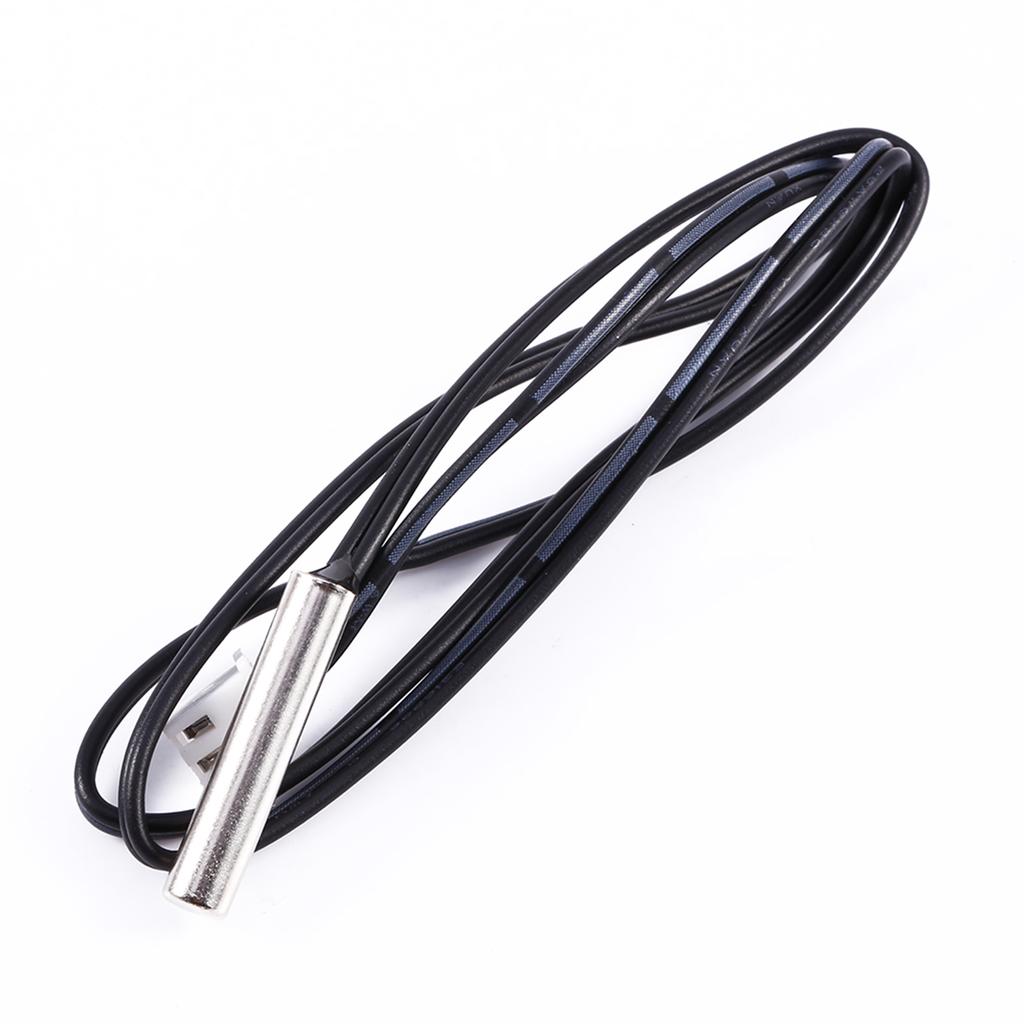

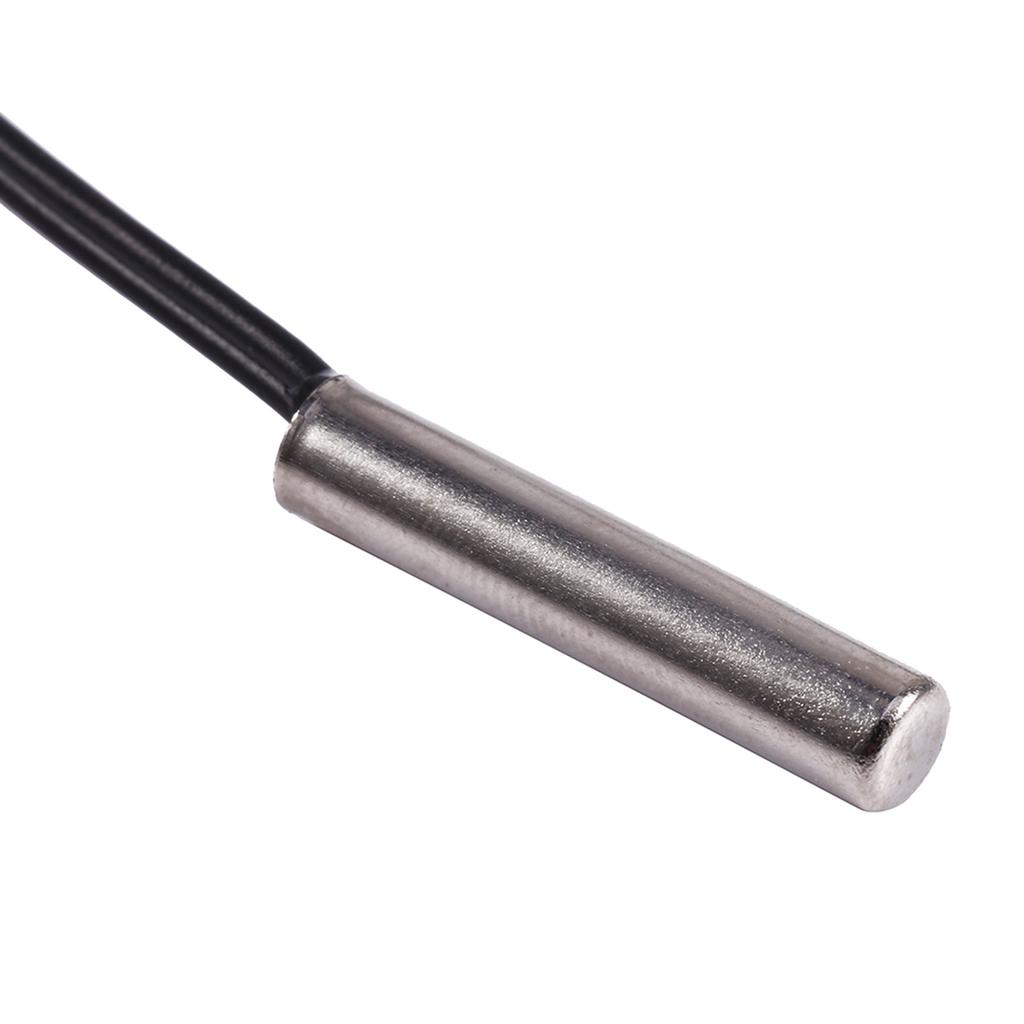

NTC (10K 0.5percent ) Waterproof Sensor
Environmental requirements:
10 ~ 60 celsius , Humidity 20percent 85percent
How to use:
Connect the power supply and the load, you can supply to the controller,
Is displayed as a measured temperature,
Press the SET button, the display flashes the temperature,
Press to set the desired temperature,
After setting press SET to confirm return,
The controller automatically performs the relay by setting off!
Lights, LED status descriptions:
Indicator: Off The relay is switched off, Always indicate the relay is closed.
LED: Shows LL is the sensor open, showing ?HH is out of range, the
thermostat will be forced to close the relay, the display as high
temperature protection.
Package Included:

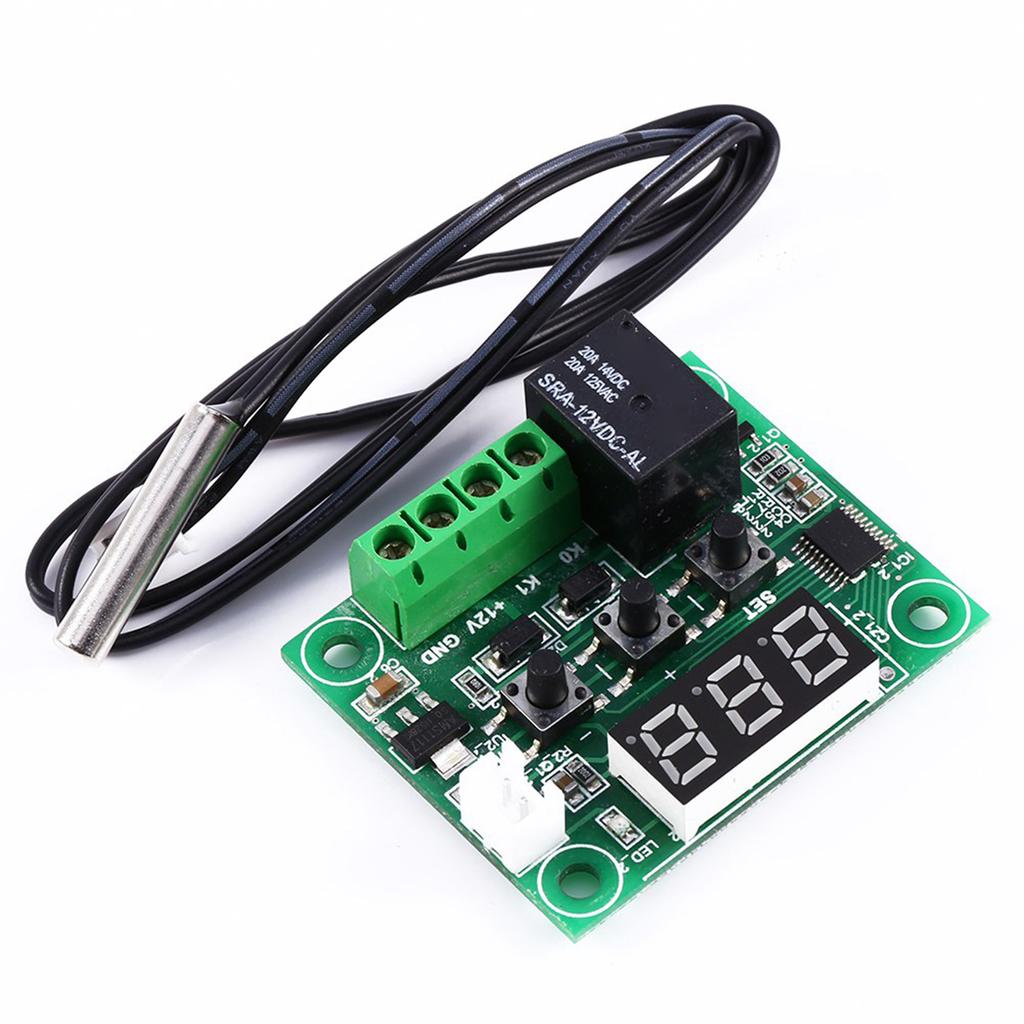

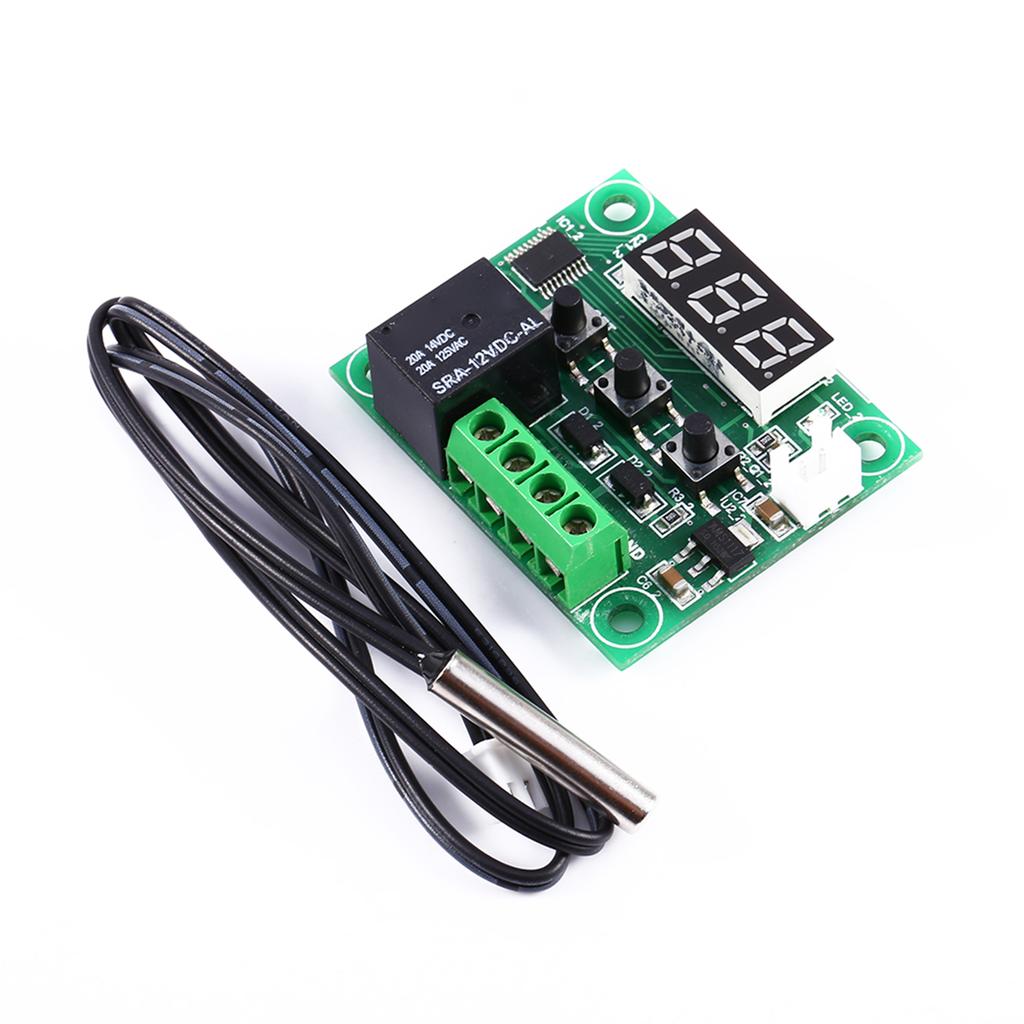

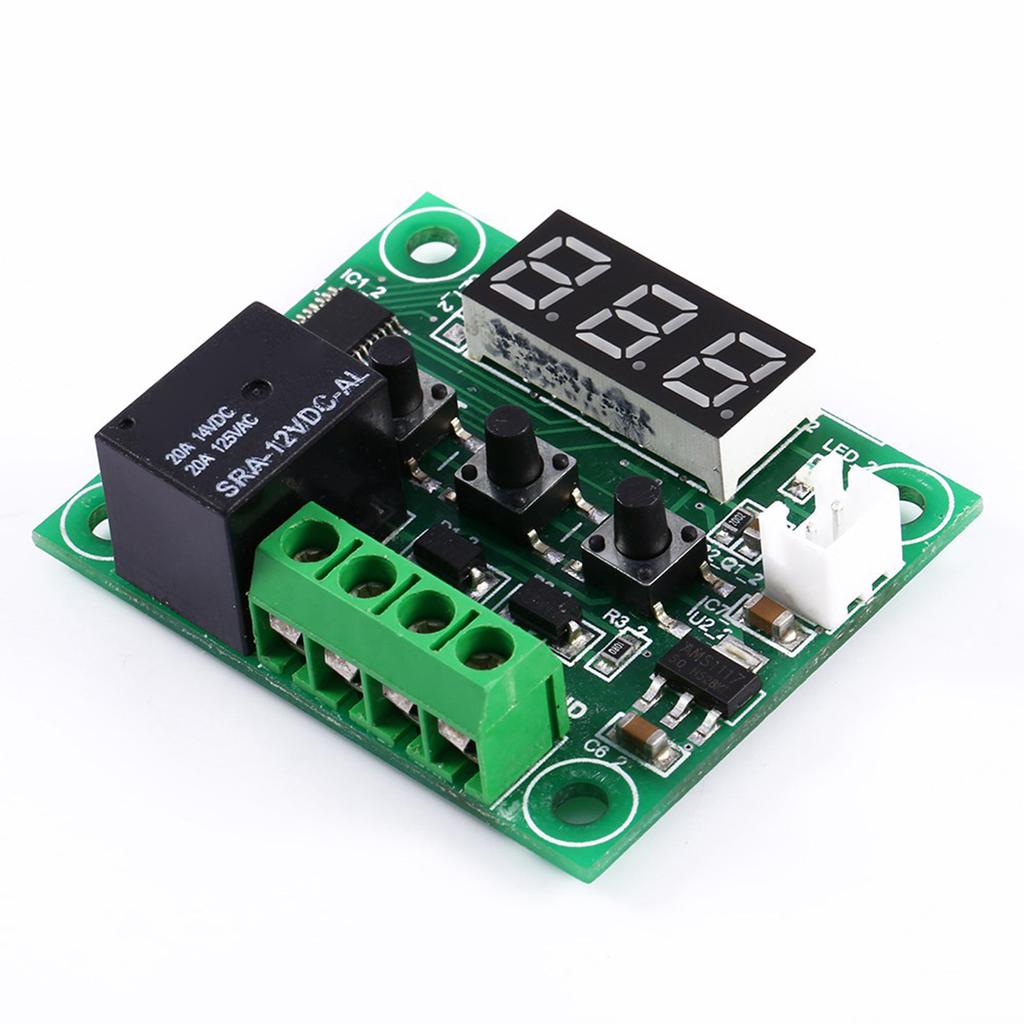

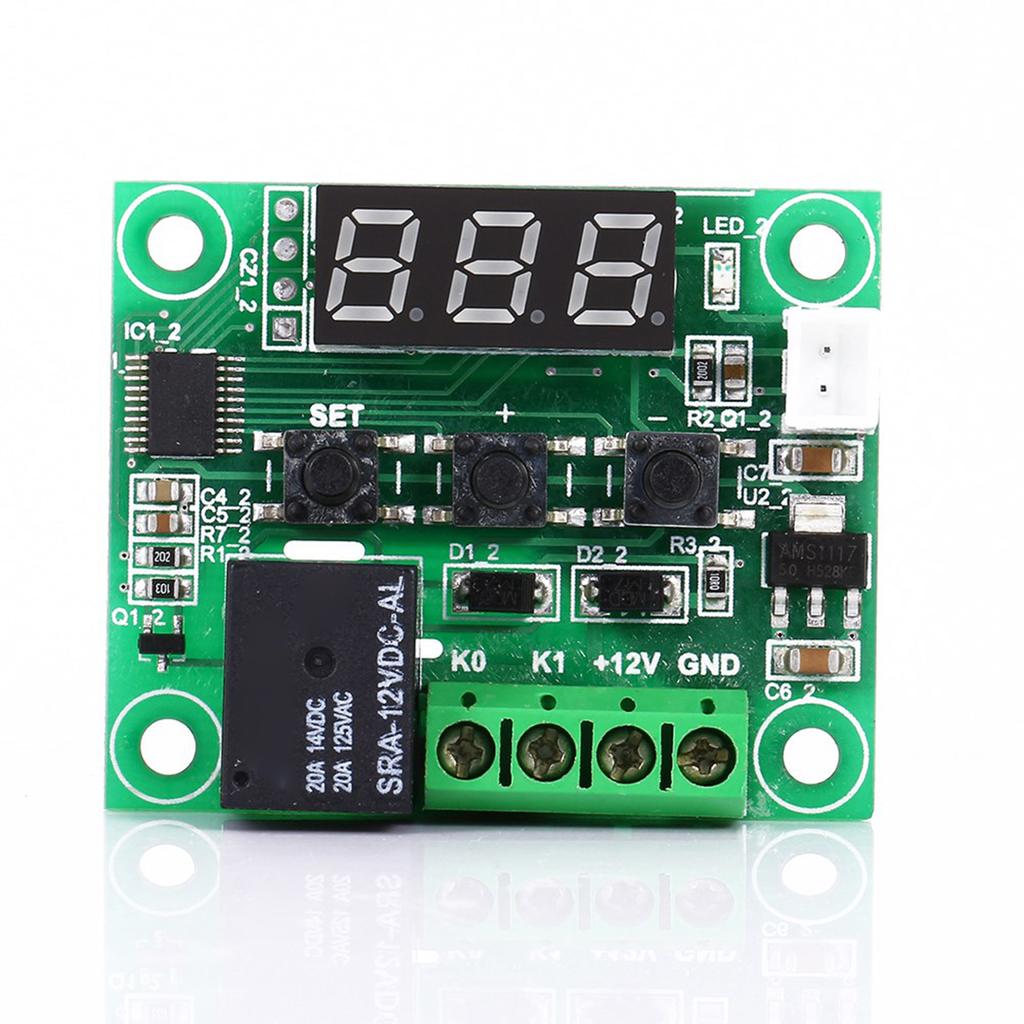

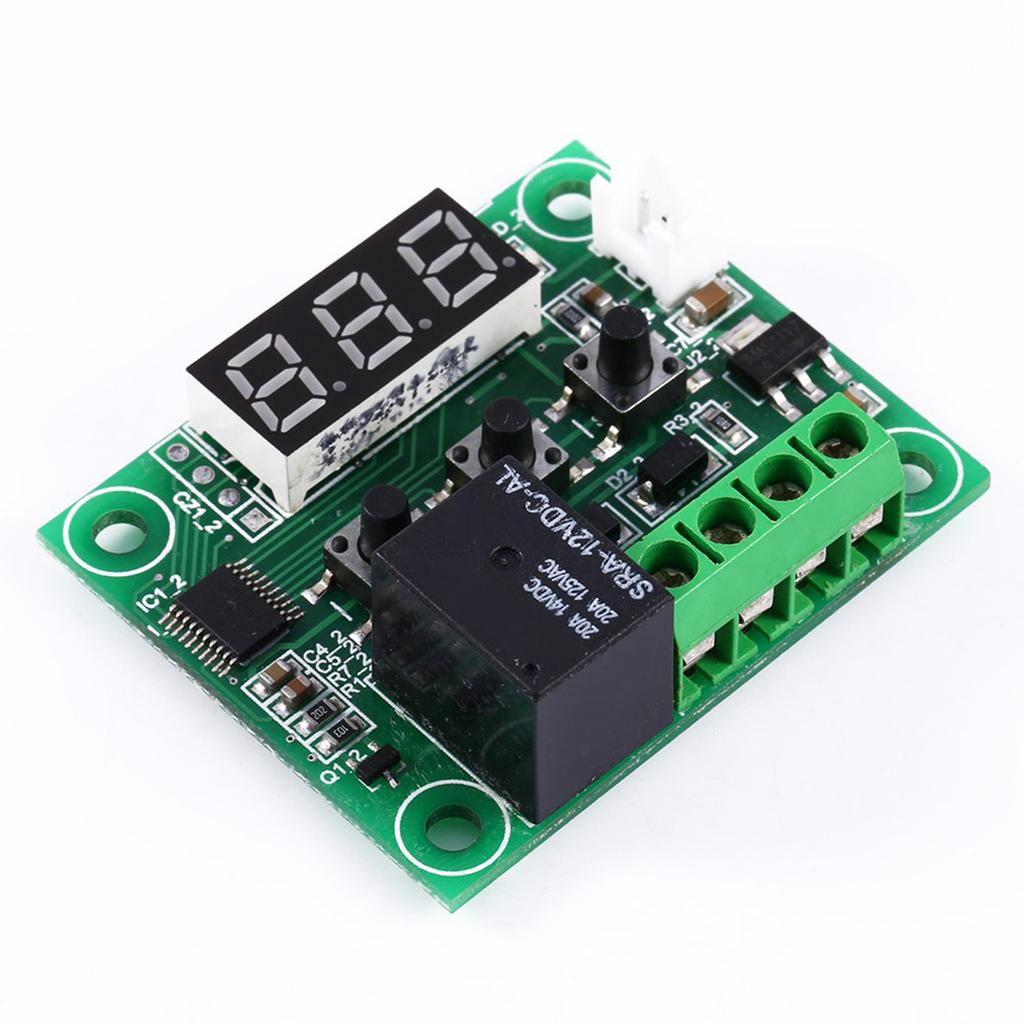

1 x 12V W1209 Digital thermostat Temperature Control Switch+ Sensor
.High?quality plastic material, hard, durable and corrosion?resistant, and also has long service life.
Small, light in weight, easy to install and operate, and can be used without complicated steps.
Wide temperature control range, temperature control range is ?50 celsius ?110 celsius , control accuracy is 0.1 celsius .
Sophisticated production, provides stable performance, high work efficiency, can better meet your needs.
Comes with a high accuracy sensor, you don"t need to buy a sensor seperately, saving your cost.
