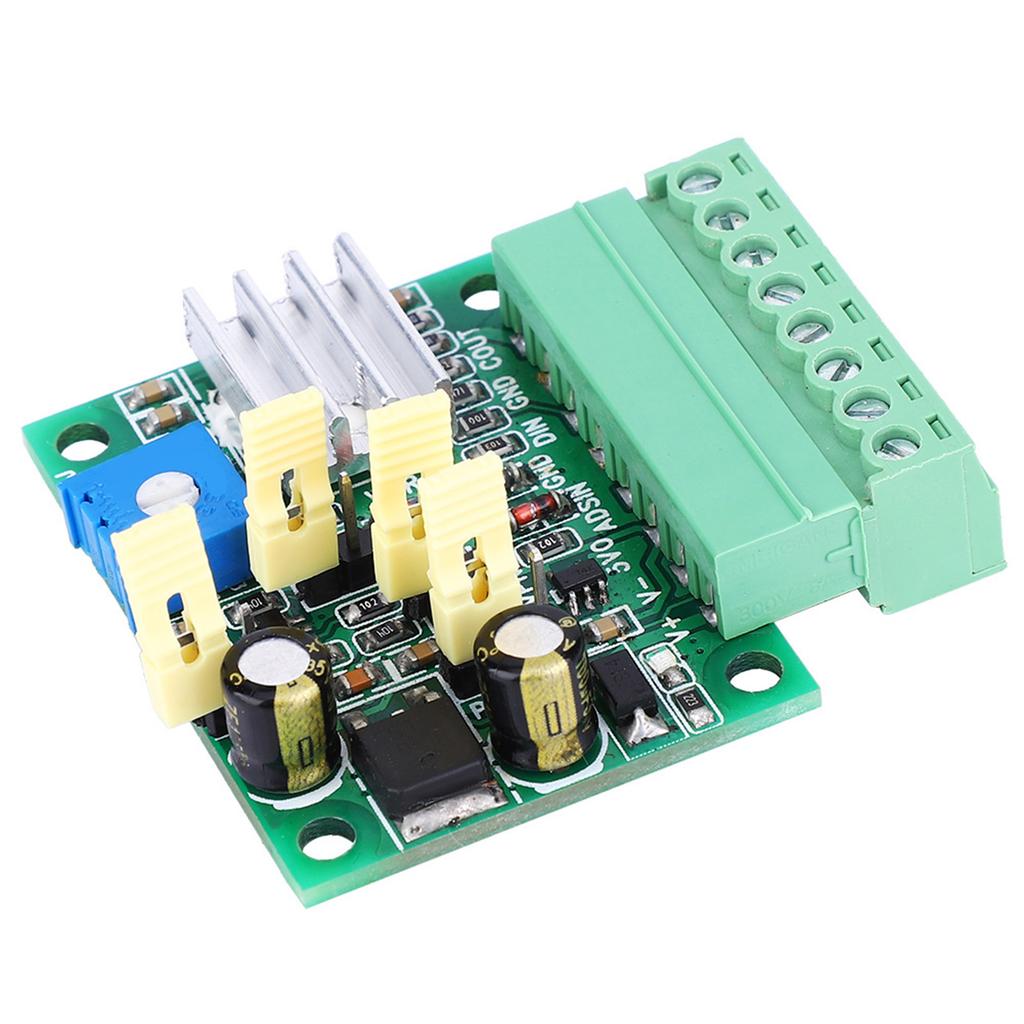

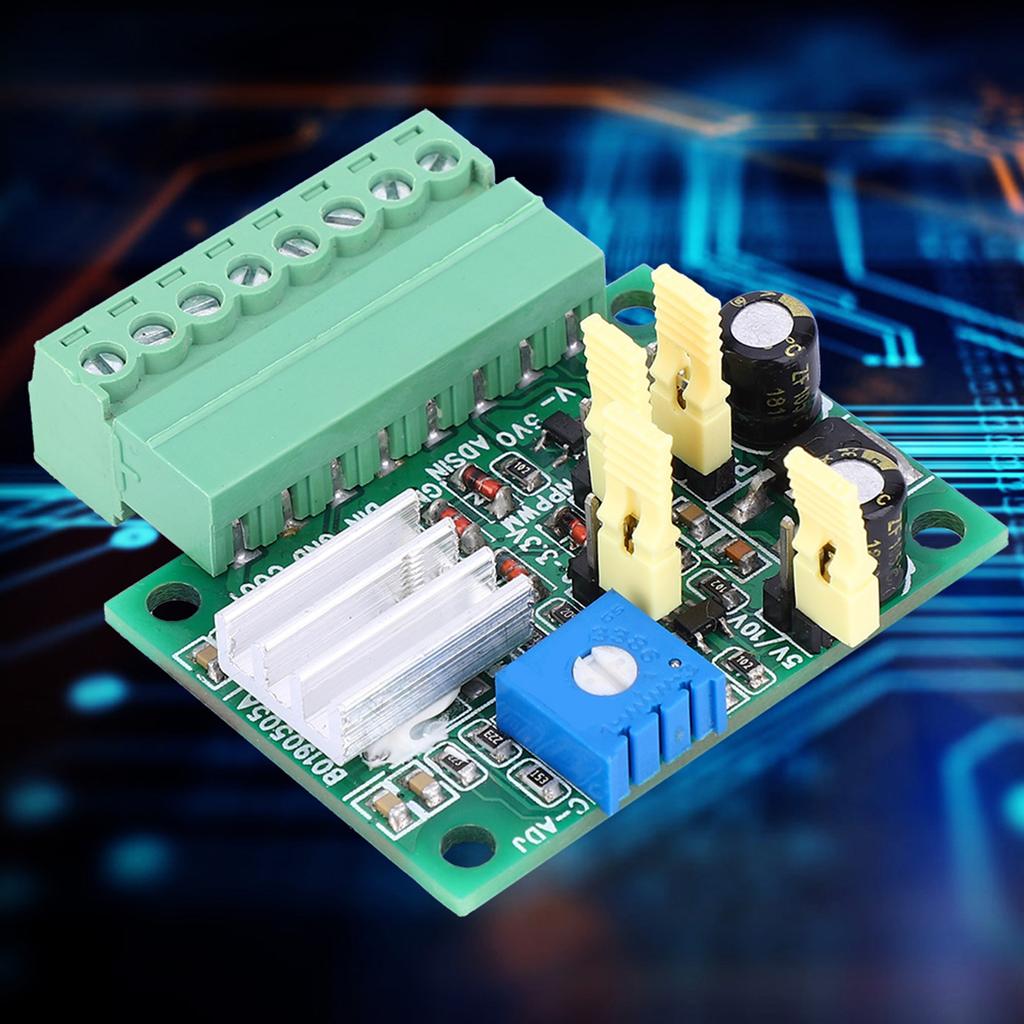

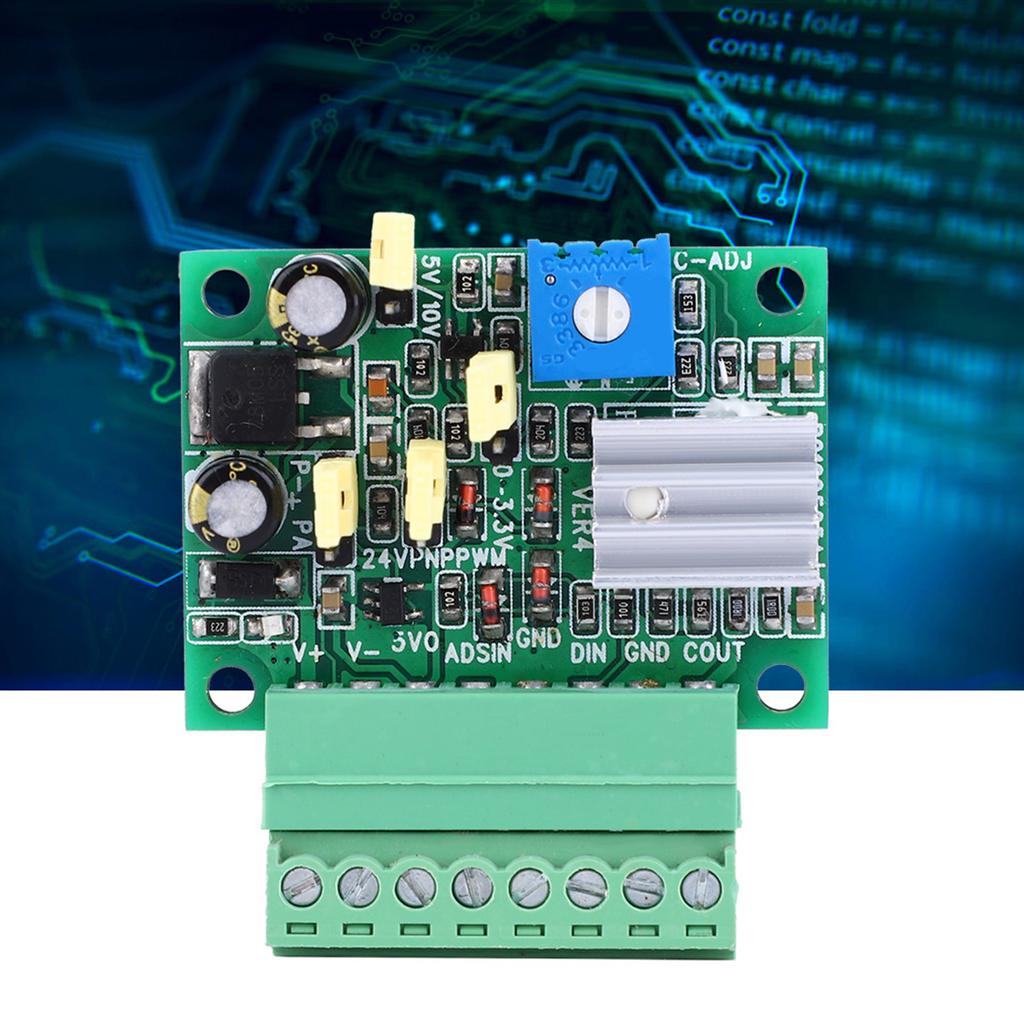

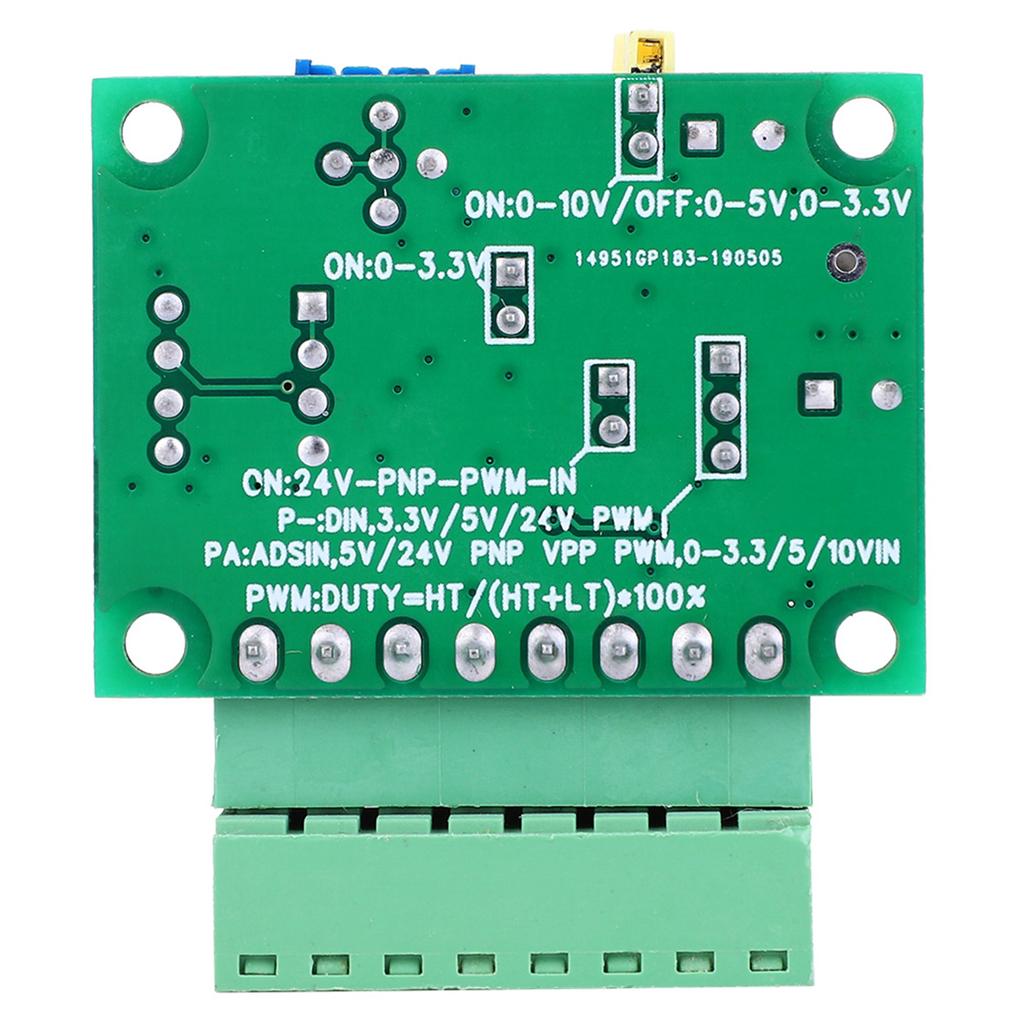

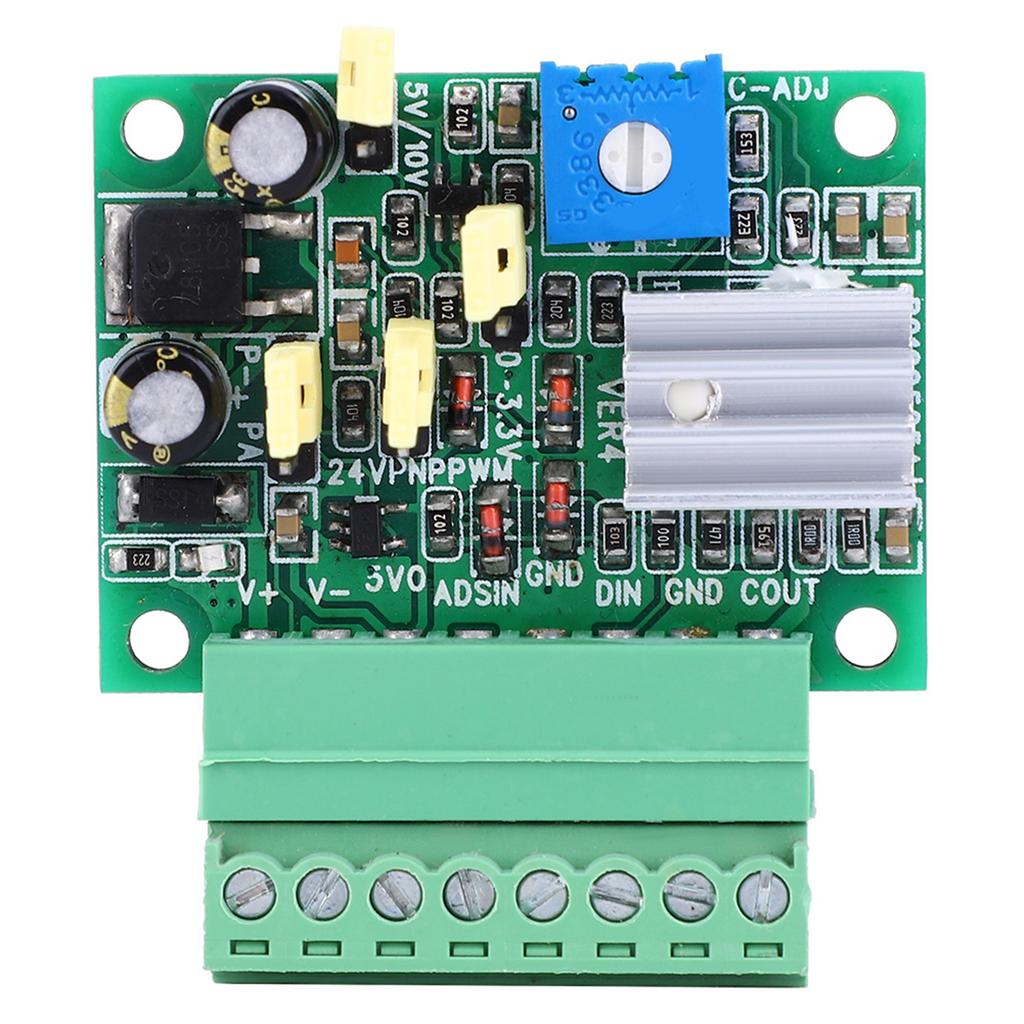

Conversion Module Multifunctional PWM Signal To 020MA 03.3V05V010V Voltage To 020MA

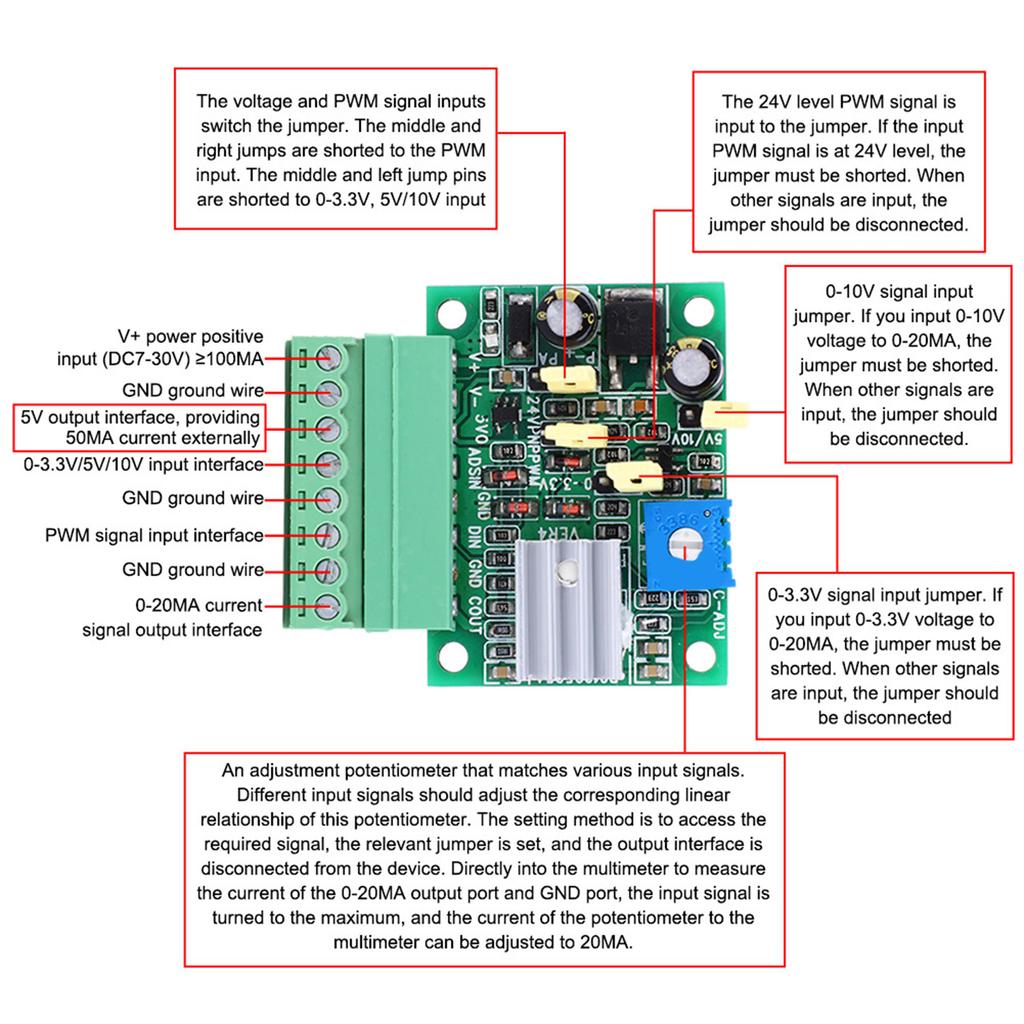

Feature: 1. Digital PWM signal input controls analog 020MA current output 2. Support 03.3V05V010V voltage analog signal input control 020MA current output 3. The adjustable potentiometer on the board is used to match the different signal sources to correct the contrast relationship. 4. The 5VOUT interface supports 50MA current externally and can be used by external circuits. 5. The module current output interface is directly shorted to the ground wire and will not be damaged Specification: Item Type: Conversion Module Supply Voltage: DC830V, (recommended supply voltage is 24V, high voltage supply can support wider signal load internal resistance) Maximum Supply Current Consumption: 35mA24V The PWM Input Interface Supports Signal Level Types: TTL signal level, NPNOC signal input. 24VVPP signal level input, PNP type PWM signal input is not supported by default. The PWM Signal Supports The Frequency Range: 50HZ~4KHZ. It is recommended to use between 12KHZ. The current accuracy of the module output: +3percent , temperature drift value: less than 3percent . Maximum Support Output Internal Resistance: 200 Ohm . Size: Approx. 4.8 x 4.4 x 2cm 1.9 x 1.7 x 0.8in, 4xM3 screw fixing holes Package List: 1 x Conversion ModuleDigital PWM signal input controls analog 020MA current output Support 03.3V05V010V voltage analog signal input control 020MA current output The adjustable potentiometer on the board is used to match the different signal sources to correct the contrast relationship. The 5VOUT interface supports 50MA current externally and can be used by external circuits. The module current output interface is directly shorted to the ground wire and will not be damaged
