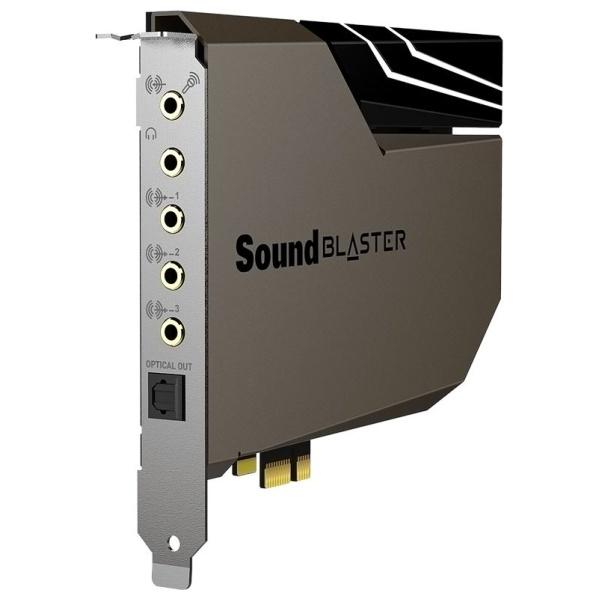

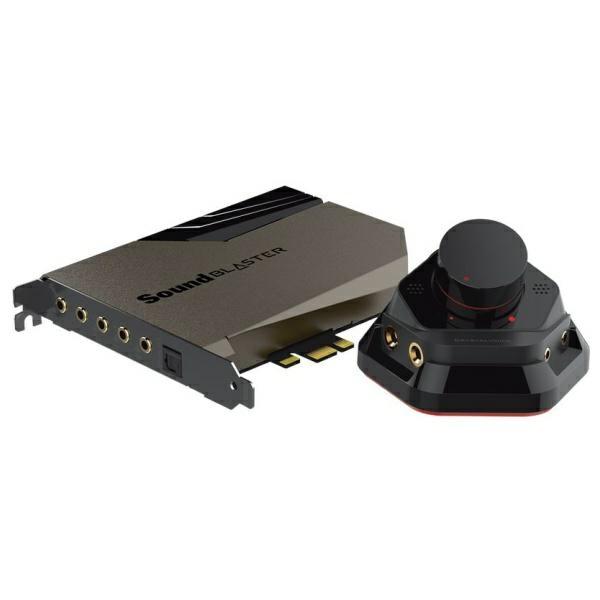

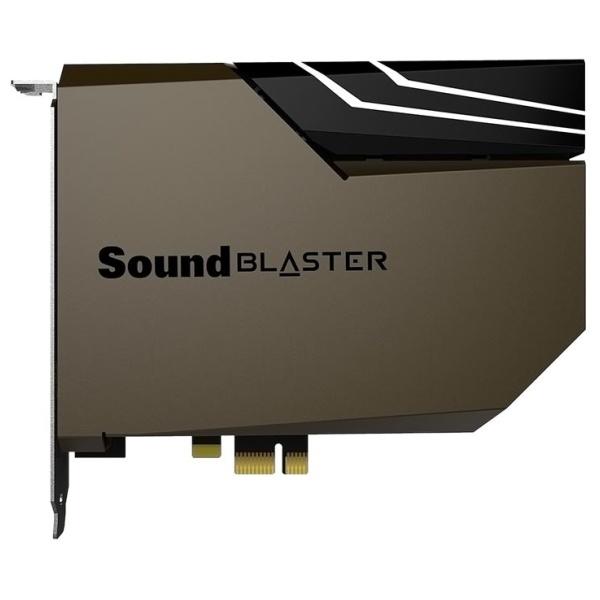

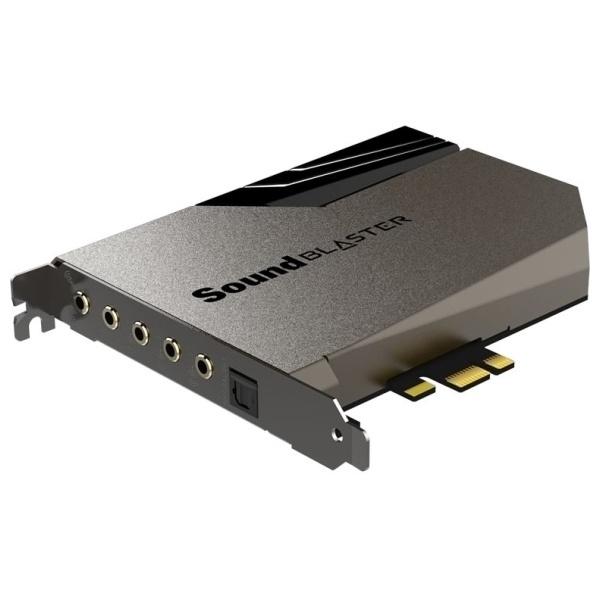

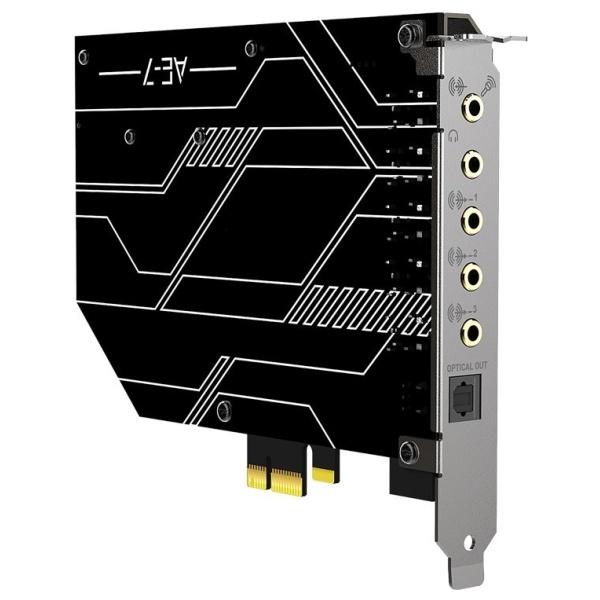

High-resolution DAC sound card with amplifier along with independent dual Xamp headphone amplifier and sound control module
Independent 5.1 surround sound for speakers, virtual 7.1 surround sound for speakers and headphones, Dolby Digital Live, DTS Connect encoding, and Sound Blaster spatial virtualization
Audiophile-class and cinema-quality components deserve an audiophile-class headphone amplifier. The AE-7 is equipped with a dual Xamp headphone amplifier, in which each earcup receives its own power from the first stage of amplification all the way to sound production.
The end result is a silky smooth sound, no matter how dynamic or demanding a given sound scene may be. For professional users, the independent dual Xamp amplifier satisfies even the most demanding needs characteristic of audiophiles seeking music in its original form and wanting to experience it as intended by the creators.
It also provides an extremely low output impedance of 1Ω, which can power studio headphones with an impedance of 600Ω, including high-quality planar magnetic headphones.

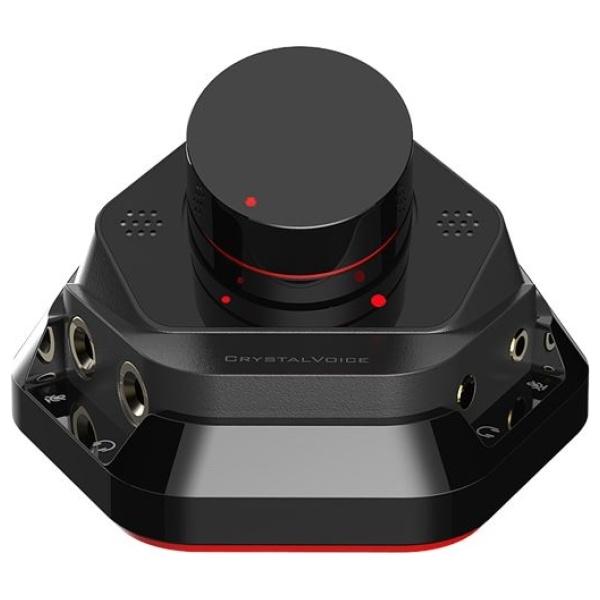

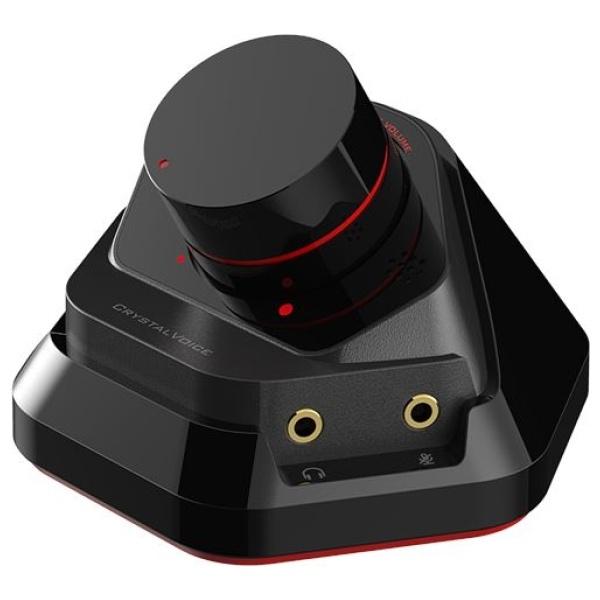

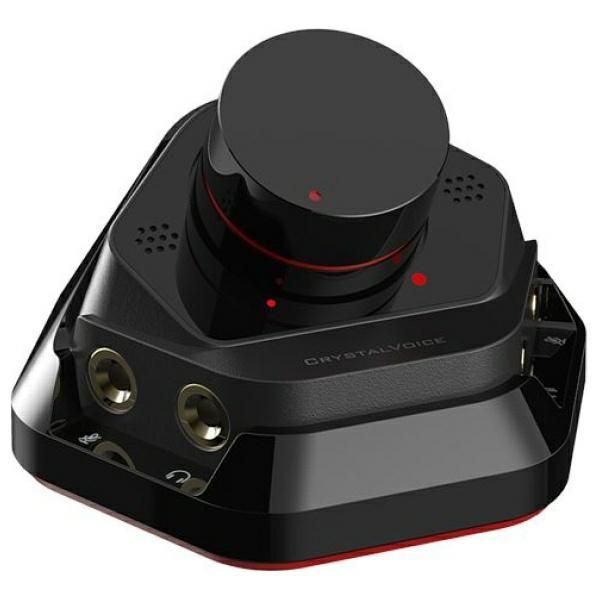

Easy control thanks to ACM, which is integrated with the built-in microphone bus, 6.3 mm and 3.5 mm connectors for microphone and headphone inputs and outputs. The volume can be conveniently adjusted using the knob on the ACM device - everything is within reach.
Technical data
Mark
Creative
Model
Sound Blaster AE-7
Type
Sound card
Headphone amplifier
Output impedance: 1 Ω, Supported headphone impedance: 16–600Ω, IEM: 16 - 31Ω (1,9V Rms), Standard: 32 - 149Ω (3V Rms), High gain: 150–600Ω (5.6V RMS)
Sound processor
Sound Core3D
Direct mode
Playback bit depth (stereo sound): PCM 16 bits / 44.1; 48,0; 88,2; 96,0; 192,0; 384 kHz; PCM 24 bits / 44.1; 48,0; 88,2; 96,0; 192,0; 384 kHz; PCM 32 bits / 44,1; 48,0; 88,2; 96,0; 192,0; 384 kHz; DSD 64 (2.8 MHz)
Playback bit depth (optical output): 16 bits / 44.1; 48,0; 88,2; 96,0 kHz; 24 bits / 44.1; 48,0; 88,2; 96,0 kHz
Recording bit depth
Microphone In (microphone input): 16 bits / 16.0; 44,1; 48,0; 88,2; 96,0kHz; 24 bits / 44.1; 48,0; 88,2; 96,0 kHz; 32 bits / 44.1; 48,0; 88,2; 96,0 kHz
AUX input: 16-bit / 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz
What-U-Hear: 16-bit / 44.1, 48.0 kHz, 24-bit / 44.1, 48.0 kHz, 32-bit / 44.1, 48.0 kHz
Playback bit depth (stereo and 5.1 surround sound)
16 bits / 44.1; 48,0; 88,2; 96.0 kHz, 24 bits / 44.1; 48,0; 88,2; 96.0 kHz, 32 bits / 44.1; 48,0; 88,2; 96,0 kHz
Input options (main)

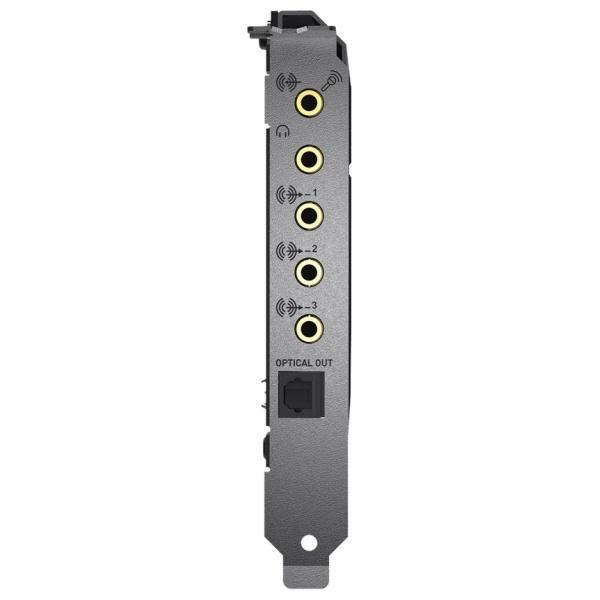

1 TOSLINK optical output, 1 x 3.5 mm rear output (Rear), 1 x 3.5 mm center output (Center / Sub), 1 x 3.5 mm microphone/line input (by default as microphone with the possibility of changing in the software), 1 x 3.5mm headphone / headset output (by default as headphone), 1 front 3.5mm output
Input options (additional)
1 3.5mm microphone input (mono), 1 x 3.5mm headphone output, 1 x 7mm headphone output, 1 x 6.3mm microphone input (mono)
Headphone amplifier
Output impedance: 1 Ω, Supported headphone impedance: 16–600Ω, IEM: 16 - 31Ω (1,9V Rms), Standard: 32 - 149Ω (3V Rms), High gain: 150–600Ω (5.6V RMS)
Audio technology
CrystalVoice
Supported operating systems
Windows® 8, Windows® 8.1, Windows® 10, Windows® 11
TO GIVE
THD+N (Stereo): 0.0001%, Dynamic range (Stereo): 127 dB
Power
PCI-e bus power
Dimensions
Main card: 145 x 20 x 128 mm, Audio Control Module (ACM): 100 x 92 x 70 mm
