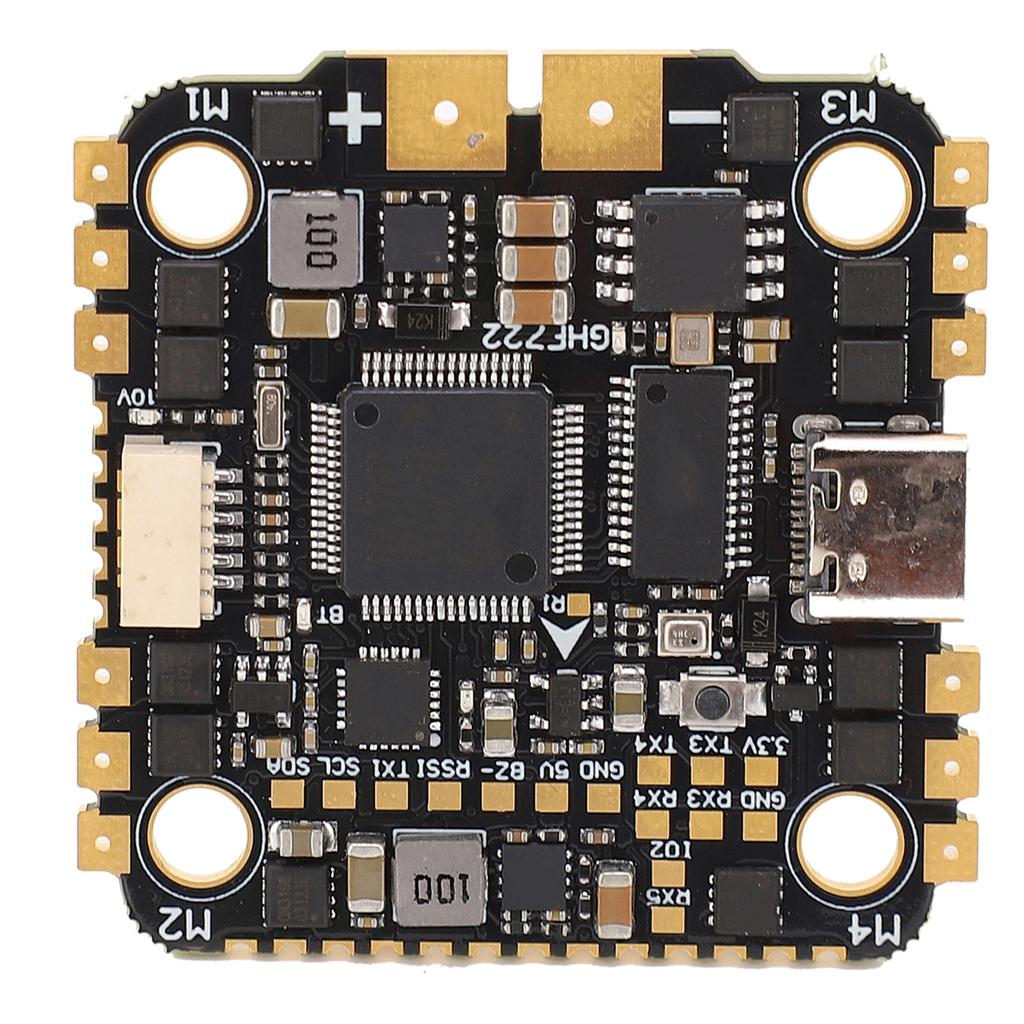

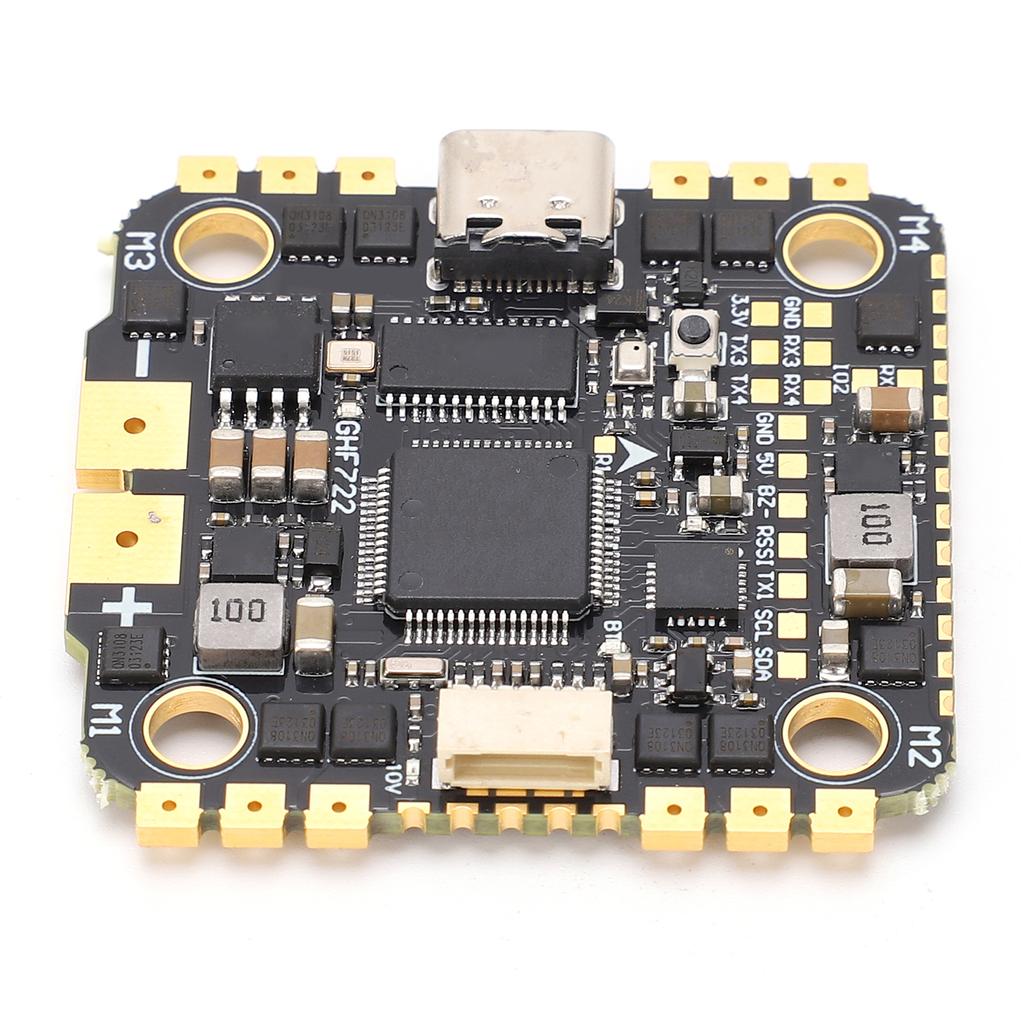

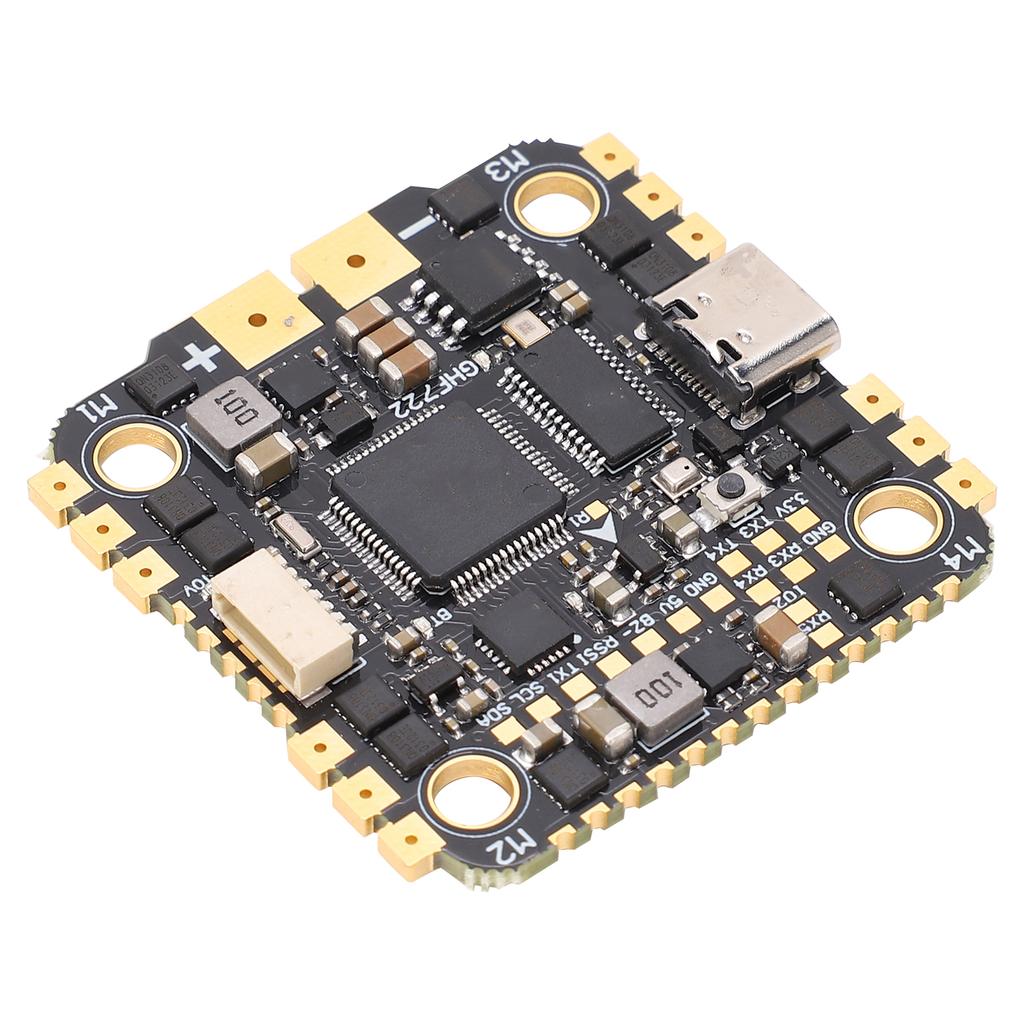

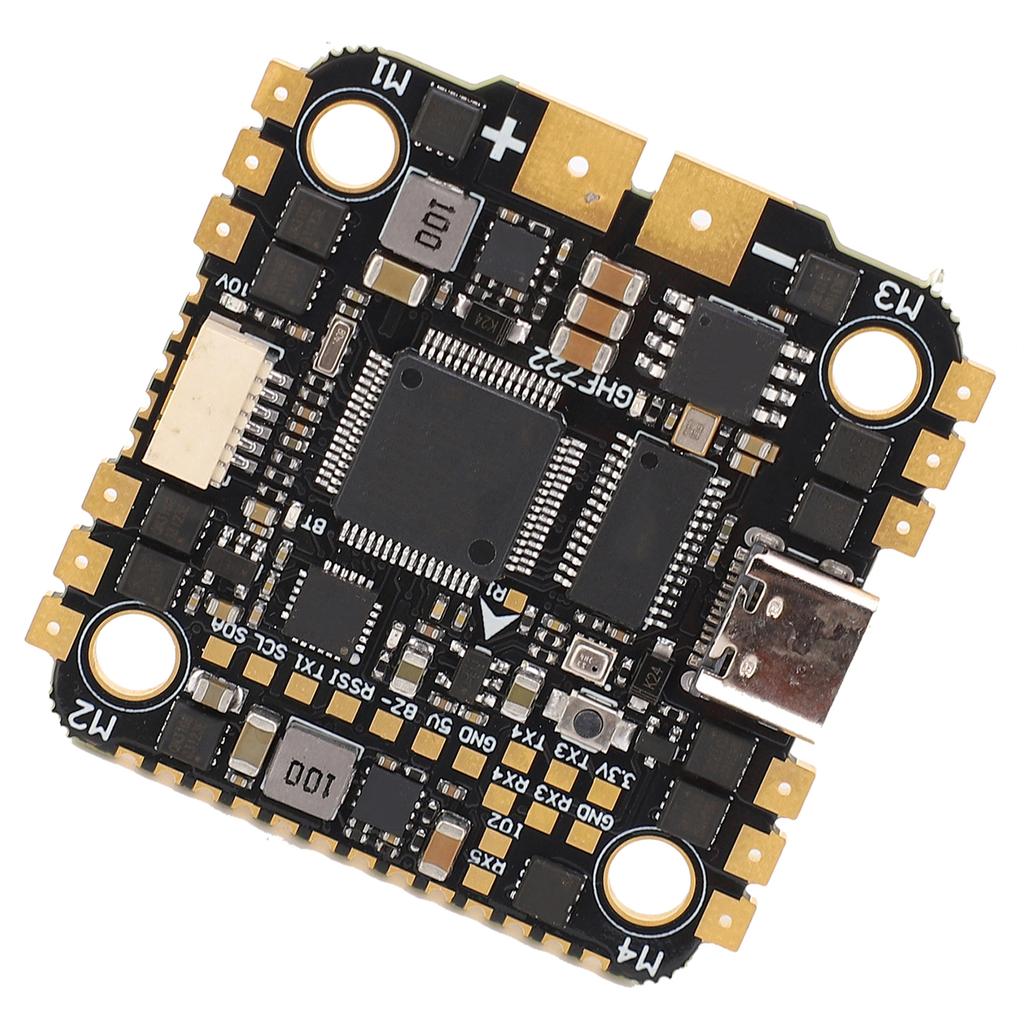

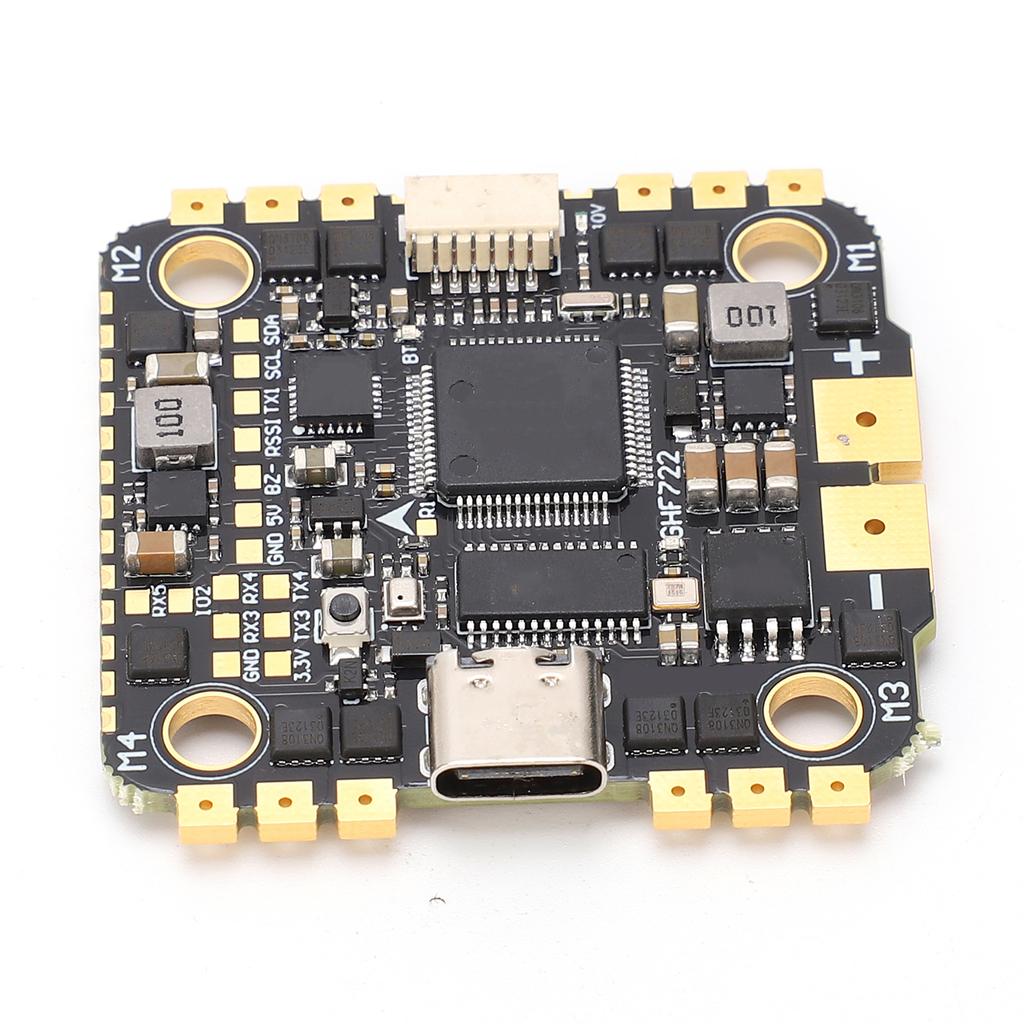

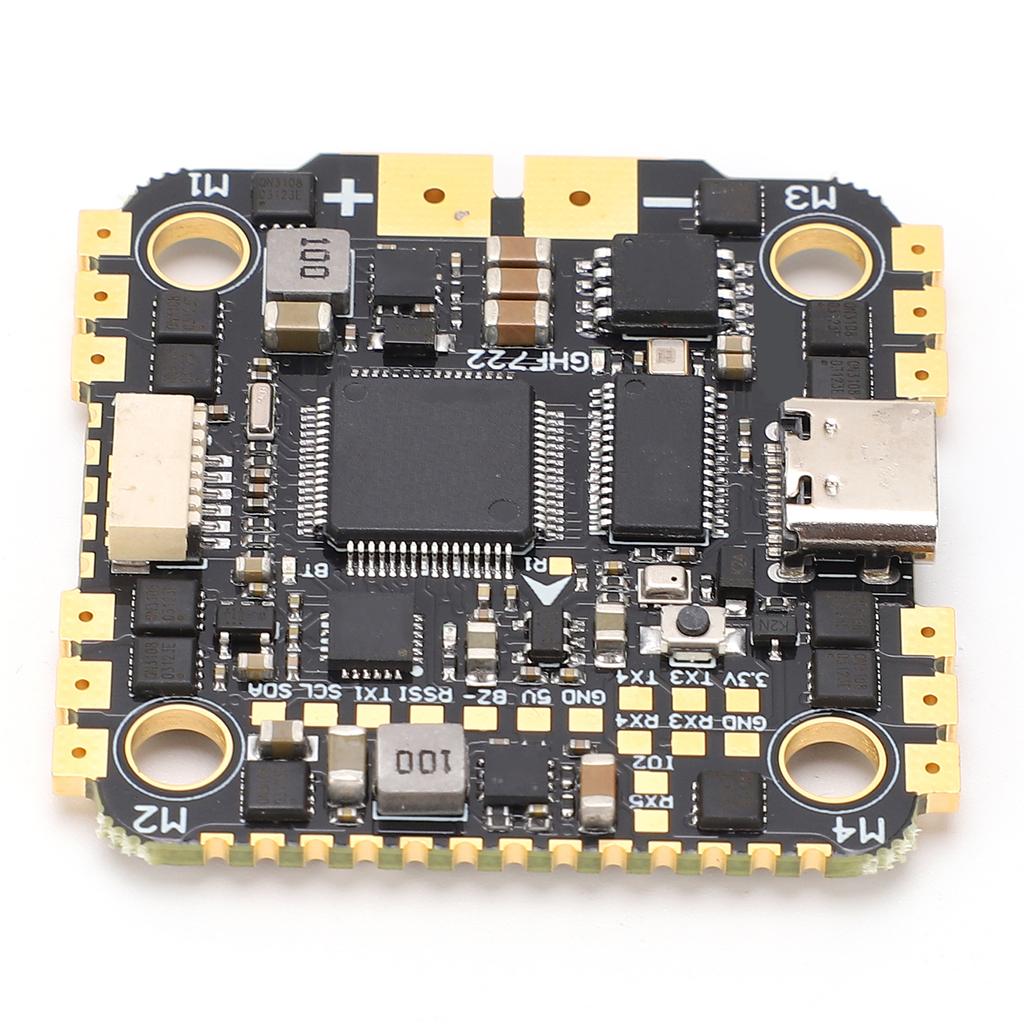

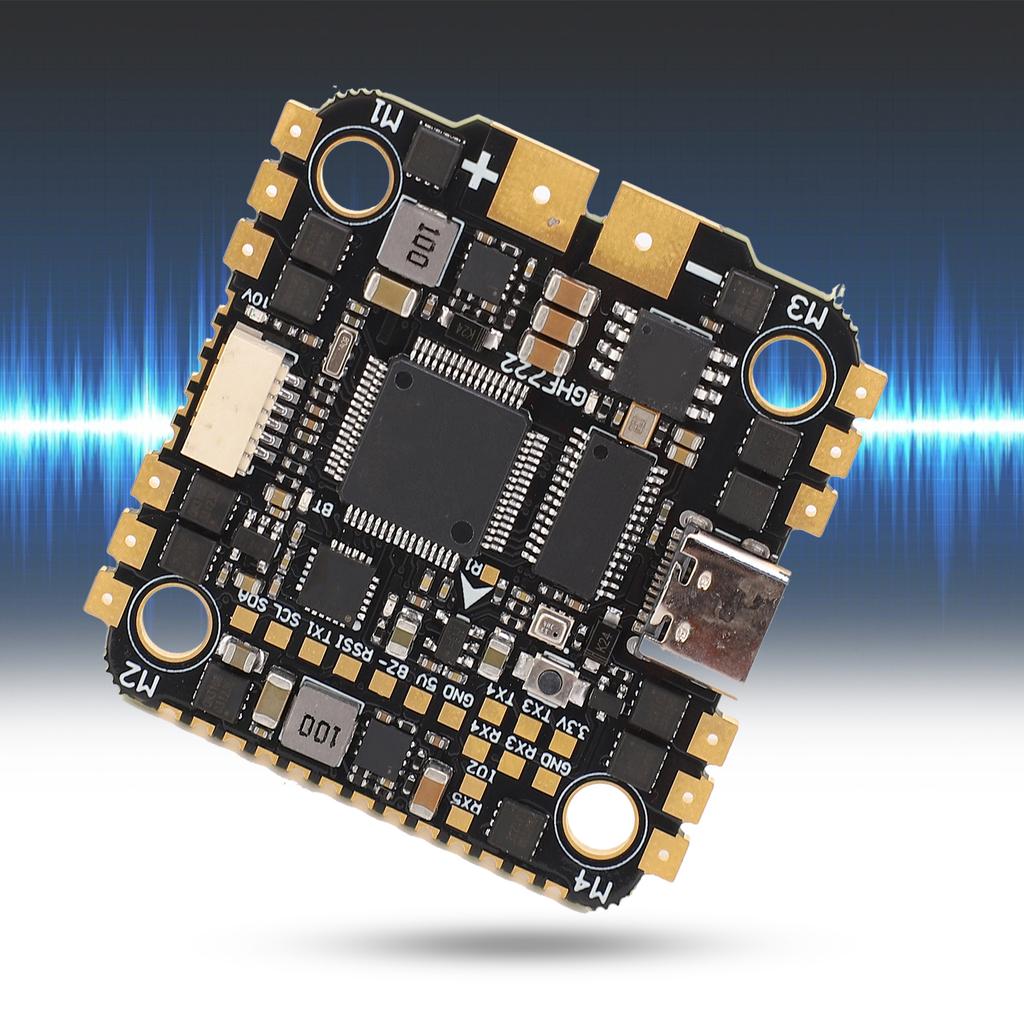

RC Quadcopters 40A Flight Controller ESC Flight Controller Board for FPV Racing Drone

Feature: 1. This flight controller is designed for multi?axle RC drone, with accurate speed control, accurate signal acquisition. 2. You can upgrade the firmware online, or change the configuration parameters through the signal line. 3. ESC uses an adaptive control system and is compatible with most motors on the market. 4. The ESC has a current detection module, which can cooperate with the flightcontroller to detect the current value. 5. For PCB board adopts thickened 6?layer processing, internal resistance with low heat, optimized component layout, installation is more convenient.

Specification: Item Type: RC Flight Controller Material: Electronic Component Color: As Picture Shown RC Flight Controller Size: Approx. 43x43mm/1.7x1.7in Weight: Approx. 32.0g/1.1oz Flight control parameters: CPU: STM32F722RE Sensor: MPU6000 (For SPI connection) OSD: AT7456E Barometer: BMP280 Black Box: 16MB Bluetooth: BL4.0 (name: For JHEMCU), configure UART3 BEC: 5V / 2.5A, 10V / 2.5A TYPE-C UART: UART1, UART2, UART3, UART4, UART5, UART6 Receiver: For SBUS/IBUS/DSM2/DSMX/TBS Firmware Version: JHEF7DUAL Receiver: For SBUS/ IBUS/DSM2/DSMX/TBS Support Programmable LED such as WS2812 Support Buzzer Built-in Current Sensor Built-in ESC Parameters: Continuous Current: 40A Applicable Battery: 3S-6S Lithium Battery Firmware: For BLHELI_32 JHE_Aria_32_Multi Support for PWM/Oneshot125/Oneshot42/Multishot/Dshot150/Dshot300/Dshot600/ DSHOT1200 Fit for FPV Racing Drone How to use: Welding: Weld the capacitors to the positive and negative poles of the switchboard or ESC respectively.

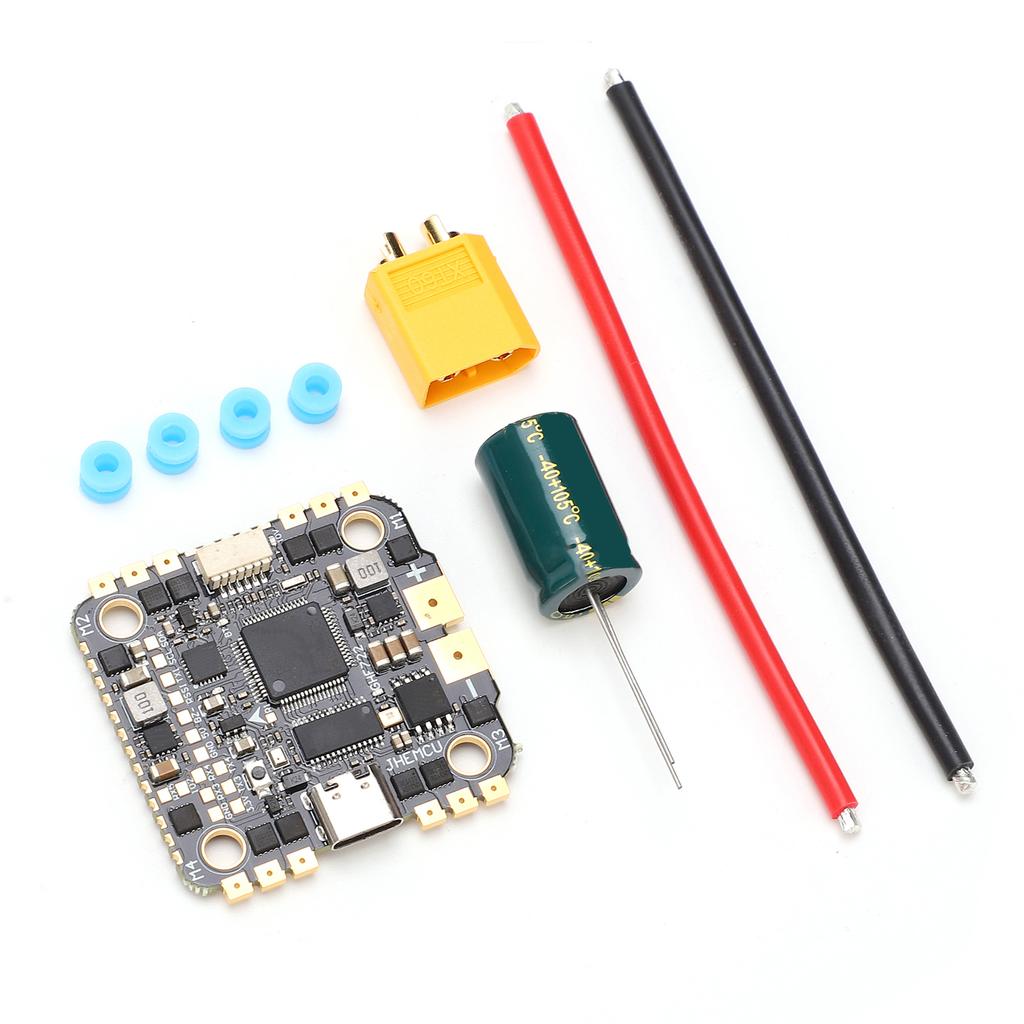

Package List: 1 x RC Flight Controller 1 x XT60 Plug 2 x Connect Cable 1 x Capacitor 4 x Silicone Pad 1 x Manual

Note: Please pay attention to the positive and negative poles of the capacitor, do not connect them in reverse, otherwise the ESC will be burned out.
