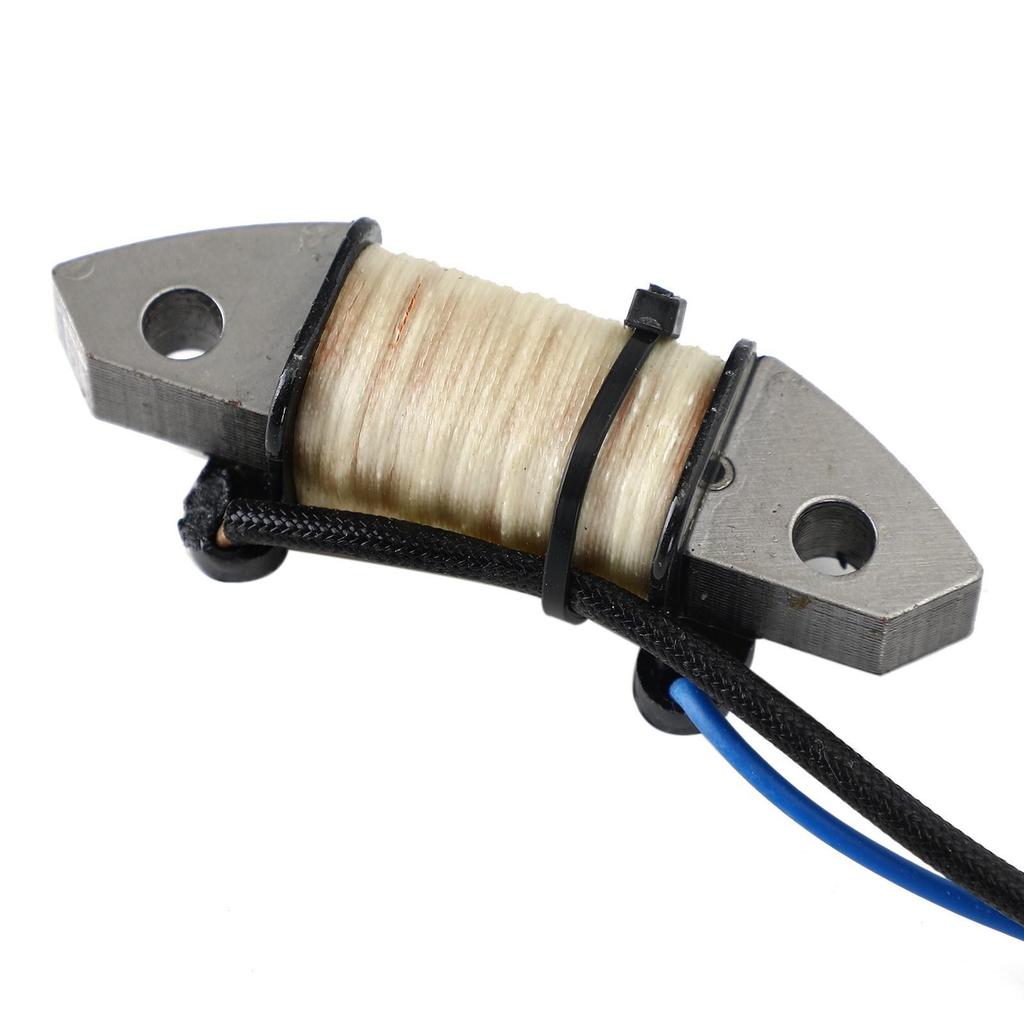

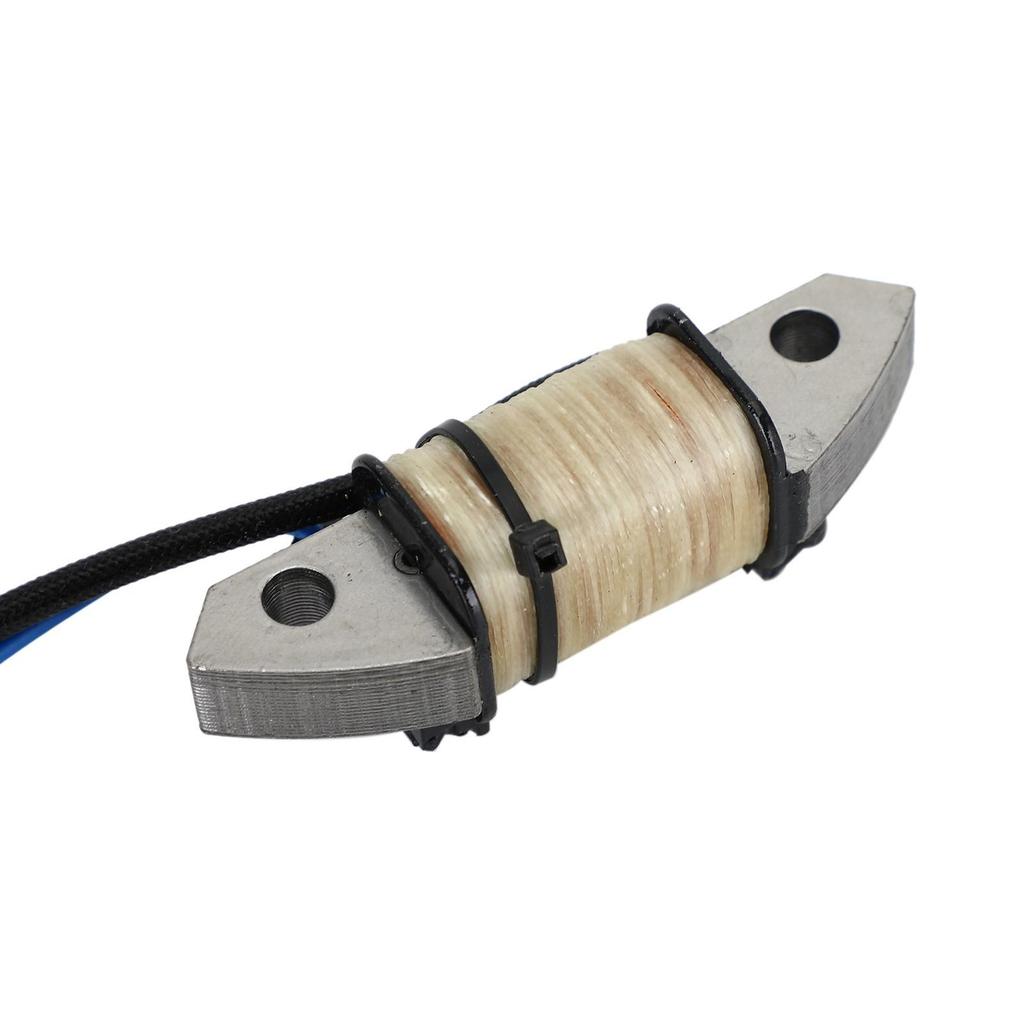

Outboard Charge Coil Assembly Fit for Yamaha 25Hp 30Hp 2001-2012 69P-85541-09 61N-85543-09 61N-85543-19
Features:
Direct replacement to your original unit
Plug-and-play , direct fit , easy installation.
Highest grade lamination materials.
Highest grade copper windings , resistant to 200 degrees Celsius.

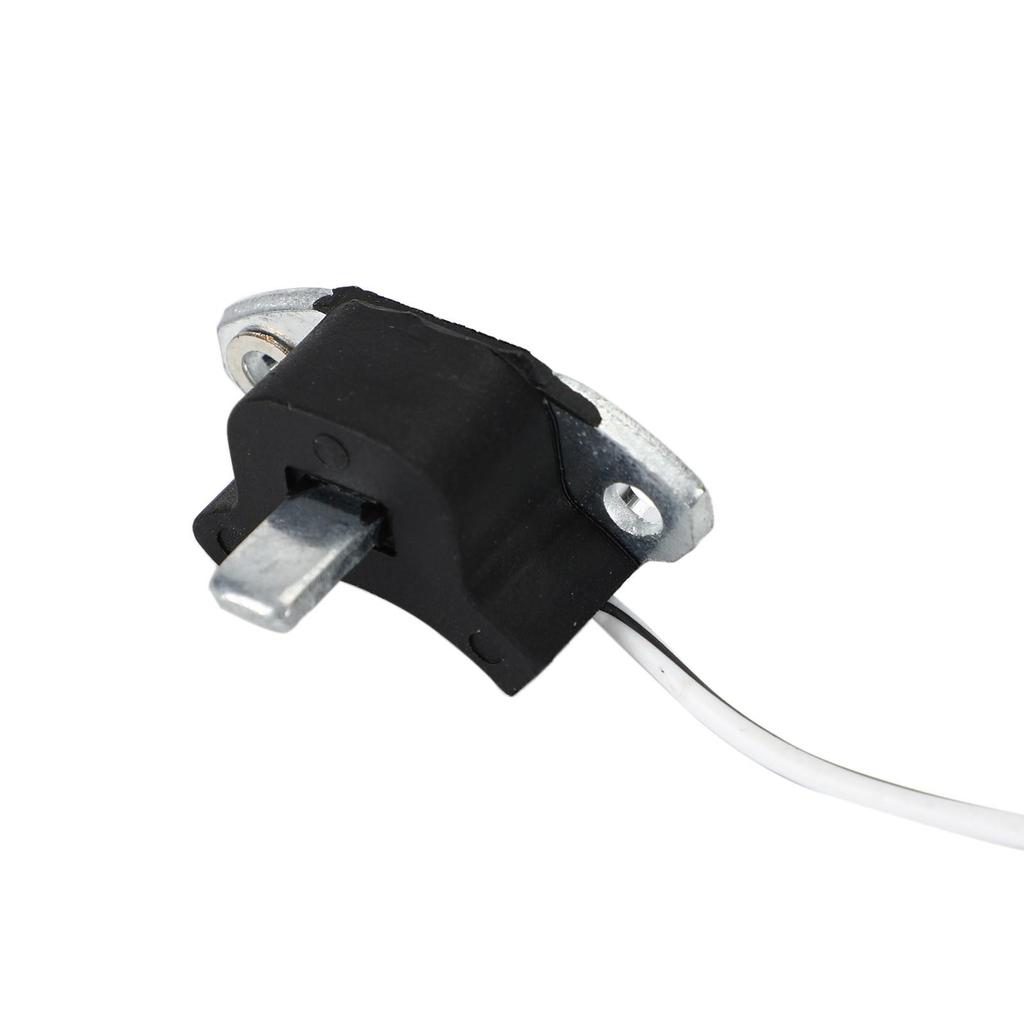

Pick up pulsar coil included.

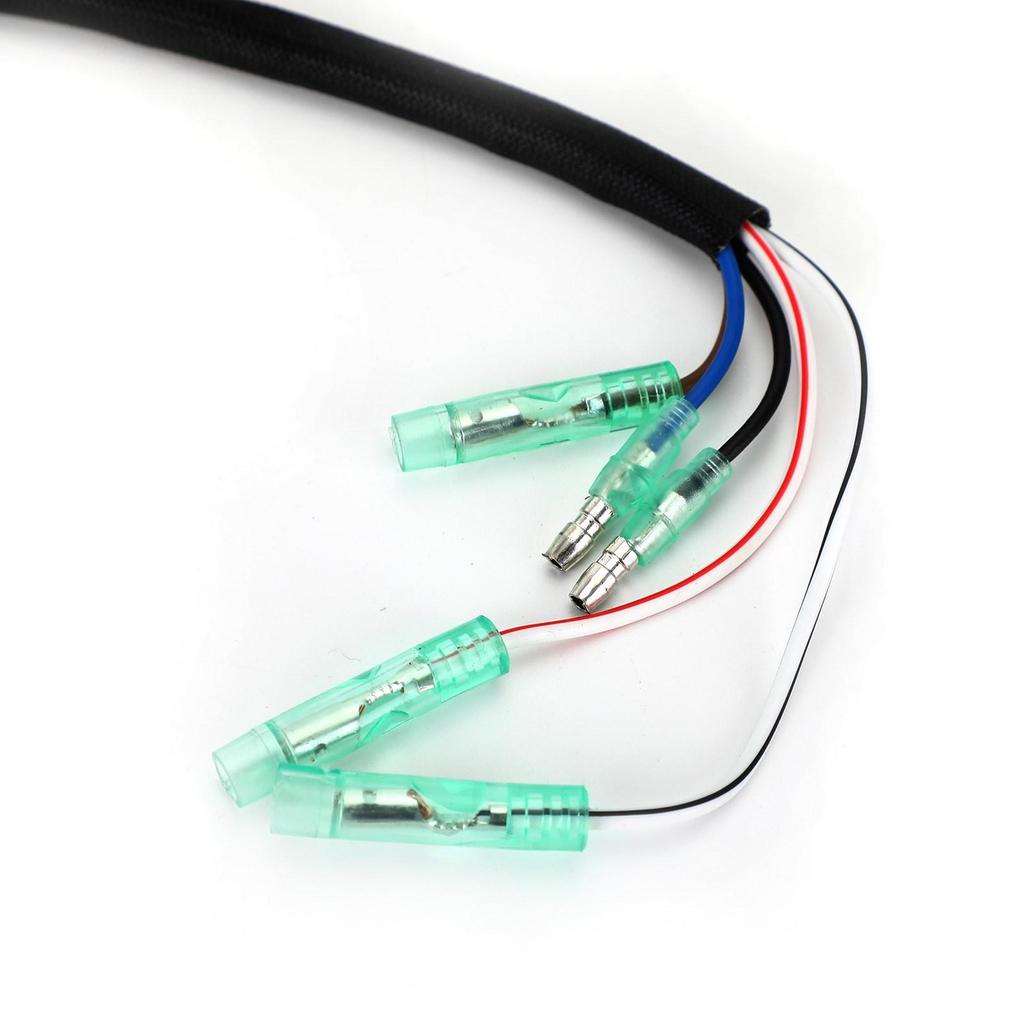

Connector included.
All products shipped are tested.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Charging Coil
Replacement Part Number:
69P-85541-09
61N-85543-09
61N-85543-19
Fitments:
Fit for Yamaha 25HP 25B MHS 2010
Fit for Yamaha 25HP 25B M/W/HCS 2010
Fit for Yamaha 25HP 25B WHS/L 2001-2010
Fit for Yamaha 25HP 25B MHS/L 2001-2010
Fit for Yamaha 30HP 30H MHS/L 2001-2012
Fit for Yamaha 30HP 30H WL 2012
Fit for Yamaha 30HP 30H WCL 2012
Fit for Yamaha 30HP 30H MHS 2010
Fit for Yamaha 30HP 30H MHS/L 2010
Fit for Yamaha 30HP 30H MH/WCS 2010
Fit for Yamaha 30HP 30H W/MHS/L 2010
Fit for Yamaha 30HP 30H WCS 2010/2012
Fit for Yamaha 30HP E30H MHS/L 2003
Fit for Yamaha 30HP 30H WHS/L 2002/2006-2012
Fit for Yamaha 30HP 30H WCS/L 2001/2010/2012
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package Included:

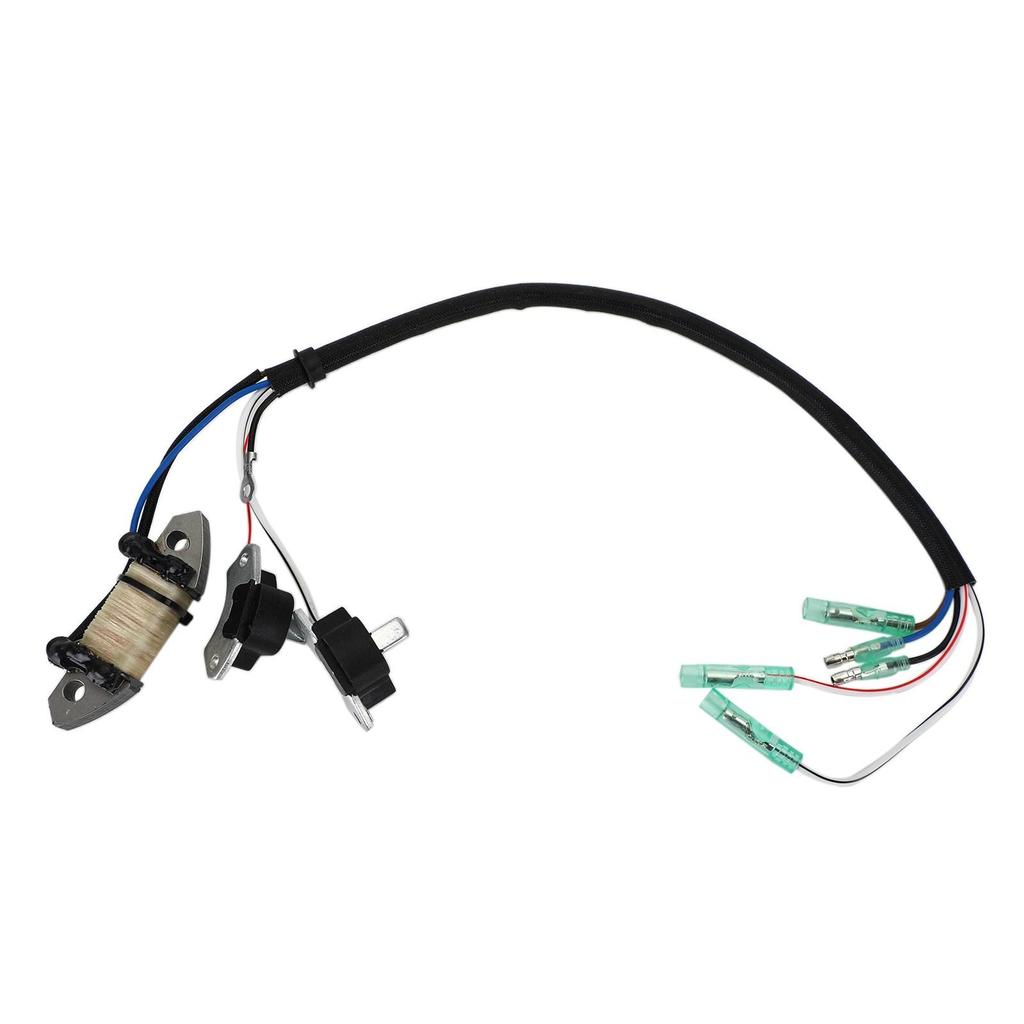

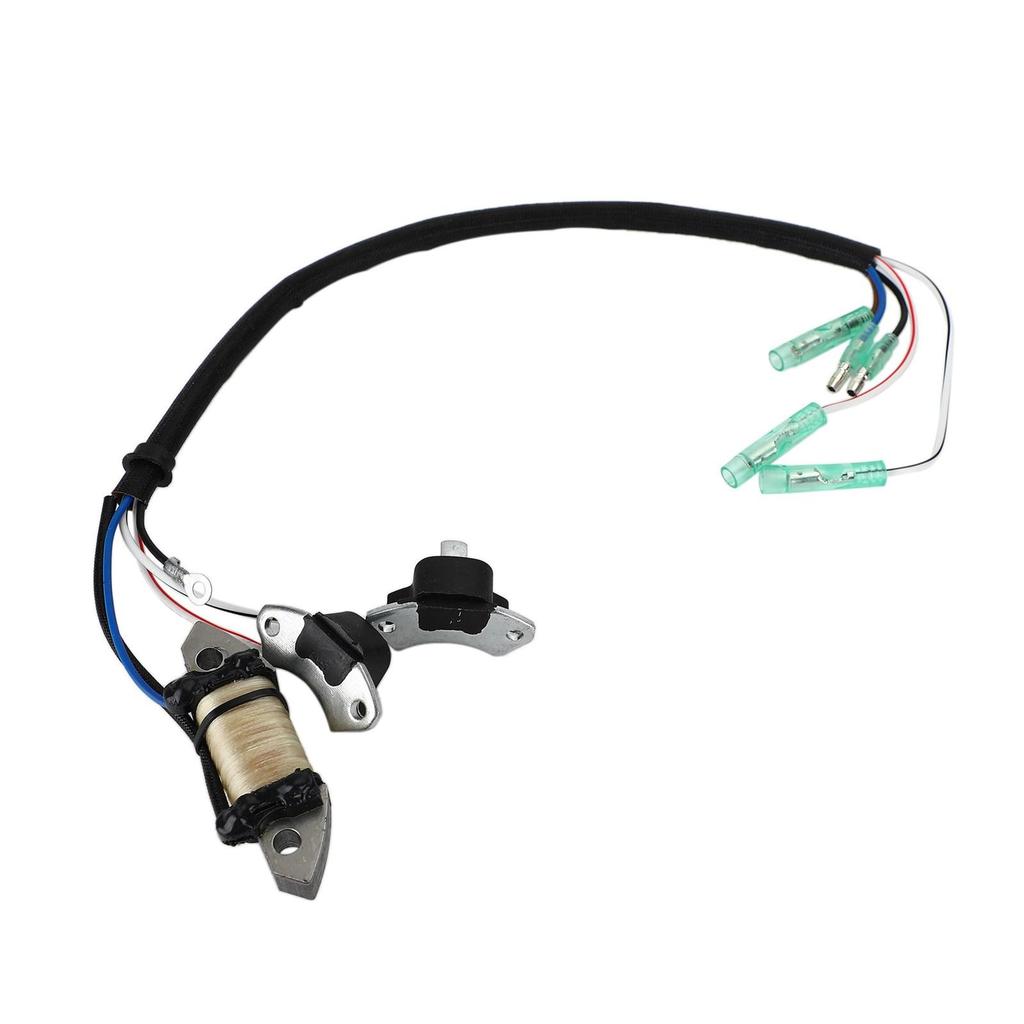

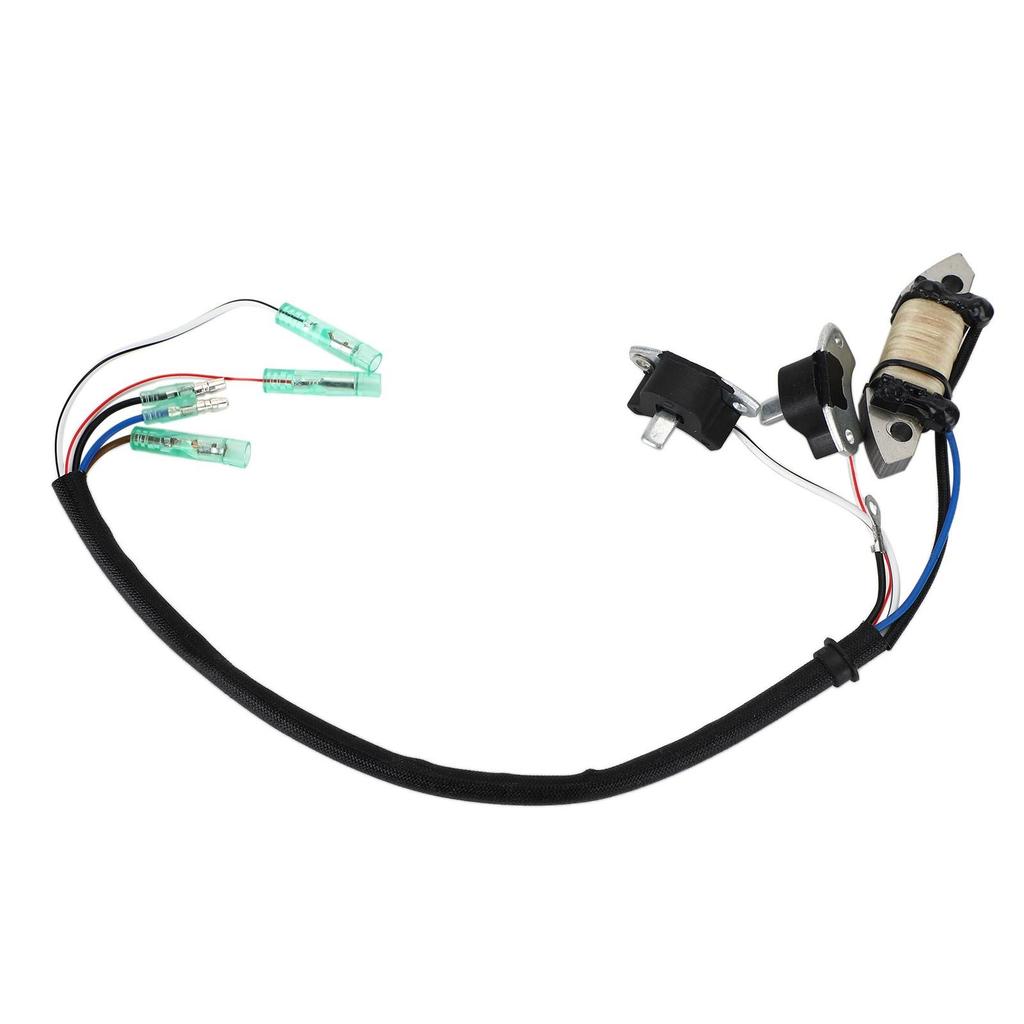

1x Charging Coil with Pulsers
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in , always use locking compound.
If our stator includes a pickup coil , always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
