CCMCP Driver Module 15A Adjustable Speed Board DC Motors Speed Regulator DC Motor Control

Label:Yes Suitable for motors of which voltage is 12V with power less than 120W and that is 24V with power less than 200W Rotate the knob to change output so to change the revolving speed of motor The positive and negative pole of motor can be connected one way or another. Exchange the pole when the rotation direction is not as expected, exchange the pole The current of this motor speed controller can be adjusted from 1A to 10A, and it is simple to set. Please make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged;This controller can not be connected to alternating current, or it will be burnt.

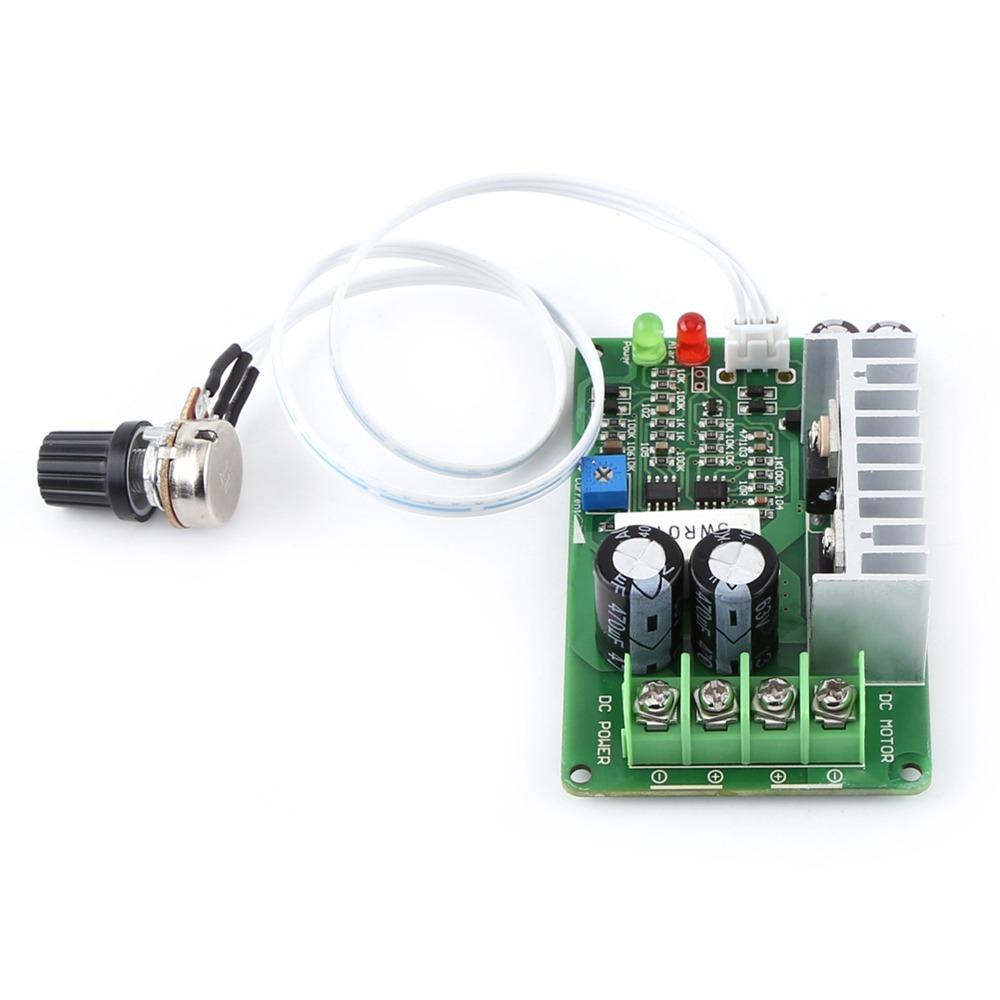

Description: This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with premium circuit board which ensures a longer service life. The currentcan be adjusted from 1A to 10Awhich is quite convenient to set.

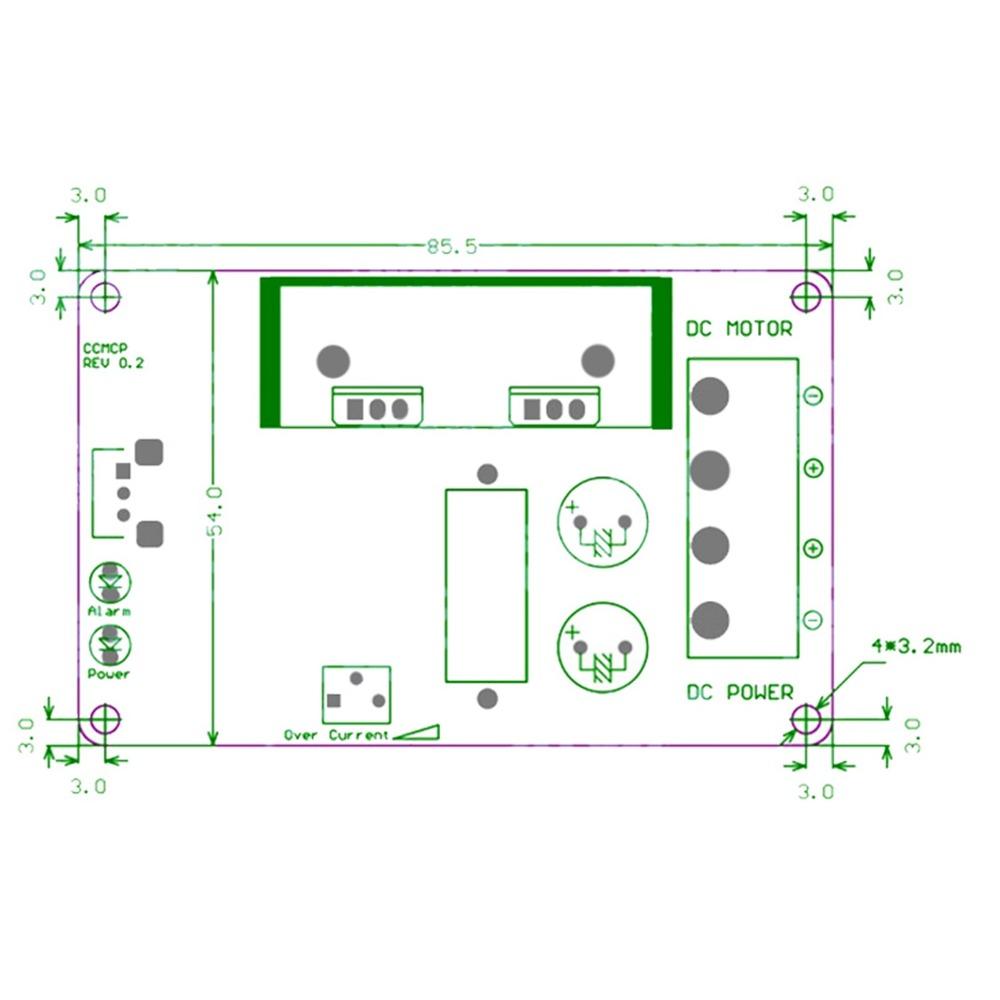

Specifications: Resistance: 100K Wire Length: 40cm Voltage Range: DC10V~40V(DC12~36V suggested) Power: 12V*10A=120W;24V*10A=200W,.....36V*10A=360W Current: 10A(rated), 15A(Maximum), adjustable from 1A to 10A Speed Adjustable Range: 0-100% PWM Frequency: 21kHz Size: 85.5 x 54 x 27mm / 3.36 x 2.12 x 1.06"

Package Includes: 1 x Motor Speed Controller

Note: Adapt to motors with 12V less than 120W and 24V less than 200W.
