Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.
1. KEY FEATURES:
- 3ch digital monaural amplifier (low impedance/high impedance)
- The volume can be adjusted individually for each of the three zones, allowing you to separate them for each purpose.
- The volume is displayed digitally, making it easy to adjust the volume.
- *For installation work, please contact the installation company yourself.
- Optimal installation position: medium/large-scale stores, facilities, etc.
2. PRODUCT DESCRIPTION:

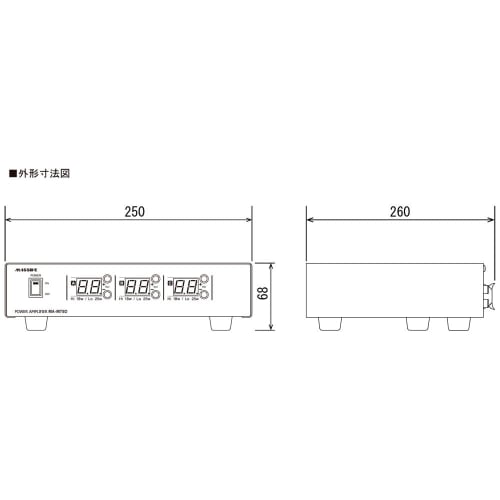

3ch digital monaural amplifier The volume can be adjusted individually for each of the 3 zones, allowing you to separate them for each purpose.The volume is displayed digitally, making it easy to adjust the volume.Low impedance/high impedance dual use *For installation work, please contact your own installation company.[Major standards] ●Power supply voltage: AC100V 50/60Hz ●Maximum output: Low impedance 25W x 3 High impedance 18W x 3 ●Input sensitivity impedance: 400mV 10kΩ unbalanced ●Frequency characteristics: 30Hz to 20kHz -3dB (Lo) 200Hz to 16kHz -3dB (Hi) ●Output load impedanceHigh impedance: 550Ω (100V) balanced Low impedance: 3 to 16Ω BTL ●Power consumption: 28W (displayed according to the Electrical Appliance and Material Safety Law) ●S/N ratio: 80dB ●Operation display: Power ON LED orange ●Operating temperature range: -10℃ to 50℃ <Casing> ●Exterior material: Front display panel Polycarbonate Cover, chassis Bonded steel plate●External dimensions (W x H x D): 250 x 68 x 260 mm ●Mass: 3Kg ●Accessories: AC cord (1.8m), instruction manual <Notes> Optimal installation position: Medium and large stores, facilities, etc. *The specifications and appearance of this product are subject to change without notice.
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 5.2 kg
- Dimensions: 34.0 x 32.0 x 12.0 cm
4. SPECIFICATIONS:
