Feature:

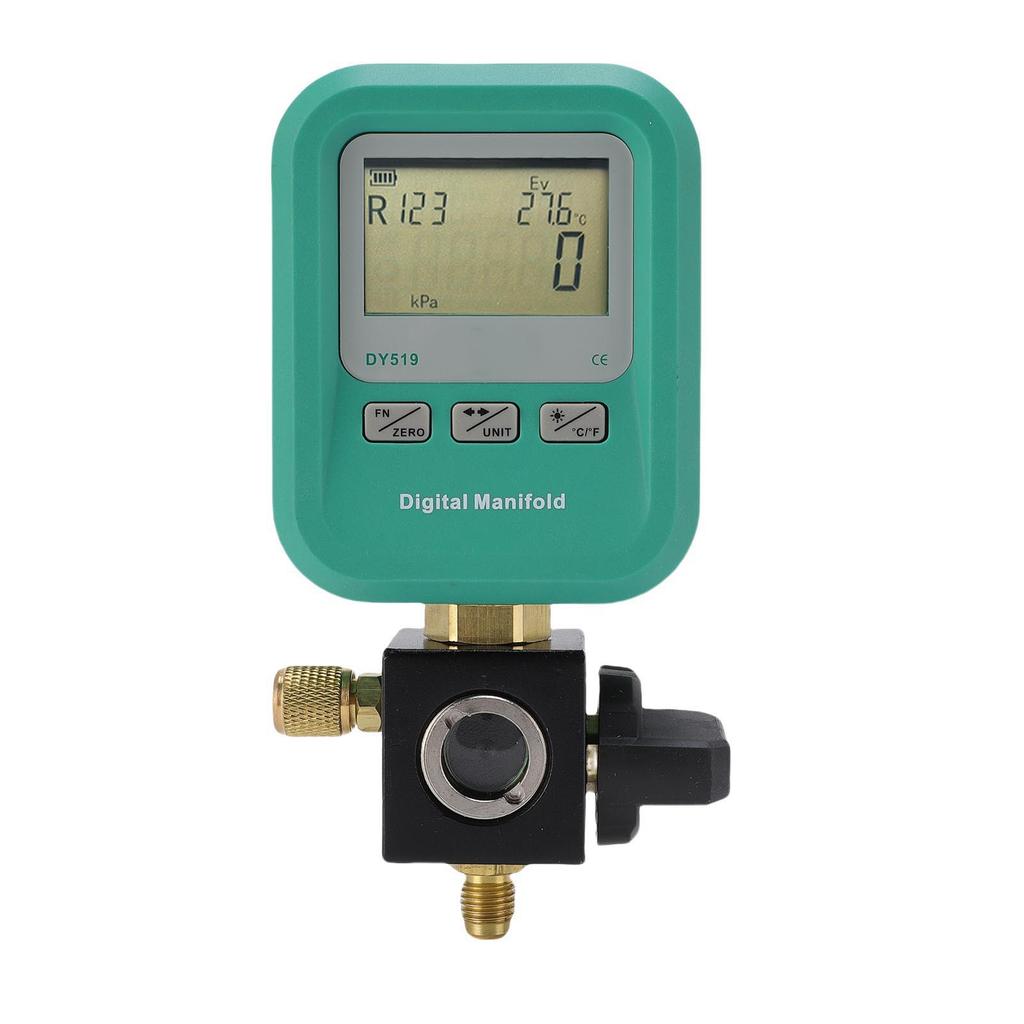

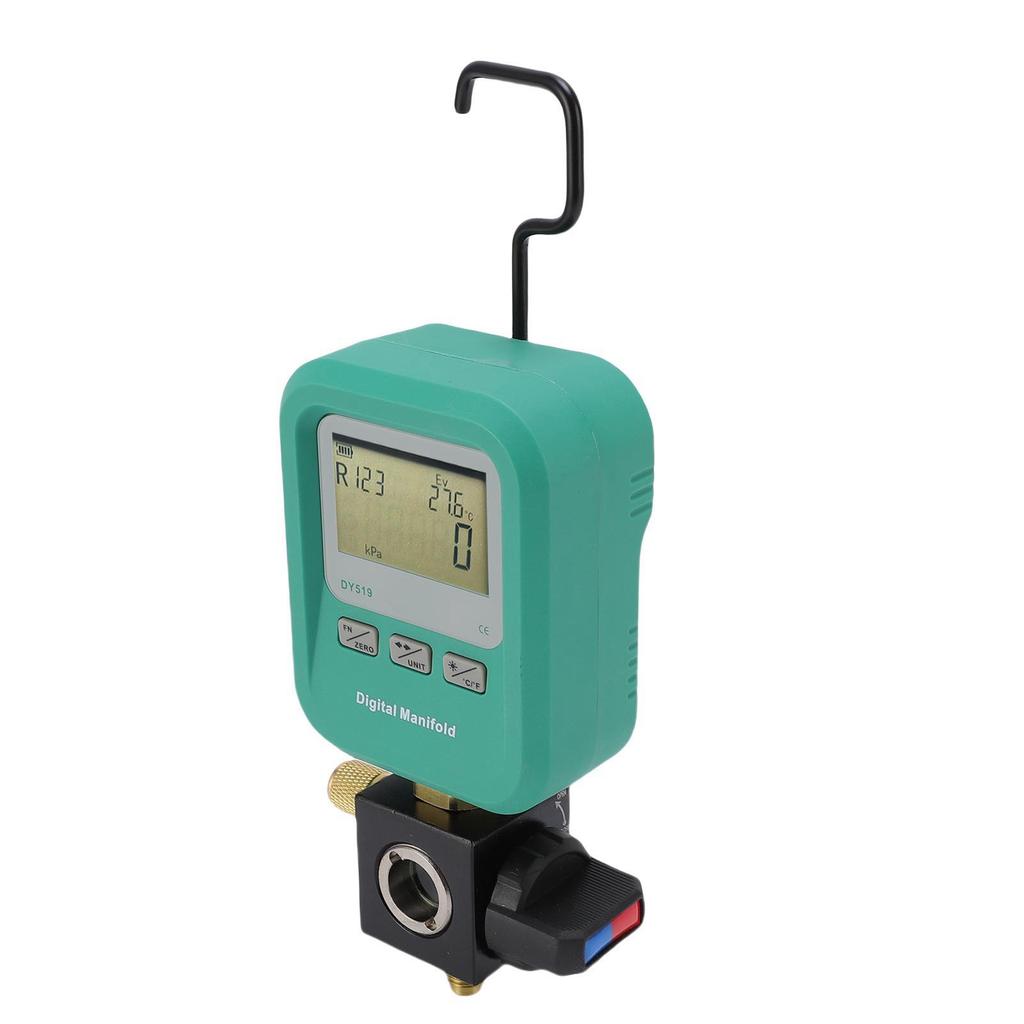

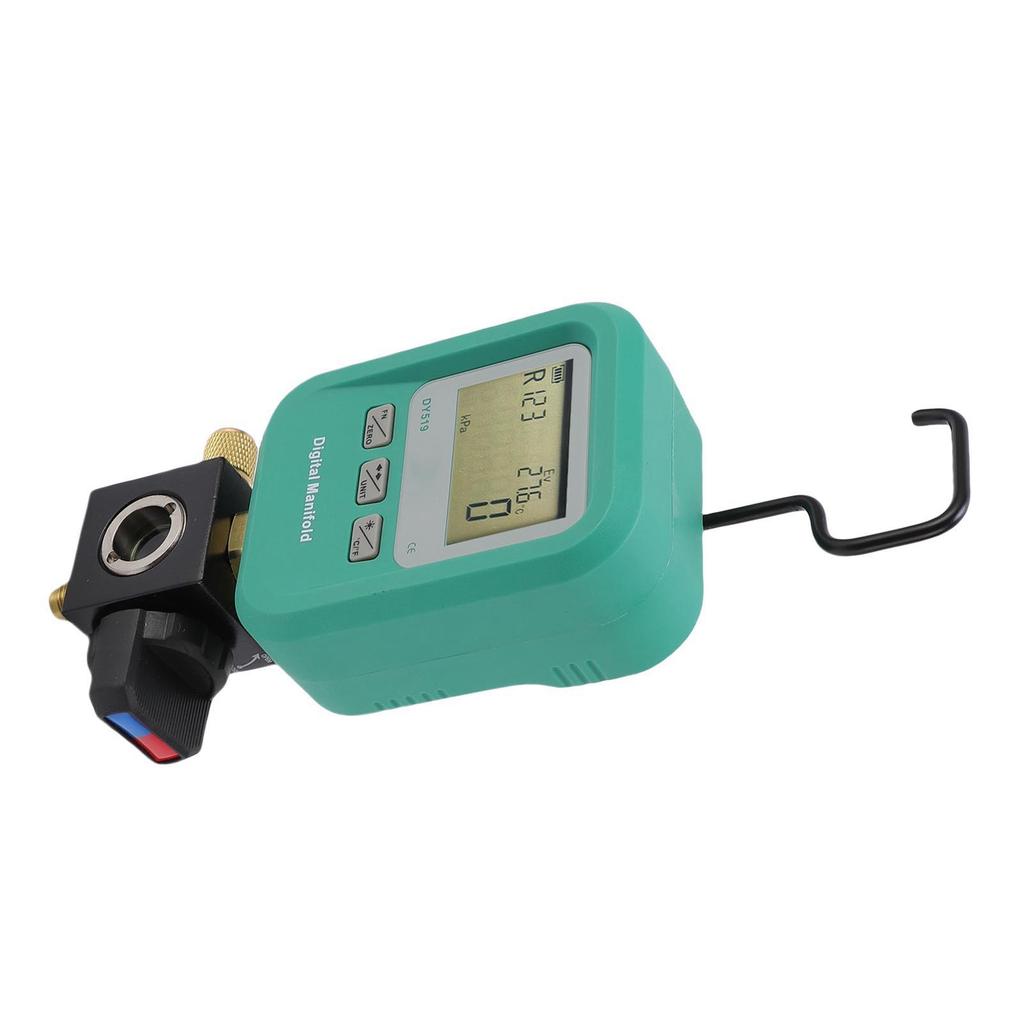

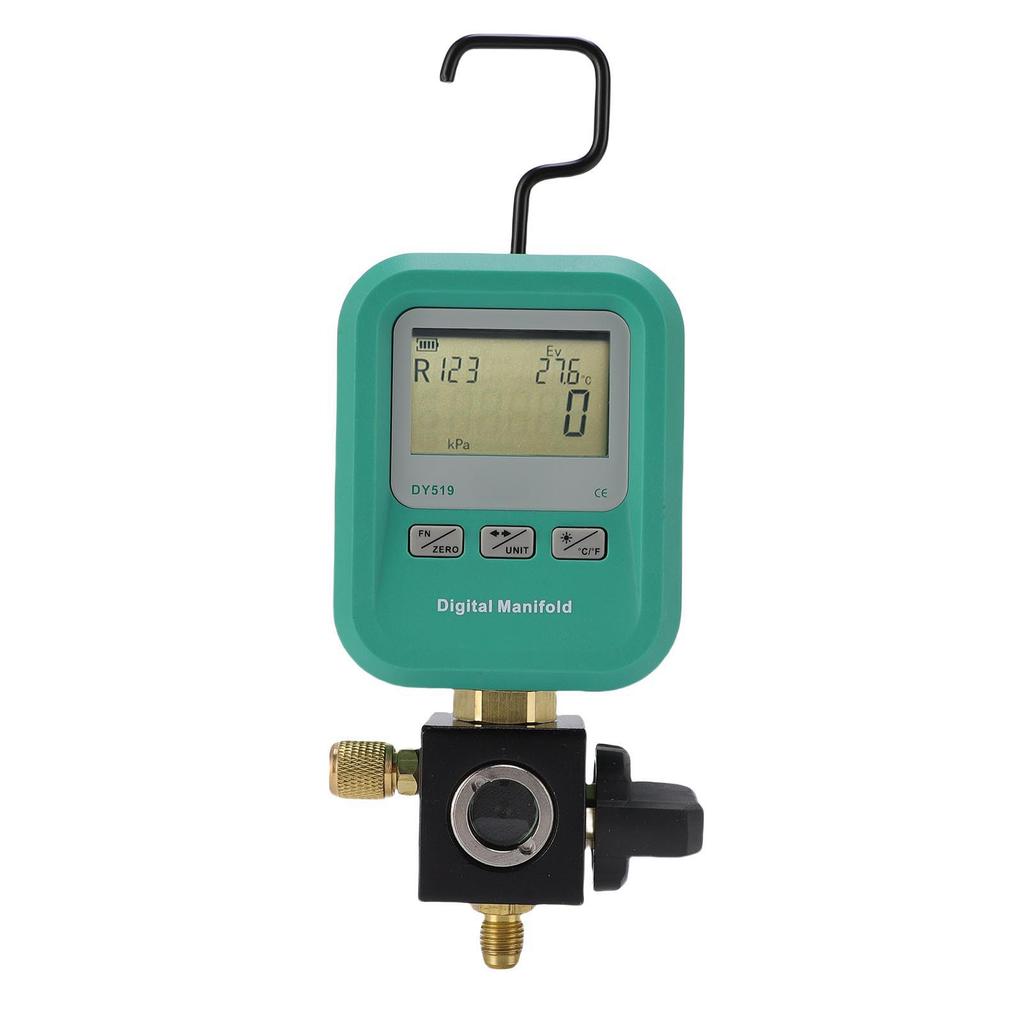

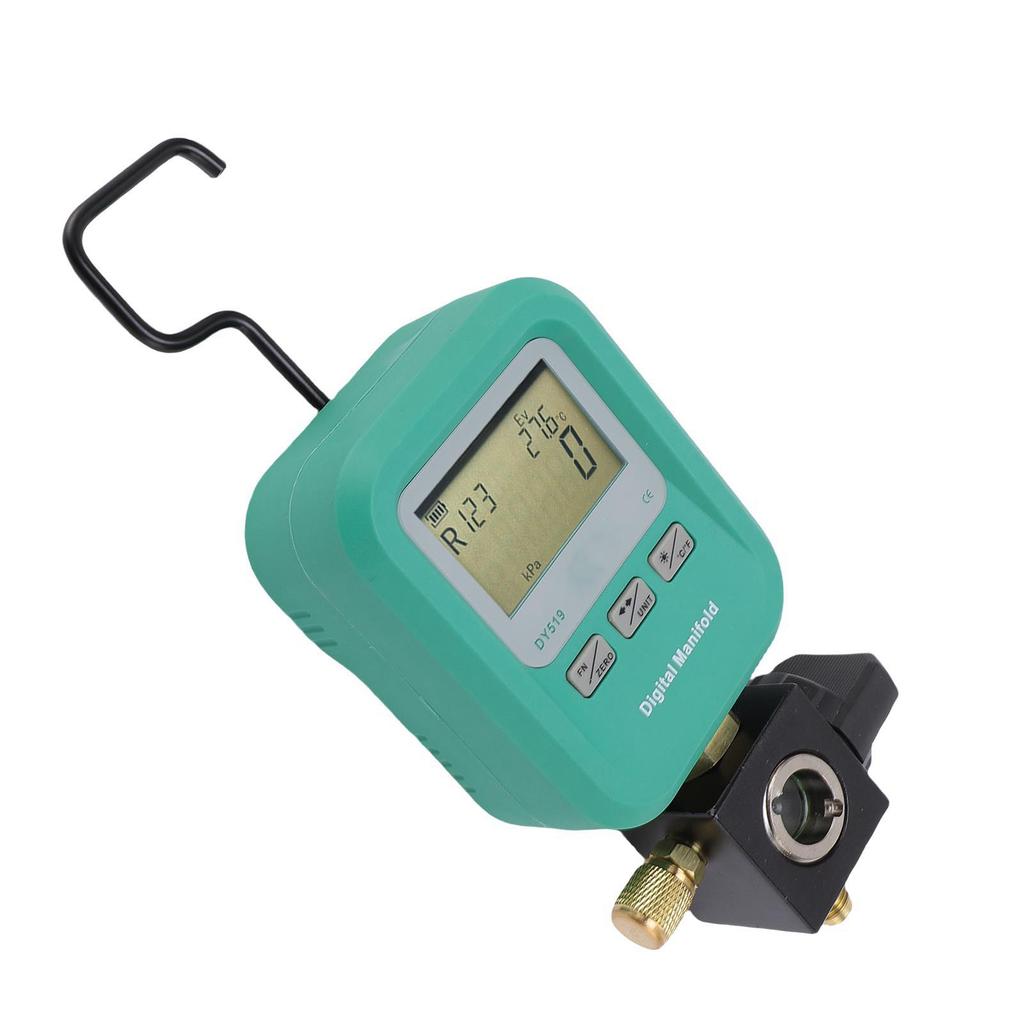

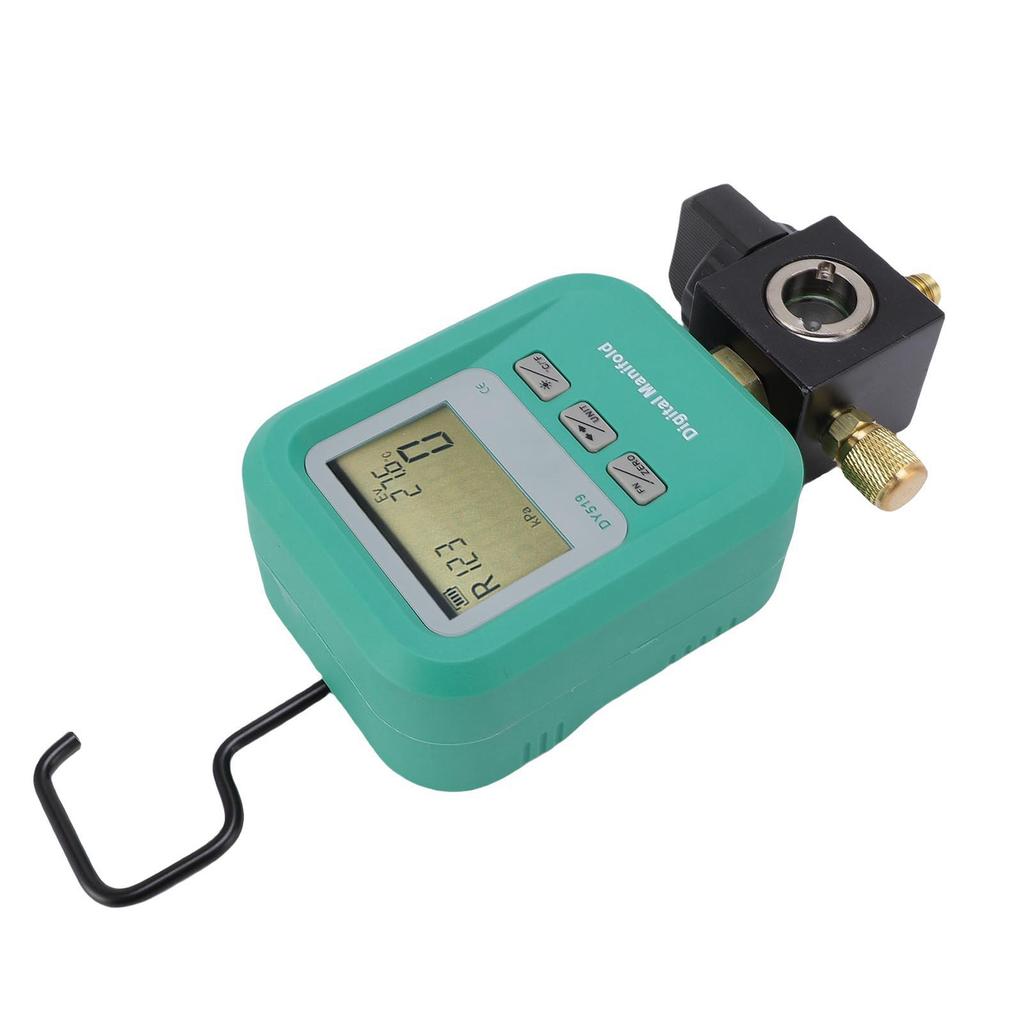

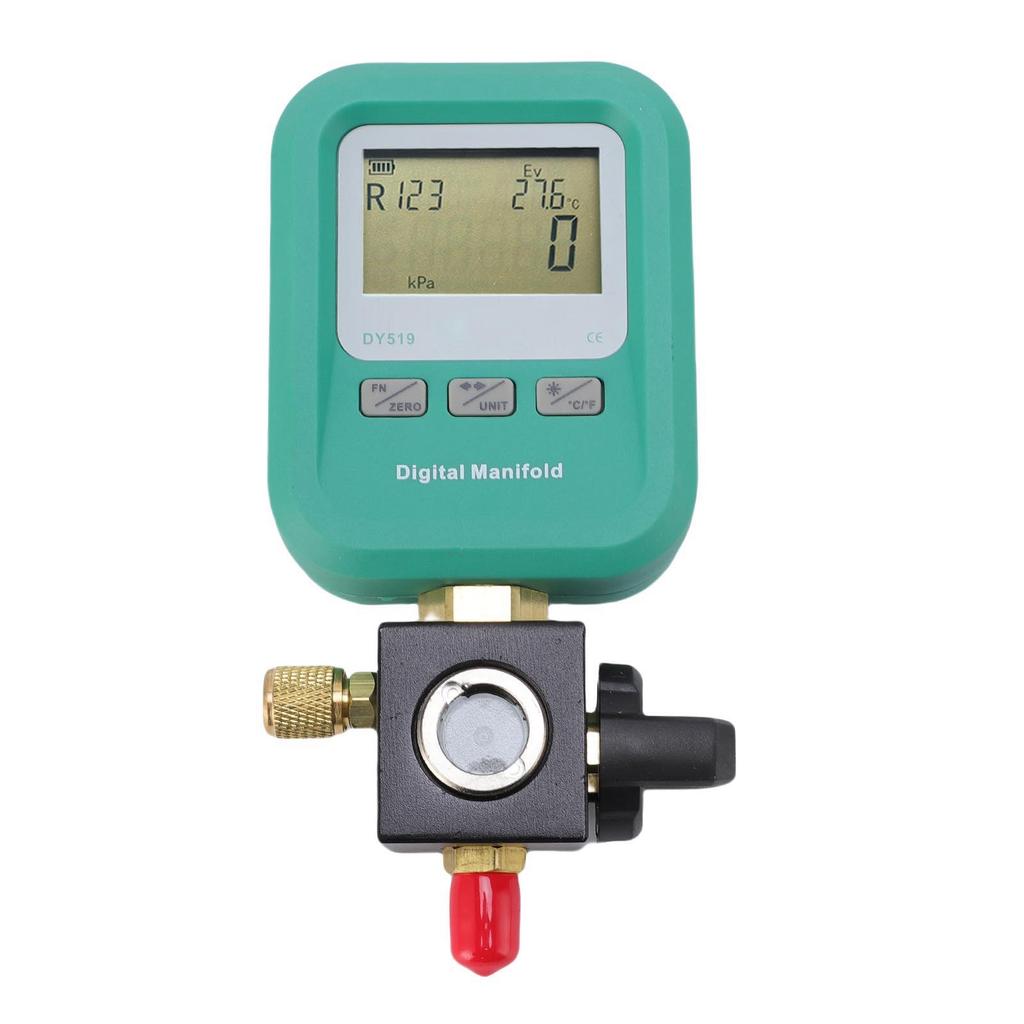

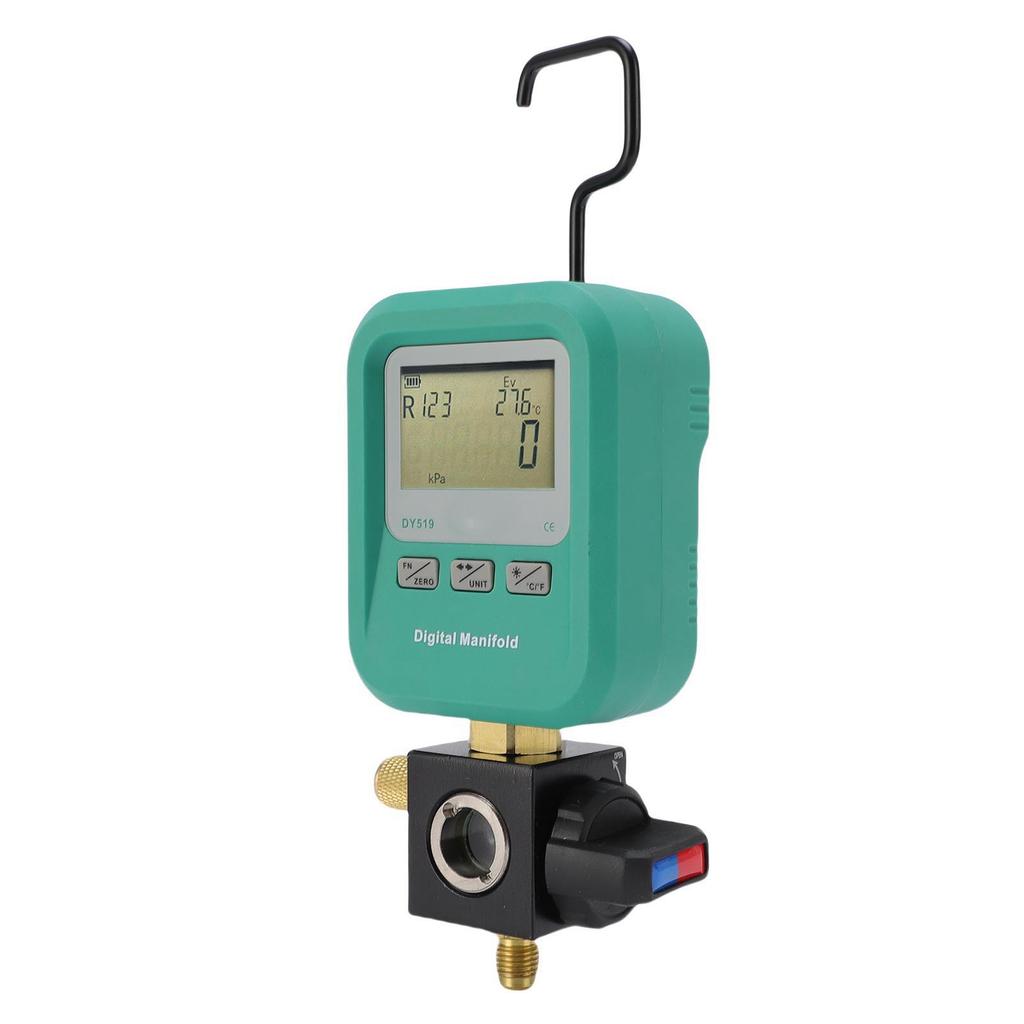

1. Digital Reading: The air conditioning manifold meter offers accurate digital readings, designed for convenient refrigeration charging and maintenance, serving as an auxiliary tool for installing, testing, and repairing refrigeration equipment
2. Efficient and Accurate: Equipped with a digital reading and multi unit switching functionality, the manifold pressure meter features a built in 32 bit digital processing unit and accurate data acquisition unit, ensuring stable and efficient performance
3. Product Structure: The digital manifold pressure meter is equipped with heavy duty valve switch and 1 4 inch inlet, providing multiple pressure measurement units, which ensures the durability and versatility of the instrument
4. Multiple Testing: The manifold meter offers simultaneous high and low pressure readings, built in temperature compensation for improved measurement accuracy. It supports vacuum testing and pressure leakage testing, including leakage time recording
5. Robust Construction: Made of metal and engineering plastic, this AC manifold pressure meter is robust and long lasting. Equipped with a convenient hook, it is easy to transport and store, providing an efficient solution for air conditioning maintenance
6. Testing Range: The test pressure range is from 101Kpa to 6000kpa ( 1.01bar to 60bar). The standard instrument connection tube has a working pressure below 600PSI (about 4.13Mpa, 41.3bar) and a pressure limit of 3000PSI (about 20.68Mpa, 206.8bar)
Specification:
Item Type: Digital Manifold Meter
Battery: 2 x 1.5V AA Battery (not included)
Product Material: Metal, Plastic
Product Size: Approx. 87 x 170 x 50mm 3.4 x 6.7 x 2in
Pressure Measurement Units: Kpa, Mpa, bar, inHg, PSI, Kgf cm2
Pressure Test Range: 0Kpa 6000Kpa
Pressure Test Resolution: 1 Kpa
Pressure Test Accuracy: + 0.5percent (FS) + 5percent dgt
Pressure Overload Limit: 10000Kpa
Vacuum Test: Relative Vacuum
Vacuum Negative Pressure Range: 101Kpa 0Kpa
Minimum Resolution: 1kpa
Built in Refrigerants: R22, R32, R410A, R404A, R407C, R410A, R1234YF (R922B), R290, R600, R123, R134A
Product Functions: Vacuum Pumping, Refrigeration Charging, Pressure Testing.
Package List:
1 x Pressure Meter
1 x User Manual
