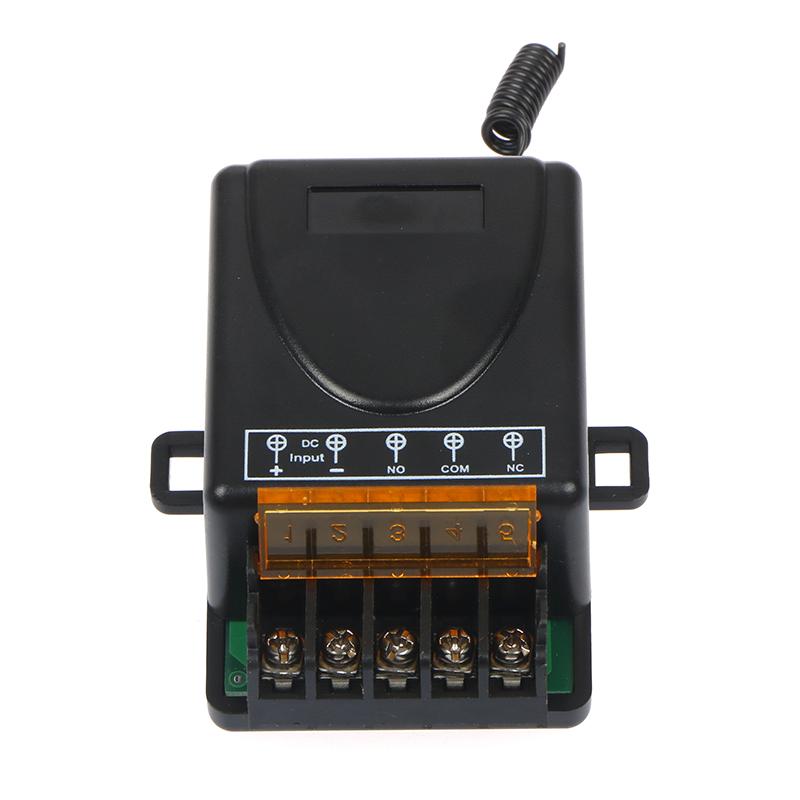

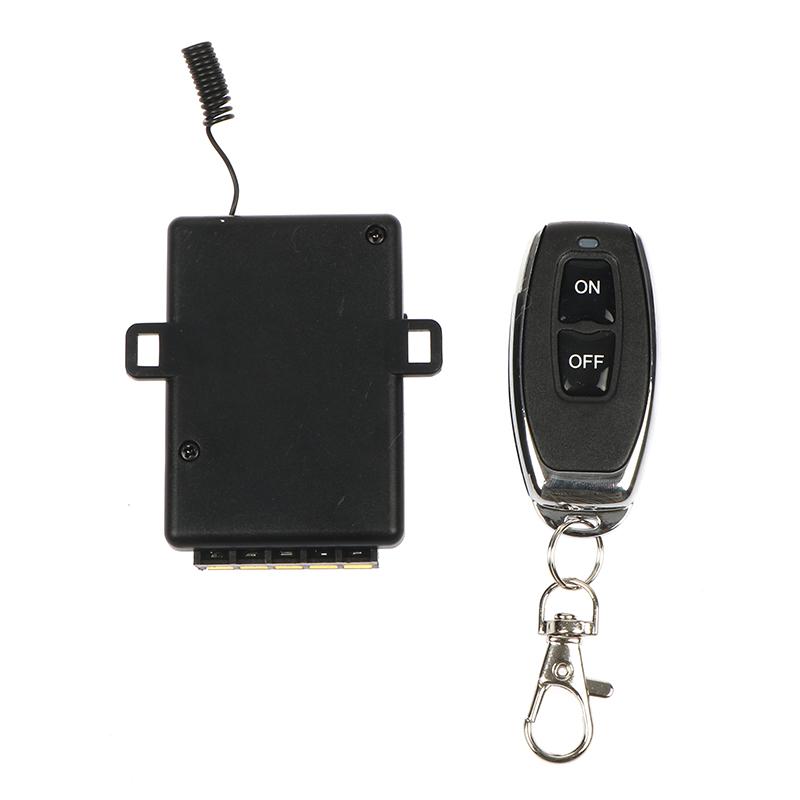

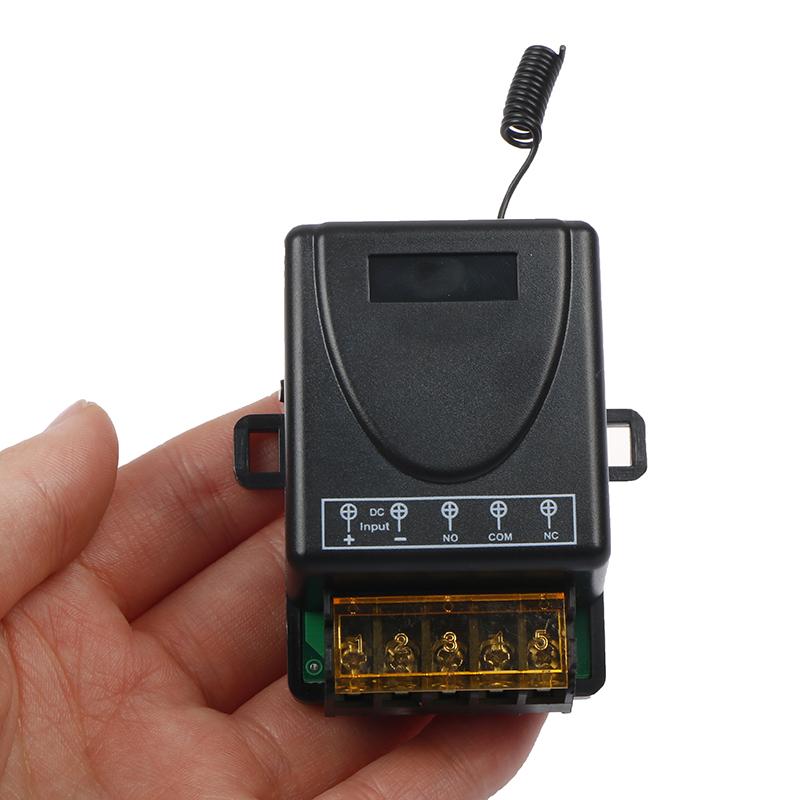

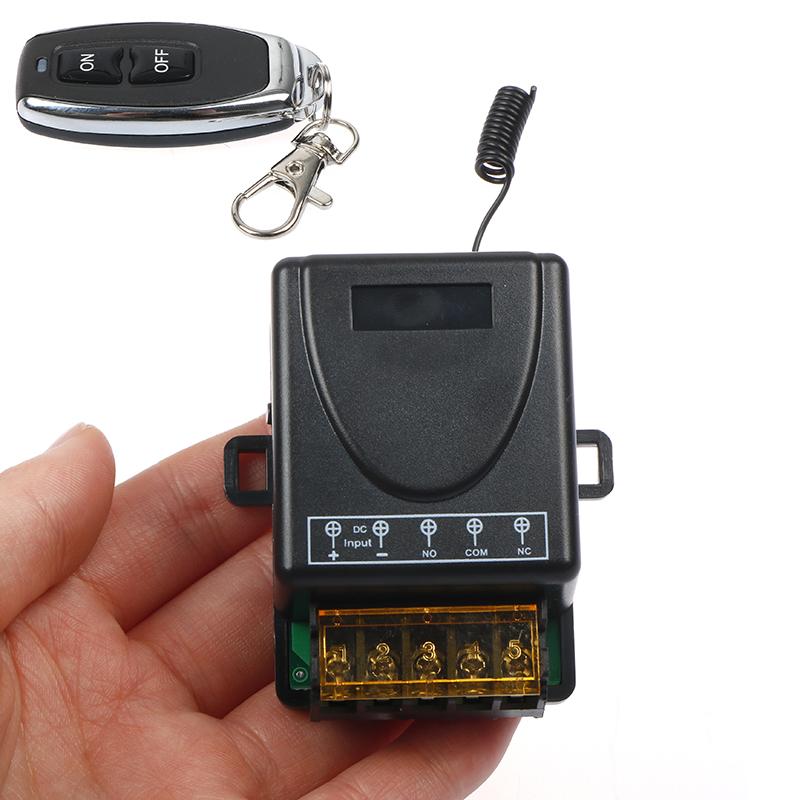

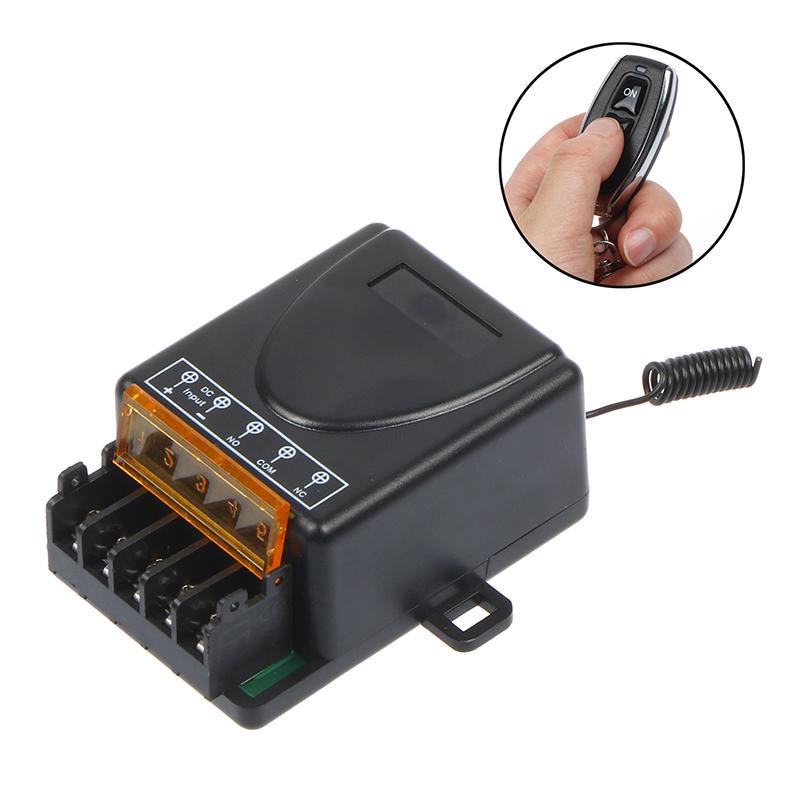

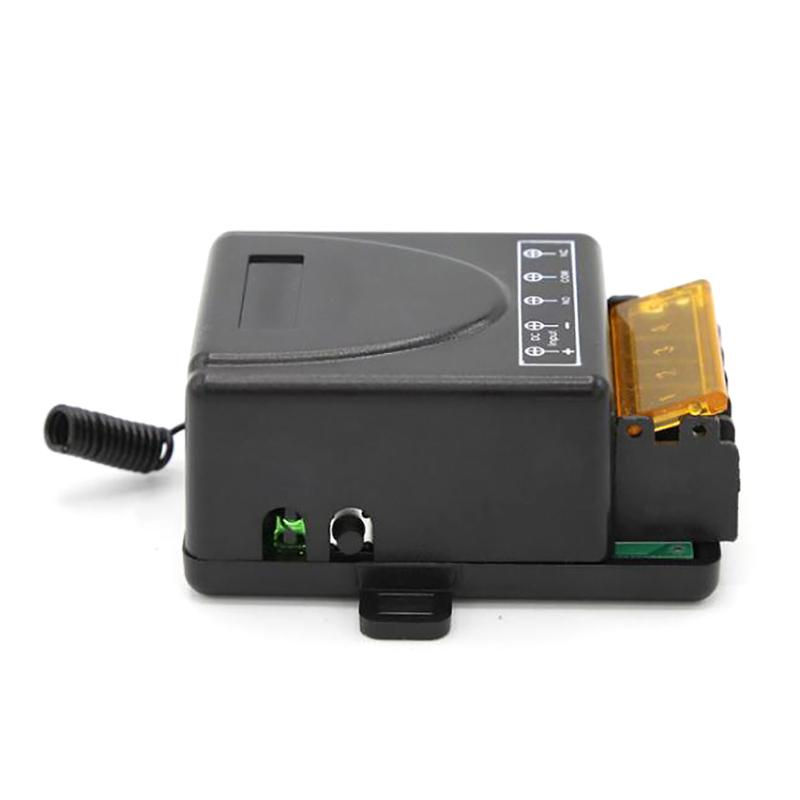

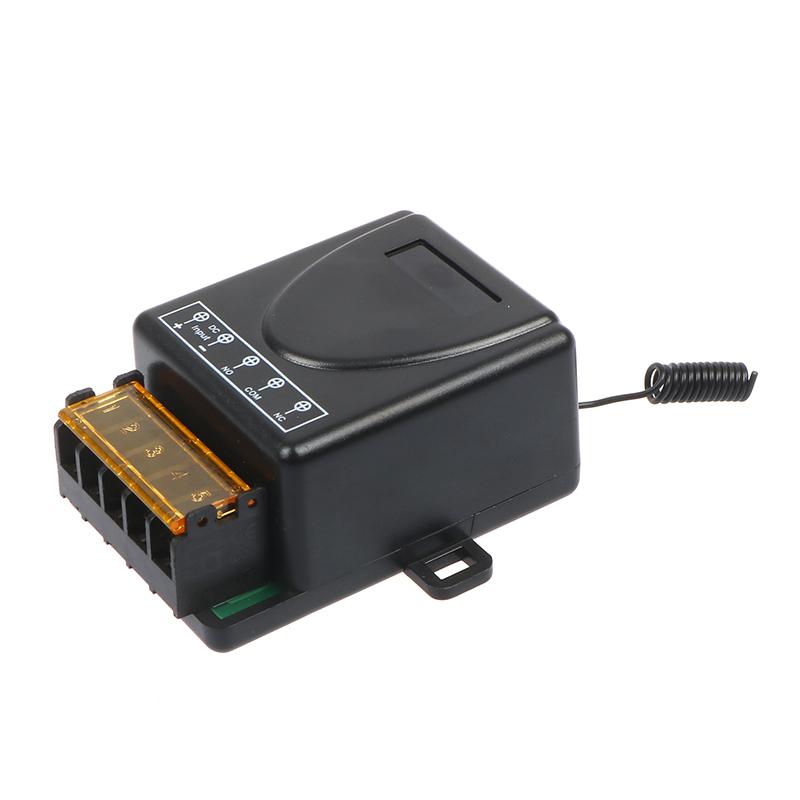

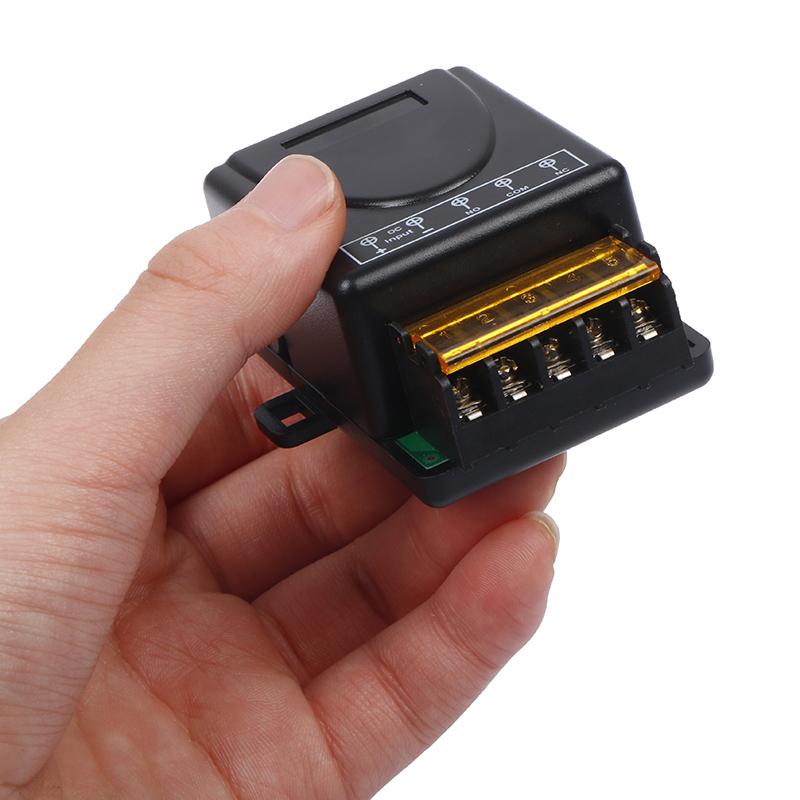

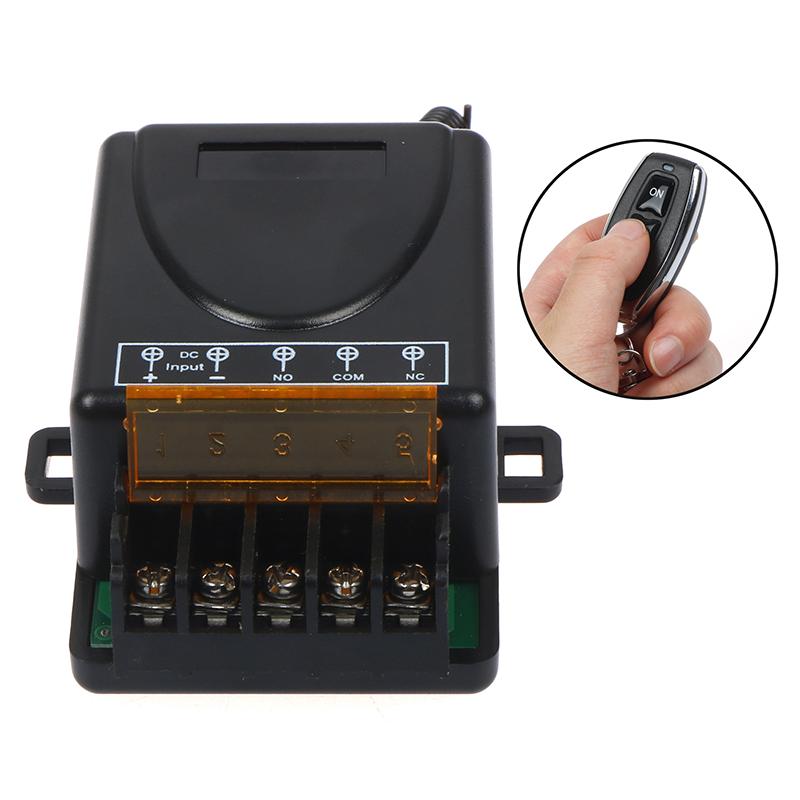

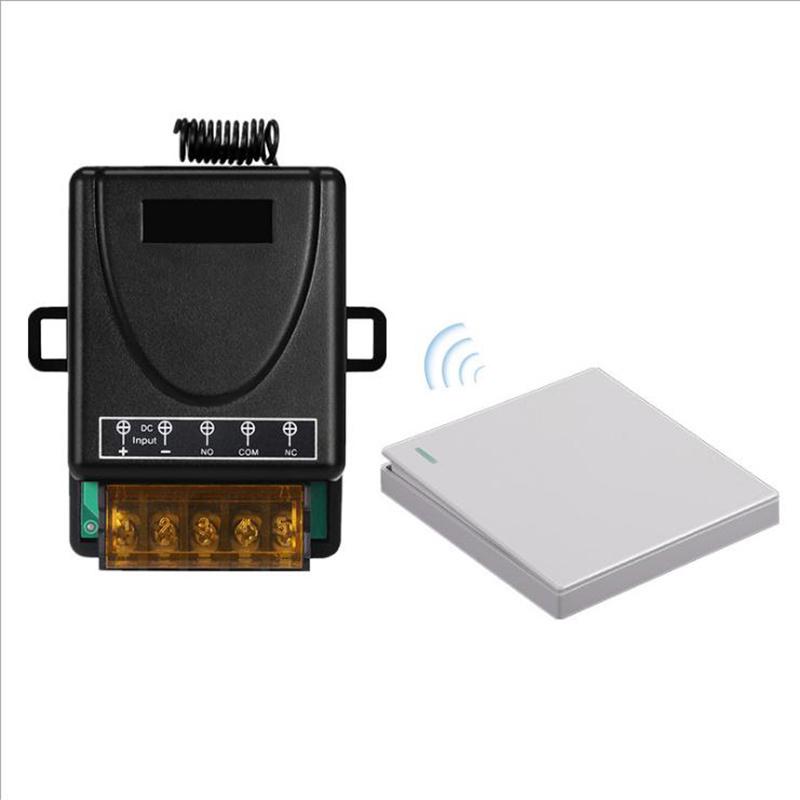

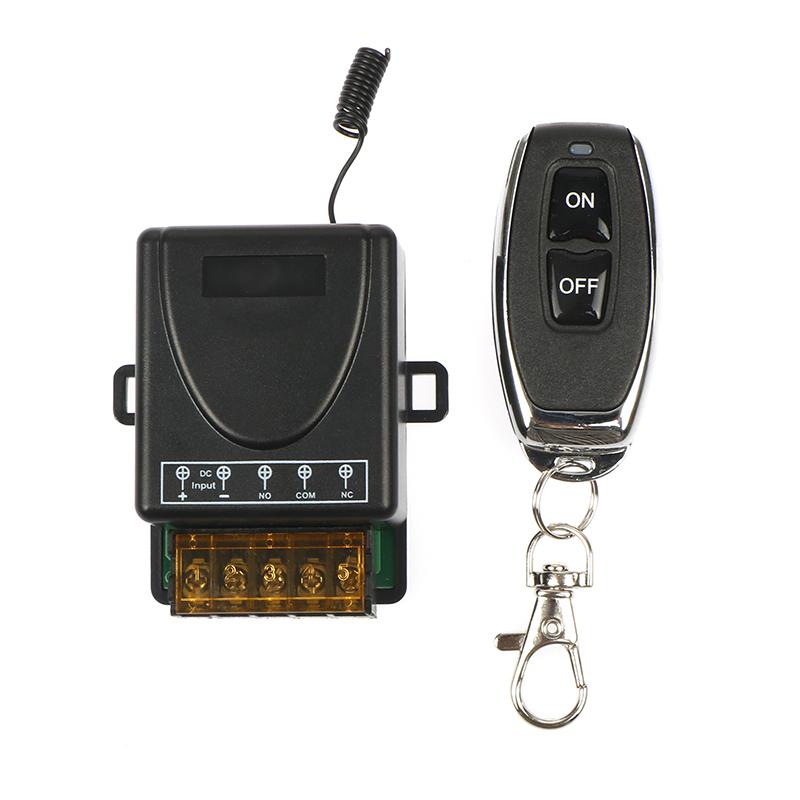

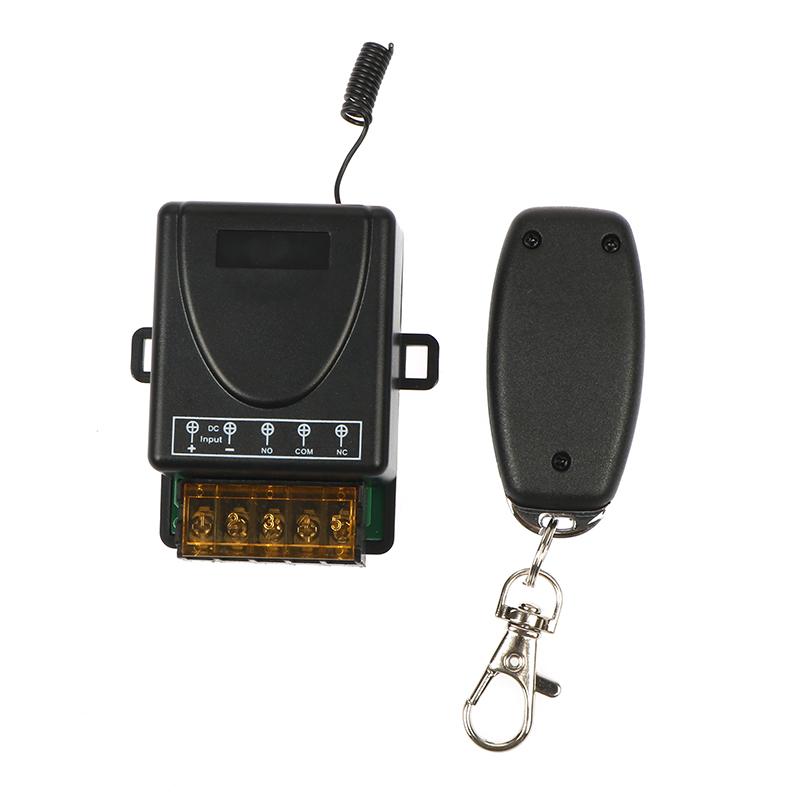

433Mhz 220V Relay Wireless Rf Remote Control Switch 1Ch Remote Transmitter

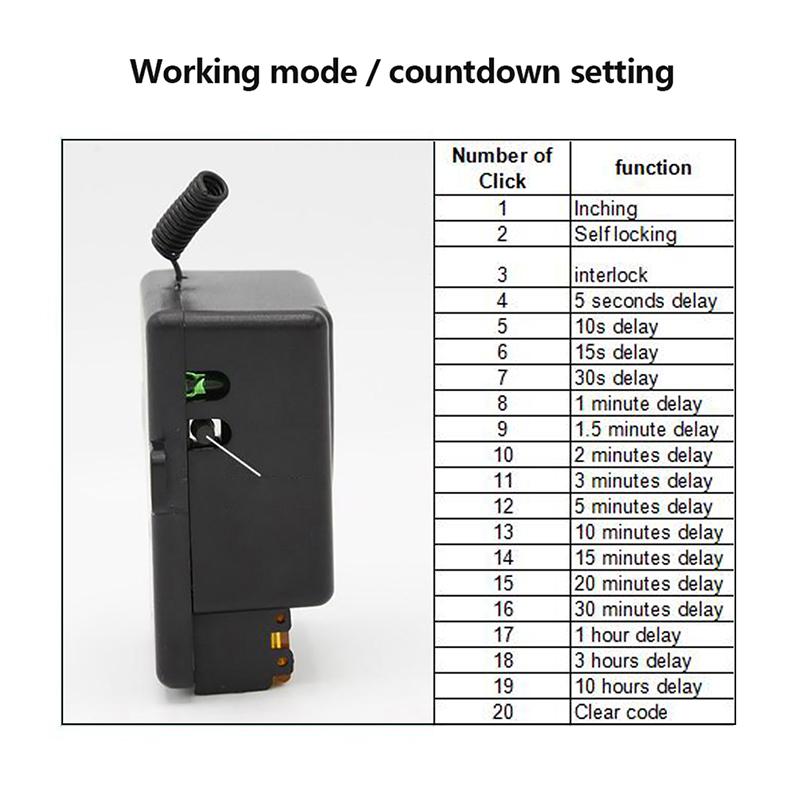

Technical Data: Click 1:Inching; Click 2:Self locking; Click 3:interlock; Click 4:5 seconds delay; Click 5:10s delay; Click 6:15s delay; Click 7:30s delay; Click 8:1 minute delay; Click 9:1.5 minute delay; Click 10:2 minutes delay; Click 11:3 minutes delay; Click 12:5 minutes delay; Click 13:10 minutes delay; Click 14:15 minutes delay; Click 15:20 minutes delay; Click 16:30 minutes delay; Click 17:1 hour delay; Click 18:3 hours delay; Click 19:10 hours delay; Click 20:Clear code Model Number: KR2201B. Working Voltage: 220V Working Frequency: 433Mhz. Modulation Mode: ASK. Receiving Sensitivity: -104dBm. Working Temperature: -30~+70. Max Load: 30A Relay, Resistive load≤25A, Inductive load≤20A. Transmitting Distance: 20 -50 Meters Indoor, 50-100 Meters In Open Space. Function Option: Momentary / Toggle / Latched. Matching Mode: Intelligent Learning Code. Output Mode: Dry Contact /Voltage Output. Learnable Transmitters: 1-25 transmitters . Dimension: 60x40x30 (mm).

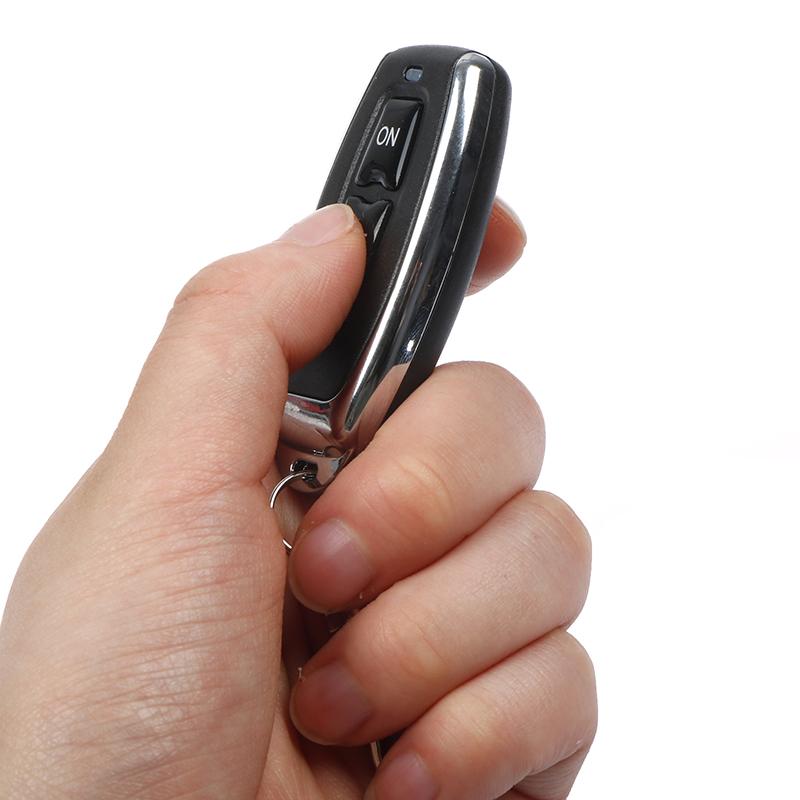

Specifications Of The Remote Control: Operating frequency: 433.92MHz Power by 6V Coin Cell Button Battery (Battery included ), Material: PVC. Button: AB button Size: 55mm x 30mm Operating voltage: 220 V Transmitting power: 10mw Modulation mode: ASK (AM). Encoding type: Learning. Transfers distance: 80m Notice: Different options include different packages: The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
