Ayzeze: Safely charging your e-bike or e-scooter
• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----

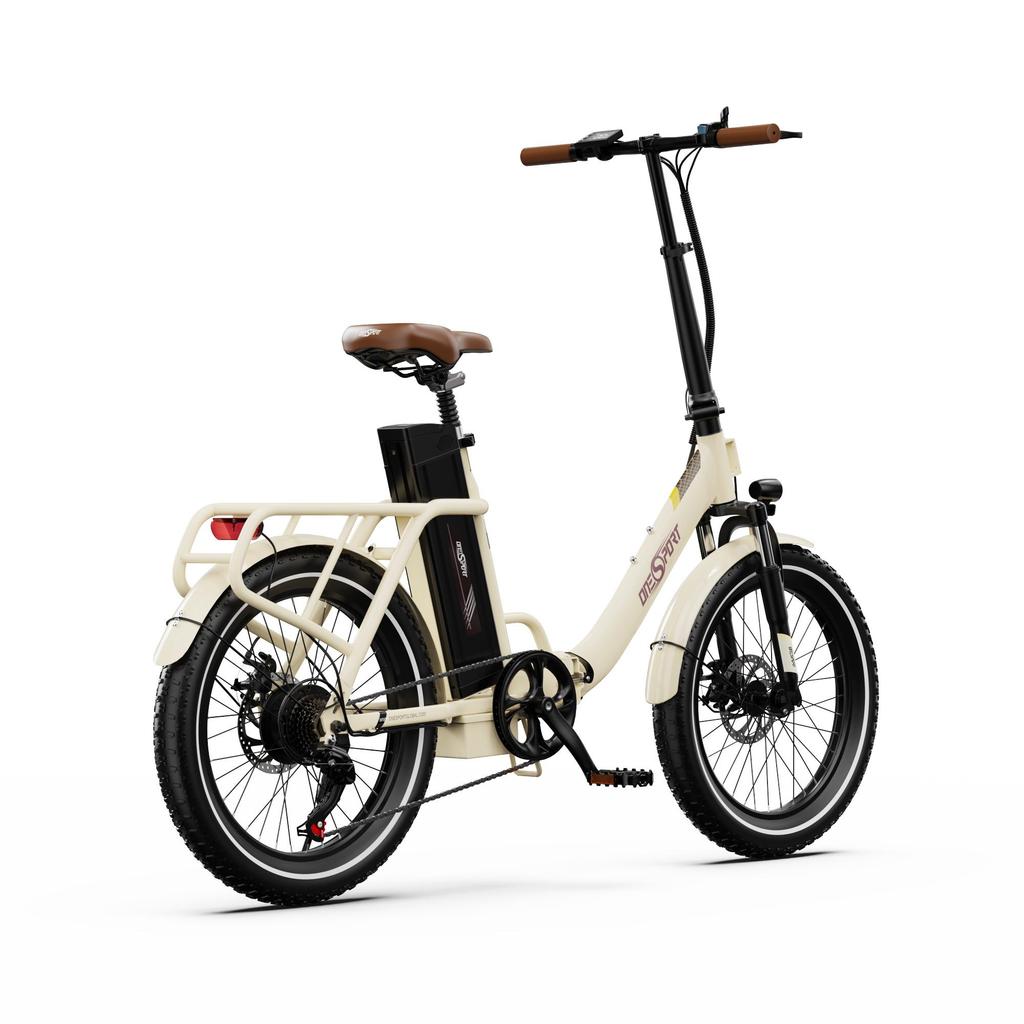

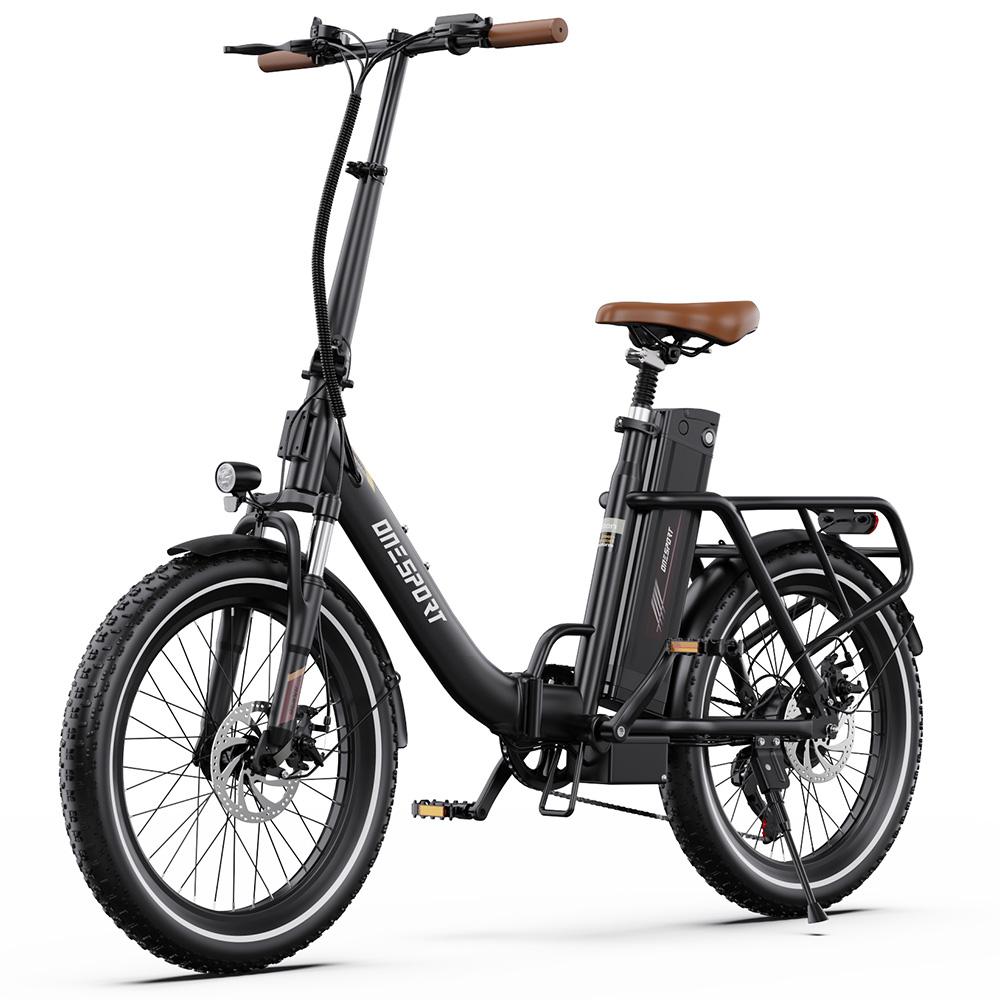

ONESPORT OT16 20"x3.0" Foldable Electric Bike
⚡ [250W High-Efficiency Motor] A precisely tuned power system provides smooth and effortless riding assistance, easily handling urban inclines and complex road conditions.
🚀 [25km/h Top Speed] Strictly adheres to electric bicycle safety standards, ensuring both commuting efficiency and riding safety and regulatory compliance.
🔋 [48V 17AH High-Performance Battery] Equipped with a high-energy-density lithium battery and an intelligent battery management system, achieving long-lasting range and stable power output.
🛣️ [50-60km Pure Electric | 100-120km Assisted] Pure electric mode meets daily commuting needs, while assisted mode extends the range to over 100km, easily handling long-distance riding requirements.

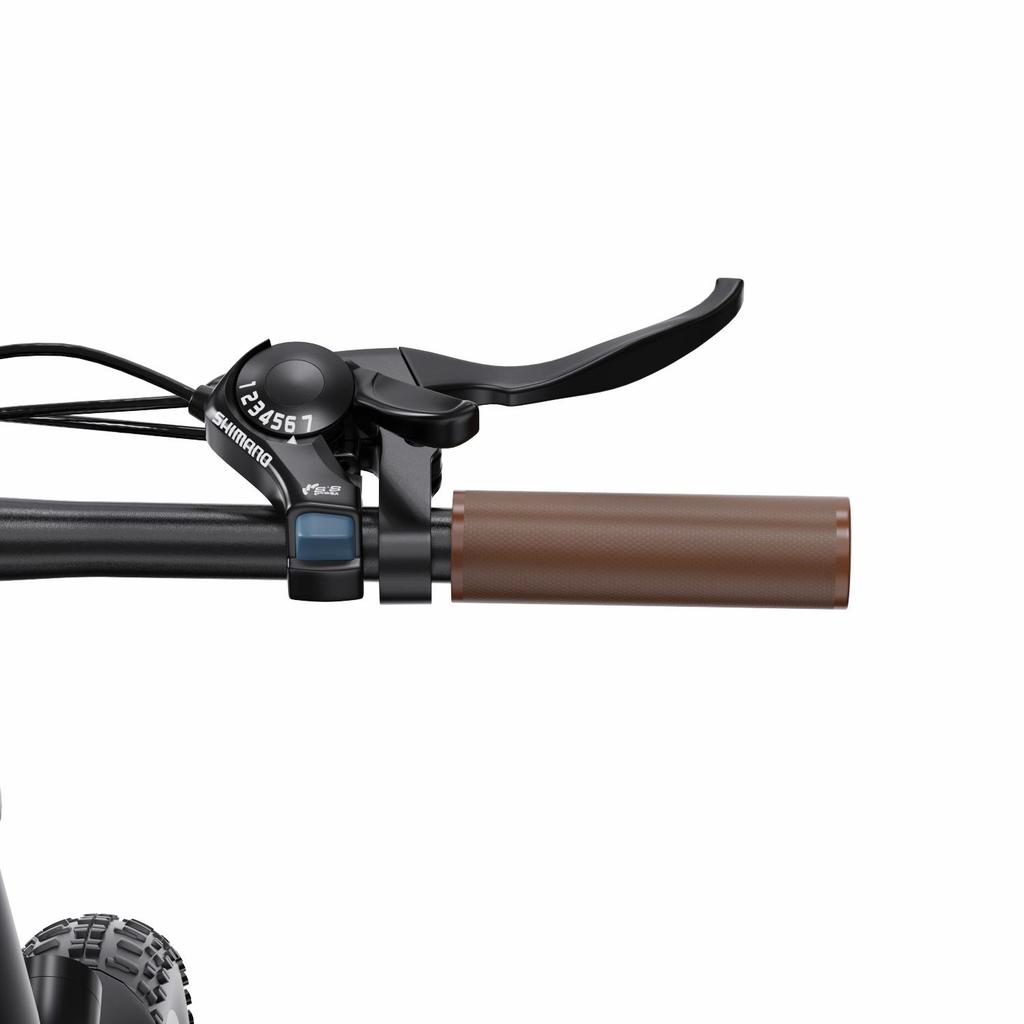

⚙️ [Shimano 7-Speed Shifting] A professional-grade shifting system provides precise and smooth gear changes, allowing you to flexibly adjust your riding pace according to road conditions.
💪 [Maximum load capacity 150Kg] The reinforced alloy frame and load-bearing structure ensure stable riding performance and safety even when fully loaded.
Product Specifications:
Frame: 20-inch folding steel frame
Color: Black/Brown, Beige
Waterproof Rating: IPX5
Battery: 48V 17AH (EVE 18650 cells)
Motor: 48V 250W
Speed: Shimano 1*7 speed
Instrument panel: 2.4-inch LCD screen
Bluetooth: Supported"
Riding modes: Pedal assist mode (speed sensor), riding mode, pure electric mode
Brakes: Cable brakes
Seatpost: Aluminum alloy
Tires: 20*3.0in pneumatic off-road tires
Fences: Front and rear mudguards
Maximum lift angle: 30°
Charging time: 8-10 hours
Battery dimensions: 380*110*78mm, Net weight: approx. 4kg
Foldable: Foldable
Net weight: 29.7Kg
Gross weight: 36.5Kg
Maximum load: 150kg
Applicable height: 160-200cm
"Maximum speed: 25km/h
Speed limiter removal: Not supported"
Saddle height: 770-900mm from the ground
Charger: 54.6V 2A (Input: 110V-240V)
Controller: Sine wave controller (48V 15A) (Jinghui)
Range: 60km pure electric mode, 120km pedal assist mode (depending on road conditions, speed, and rider weight)
Fork Material: Single-shoulder iron fork and iron legs
Fork Travel: 40mm
Motor Torque: 40Nm
Bluetooth: Supports connection to ONESPORT EBIKE APP
Package Contents:
Charger, Instruction Manual, Tool Bag, Throttle, Pedals, Quick-release Axle, Air Pump, Phone Bag, Bell, Cable Ties
