Features:
The XL6009Boost BuckAdjustable Steps UP Down Power Converters Module offer wide input voltages ranges of 3V to 32V and output ranges of 5V to 35V, making it versatilitys solution for various power supply needs.
Featuring high conversion efficiency up to 94% and low output ripples, this module ensures stable voltages output with minimal interferences to sensitive electronics.
Ideal for electronics enthusiasts, DIY hobbyists, and engineers, this module provides reliable power management for diverse projects and experiments.
Perfect for applications such as LED driving, battery charging, electronic experiments, and prototypes development, the XL6009 module integrates seamlessly into any project requiring adjustable voltages regulation.
With its compactly design and efficient performances, this power converters module is essential component for anyone look to optimizes their electronic devices' power supply systems.
Specifications:
Material: Plastic

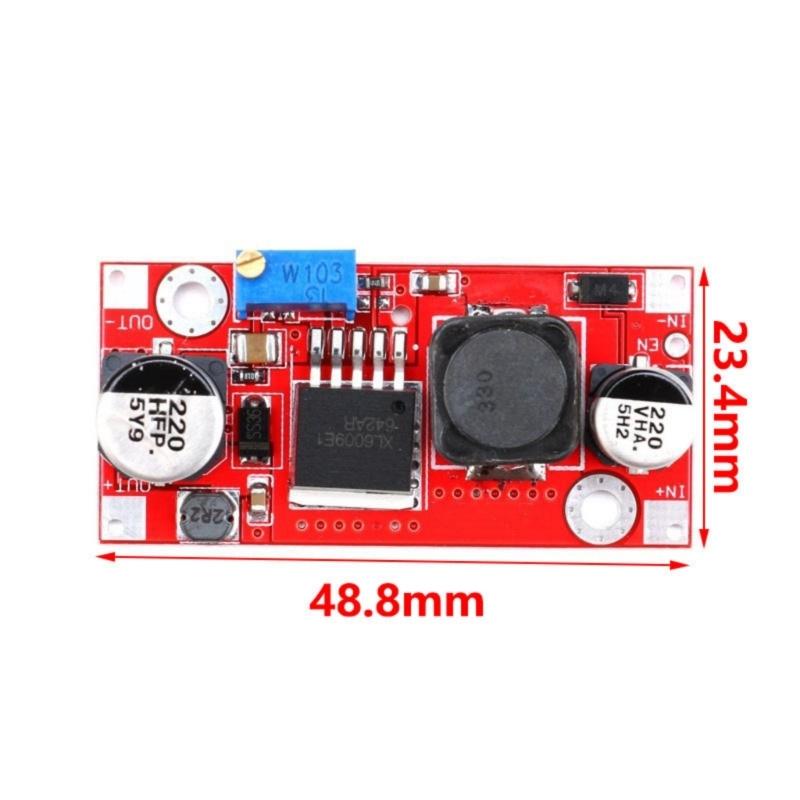

Size:Approx.49x23.4x11.4mm/1.93x0.92x0.45inch
Option Type:1pc Power Converters Module,3pcs Power Converters Module;
Input voltages:5-32V
Output voltages: (1) continuously adjustable (5-50V)
Output Current: 2.5A (Most)
Input Current: 4 A (Most)
Output power: natural cooling 15W, plus heat sink 25W (Most) real power
Operating temperature: Industrial (-40℃ to + 85℃) (ambients temperature exceeds 40 degrees, lower power use, or to enhances heat dissipation)
Full load temperature rise: 45℃
Operating frequency: 400khz
Load current: 5V turn 12V 15mA, 8.4V turn 12V 7mA, 12V switches 24V 9mA, 12V switches 36V 18mA, 24V switches 48 V 9mA, 24V switches 36V 6mA.
Load regulation: ±0.5%
Voltages regulation: ±0.5%
Dynamic Response speed: 5% 200uS
Short circuits protections: None (Please install fuse or protections circuit input)
Package Includes:
Package A
1pc Power Converters Module
Package B
3pcs Power Converters Module
