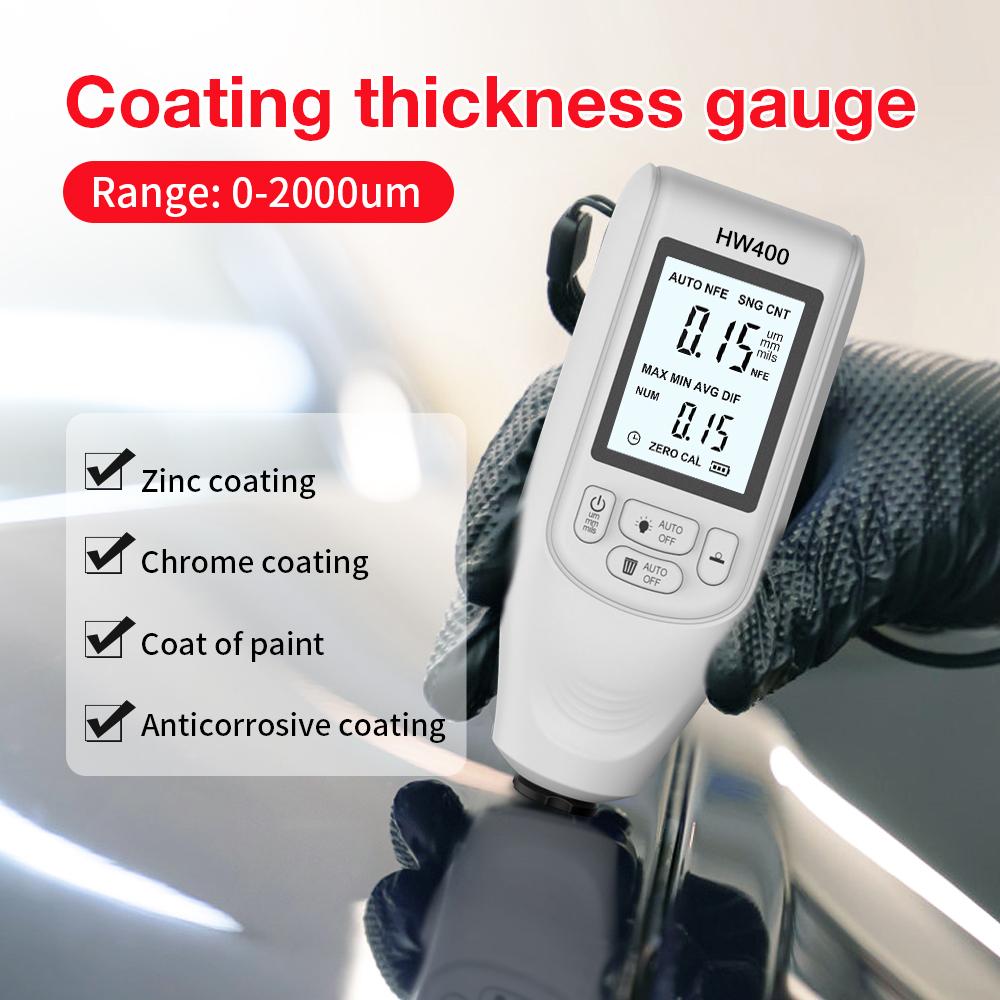

Portable 0-2000um Coating Thickness Gauge Digital Metal Coating Thickness Tester Iron Nickel Automatic Coating Tester for Car

Battery Included : No High-concerned chemical : None Model Number : HW400/HW400S Origin : Mainland China

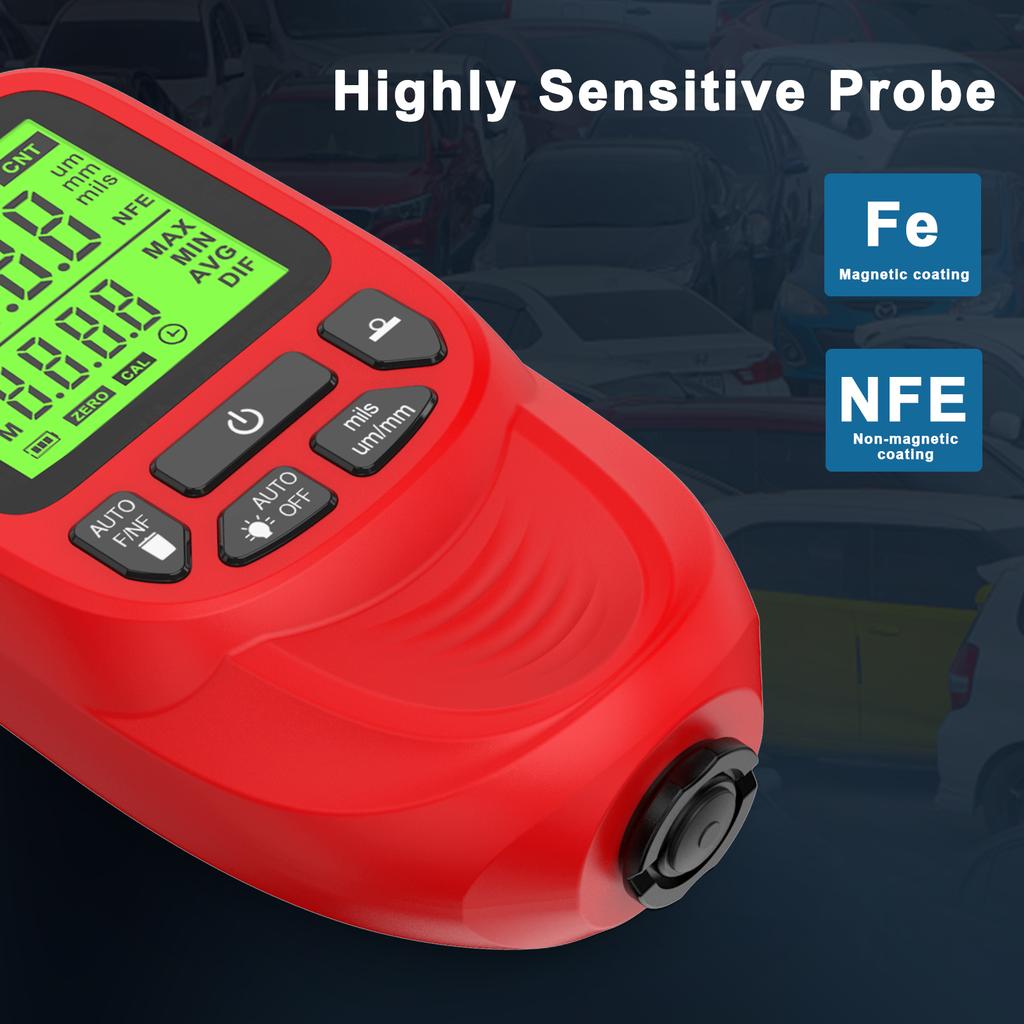

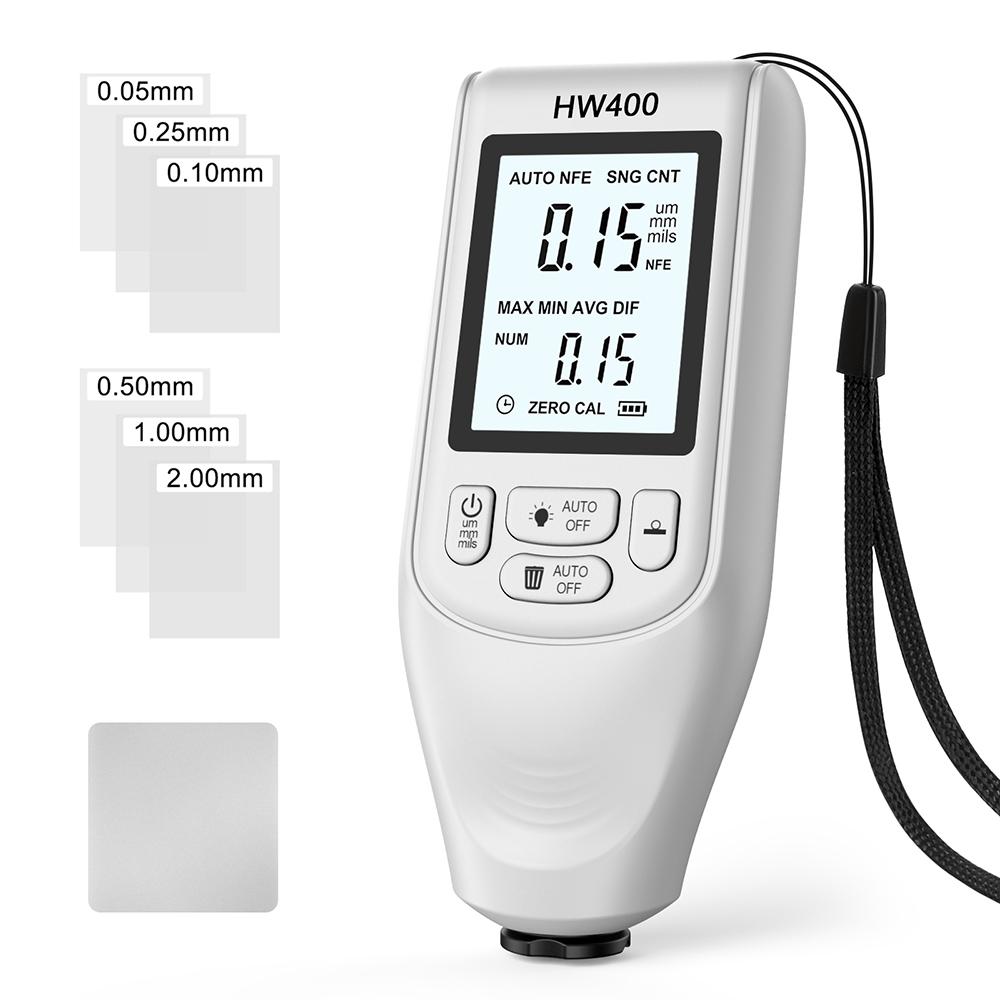

Portable 0-2000um Coating Thickness Gauge Digital Metal Coating Thickness Tester Iron Nickel Automatic Coating Tester for Car This product is mainly used to measure the thickness of non-conductive coating on metal surface, as well as the thickness of non.ferromagnetic coating on ferromagnetic metal (such as iron, nickel, cobalt, etc., such as paint thickness on automobile surface coating thickness of metal parts and so on. This product also has built-in magnetic induction and vortex double principle probe,can automatically identify the measured metal substrate, only need to be placed on the measuredsurface,can automatically calculate the thickness ofthe coating Model: HW-400 Material: ABS Resolution: 0um~99.9um(0.1um) 100um~999um(1um) >1000um(0.01mm) Measuring range: 0-2000μm Measuring accuracy: ±(3%+1μm) Power supply: 2*1.5V AAA (not included) Operating Temperature: -10℃~+50℃ Colour: black/white Model: HW400S Material: ABS Resolution: 0um~999um(1um) Measuring range: 0-2000μm Measuring accuracy: ±(3%+1μm) Power supply: 2*1.5V AAA (not included) Operating Temperature: 0 ~ 50 °C 20 ~ 90%rh (non-condensed) Colour: black/white/red Measurement step Step 1. Prepare the parts to be tested. Step 2. Stay away from the metal object at least 2 cm, press the switch key to turn on. Note: it is suggested that the instrument should be zeroed with reference to "zero calibation" before testing. Step 3. The probe is placed vertically and quickly on the surface to be measured until the drop is heard, and the measured value is displayed on the screen, and then the probe is lifted at least 2 cm away from the part to be measured, and the next measurement can be carried out.

Note: if the automatic shutdown function is turned on and there is no operation within 3 minutes, the instrument will automatically shut down HW400S
