Features:
Configure HDMI USB2.0 two way output, support PC links, support for Windows XP 7 8 10 system.
Image sensor with 340,000 pixels, full HD and 180 times magnification, is suitable for observing the internal structure of small things.
56 LED adjustable compact microscope ring lamp can provide strong and focused shadowless lighting.
The image has high resolution, clear picture quality, white balance, exposure and color can be adjusted automatically.
Screen display supports English, Chinese, French, Spanish, Portuguese.

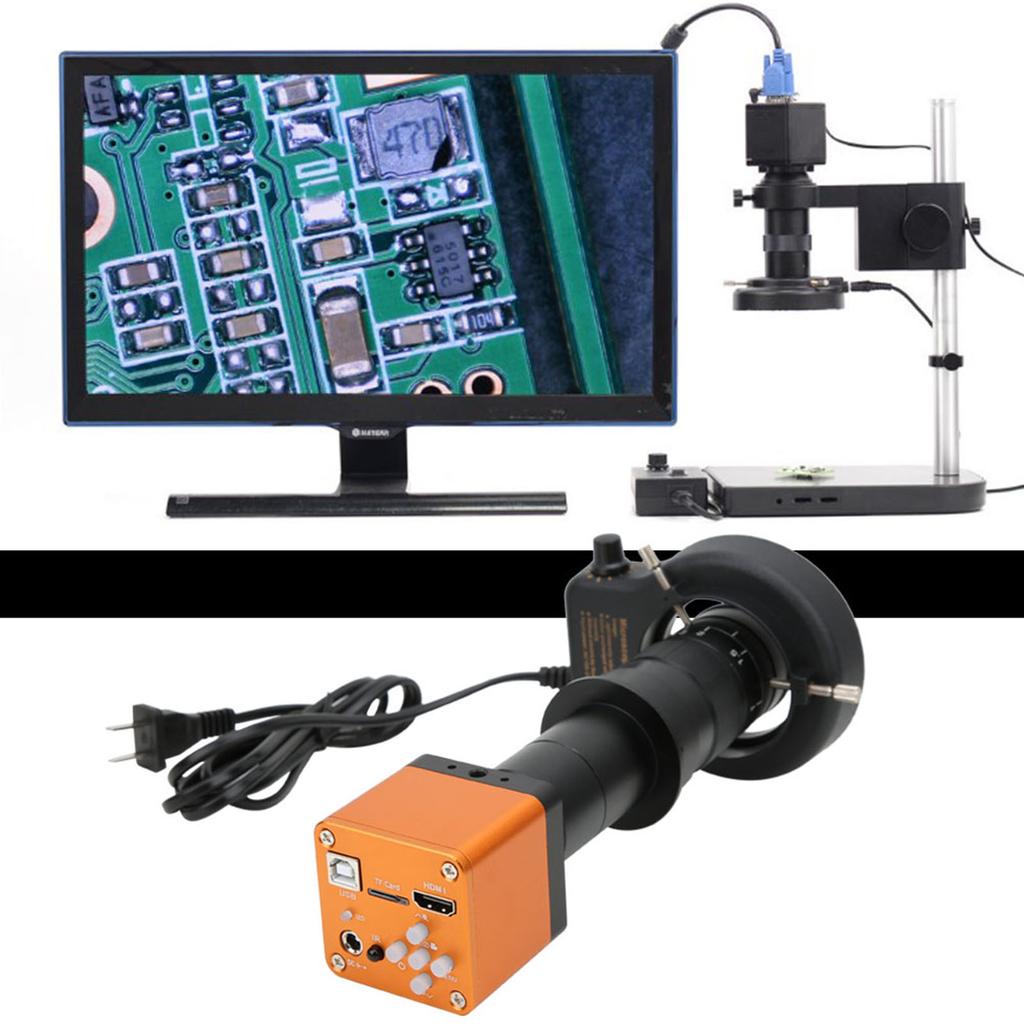

This high definition industrial microscope is especially suitable for observing the micro structure of the surface of large objects.
It is very convenient to install and use, and is widely used in microelectronics, mould, accuracy machinery and other fields.
Specification:
Condition: 100percent Brand New
Material: Aluminum Alloy
Plug: EU Plug, US Plug (Optional)
Model: Camera with HDMI USB2.0 2 Way Outputs
Image Format: JPG
Image Resolution: 4608x3456 (For Memory Card), 1920x1080 60FPS (For Memory Card)
Video Format: MOV (Memory Card)
Video Recorder: 1920x1080 60FPS (Memory Card)
USB Video Resolution: 1920x1080 30FPS
White Balance: Automatic
Light: Automatic
Color: Color
Negative: Support
Error: Left Right, Up Down
Freeze: Support
OSD: English Chinese French Spanish Portuguese
Lines: Different Colors, 5 Horizontal Lines, 5 Vertical Lines, Any Position
Image Sensor: 340,000 Pixel Sensor 1 2.3 Inches
Effective Pixels: 340,000 Pixels
Pixel Size: 1.43x1.43um
Frame Rate: 60fps
Definition: Full HD
Housing: Metal
Lens: CS for Testing, Custom Supply
Video Format: MP4, AVI
Code: H.264
Digital Magnification: 5x Digital Zoom
Brightness Control: Automatic Manual
Color: R G B Adjustable
Movies And Records: Support
Cross Cursor: Support Multi Color, Adjustable Size
Horizontal And Vertical Lines:
Support Multi Color, 5 Horizontal Lines Vertical Lines, Removable
Different Colors, 5 Horizontal Lines, 5 Vertical Lines, Any Position
Signal To Noise Ratio: Support
Memory Card Interface: Up to 64G (Not Included)
HDMI Interface: Standard HDMI Output (Type A)
Lens: C CS
USB Interface: Standard Usb2.0 Interface (Type B)
Working Distance: 55mm 125mm
Field Of View: 4 20mm
Zoom C Mount Lens
Zoom Ratio: 15:1
Magnification: 180x
Power Input: 100 240V, 50 60HZ, Automatic Switching
Ring Lamp Inner Diameter: Approx 27mm 1.0in
Overall Outer Diameter: Approx 45mm 1.8in
Working Distance: Approx. 27mm 160mm
Remote Control Battery: 1 x CR2025 Battery (Battery Not Included)
Package List:

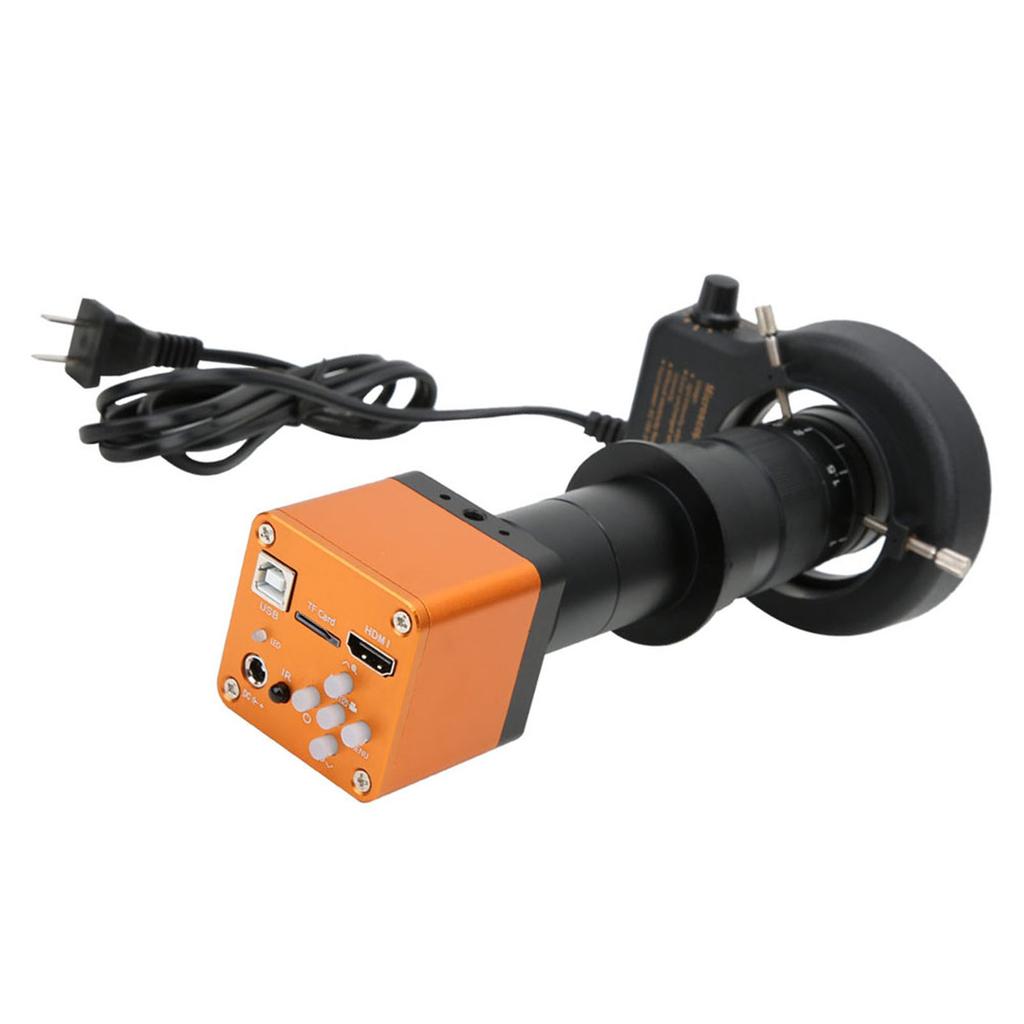

1 x 34MP Microscope Camera
1 x 12V Power
1 x 180x C MOUNT Lens
1 x 56 LED Ring Light
1 x USB Line
1 x HDMI Line
1 x Remote Control (Battery Not Included)
1 x Disc
.
