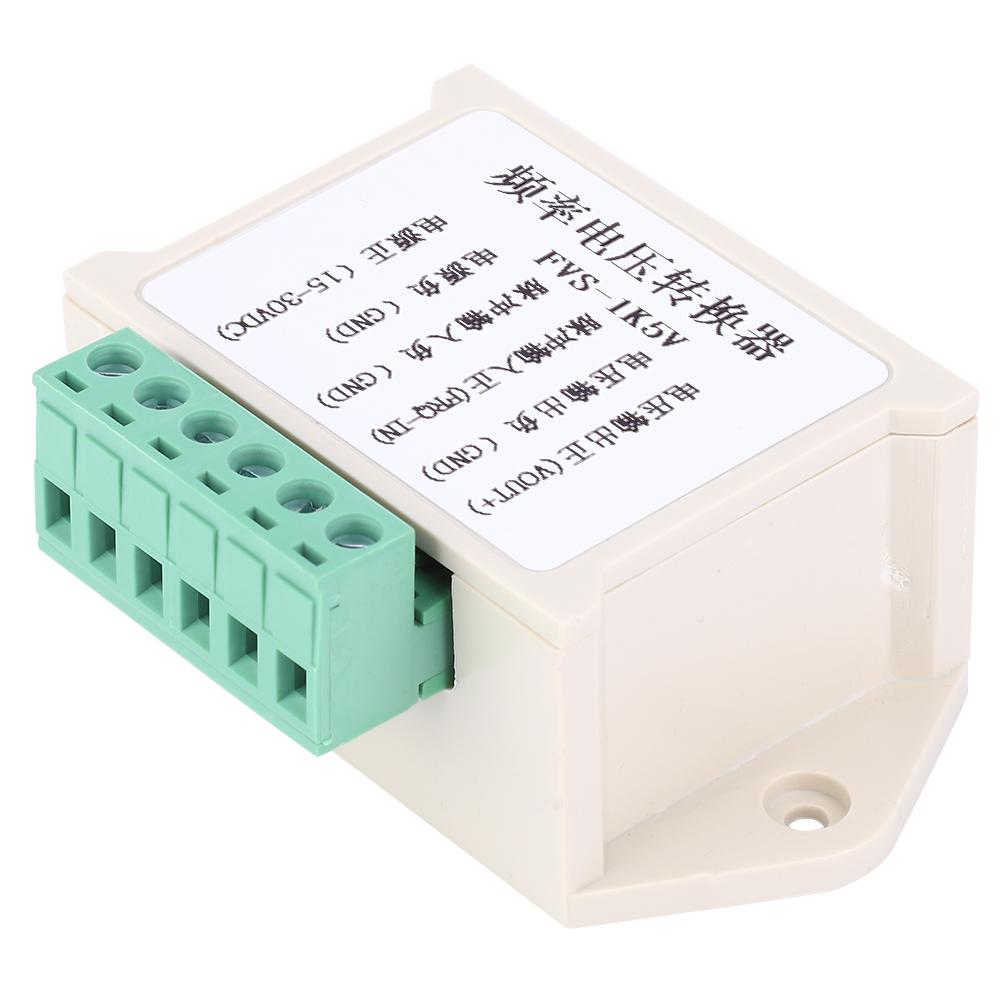

Frequency To Voltage Signal Conversion Module F V Converter Module with Housing (FVS 1KHz 5V)

Features: 1. Convert the 0 1KHz frequency pulse signal into an analog voltage signal of 0 5 10V. 2. Can be used to Convert interface between PLC and frequency, Or movement control card and converter interface matching control occasions. 3. Input pulse level is 5V 12V 24V can be directly input, no string resistor. However, the input signal frequency should be maintained for more than 0.5 seconds. 4. The output current is 5MA. 5. Frequency and voltage conversion module, response time is about 0.3 0.5 seconds. Specification: Condition: 100percent Brand New Item Type: Frequency To Voltage Conversion Module Optional Model: FVS 1KHz 5V, FVS 1KHz 10V Function: FVS 1KHz 5V: Input 0 1KHz frequency is converted to 0 5V FVS 1KHz 10V: Input 0 1KHz frequency is converted to 0 10V Output Current: 5MA Response Time: 0.3 0.5 seconds Size: Approx. 7.3 x 5 x 2.8cm 2.9 x 2 x 1.1in Package List: 1 x Frequency To Voltage Conversion Module Precautions for use: 1. The multi turn potentiometer on the board is used to calibrate the corresponding relationship between frequency and voltage. 2. The input power supply voltage range is 12 30VDC. It is recommended that the power supply voltage be 15 24VDC. When the 12V level is used, the power supply cannot be powered by 12VDC. At least 15VDC power supply is required. If you need to use 12V power supply, you can also order 12VDC. Powered converter. At 24 levels, the power supply needs to be powered by 24VDC 3. The signal input is isolated by diaphragm. Guaranteed anti interference ability. 4. For use with PLC, support NPN type. Must have a ground wire. 5. If you need to use an encoder, the encoder should be rotated at a constant speed for more than 0.5 seconds. 6. Frequency and voltage conversion module, response time is about 0.3 0.5 seconds. 7. If the signal input is turbine flow, etc., due to signal matching, an 817 diaphragm and a resistor must be added to match the flowmeter to normal function. 8. When using the correspondence, if there is a deviation, you can adjust the blue potentiometer on the board to adjust. At the time of shipment, we have adjusted the F V potentiometer to a certain correspondence. It is generally not recommended to adjust it by itself. Identification and Wiring: 1. 12 30V Power input positive 2. GND Power input negative (common ground wire) 3. GND Pulse frequency input negative (common ground wire ) 4. 0 10KHZ Pulse frequency input is positive 5. GND Pulse frequency input negative (common ground wire ) 6. 0 10V Analog 0 10V level output Correspondence & Linear Relationship:

Frequency

FVS 1KHz5V Output Voltage FVS 1KHz10V Output Voltage 100Hz 0.5V 1V 500Hz 2.5V 5V 1KHz 5V 10V
