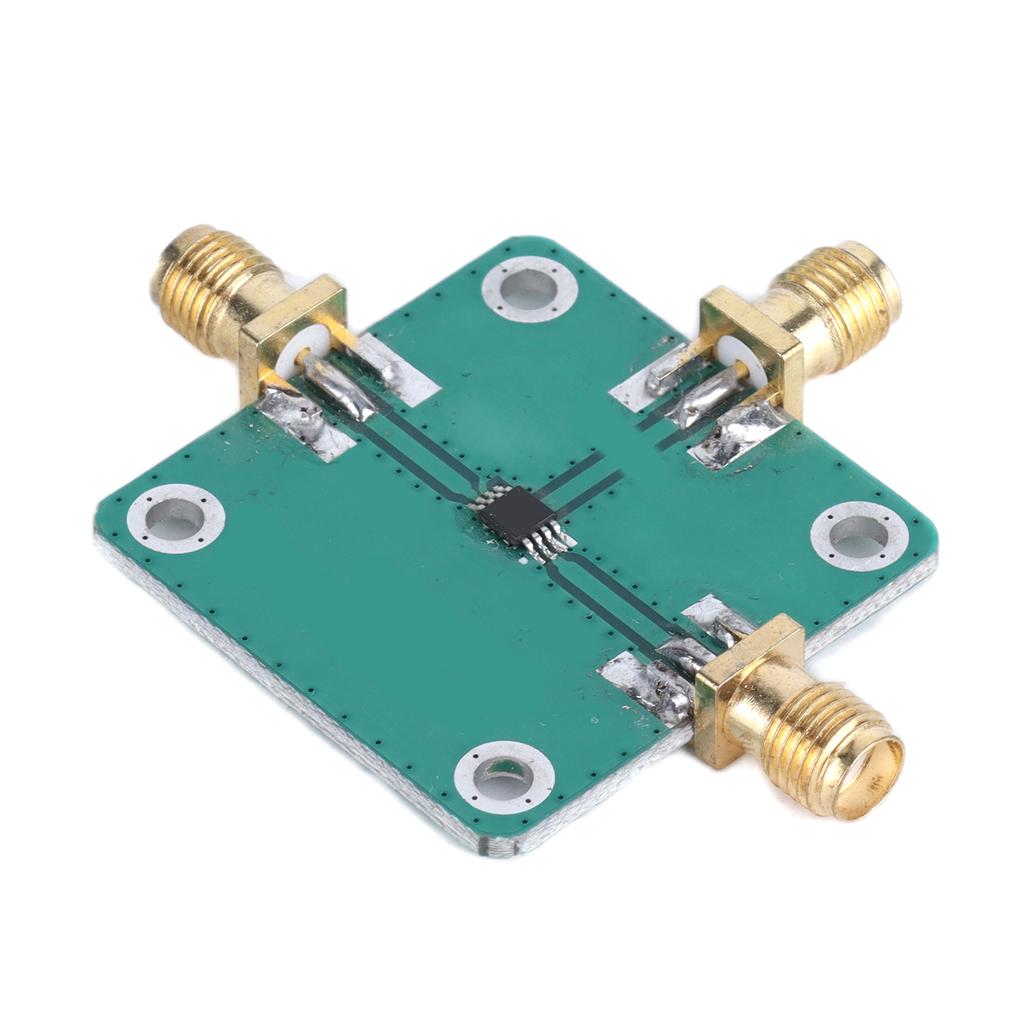

Double Balanced Mixer Module Microwave RF Mixing Transducer RFin=1.53.8GHz RFout=DC1.0GHz

Feature: 1. The interior is composed of double balanced microwave diodes, come with high reliability 2. Typical 38dB port isolation between local oscillator and RF, which is stable and reliable 3. Using 1.6mm thick PCB double sided board, sturdy and durable, come with long service life 4. The product have large heat dissipation area, possess stable operation and long running time 5. The conversion loss is only 8.0dB, and the noise figure is as low as 8.0dB (SSB). This is a passive device and does not require power supply Specification: Item Type: Double Balanced Mixer Module Material: PCB Purpose: Mixer Power Supply: Passive mixer (no power supply required) RF Input: 1.5 3.8GHz Intermediate Frequency Output: DC 1.0GHz Conversion Loss: 8.0dB Noise Figure: 8.0dB (SSB) Local Oscillator Input: +18dBm Port Isolation: Local Oscillator to RF: 38dB (typical) Local Oscillator to Intermediate Frequency: 28dB (typical) High Input 1P3: 18dBm High Input P1dB: 8dBm Connector Model: Standard SMA female RF Input: RFin port Local Oscillator Input: LOin port (recommended signal strength 13dBm) IF Output: IFout port Maximum Input Value of RF Local Oscillator: 22dBm Maximum Input of Local Oscillator: 27dBm (0.5W). Package List: 1 x Double Balanced Mixer Module Note: Do not use outside the frequency range.
