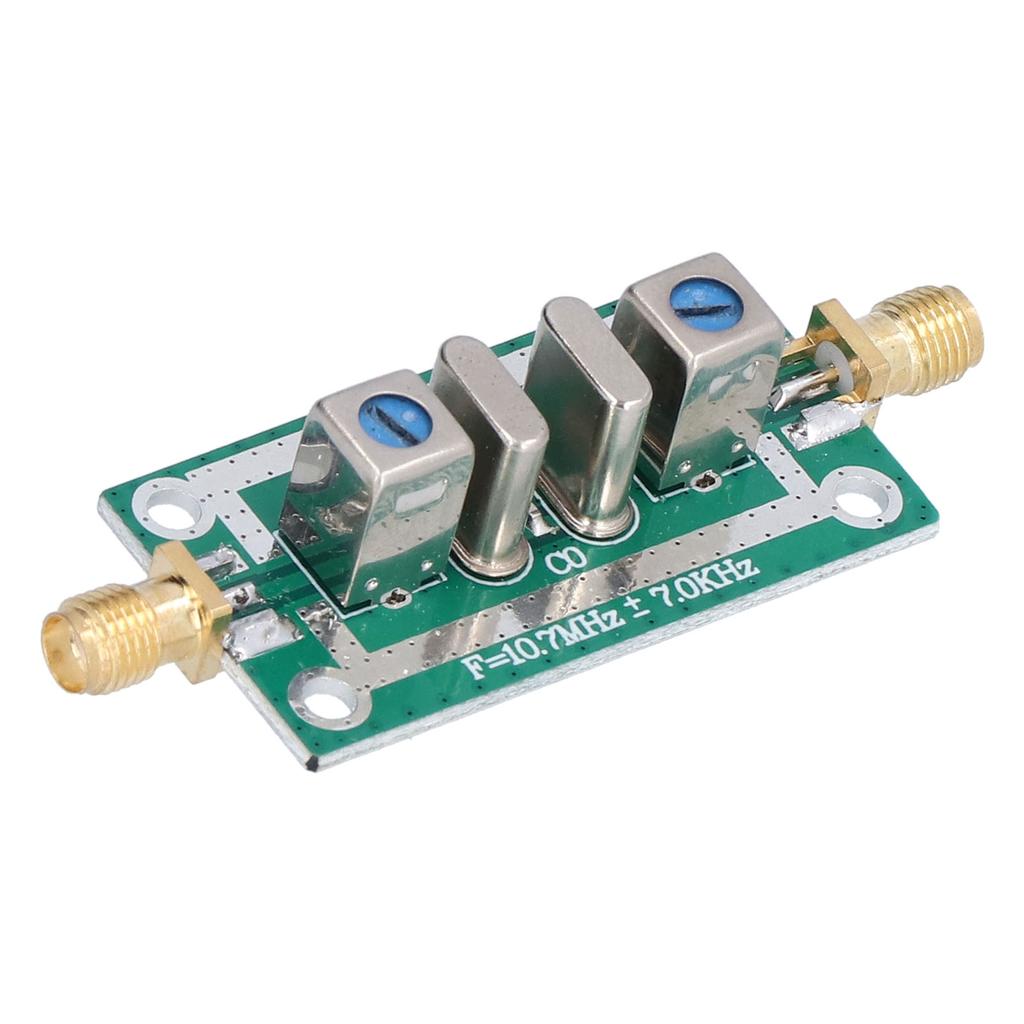

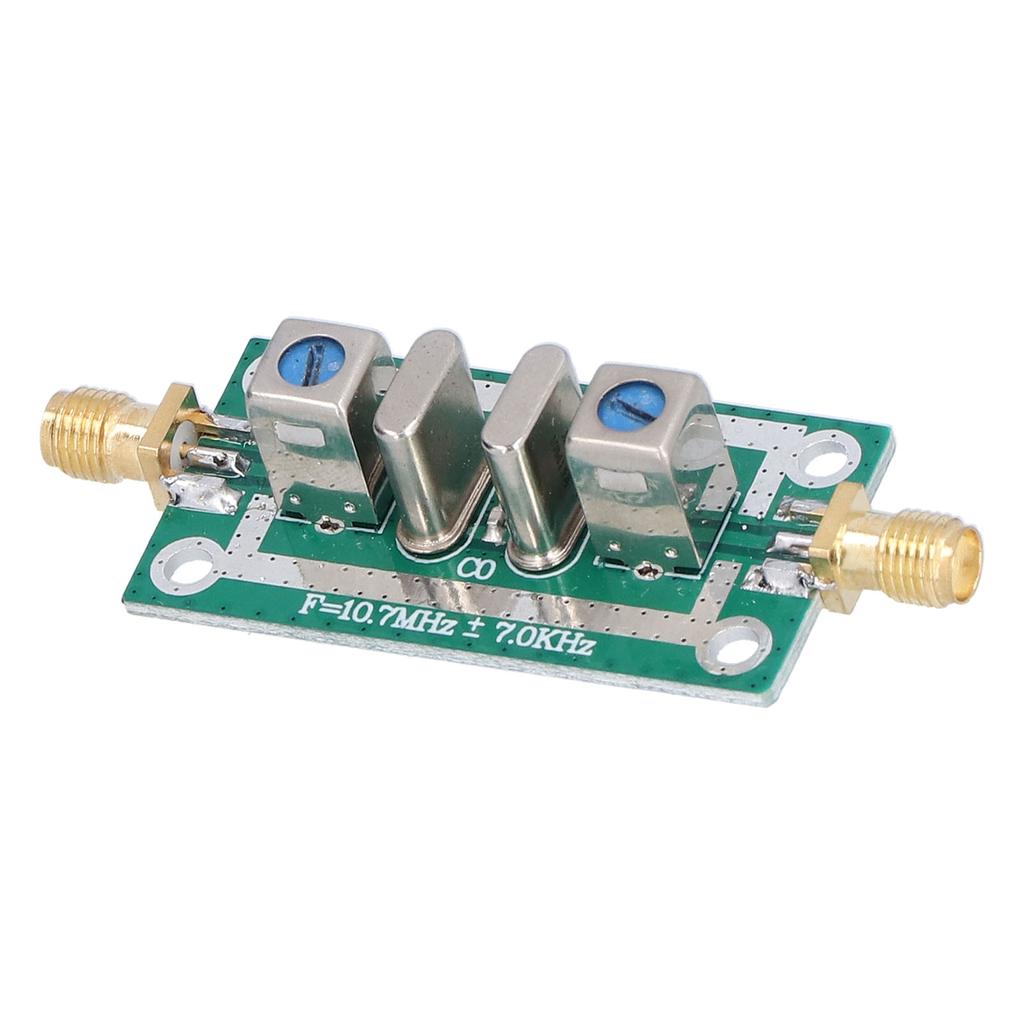

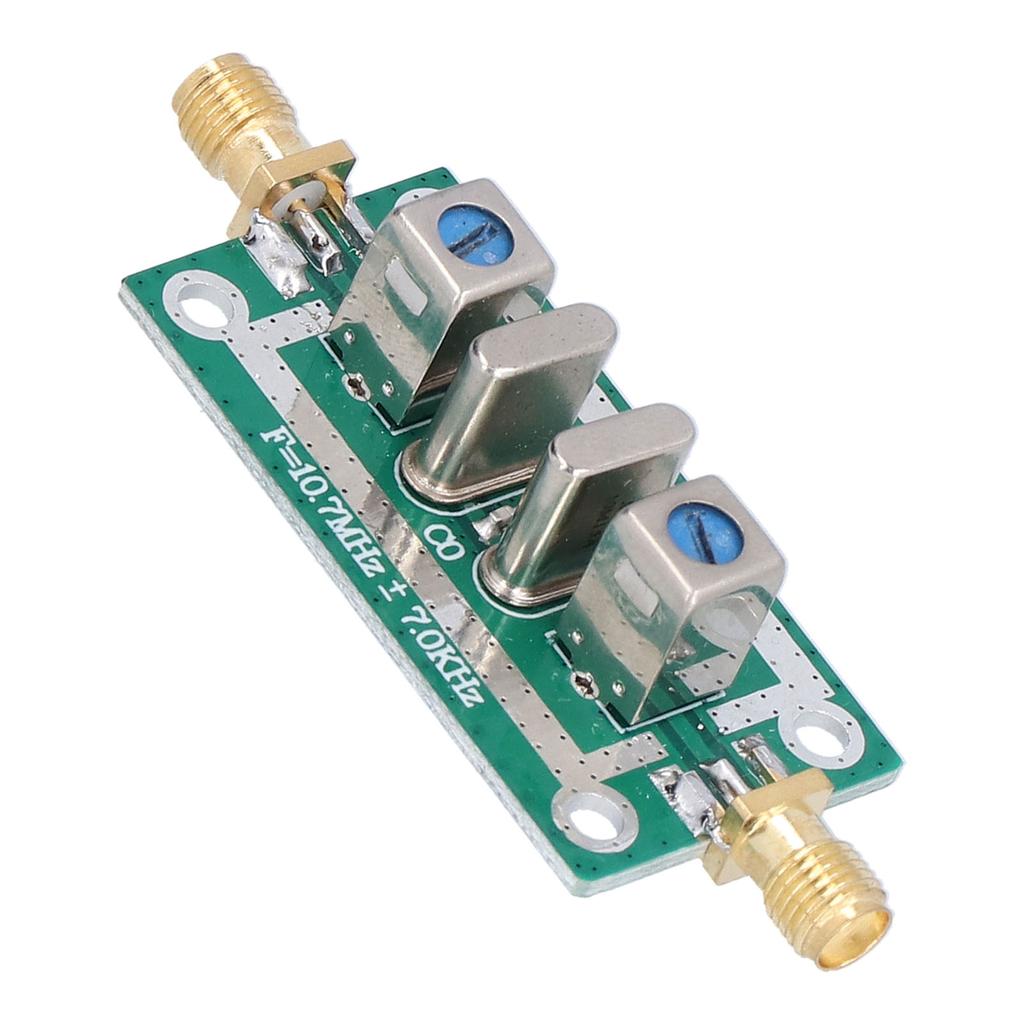

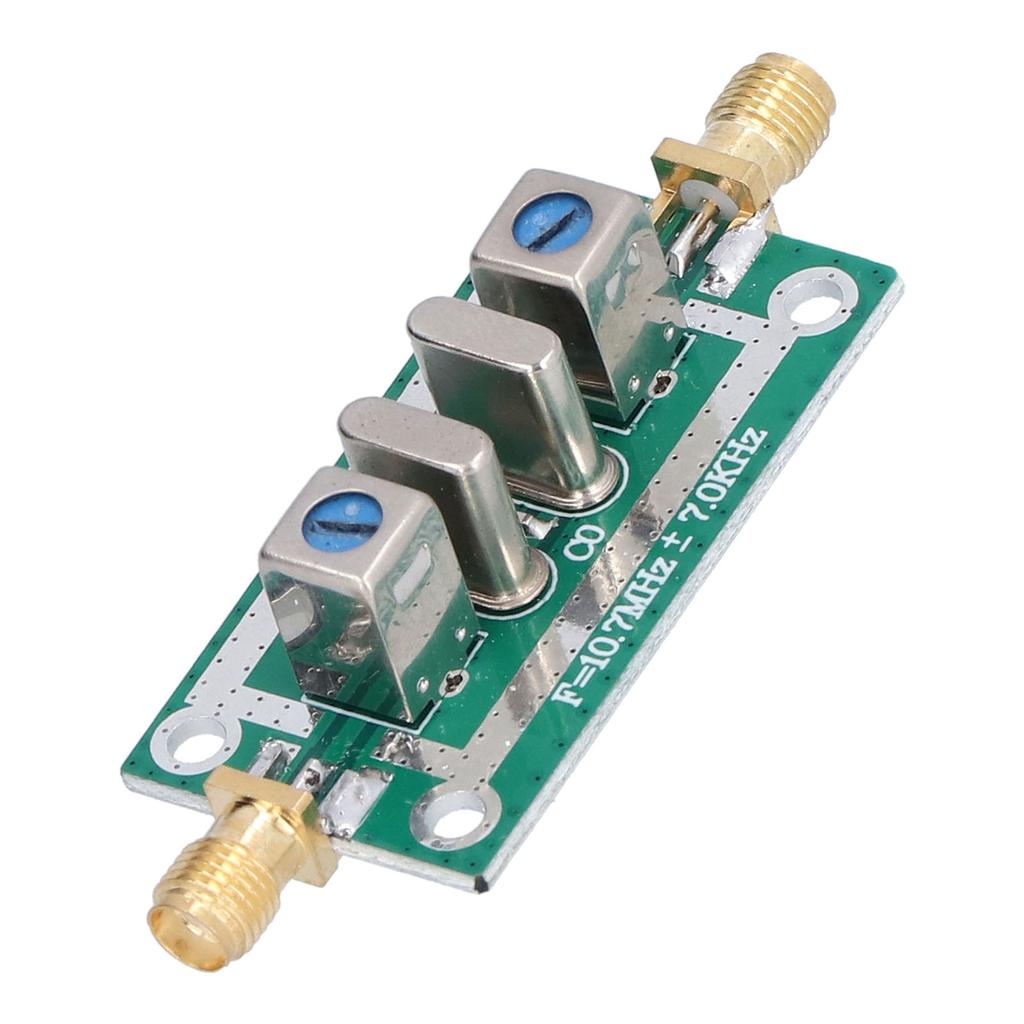

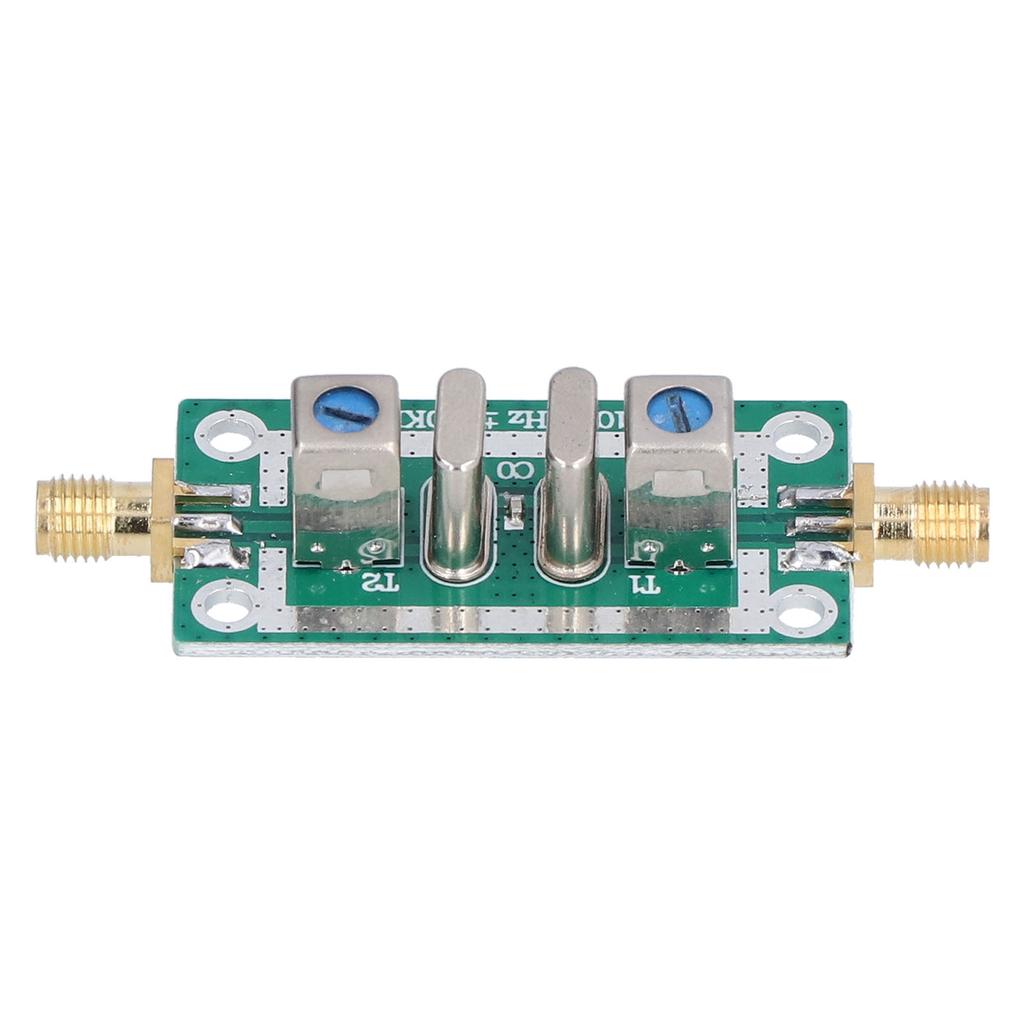

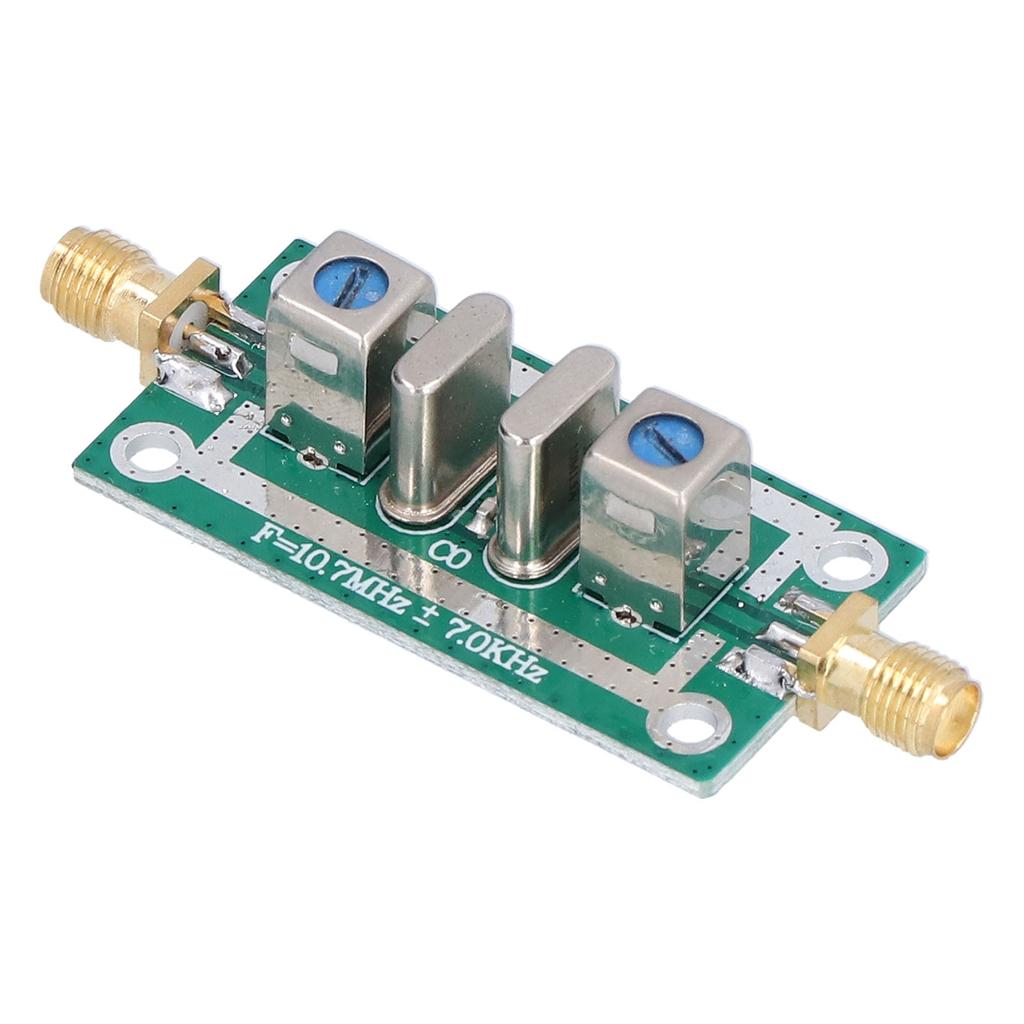

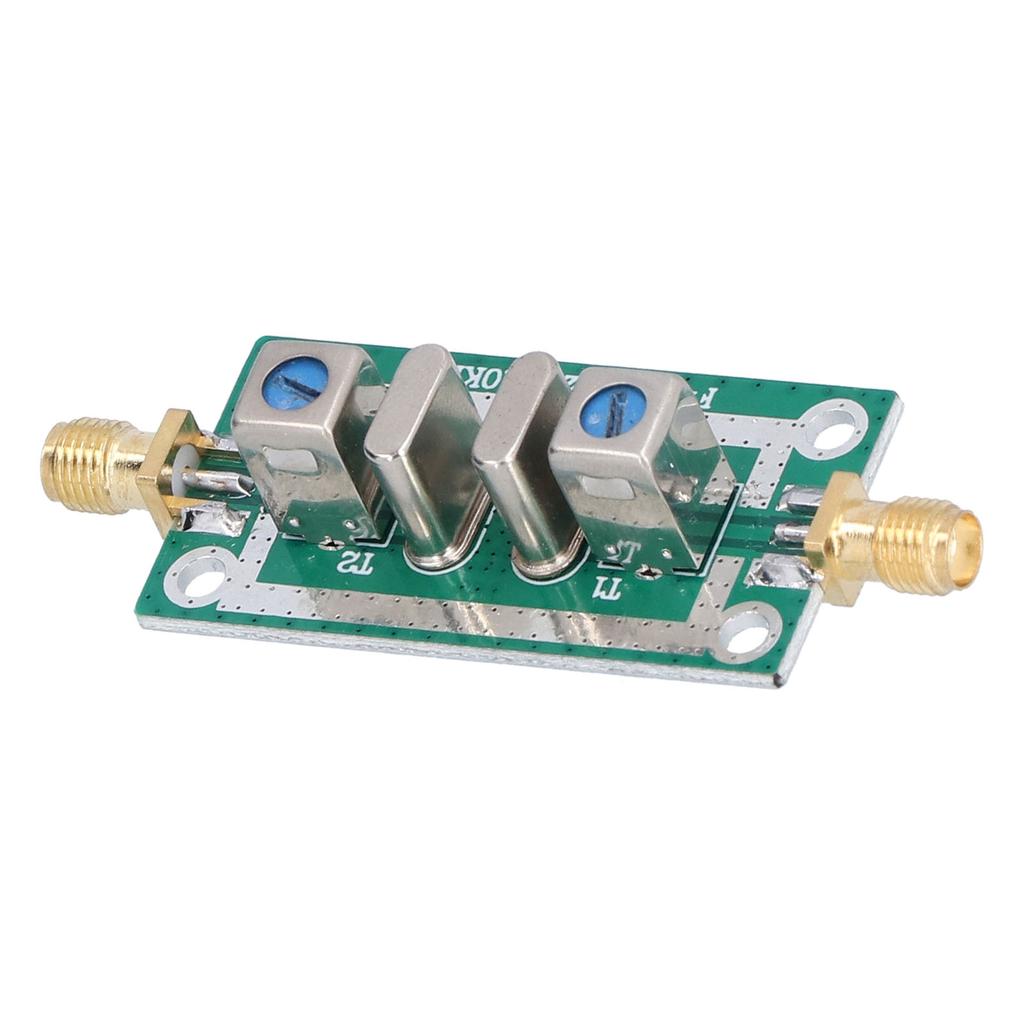

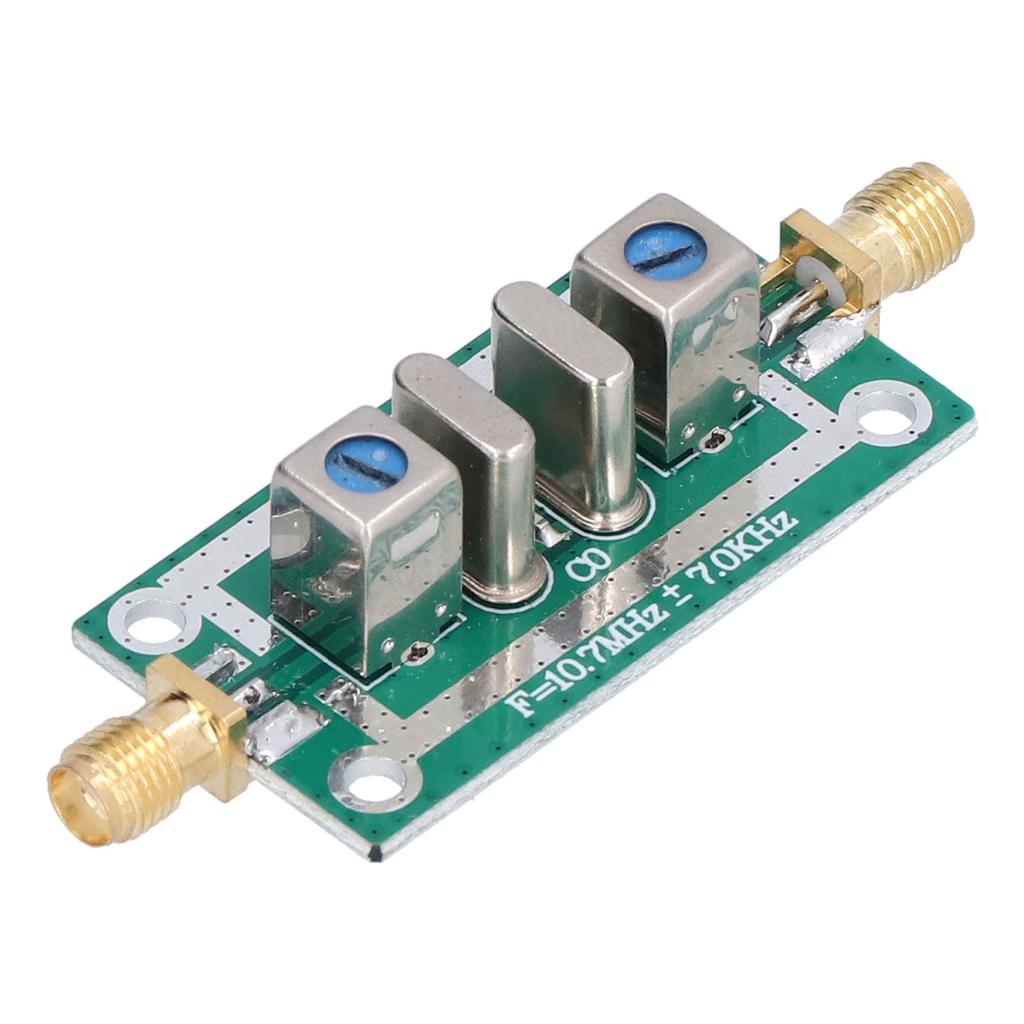

10.7MHz + 7KHz 10.7M Crystal RF Bandpass Filter Narrowband Filter for Special Instruments

Feature: 1. 1.6mm 0.06in thick PCB double sided board, sturdy and durable, long service life. 2. The heat dissipation area is large, the operation is stable, and the operation time is long. 3. 10.7MHz + 7KHz 10.7M crystal filter is easy to use, good performance, small size, easy to carry and store. 4. The input and output direction ports are both 50 Ohm , which are only suitable for 50 ohm systems. 5. The components are precisely matched and require professional instruments to debug. Specification: Item Type: Crystal RF Bandpass Filter Material: PCB + Aluminum Alloy Color: Green + Silver + Gold Purpose: Crystal Filter Working Frequency: 10.7MHz + 7KHz Out of band Suppression: more than 80dB(BW less than 200kHz)

more than 60dB(BW less than 11KHz) Connector Form: SMA KE (Shape Inner Hole) In Band Fluctuation: <1.0dB System Impedance: 50 Ohm Insertion Loss: 2.0dB (Typical). Package List: 1 x Crystal RF Bandpass Filter Note: 1. The input and output direction ports are both 50 Ohm , which are only suitable for 50 ohm systems.2. The components are precisely matched and require professional instruments to debug.3. Any modification may damage the filter.4. The crystal is a precision device, and it is strictly prohibited to knock, shake, overheat and over cool, and warm up.5. Each filter is manually and precisely adjusted, slightly different.
