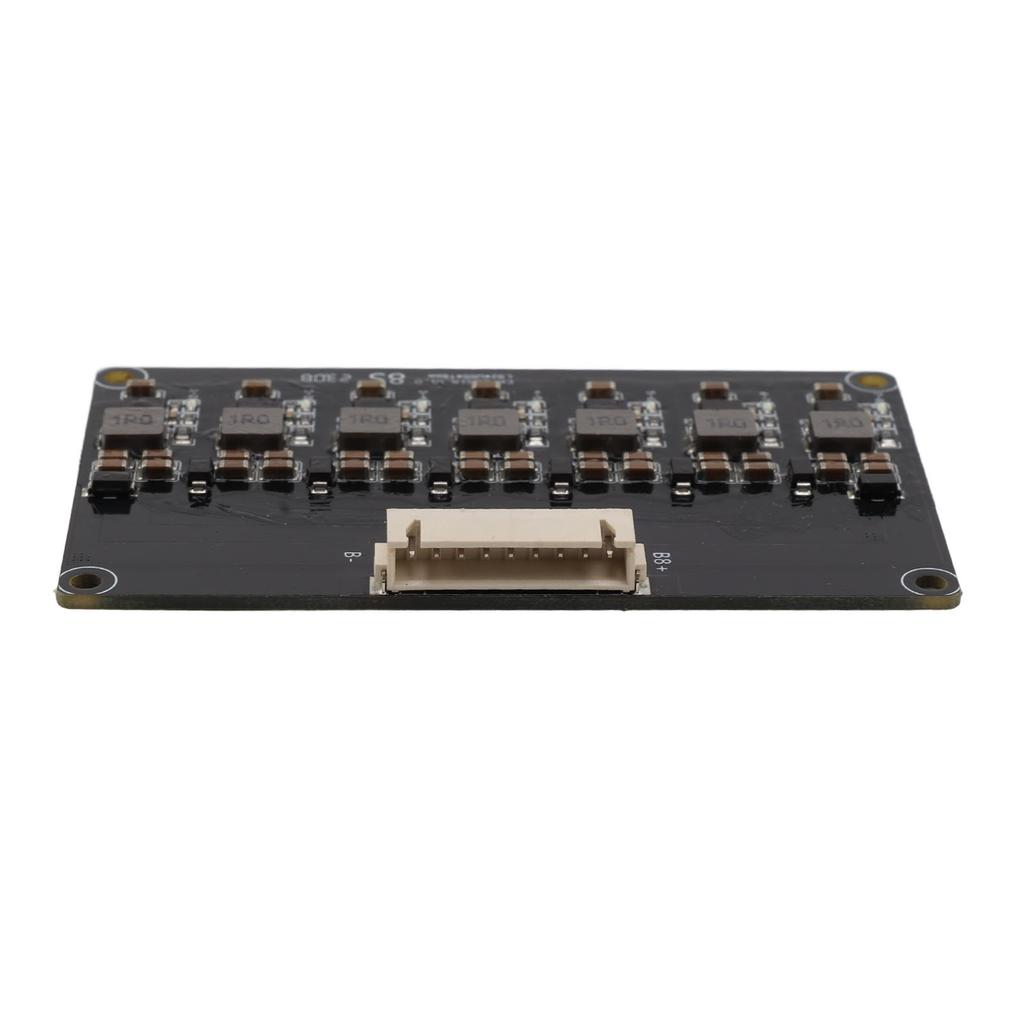

Lithium Battery Equalizer Module 1.2A High Current 8S Battery Active Balance Board 2.0V‑4.5V

Feature: 1. Applicable Battery: This battery equalizer module is suitable for battery packs with a capacity of less than 30AH, commonly used for ternary iron lithium battery. 2. For Battery Pack: The active equalizer module can simultaneously achieve battery pack balancing, significantly balancing battery voltage, efficient and practical. 3. 1.2A High Current: Inductive energy transfer balance board, with 1.2A high current energy transfer, the smaller the pressure difference, the smaller the balance current. 4. With Indication: The equalizer module has a balance indication, light on indicating equalization start, light off indicating circuit sleep, flashing indicating circuit fault. 5. Easy Connection: The lithium battery equalizer module has a compact size, and is equipped with connecting line, making it easy to connect and operate. Specification: Item Type: Battery Equalizer Module Model: EK L8S1A Material: PCB Board Size: Approx.92 x 55 x 8mm 3.6 x 2.2 x 0.3in (excluding line) 1. Balance Indication: A. When the balance light is on, the balance is on. B. The balance light is off, and the balance circuit is dormant. C. The balance indicator blinks, the string indicator is lost, or the circuit is faulty. 2. Balance Principle: The adjacent pressure difference of the module is balanced, and the voltage difference between adjacent batteries reaches more than 0.1V. The internal trigger balance continues to work until the voltage difference between adjacent cells stops within 0.03V. There is an adjacent pressure difference during battery pack charging and discharging. After triggering equalization, the battery pack voltage error will be pulled back to the ideal value, reducing battery maintenance costs. 3. Technical Parameters: Operating Voltage: 2.0V 4.5V Applicable Battery: For ternary lithium iron battery, not suitable for lithium cobalt acid battery. Balance Current: Adjacent pressure difference above 0.1V (current about 0.5 0.7A); Adjacent pressure difference above 0.2V (maximum equilibrium current 1.2A); The smaller the pressure difference, the smaller the equilibrium current. 4. Wiring Definition B . Total negative of the battery pack (negative of the first battery) B1. Positive terminal of the first battery B2. Positive terminal of secondary battery B3. etc.. Package List: 1 x Battery Equalizer Module1 x Connecting Line Note: 1. The board is based on the adjacency balance principle and cannot be used as a maintenance tool.2. Connect the battery together with the lithium protection board.3. The voltage difference generated by charge and discharge triggers the balancing board to work and achieve energy transfer balance.4. There is an error in size.
